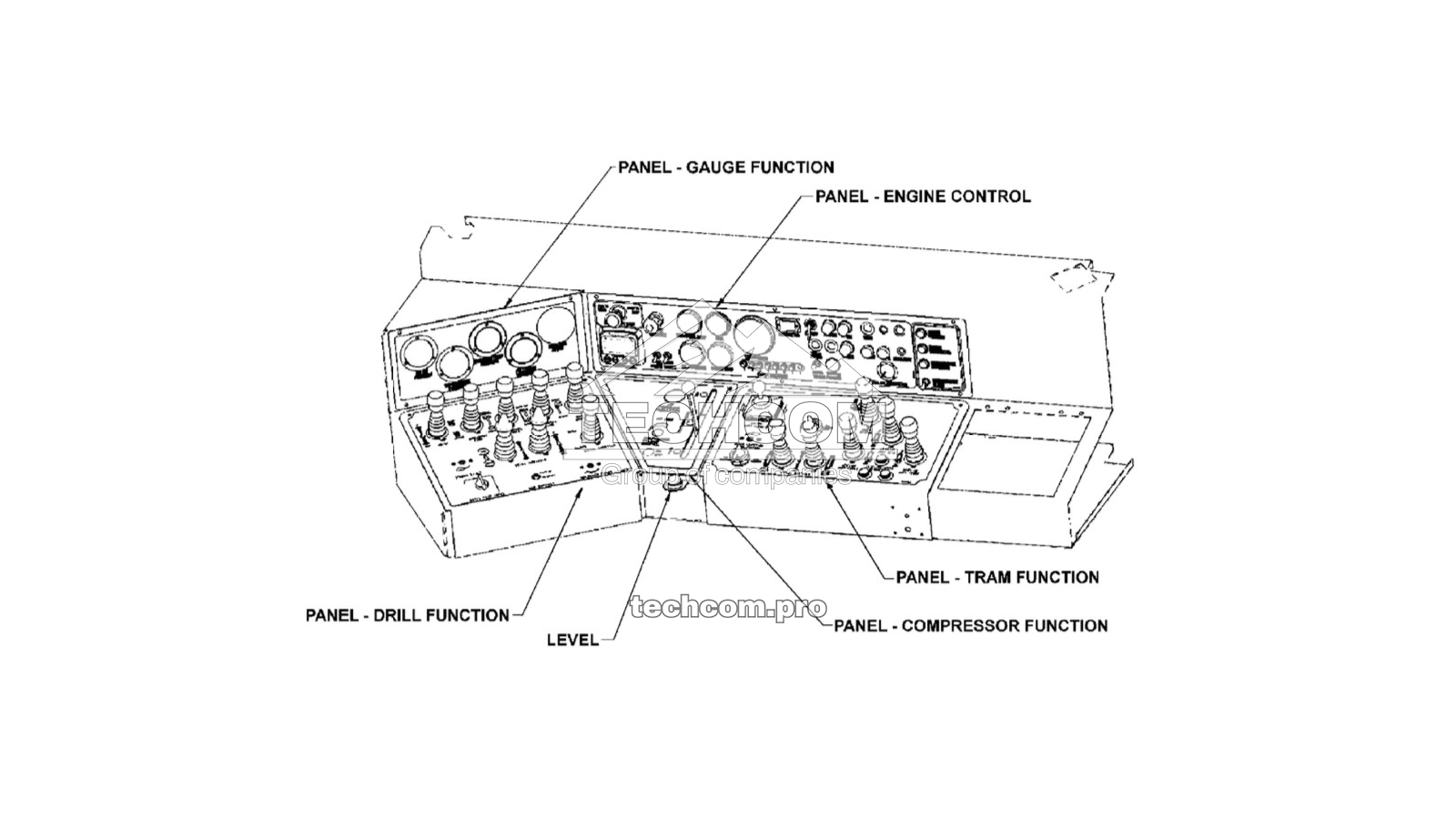

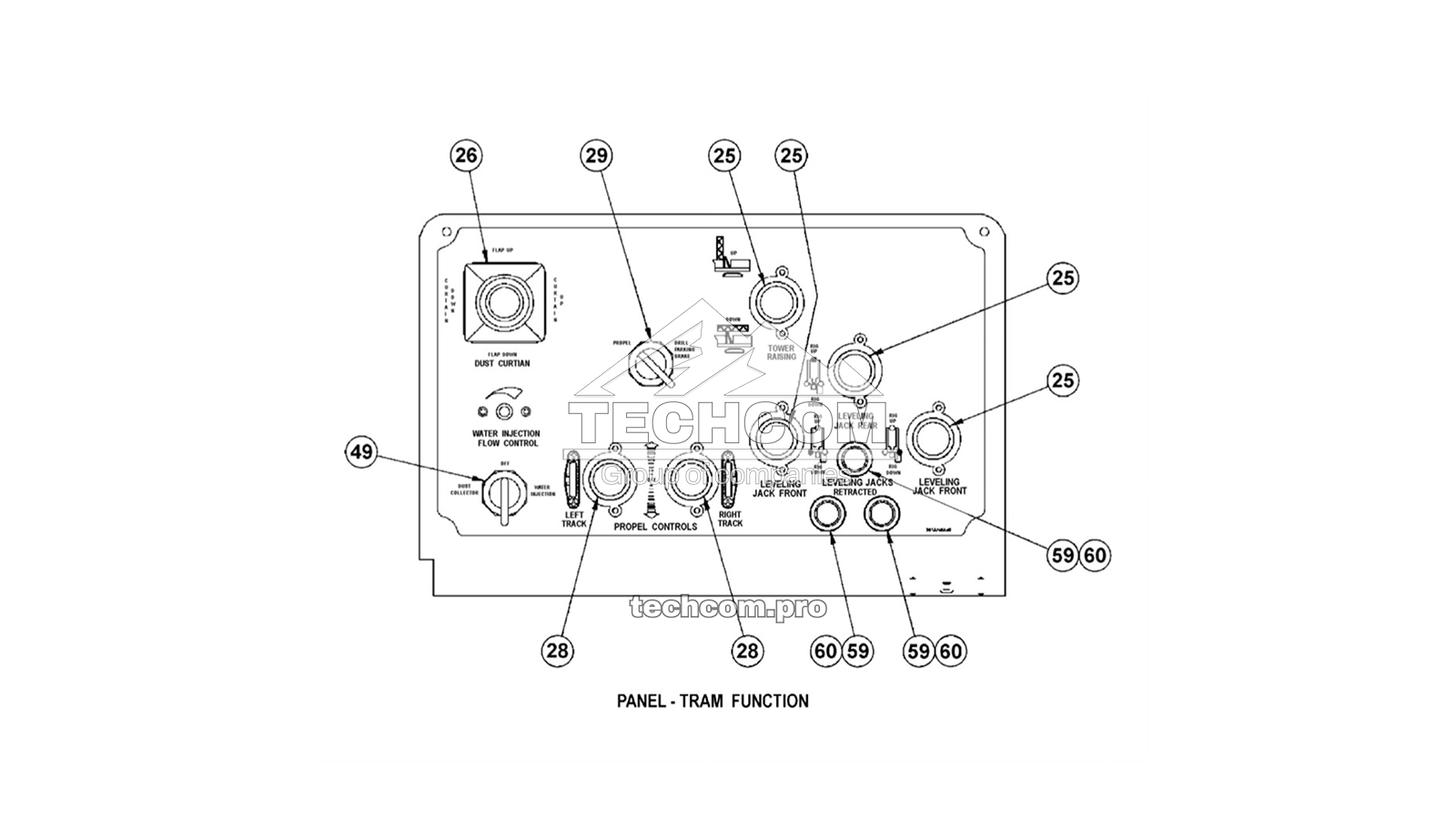

The 57829343 (2657829343) Gauges/Controls, LP, CAT assembly is part of the operator console on the Epiroc DM45/DM50 drill rig. It consolidates pressure indication, engine controls and electrical protection for reliable operation in mining conditions.
| Ref. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 54413000 | 2654413000 | Gauge, Pressure w/ Snubber |
| 002.0 | 56951395 | 2656951395 | Gauge, Air Press – 400 PSI |
| 003.0 | 57428393 | 2657428393 | Gauge, Air Press – 160 PSI |
| 004.0 | 95933248 | 2695933248 | Screw, Round Hd |
| 005.0 | 95922548 | 2695922548 | Lockwasher |
| 006.0 | 95076717 | 2695076717 | Nut, Machine – Hex |
| 007.0 | 57493868 | 2657493868 | Throttle, Electronic – CAT |
| 008.0 | 58038761 | 2658038761 | Level |
| 009.0 | 95293353 | 2695293353 | Adapter |
| 010.0 | 855017P0286 | 26855017P0286 | Switch, Pushbutton |
| 011.0 | 57744633 | 2657744633 | PowerView, FW Murphy |
| – | 57910101 | 2657910101 | Harness, Surge Protector |
| 012.0 | 57755670 | 2657755670 | Tachometer, PowerView, 3.5 |
| 013.0 | 57744641 | 2657744641 | Gauge, Oil Pressure |
| 014.0 | 57744658 | 2657744658 | Gauge, Water Temperature |
| 015.0 | 57409096 | 2657409096 | Gauge, Electric – Temperature |
| 016.0 | 52185832 | 2652185832 | Switch, Push Button |
| 017.0 | 56993678 | 2656993678 | Switch, Key |
| 018.0 | 57084055 | 2657084055 | Breaker, Circuit – 15 AMP |
| 019.0 | 57117848 | 2657117848 | Breaker, Circuit – 5 AMP |
| 020.0 | 57091274 | 2657091274 | Breaker, Circuit – 20 AMP |
| 021.0 | 56762198 | 2656762198 | Switch, Toggle – SPST |
| 022.0 | 57179608 | 2657179608 | Switch, SPST / ON-OFF |
| 023.0 | 95076709 | 2695076709 | Nut, Hex Machine – No. 4-40 |
| 024.0 | 57438889 | 2657438889 | Indicator, 24 Volt, Yellow |
| 025.0 | 57338238 | 2657338238 | Controller, Remote Prop. |
| – | 57740748 | 2657740748 | Switch, Miniature Limit |
| 026.0 | 57502031 | 2657502031 | Controller, Dual Axis |
| 027.0 | 57389561 | 2657389561 | Controller, Pump |
| 028.0 | 57400350 | 2657400350 | Controller, Pump |
| 029.0 | 57332215 | 2657332215 | Switch, 2-Position |
| 030.0 | 57370397 | 2657370397 | Seal, Hole – Console |
| 031.0 | 57015521 | 2657015521 | Hose Assy |
| 032.0 | 56972672 | 2656972672 | Hose Assy |
| 033.0 | 58170465 | 2658170465 | Hose Assy |
| 034.0 | 58170465 | 2658170465 | Hose Assy |
| 035.0 | 57491813 | 2657491813 | Indicator, 24 Volt, Red |
| 036.0 | 54498357 | 2654498357 | Controller, Rotary Prop. |
| 037.0 | 95371704 | 2695371704 | Fitting, HYD |
| 038.0 | 95929766 | 2695929766 | Lockwasher – No. 4 Regular |
| 039.0 | 95475869 | 2695475869 | Screw, Machine |
| 042.0 | 57500324 | 2657500324 | Controller, Lever |
| 043.0 | 95931564 | 2695931564 | Nut, Hex, Finished |
| 044.0 | 95934766 | 2695934766 | Washer, Lock, Helical |
| 045.0 | 95920724 | 2695920724 | Capscrew |
| 046.0 | 57498339 | 2657498339 | Resistor CF .25W 5.1K |
| 047.0 | 58145392 | 2658145392 | Rubber |
| – | 58203035 | 2658203035 | Rubber |
| 048.0 | 95349023 | 2695349023 | Screw, Mach |
| 049.0 | 57332199 | 2657332199 | Switch, 3-Position |
| 050.0 | 57394603 | 2657394603 | Relay, DPDT 24V Coil |
| 051.0 | 57216913 | 2657216913 | Switch, Toggle |
| 052.0 | 50270040 | 2650270040 | Light, Pilot |
| 053.0 | 56275449 | 2656275449 | Lamp, LED, Red, 24V |
| 054.0 | 57534281 | 2657534281 | Gauge, Fuel – 24VDC |
| – | 57534315 | 2657534315 | Panel, One Gauge |
| 055.0 | 57443954 | 2657443954 | Kit, Light Gauge – 24VDC |
| 056.0 | 57498016 | 2657498016 | Hourmeter |
| 057.0 | 95482451 | 2695482451 | Connector, 1–45 Deg |
| 058.0 | 57807364 | 2657807364 | Indicator, Panel, Blue |
| 059.0 | 57266181 | 2657266181 | Light, Indicator |
| 060.0 | 56275431 | 2656275431 | Lamp, LED, Green, 24V |
Delivered as a complete instrumentation package, the 57829343 (2657829343) assembly supports dependable monitoring and control on DM45/DM50 rigs. TechCom supplies the full kit and genuine console components. View all spare parts for Epiroc DM45/DM50.
