100074236 Engine assembly – Spraymec MF 050 VC
The 100074236 engine assembly for the Spraymec MF 050 VC includes the diesel power unit, transmission, mounting structure, intake and fuel components, vibration dampers, cooling system and fastening hardware required for installation and operation in underground concrete spraying applications.
The assembly covers the engine block, gearbox, brackets, supports, intake and fuel lines, radiator group, hose connections and complete fastening set. It is intended for replacement or overhaul of the complete engine section of the machine.

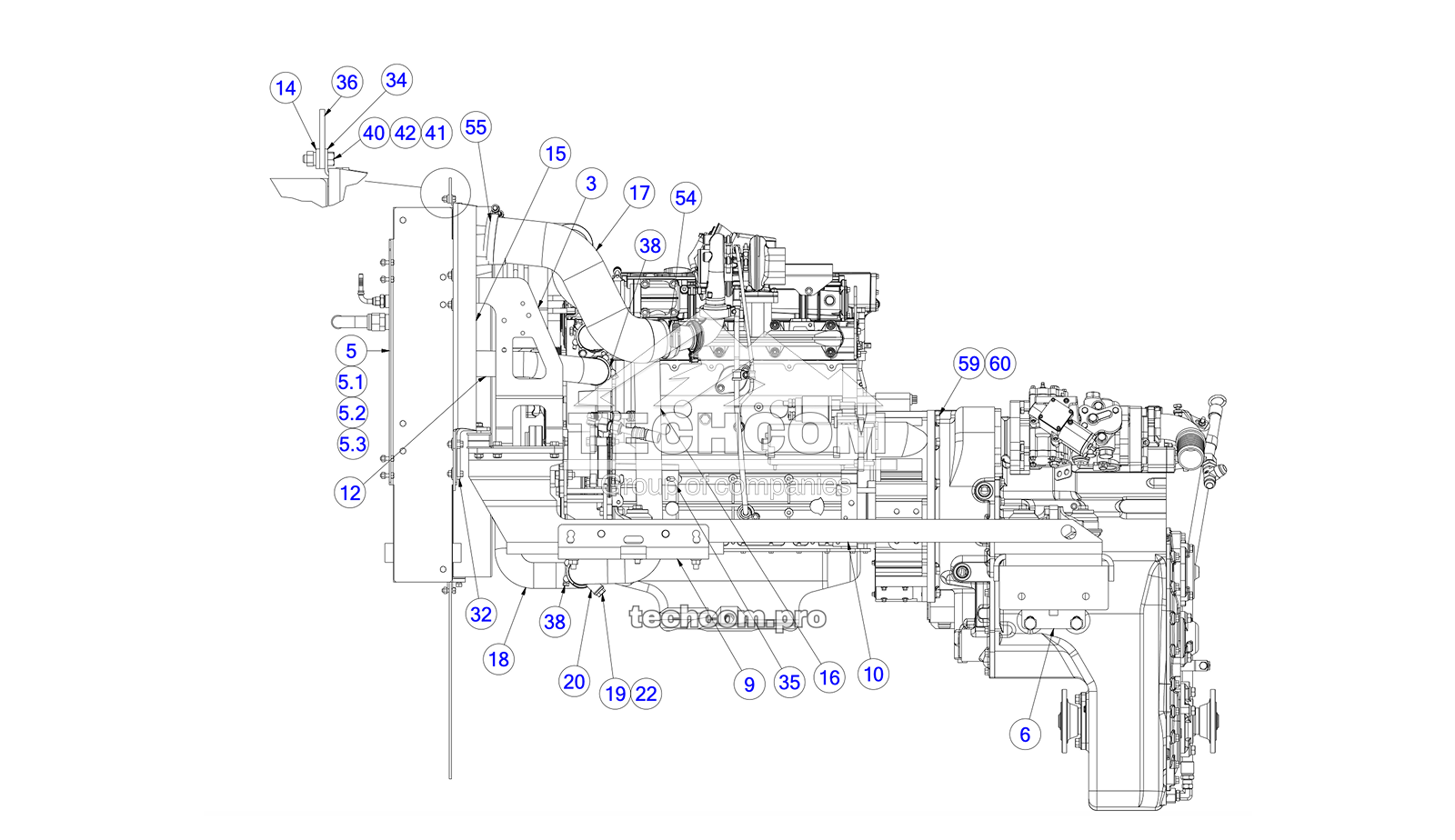

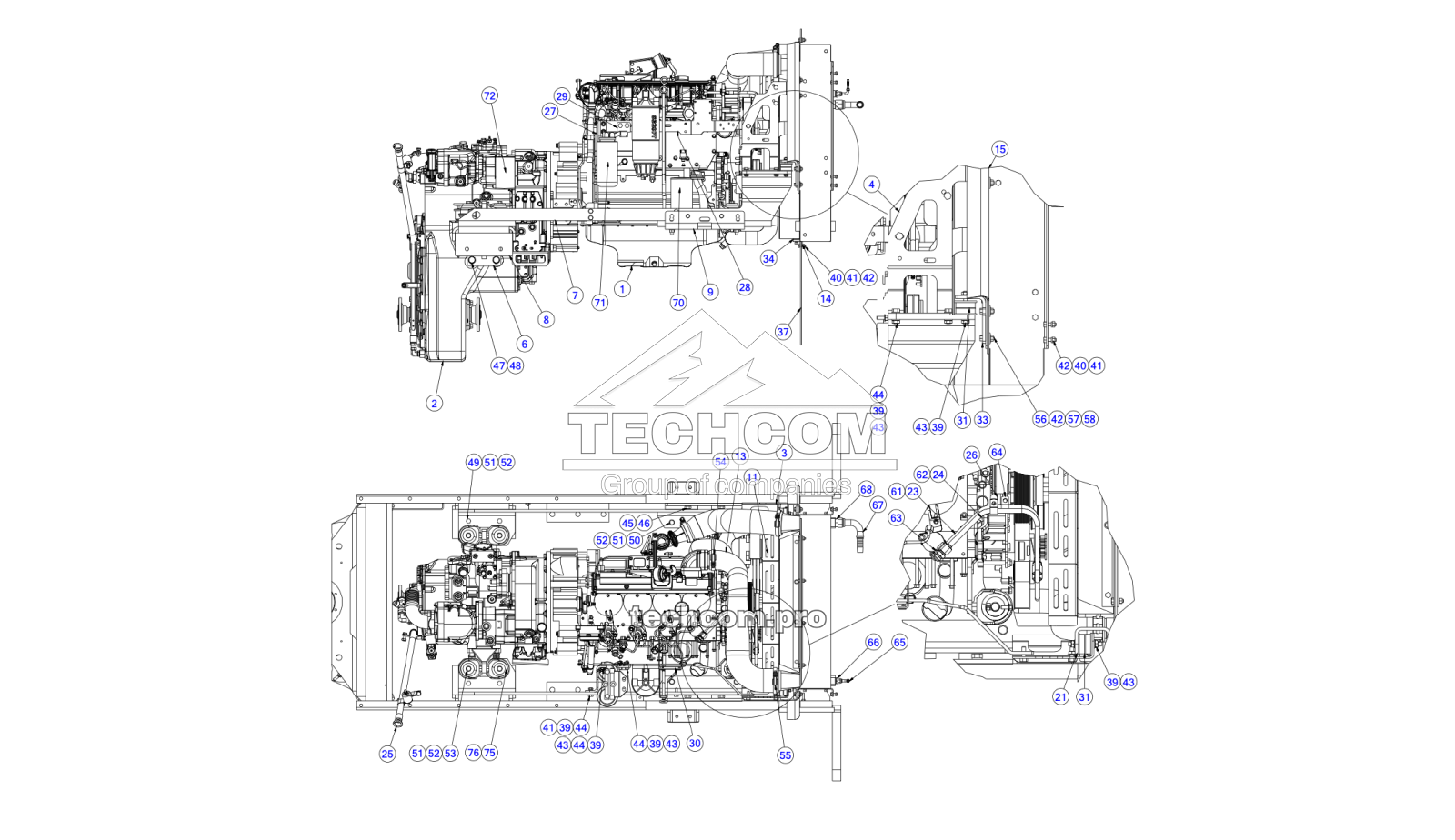

Components included in 100074236 Engine Assembly
| Item | Part No. | Name | Qty |
|---|---|---|---|
| 1 | 54825730 | Diesel engine | 1 |
| 2 | 100039246 | Gearbox | 1 |
| 3 | 46081520 | Bracket | 1 |
| 4 | 46081510 | Bracket | 1 |
| 6 | 41950908 | Bracket | 2 |
| 7 | 46117450 | Bracket | 1 |
| 8 | 46117440 | Bracket | 2 |
| 9 | 46117530 | Bracket plate | 2 |
| 11 | 100028838 | Cover | 1 |
| 13 | 46118740 | Air duct with turbo | 1 |
| 14 | 46190680 | Flat fastening bar | 2 |
| 15 | 46190660 | Side rubber plate | 2 |
| 21 | 45952340 | Foldable top holder | 2 |
| 23 | 46157380 | Intake manifold | 1 |
| 24 | 46157400 | Fuel supply hose | 1 |
| 25 | 100002342 | Oil dipstick | 1 |
| 26 | 46157420 | Bracket | 1 |
| 27 | 46154970 | Support flat bar | 1 |
| 28 | 100046189 | Support | 1 |
| 29 | 46157100 | Bracket | 1 |
| 30 | 46157110 | Support | 1 |
| 31 | 54923321 | Vibration damper | 4 |
| 33 | 46081530 | Bracket | 1 |
| 34 | 46190670 | Fastening | 2 |
| 37 | 46190700 | Rubber plate | 1 |
| 39 | 52110046 | Hex nut ST8.8ZN, M10, DIN934 | 20 |
| 40 | 52060175 | Hex head screw ST8.8ZN, M8×25 mm, DIN933 | 16 |
| 41 | 52114311 | Lock washer M8×13 mm, DIN25201 | 18 |
| 42 | 52110038 | Hex nut ST8ZN, M8, DIN934 | 24 |
| 43 | 52200045 | Washer STZN, M10, DIN125 | 22 |
| 44 | 52060233 | Hex head screw ST8.8ZN, M10×30 mm, DIN933 | 14 |
| 45 | 52214285 | Lock washer M16×25 mm, DIN25201 | 4 |
| 46 | 52062106 | Hex head screw ST8.8ZN, M16×30 mm, DIN933 | 4 |
| 47 | 52064078 | Hex head screw ST8.8ZN, UNC 3/4"×50 | 8 |
| 48 | 52214020 | Lock washer M20×30 mm, DIN25201 | 8 |
| 49 | 52062031 | Hex head screw ST8.8ZN, M12×40 mm, DIN933 | 4 |
| 50 | 52062041 | Hex head screw ST8.8ZN, M12×50 mm, DIN933 | 4 |
| 51 | 52117124 | Lock nut ST8.8ZN, M12, DIN985 | 14 |
| 52 | 52200052 | Washer M12, DIN125 | 24 |
| 53 | 52062551 | Hex head screw ST8.8ZN, M12×130 mm, DIN931 | 6 |
| 54 | 100058541 | Hose clamp AISI304, 70–90 mm | 2 |
| 55 | 100058542 | Hose clamp AISI304, 95–117 mm | 2 |
| 56 | 52060183 | Hex head screw ST8.8ZN, M8×30 mm, DIN933 | 8 |
| 57 | 52200060 | Washer M14, DIN125 | 8 |
| 58 | 52200037 | Washer M8, DIN125 | 8 |
| 61 | 52450301 | Straight threaded connector 8M16F82EDMXS | 1 |
| 62 | 52450897 | Straight threaded connector 8M14F8OMXS | 1 |
| 63 | 52450566 | Straight coupling 8HMTXS | 2 |
| 64 | 54916556 | Hose fastening | 2 |
| 65 | 56605272 | Hose coupling | 1 |
| 66 | 52450483 | Straight threaded connector 6-8F42EDMXS | 1 |
| 67 | 56605249 | Hose coupling | 1 |
| 68 / 70 | 52450350 / 100107996 | Straight threaded connector / Oil filter 16-12F42EDMXS | 1 |
| 71 | 100107998 | Fuel filter | 1 |
| 72 | 100107997 | Transmission oil filter | 1 |
| 3 | 46081520 | Bracket | 1 |
| 5 | 54825770 | Cooler | 1 |
| 5.1 | 100111485 | Oil cooler | 1 |
| 5.2 | 100111484 | Air radiator | 1 |
| 5.3 | 100111483 | Water radiator | 1 |
| 6 | 41950908 | Bracket | 2 |
| 9 | 46117530 | Bracket plate | 2 |
| 10 | 46117430 | Bracket | 1 |
| 12 | 46118700 | Water hose | 1 |
| 14 | 46190680 | Flat fastening bar | 2 |
| 15 | 46190660 | Side rubber plate | 2 |
| 16 | 46118710 | Water drain hose | 1 |
| 17 | 46118730 | Air duct with turbocharger | 1 |
| 18 | 46118720 | Water drain hose | 1 |
| 19 | 52080819 | Plug R1/2" | 1 |
| 20 | 46118520 | Intermediate pipe | 1 |
| 22 | 52390200 | USIT sealing ring 21.5X28.7X2.5MM | 1 |
| 32 | 46081540 | Bracket | 1 |
| 34 | 46190670 | Fastening | 2 |
| 35 | 46182070 | Plate | 1 |
| 36 | 46190690 | Upper rubber plate | 1 |
| 38 | 54952030 | Hose clamp AISI430, 60-63MM | 6 |
| 40 | 52060175 | Hex head screw ST8.8ZN, M8X25MM, DIN933 | 16 |
| 41 | 52114311 | Lock washer M8X13MM, DIN25201 | 18 |
| 42 | 52110038 | Hex nut ST8ZN, M8, DIN934 | 24 |
| 54 | 100058541 | Hose clamp AISI304, 70-90MM | 2 |
| 55 | 100058542 | Hose clamp AISI304, 95-117MM | 2 |
| 59 | 52060241 | Hex head screw ST8.8ZN, M10X35MM, DIN933 | 12 |
| 60 | 52214251 | Lock washer M10X16MM, DIN25201 | 16 |
Contact our team to confirm compatibility, verify availability and request pricing for Spraymec MF 050 VC spare parts.
