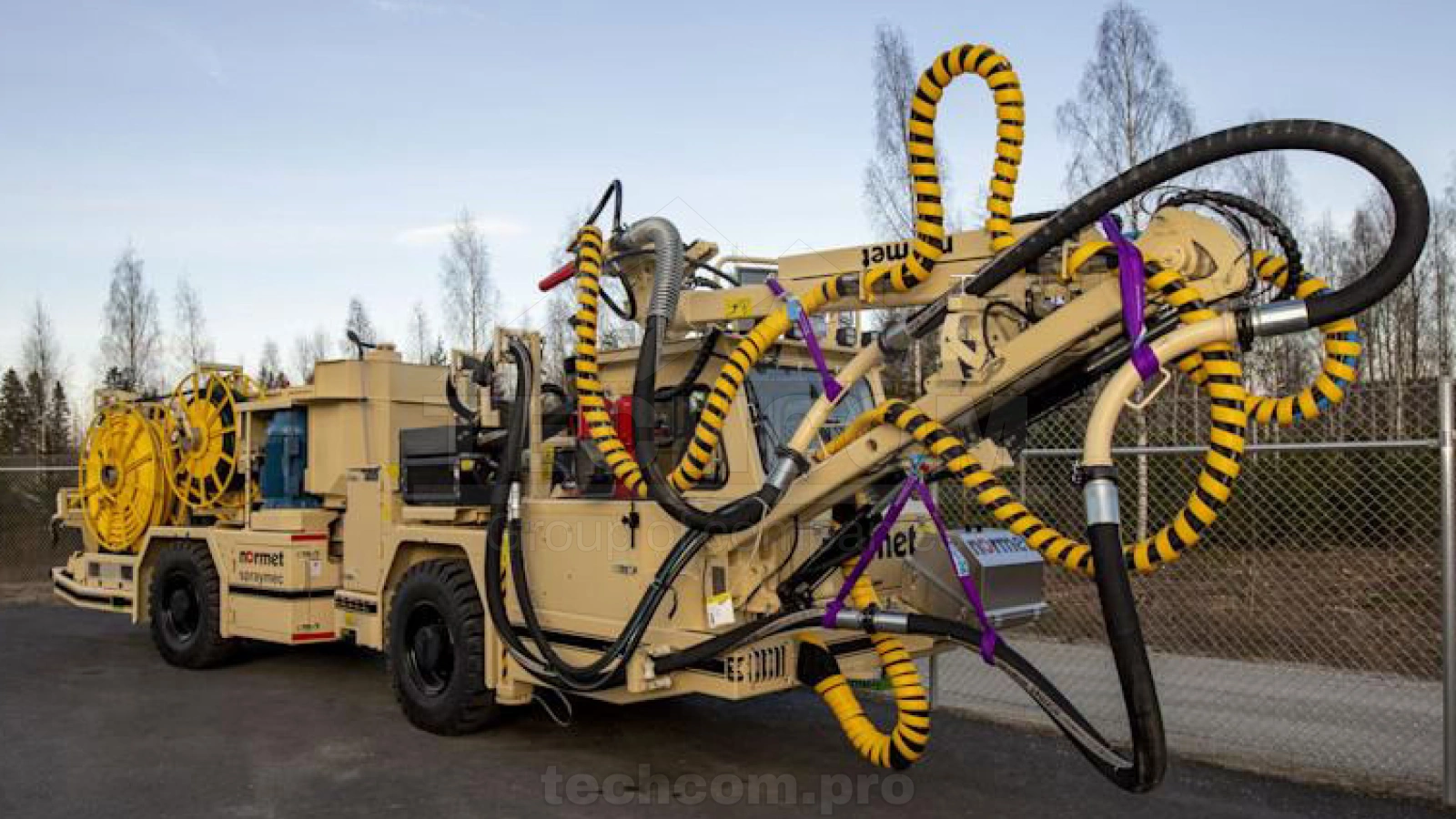

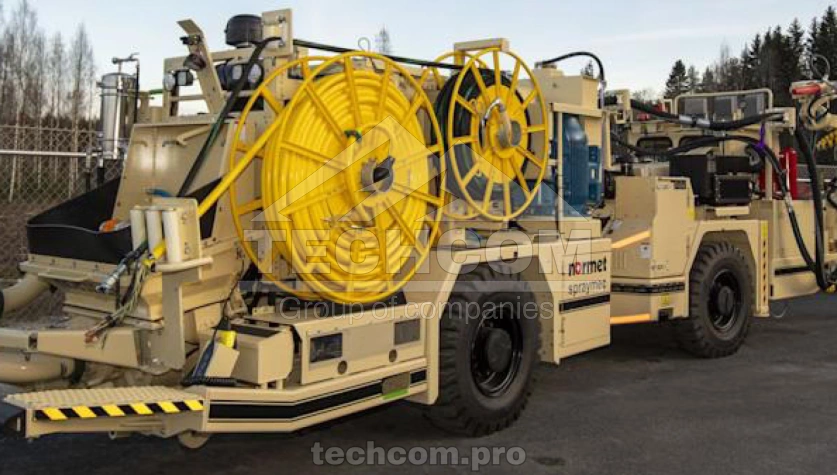

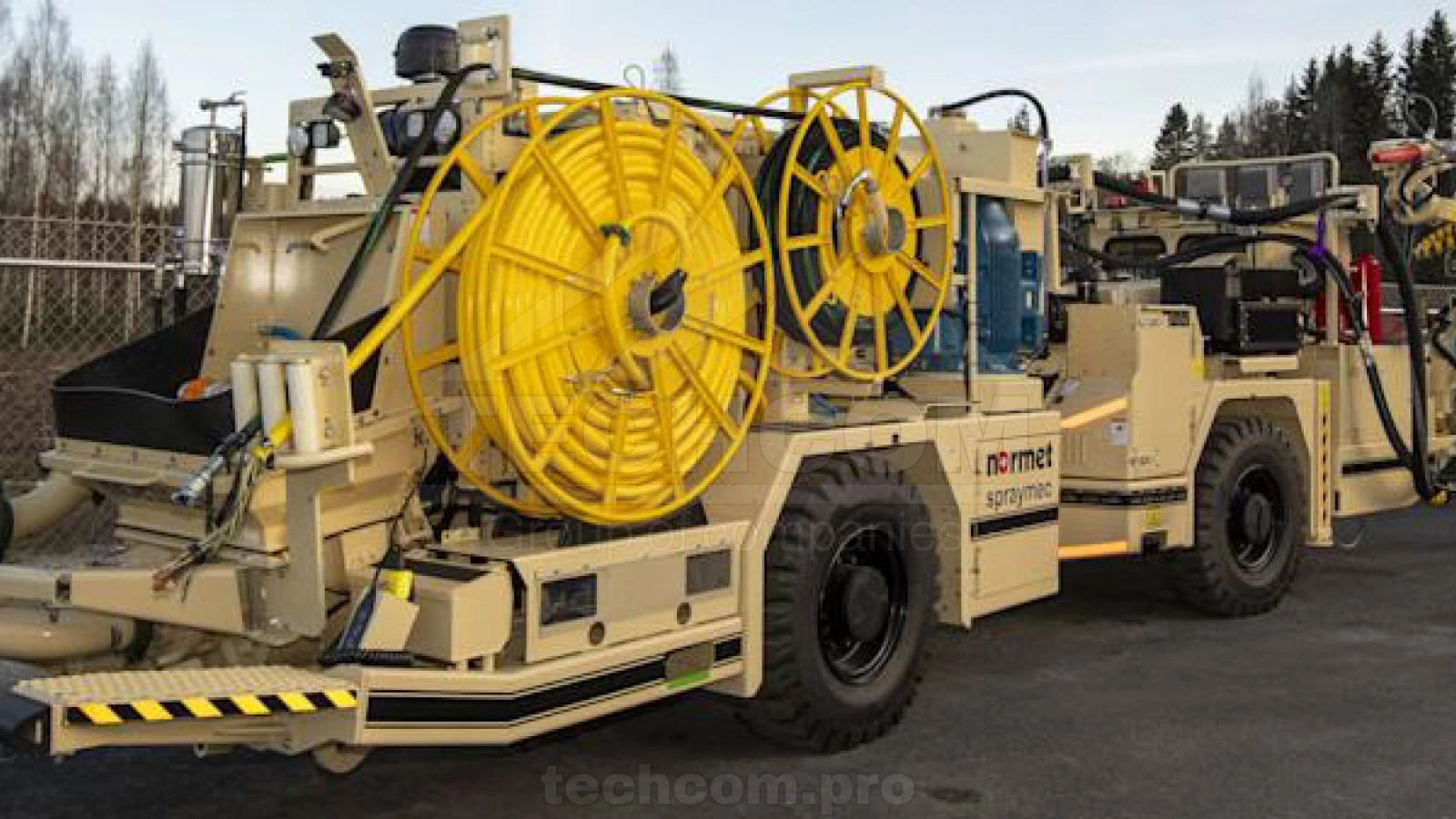

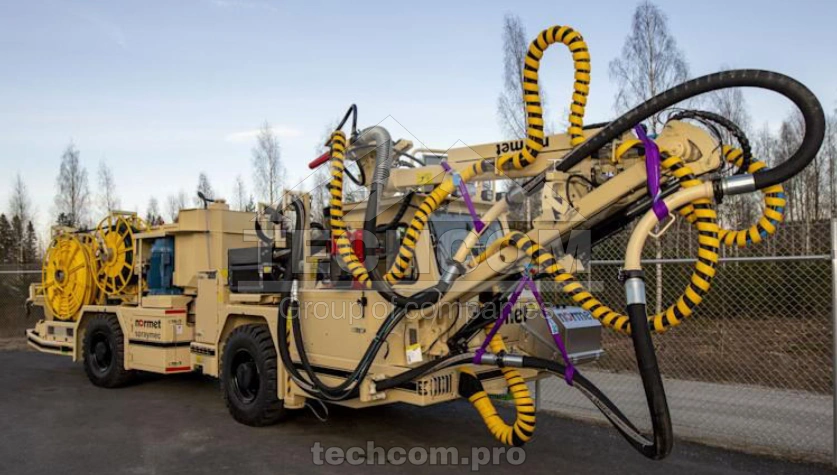

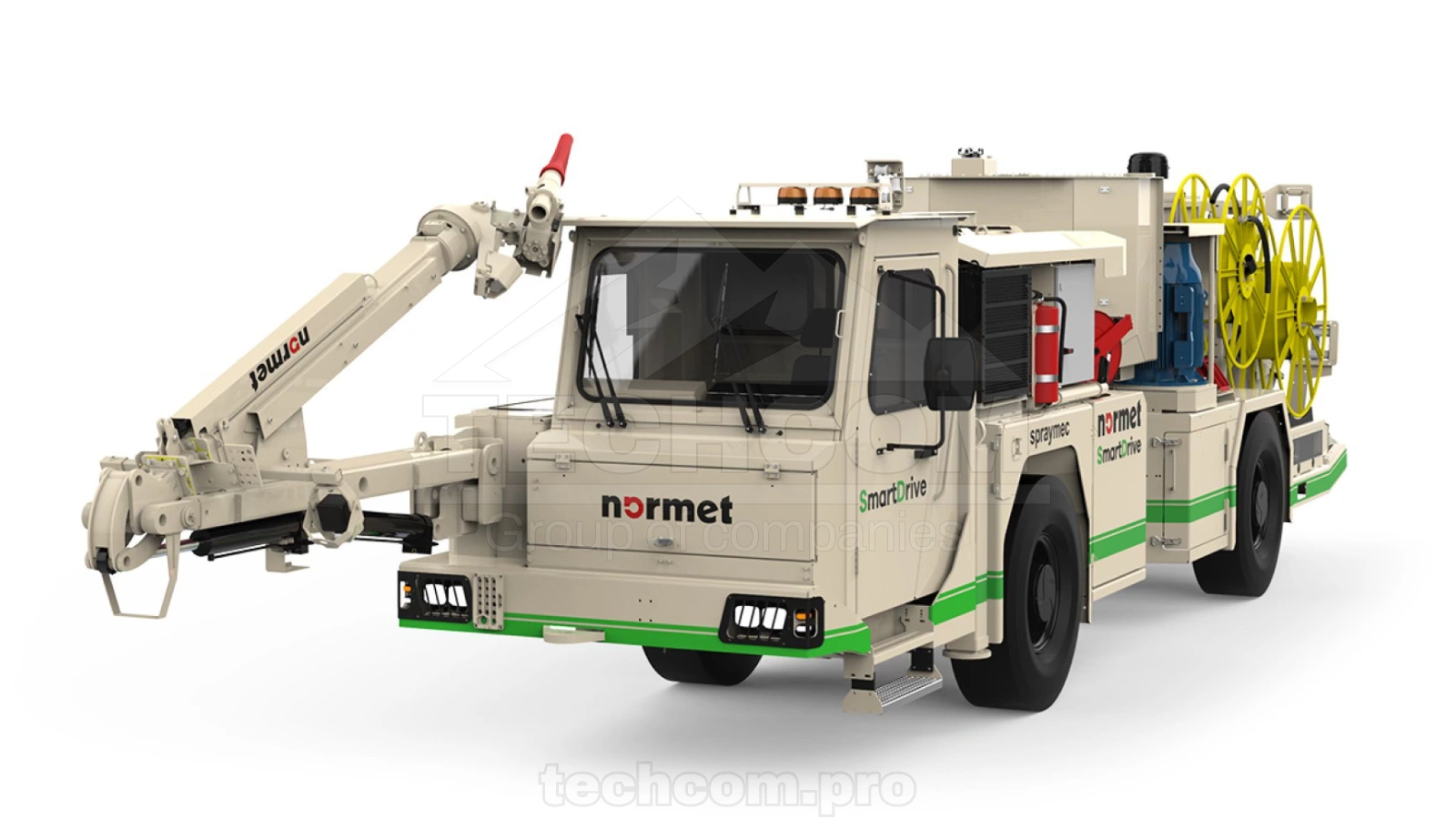

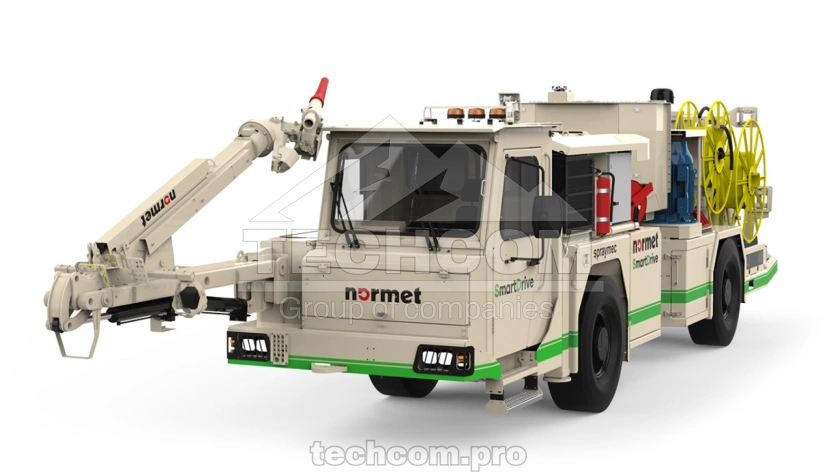

Spraymec MF 050 VC is an electrohydraulic self-propelled mobile concrete sprayer for modern mining operations in small and medium size tunnels. The model is also available in a SmartDrive version for fully battery-electric operation, ensuring zero emissions and reduced maintenance. It can be operated either with electric hydraulic power-pack or with diesel engine. The fully synchronized accelerator dosing system ensures optimal spraying quality and precise control under demanding underground conditions.
The robust articulated carrier with a FOPS/ROPS-approved cabin, advanced safety systems, and ergonomic operator environment provides superior comfort and control. With its efficient spraying boom, SmartScan concrete thickness monitoring option, and integrated compressor, the MF 050 VC offers excellent productivity, reliability, and reduced rebound in concrete application.
| Parameter | Value |
|---|---|
| Application | Articulated concrete sprayer for mining and tunnelling |
| Power source | Diesel engine or electrohydraulic power pack |
| Concrete pump | Normet NSP 30 double-piston pump |
| Pump output | Up to 19 m³/h (diesel) / 27 m³/h (electric) |
| Pump pressure | Max 51 bar (250 bar hydraulic) |
| Max aggregate size | 16 mm (with fibres up to 60 mm) |
| Accelerator system | Hydraulically driven mono-style pump, 12 bar max, 0.6–16 L/min |
| Accelerator tank capacity | 500 L (standard), optional 850 L |
| Compressor | Electric screw type, 10 m³/min @ 7 bar (FAD) – 55 kW motor |
| Spray boom | SB 500 B, 270° rotation, −20°…+75° lift, 2.2 m extension |
| Nozzle movement | Rotation 420°, tilting 105° |
| Concrete line diameter | 65 mm (LHS assembly) |
| Water hose reel | Manual 30 m / ¾″ hose |
| Engine | Deutz TCD 2013 L04 2V, 120 kW @ 2200 rpm, Stage III (Tier 3) |
| Transmission | Dana 24 000 series power shift, 4WD, 3 speeds forward & reverse |
| Max speed | 25 km/h (6 km/h in 1st gear) |
| Tractive effort | 133 kN |
| Fuel tank | 240 L |
| Hydraulic oil tank | 400 L with 10 µm filtration |
| Electrical system | 24 V DC CAN-bus with fault diagnostics |
| High voltage system | 400 V / 50 Hz, hydraulic cable reel 100 m |
| Cabin | FOPS/ROPS approved, suspended seat, MID multi-info display |
| Brakes | Hydraulic multi-disc service brakes + SAHR parking brake |
| Steering | Hydraulic frame steering, ±40° articulation |
| Dimensions (L × W × H) | 11 700 × 2 000 × 2 600 mm |
| Wheelbase | 3 650 mm |
| Ground clearance | 320 mm |
| Turning radius | Outer 6 800 mm / Inner 3 900 mm |
| Operating weight | 18 000 kg |
TechCom supplies spare parts for Spraymec MF 050 VC, including pumps, dosing systems, hydraulic components, and wear parts to ensure long-term reliability and precise performance in underground concrete spraying operations.
