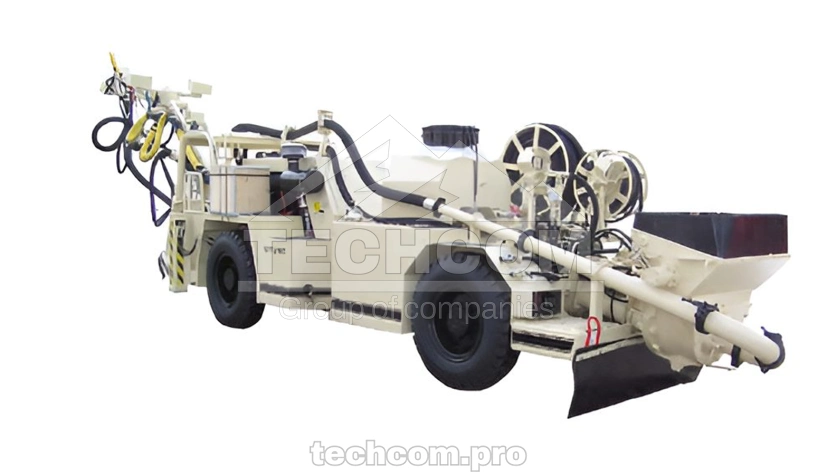

Normet Spraymec 6050 WP Underground Concrete Sprayer
Normet Spraymec 6050 WP is a diesel-hydraulic self-propelled wet shotcrete sprayer designed for underground mining and tunnelling operations. The articulated carrier with 4-wheel drive and hydraulic frame steering ensures high manoeuvrability in small and medium cross-section drifts. The machine is equipped with a wet concrete pump, integrated accelerator dosing system and electro-hydraulic spraying boom.
The robust structure, oil-immersed multidisc braking system and ROPS/FOPS approved open cabin provide reliable operation in demanding underground conditions. With precise boom control, stable pumping performance and efficient accelerator dosing, Spraymec 6050 WP ensures consistent concrete application and operational safety.
Technical specifications – Spraymec 6050 WP
| Parameter | Value |
|---|---|
| Application | Diesel-hydraulic wet shotcrete sprayer for mining and tunnelling |
| Engine | Deutz TCD 2012 – 96 kW @ 2200 rpm |
| Transmission | Dana powershift, 3 speeds forward & reverse, 4WD |
| Max speed | 30 km/h |
| Max tractive effort | 90 kN |
| Axles | Planetary type |
| Tyres | 10.00-20 PR 16 |
| Steering | Hydraulic frame steering, ±40° articulation |
| Oscillation | ±10° |
| Service brakes | Hydraulic dual-circuit oil-immersed multidisc brakes |
| Parking brake | Hydraulically released fail-safe type |
| Hydraulic system (steering & boom) | 210 bar, 95 L/min @ 2200 rpm |
| Wet concrete pump | 4–19 m³/h |
| Theoretical max output | Up to 24 m³/h |
| Accelerator pump | Max 20 bar, 1–20 L/min |
| Accelerator tank | 350 L |
| Boom rotation | 270° |
| Boom lifting | −20° to +75° |
| Boom folding | −60° to +165° |
| Boom extension | 2200 mm |
| Nozzle rotation | 360° |
| Nozzle tilting | 105° |
| Max spraying reach | Vertical 8 m / Horizontal 9.3 m |
| Dimensions (L × W × H) | 10 520 × 2 000 × 2 150 mm |
| Wheelbase | 3 550 mm |
| Ground clearance | 290 mm |
| Turning radius | Outer 7 220 mm / Inner 3 840 mm |
| Operating weight | 13 500 kg |
| Electrical system | 24 V, 2 × 105 Ah batteries, 80 A alternator |
| Cabin | ROPS/FOPS approved open cabin |
TechCom supplies spare parts for Normet Spraymec 6050 WP, including wet concrete pump components, accelerator systems, hydraulic parts and wear components for reliable underground shotcreting operations.
