303 850 23 Hydraulic Rock Drill HL510 LH – Sandvik
The Sandvik HL510 LH hydraulic rock drill is used on the Sandvik DL230-5 longhole drill rig.

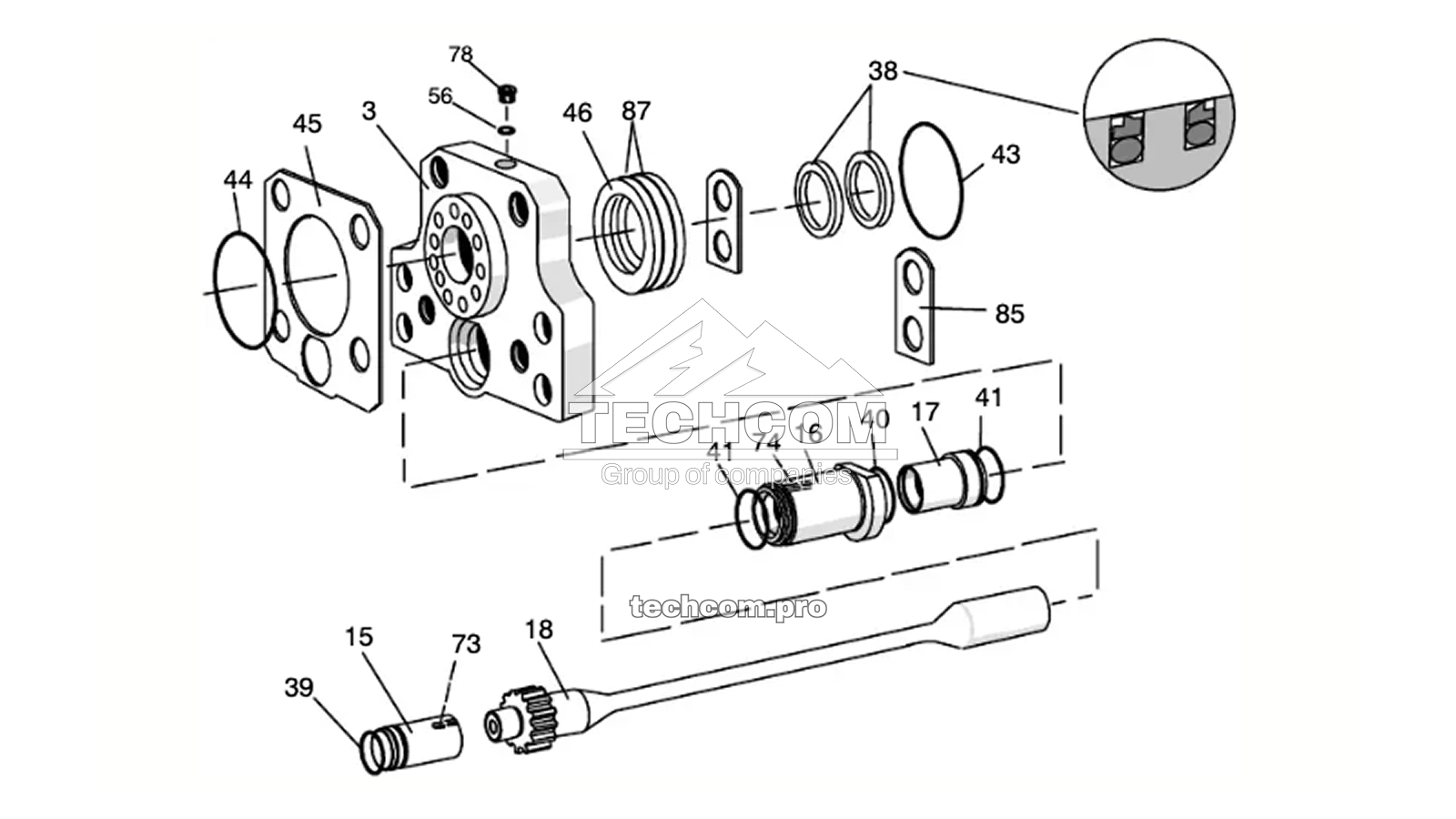

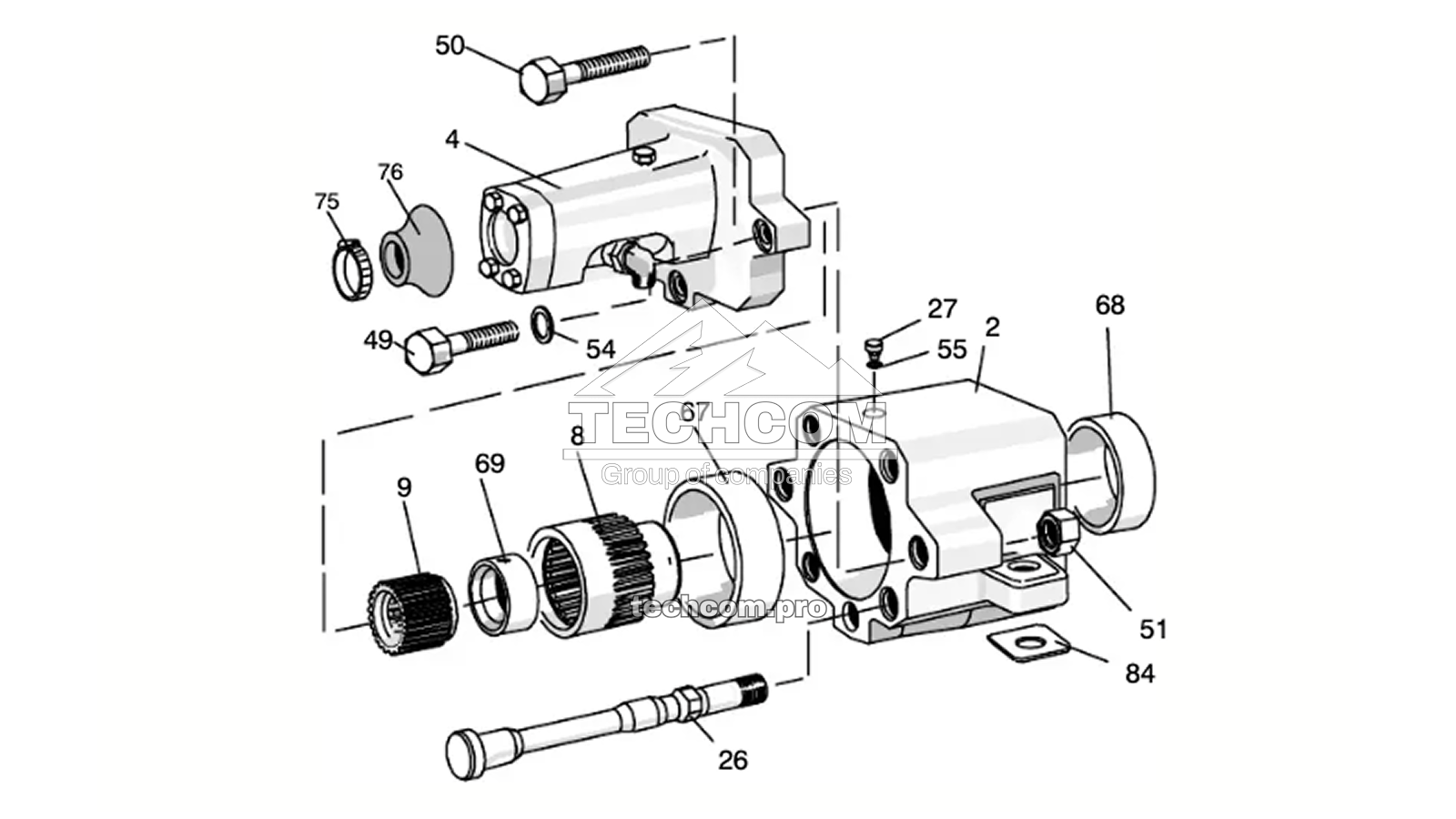

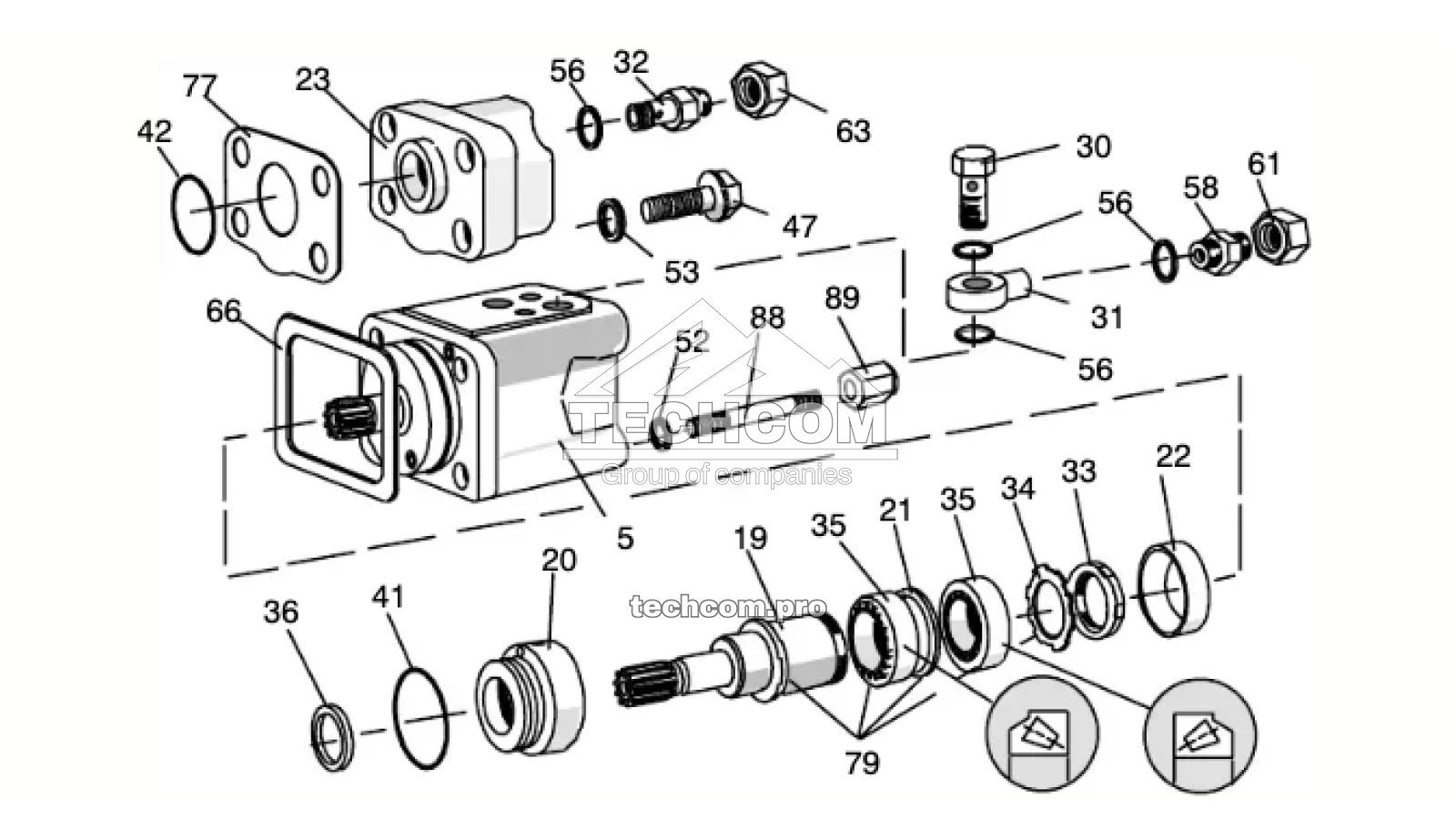

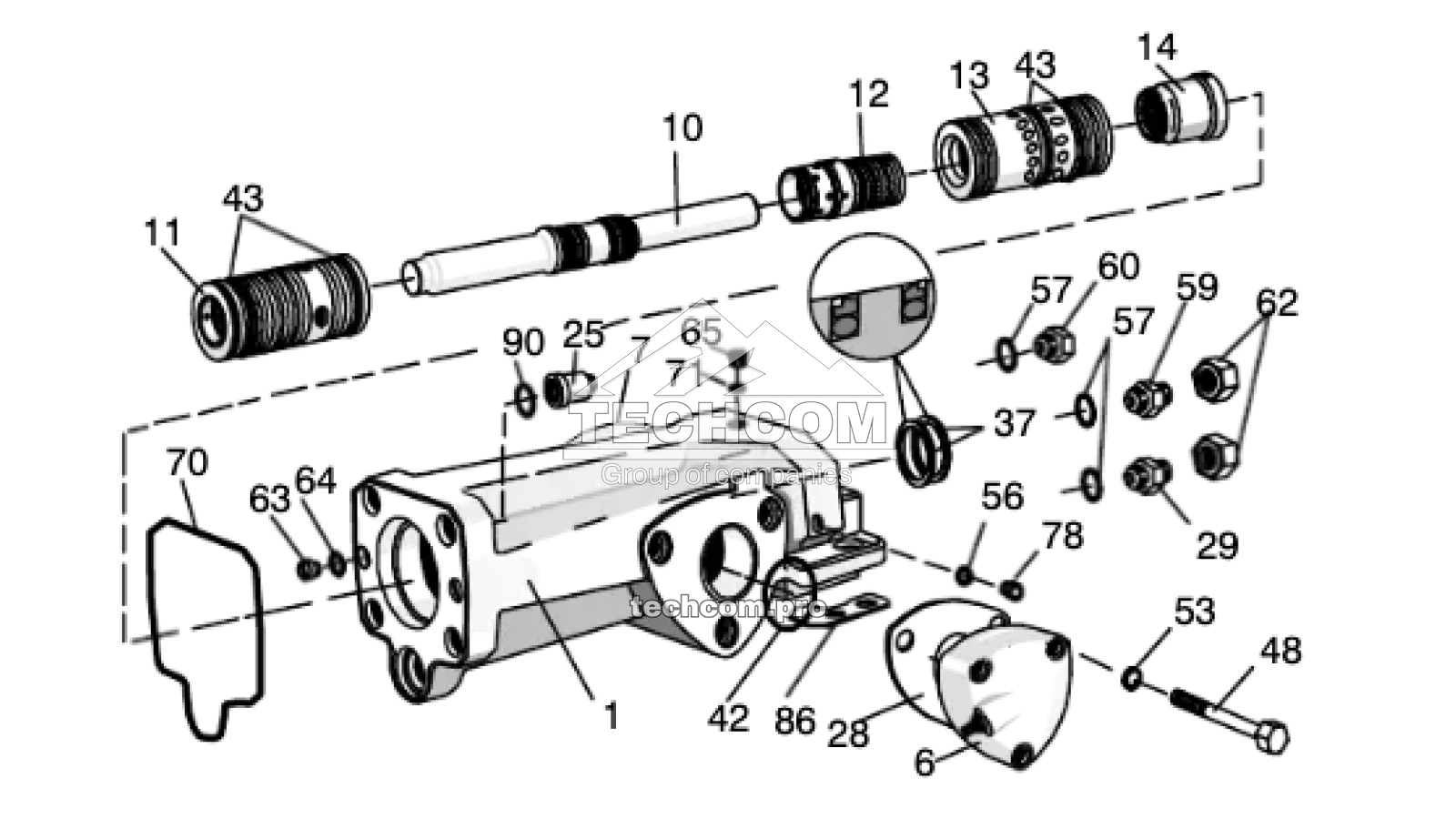

Components included in 30385023 hydraulic rock drill
| Ref. | Part No. | Alt. No. | Description | Standard designation |
|---|---|---|---|---|
| 1 | 303 834 18 | 30383418 | Body | Incl. parts 56, 63-65, 70, 71, 78, 90 |
| 2 | 151 939 88 | 15193988 | Gear housing assy | Incl. parts 67, 68 |
| 3 | 154 221 98 | 15422198 | Spacer assy | Incl. parts 46, 56, 78, 87 |
| 4 | 152 179 01 | 15217901 | Flushing device assy | Sep. part list |
| 5 | 869 790 09 | 86979009 | Hydraulic motor assy | Sep. part list |
| 6 | 153 747 08 | 15374708 | Accumulator assy L.P | Sep. part list |
| 7 | 153 746 78 | 15374678 | Accumulator assy H.P | Sep. part list |
| 8 | 152 331 08 | 15233108 | Rotation bushing assy | Incl. part 69 |
| 9 | 151 756 68 | 15175668 | Coupling | - |
| 10 | 153 669 48 | 15366948 | Piston | - |
| 11 | 153 668 18 | 15366818 | Front cylinder assy | - |
| 12 | 153 678 28 | 15367828 | Distributor | - |
| 13 | 153 671 38 | 15367138 | Rear cylinder | - |
| 14 | 151 779 68 | 15177968 | Rear bushing assy | - |
| 15 | 150 259 08 | 15025908 | Bearing housing assy | Incl. part 73 |
| 16 | 150 349 18 | 15034918 | Bearing housing assy | Incl. part 74 |
| 17 | 150 229 78 | 15022978 | Bushing | - |
| 18 | 151 781 58 | 15178158 | Shaft | - |
| 19 | 152 024 08 | 15202408 | Shaft | - |
| 20 | 152 101 28 | 15210128 | Seal housing | - |
| 21 | 150 397 08 | 15039708 | Bushing | - |
| 22 | 150 398 38 | 15039838 | Bushing | - |
| 23 | 153 872 18 | 15387218 | Rear cover | - |
| 25 | 152 638 88 | 15263888 | Nut | - |
| 26 | 152 639 08 | 15263908 | Tie rod | - |
| 27 | 150 232 98 | 15023298 | Screw | - |
| 28 | 151 917 08 | 15191708 | Gasket | - |
| 29 | 151 942 08 | 15194208 | Adapter | R3/4"-1 1/16"-12 |
| 30 | 150 402 18 | 15040218 | Adapter | - |
| 31 | 152 036 68 | 15203668 | Banjo | - |
| 32 | 150 590 78 | 15059078 | Adapter | - |
| 33 | 150 644 68 | 15064468 | Nut | - |
| 34 | 150 686 58 | 15068658 | Lock washer | - |
| 35 | 803 234 09 | 80323409 | Bearing | - |
| 36 | 884 812 19 | 88481219 | Seal | - |
| 37 | 818 200 39 | 81820039 | Seal | - |
| 38 | 858 438 49 | 85843849 | Seal | - |
| 39 | 522 107 40 | 52210740 | O-ring | 26,2X3-1 SMS 1586 |
| 40 | 522 149 30 | 52214930 | O-ring | 42,2X3-1 SMS 1586 |
| 41 | 522 151 20 | 52215120 | O-ring | 44,2X3-1 SMS 1586 |
| 42 | 428 702 10 | 42870210 | O-ring | 49,5X3-1 SMS 1586 |
| 43 | 800 658 09 | 80065809 | O-ring | 74,5X3-1 SMS 1586 |
| 44 | 816 859 79 | 81685979 | O-ring | 90X2 |
| 45 | 151 819 38 | 15181938 | Gasket | - |
| 46 | 150 748 08 | 15074808 | Seal housing | - |
| 47 | 150 406 28 | 15040628 | Bolt | - |
| 48 | 863 217 29 | 86321729 | Bolt | M16X60 m10.9 |
| 49 | 800 558 89 | 80055889 | Bolt | M20X1,5X50 m8.8 SFS 2066 |
| 50 | 150 652 18 | 15065218 | Bolt | - |
| 51 | 801 391 89 | 80139189 | Nut | M20X1,5 SFS 2069 |
| 52 | 851 282 09 | 85128209 | Lock washer pair | M10 |
| 53 | 850 687 49 | 85068749 | Lock washer pair | M16 |
| 54 | 851 283 39 | 85128339 | Lock washer | M20 |
| 55 | 804 160 09 | 80416009 | Bonded seal | U10,7X16X1,5 |
| 56 | 800 347 99 | 80034799 | Bonded seal | U21,5X28,7X2,5 |
| 57 | 800 348 19 | 80034819 | Bonded seal | U 27,2x36x2 |
| 58 | 817 094 69 | 81709469 | Adapter | 1/2 x3/4-16 JIC 2063-8-8 |
| 59 | 816 768 29 | 81676829 | Adapter | 12F42EDMXS (1,1/16-12JIC) |
| 60 | 812 607 89 | 81260789 | Plug | R 3/4 |
| 61 | 817 097 49 | 81709749 | Cap | 210292-8 3/4-16 JIC |
| 62 | 816 909 59 | 81690959 | Cap | 12FNMTXS (1,1/16-12JIC) |
| 63 | 150 221 58 | 15022158 | Plug | - |
| 63 | 803 264 29 | 80326429 | Cap | 9/16-18 JIC |
| 64 | 522 067 70 | 52206770 | O-ring | 17,3X2,4 SMS 1586 |
| 65 | 857 137 29 | 85713729 | Plug | R 1/4 |
| 66 | 150 539 68 | 15053968 | Seal | - |
| 67 | 150 221 83 | 15022183 | Bushing | - |
| 68 | 150 276 38 | 15027638 | Bushing | - |
| 69 | 150 214 28 | 15021428 | Chuck | - |
| 70 | 522 480 00 | 52248000 | O-ring | 179X3 |
| 71 | 801 802 69 | 80180269 | Bonded seal | U13,7X22X1,5 |
| 73 | 815 035 19 | 81503519 | Needle bearing | B1210 |
| 74 | 801 963 79 | 80196379 | Needle bearing | F3520 |
| 75 | 280 678 90 | 28067890 | Hose clamp | - |
| 76 | 047 689 68 | 04768968 | Rubber cover | - |
| 77 | 150 572 08 | 15057208 | Gasket | - |
| 78 | 810 491 29 | 81049129 | Plug | R1/2 |
| 79 | 152 460 38 | 15246038 | Shaft assy | Incl. parts 19, 21, 22, 33-35 |
| 84 | 150 626 08 | 15062608 | Gasket | - |
| 85 | 150 727 58 | 15072758 | Gasket | - |
| 86 | 150 627 28 | 15062728 | Gasket | - |
| 87 | 814 017 49 | 81401749 | O-ring | 60X2 |
| 88 | 152 612 08 | 15261208 | Screw | - |
| 89 | 150 772 68 | 15077268 | Nut | - |
| 90 | 887 506 69 | 88750669 | O-ring | 21,82X3,53 |
| - | 868 780 89 | 86878089 | Seal kit for rock drill | Incl. related sealing components |
| - | 152 257 68 | 15225768 | Special tools for rock drill | Sep. part list |
| - | 880 817 19 | 88081719 | Special tool kit for the site | - |
See additional components in the Sandvik DL230-5 spare parts catalog. If the required component is not listed, please contact our team.
