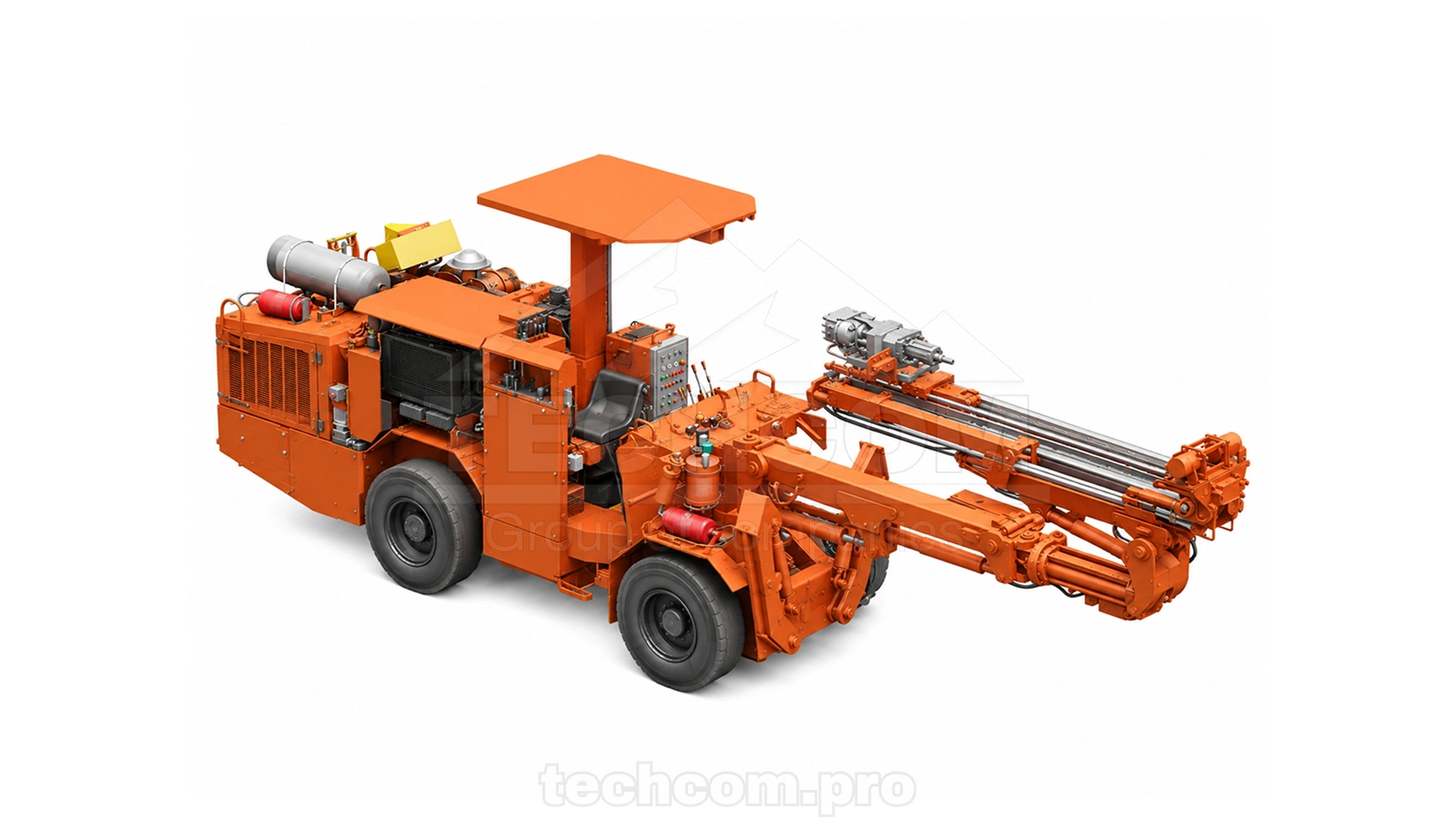

Sandvik DL230-5 Longhole Drill Rig
The Sandvik DL230-5 is a compact electro-hydraulic single-boom longhole drill rig designed for production and service hole drilling in underground mines with narrow drifts and limited working areas. The machine provides accurate parallel hole drilling for hole diameters from 51 to 64 mm with drilling depths up to 20 meters both upward and downward.
Technical specifications of Sandvik DL230-5
| Parameter | Specification |
|---|---|
| Application | Underground longhole and production drilling |
| Rock drill | Sandvik HLX5 hydraulic rock drill |
| Percussion power | 20 kW |
| Hole diameter | 51 – 64 mm |
| Maximum drilling depth | Up to 20 m |
| Boom type | B14F hydraulic boom |
| Feed type | LHF2000-3 / LHF2000-4 |
| Rotation torque | 780 Nm |
| Tramming speed | Up to 6.5 km/h |
| Total weight | Approx. 9 100 kg |
We supply spare parts for Sandvik DL230-5, including hydraulic rock drill components, feed parts, boom assemblies, hydraulic units, drilling controls, filters, hoses, seals, wear parts and OEM-quality replacement components with worldwide delivery.
