Inlet Valve Assembly 551 552 02 – Compressor CT10 – Sandvik DD320-26X
The 551 552 02 inlet valve assembly is part of compressor CT10 installed on Sandvik DD320-26X underground development drills.

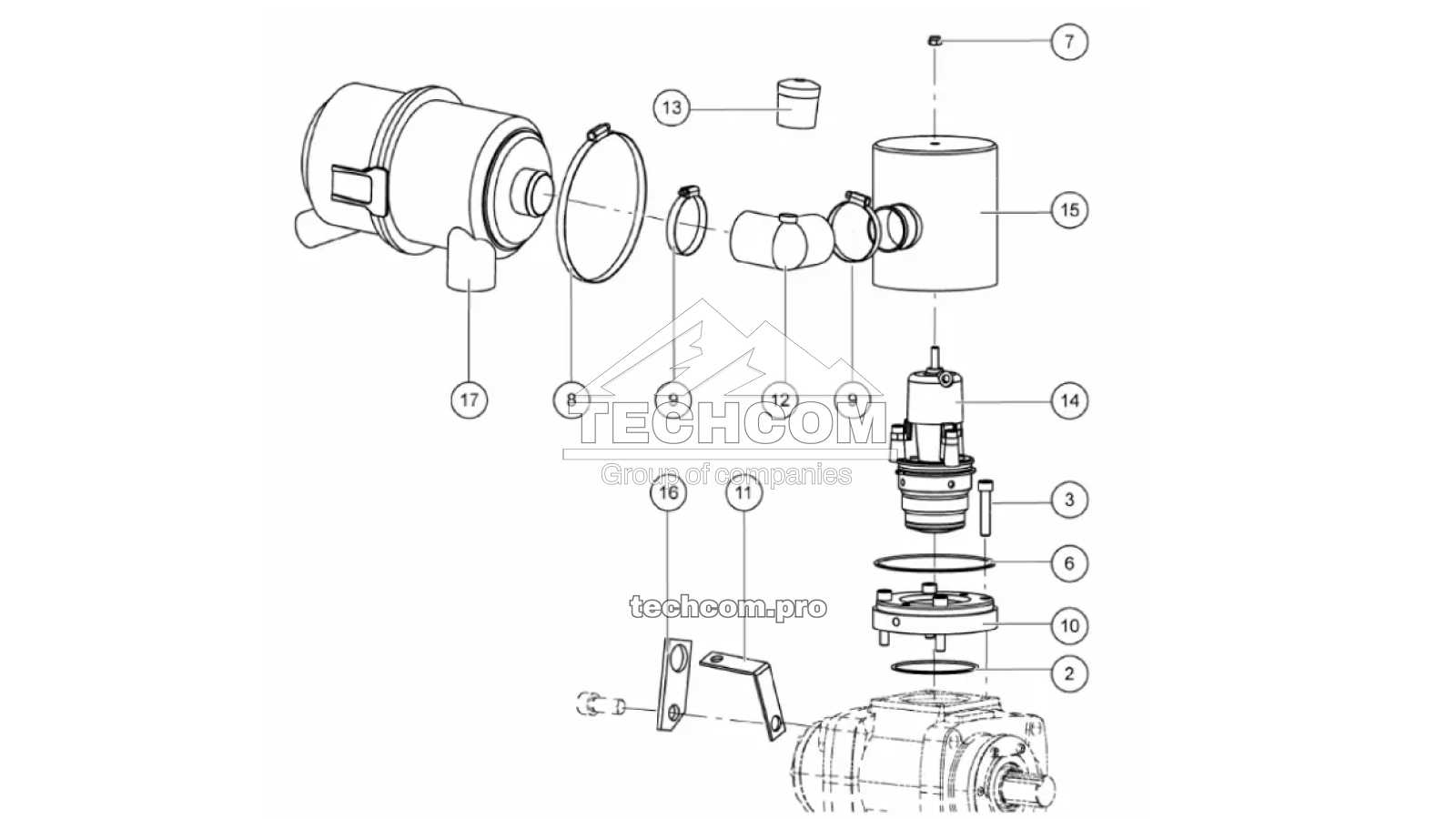

Components included in inlet valve assembly 55155202
| Ref. | Part No. | Alt. No. | Description | Standard designation | Qty |
|---|---|---|---|---|---|
| 2 | 800 118 39 | 80011839 | O-Ring | 79.5×3-1 | 1 |
| 3 | 550 254 63 | 55025463 | Screw | - | 4 |
| 6 | 871 807 99 | 87180799 | O-Ring | 129×3.0, NBR | 1 |
| 7 | 801 779 99 | 80177999 | Lock Nut | M8 m8 DIN 985 | 1 |
| 8 | 360 732 70 | 36073270 | Clamp | 165-SMS 2298 | 1 |
| 9 | 280 679 10 | 28067910 | Clamp | 56 SMS 2298 | 2 |
| 10 | 550 254 62 | 55025462 | Flange | - | 1 |
| 11 | 551 550 37 | 55155037 | Support | Intake Valve Assy, CT28/CT16 | 1 |
| 12 | 551 550 38 | 55155038 | Elbow | Curve, Intake Valve Assy, CT28/CT16 | 1 |
| 13 | 550 557 82 | 55055782 | Service Indicator | - | 1 |
| 14 | 033 887 08 | 03388708 | Inlet Valve | Sep. Part List | 1 |
| 15 | 550 254 65 | 55025465 | Suction Tunnel | - | 1 |
| 17 | 551 554 04 | 55155404 | Air Filter | Intake Valve Assy, CT28/CT16 | 1 |
| 17.1 | 550 717 73 | 55071773 | Filter | Filter Element | 1 |
| 17.2 | 550 717 91 | 55071791 | Filter | Filter Element | 1 |

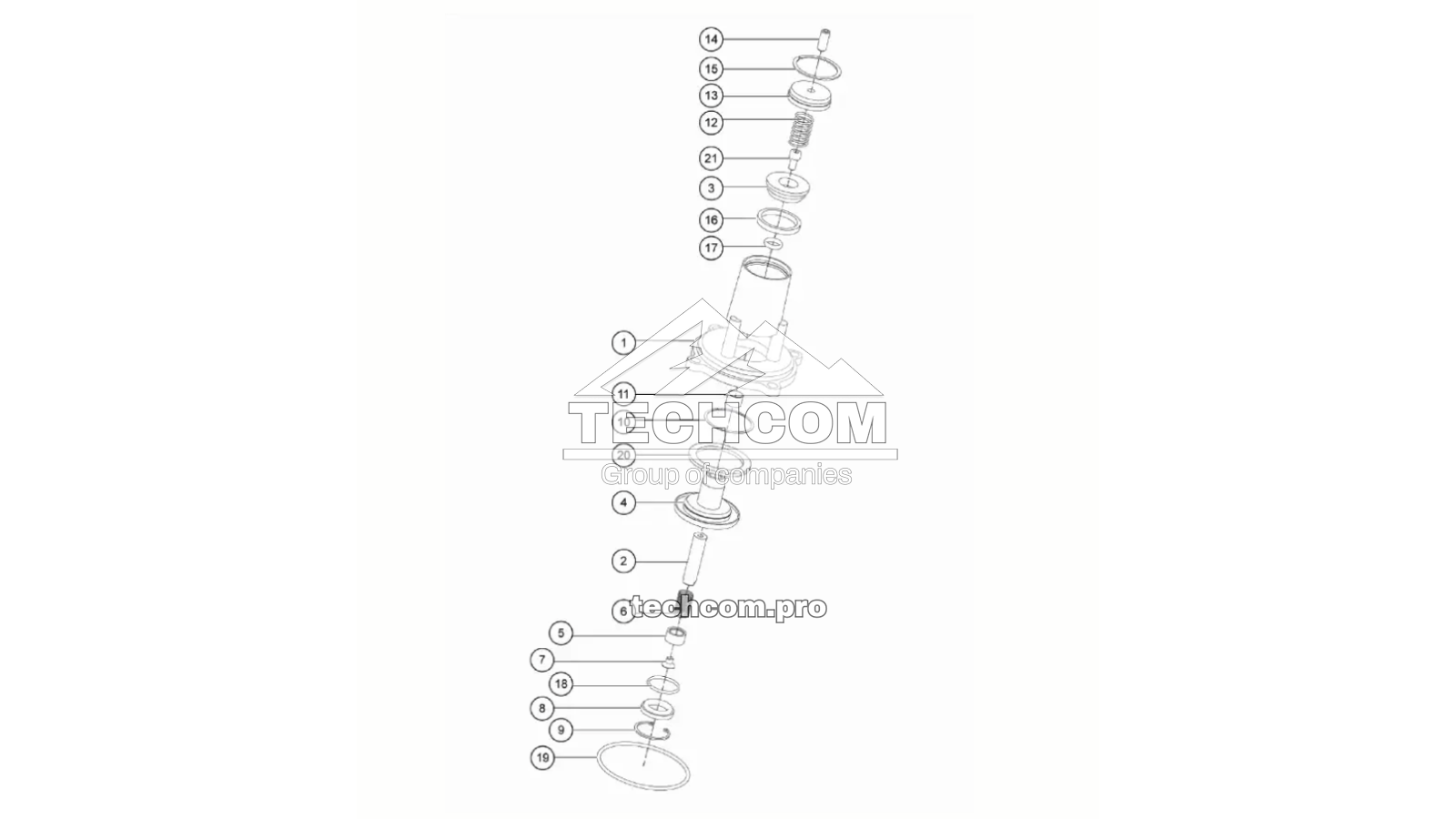

The inlet valve 033 887 08 included in assembly 551 552 02 is shown separately to illustrate its internal construction. Service kits are available for maintenance and overhaul of the valve.
Service kits for inlet valve 03388708
| Ref. | Part No. | Alt. No. | Description | Standard designation | Qty |
|---|---|---|---|---|---|
| 101 | 033 890 10 | 03389010 | Seal Kit | For Part No. 3 | 1 |
| 102 | 895 551 89 | 89555189 | Repair Kit | - | 1 |
