The hydraulic tank mounting assembly of the Aramine T1601C ensures a secure installation and reliable hydraulic oil flow between the tank and system circuits.

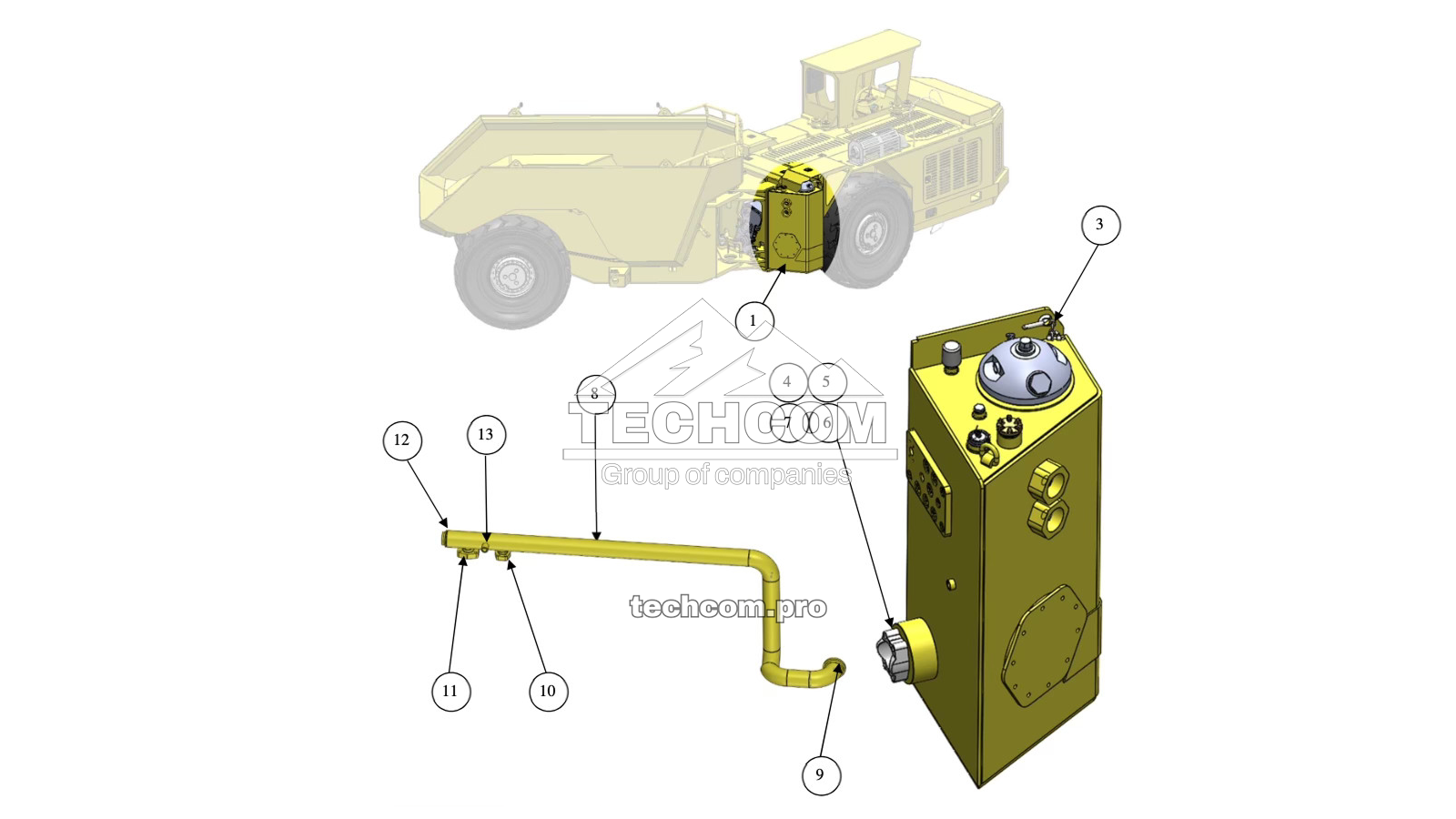

Spare Parts List – Mounting of Hydraulic Tank
| Ref. | Part No. | Qty | Description |
|---|---|---|---|
| 1 | – | 1 | Hydraulic Tank Assembly |
| – | – | 1 | Cover (not shown) |
| 3 | 7728021 | 1 | Quick Release Pin |
| 4 | 7739796 | 2 | Clamp Split Flange |
| 5 | 7765505 | 4 | Capscrew |
| 6 | 7701919 | 4 | Lock Washer |
| 7 | 7703746 | 1 | O-Ring |
| 8 | 7970768 | 1 | Main Suction Tube |
| 9 | 7903697 | 1 | Flange (welded on item 8) |
| 10 | – | 2 | Bolt Flange Fittings (welded on item 8) |
| 11 | – | 1 | Bolt Flange Fitting (welded on item 8) |
| 12 | 7903698 | 1 | Adapter (welded on item 8) |
| 13 | 7903699 | 1 | Adapter (welded on item 8) |

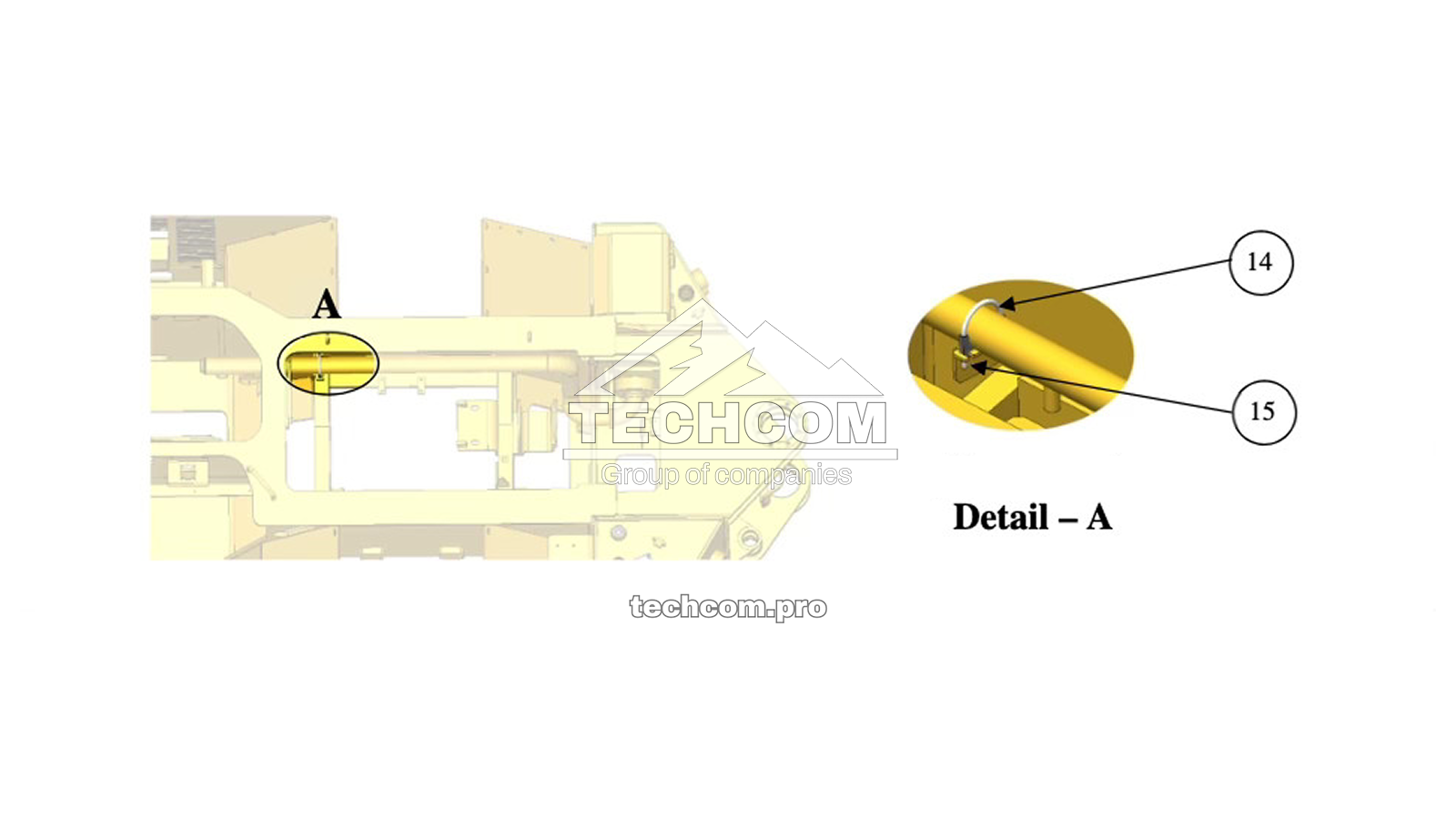

| 14 | 7737619 | 1 | U-Bolt Clamp 3” |
| 15 | 7970769 | 1 | Bracket |
