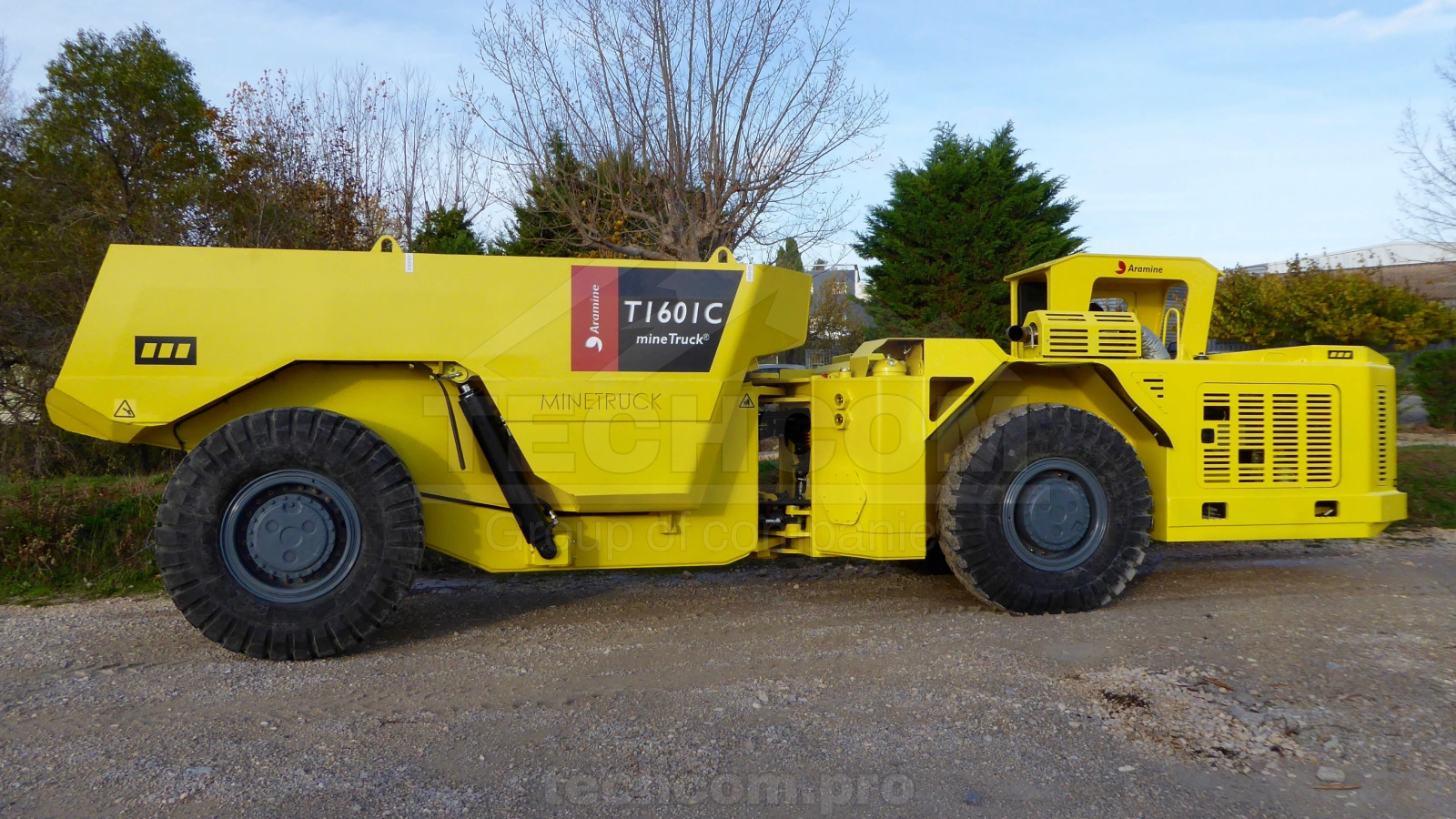

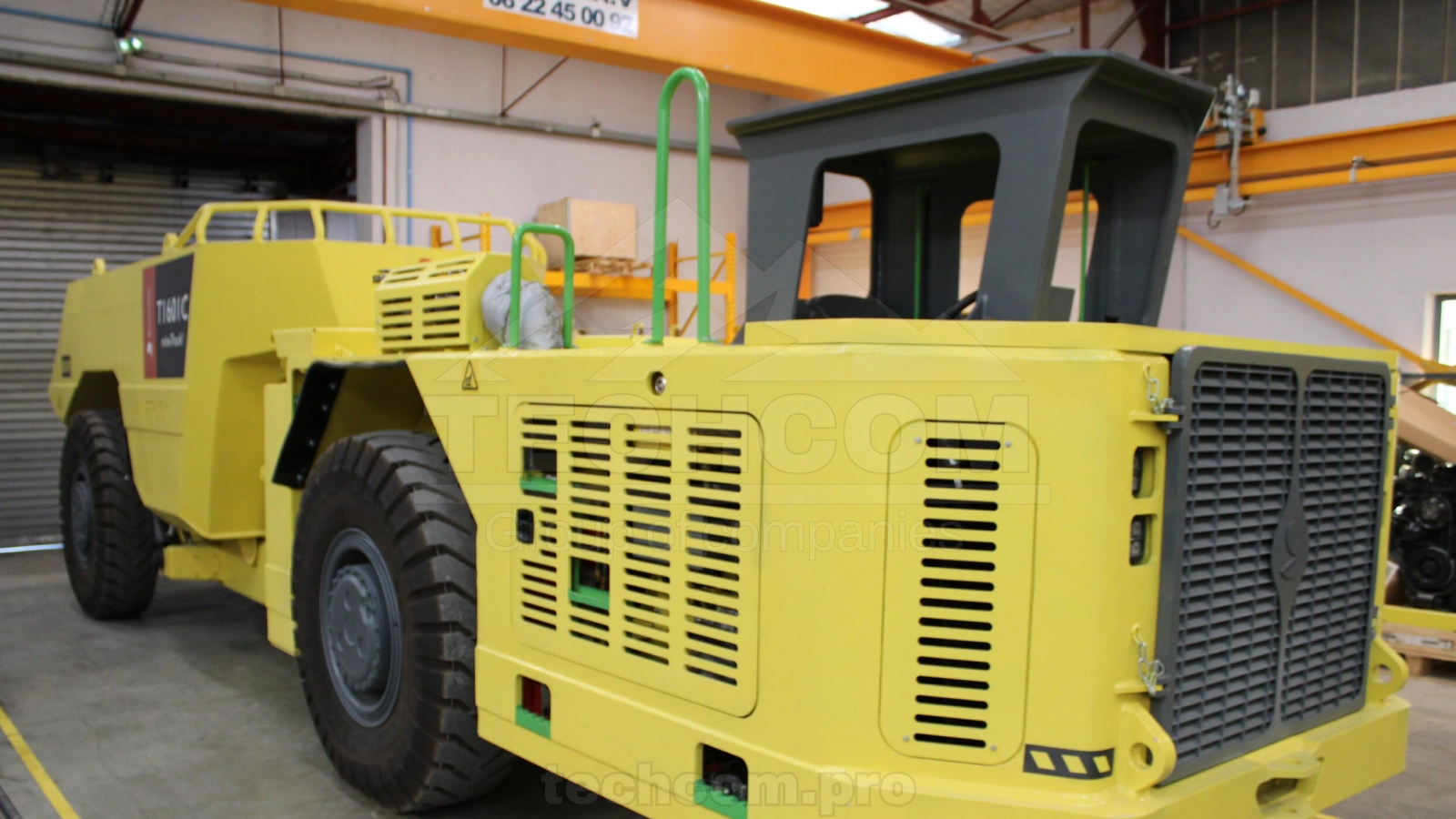

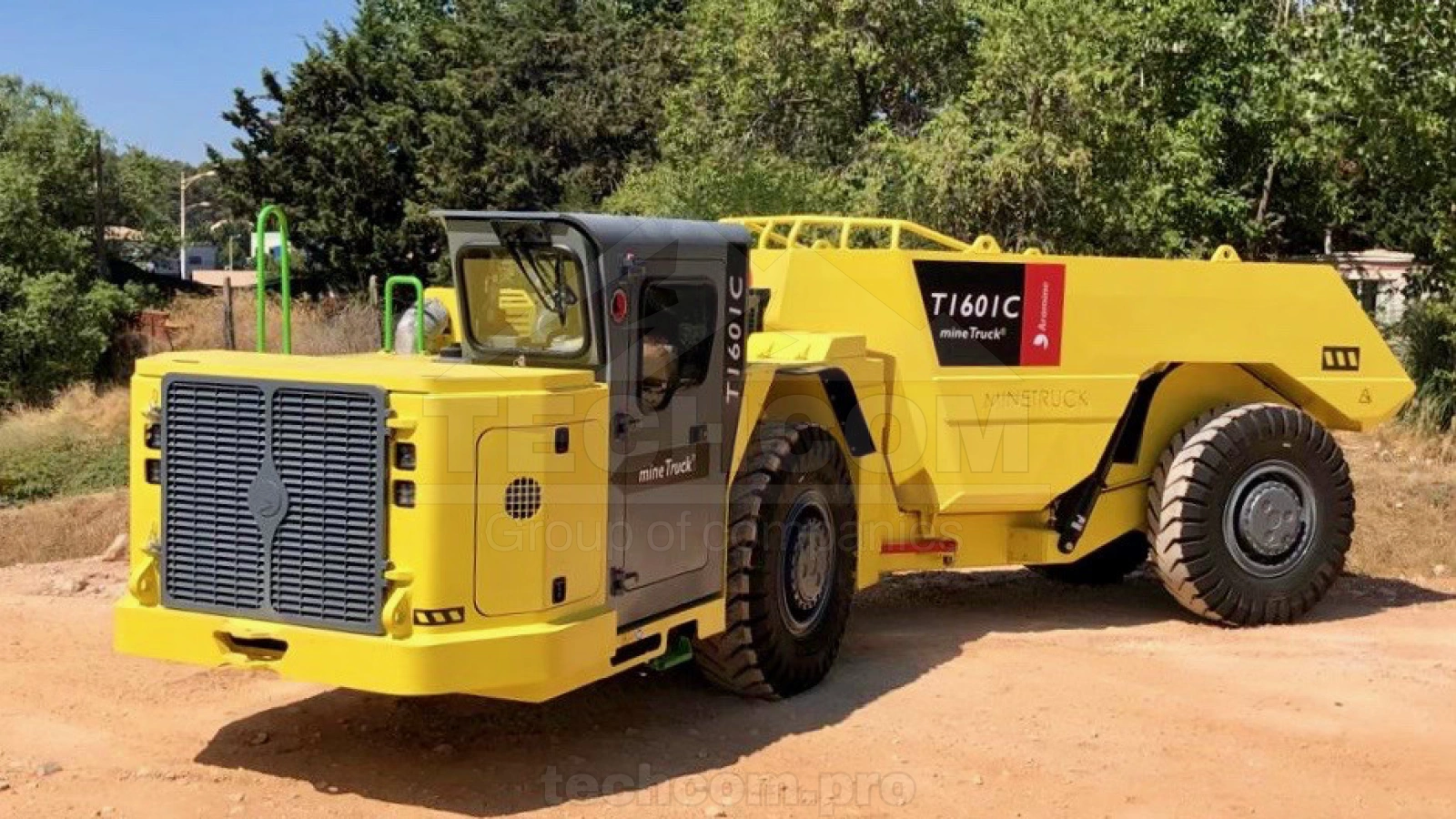

The Aramine T1601C is a compact underground mining truck designed for material haulage in small and medium-sized drifts. Its low-profile articulated structure and 15-ton payload ensure high performance and maneuverability in confined underground environments.
Developed for reliability and operator comfort, this model features a diesel water-cooled engine and an ergonomic forward-facing compartment. Optional upgrades such as a closed cabin and CAN-Bus control system improve safety, productivity, and ease of maintenance.
| Payload capacity | 15 000 kg |
| Dump box volume | 7.5 – 9.5 m³ (9.8 – 12.4 yd³) |
| Heaped volume (SAE STD) | 7.5 m³ |
| Struck volume (SAE) | 6.7 m³ |
| Empty weight | 17 500 kg |
| Discharging time | 14 s |
| Engine type | Diesel, water-cooled (Cummins Tier 3 / Volvo Stage V) |
| Power output | 164 kW @ 2200 rpm / 175 kW @ 2300 rpm |
| Tires | 14.00R24 or 16.00R25 |
| Electrical system | 24 V |
| Dimensions (L × W × H) | 8 014 × 2 000 × 3 200 mm |
