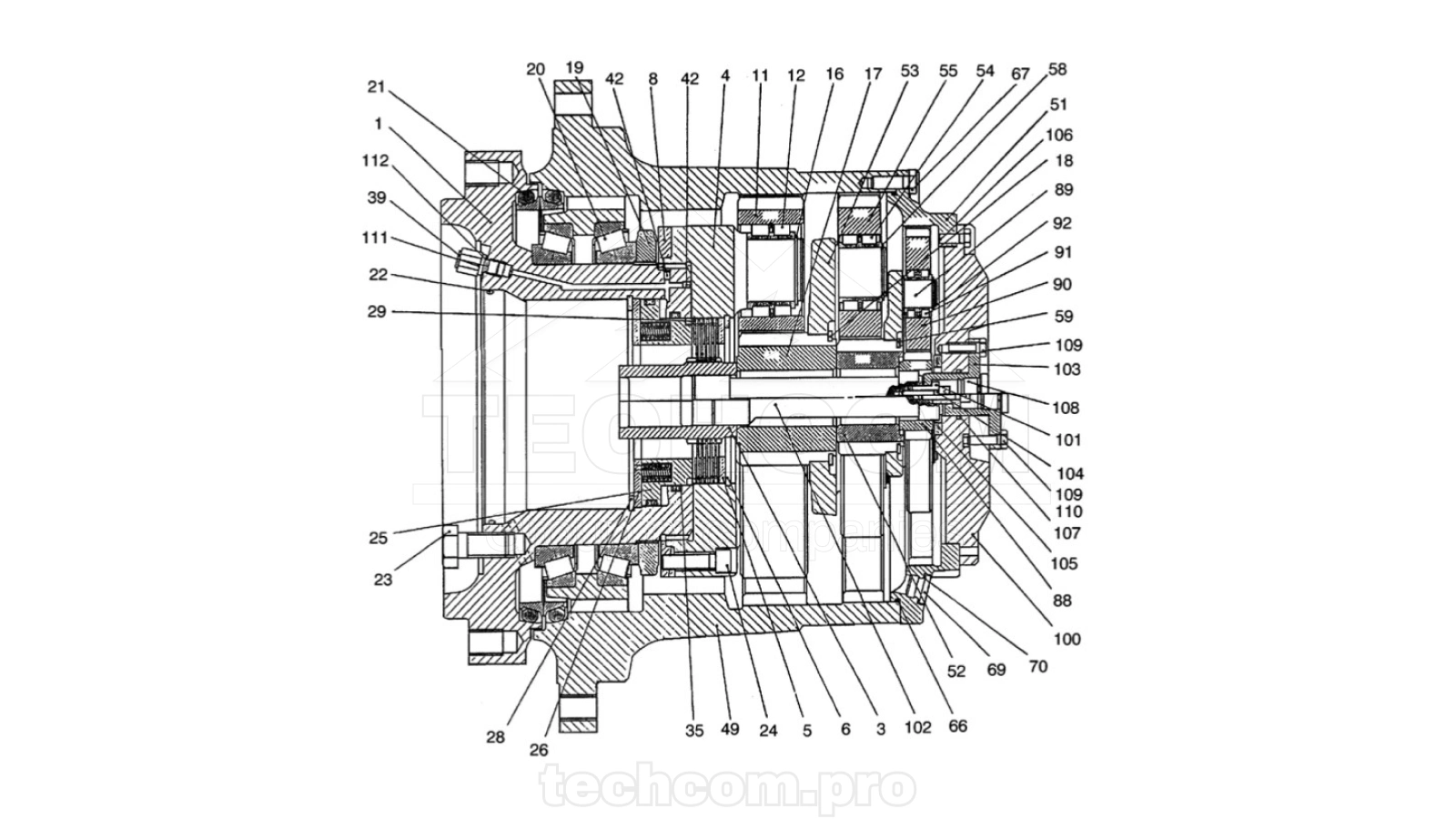

The 57415929 (2657455929) Final Drive Group – U/C is a complete undercarriage drive unit for the Epiroc DM45 drill rig. This assembly includes spindles, shafts, planet gears, bearings, seals, brake kits, and structural components, providing efficient torque transmission and durability for mining operations.
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.1 | 57552408 | 265752408 | Spindle |
| 003.1 | 57552416 | 265752416 | Coupler |
| 004.1 | 57552424 | 265752424 | Carrier, Planet |
| 005.1 | 57552432 | 265752432 | Plate, Back-Up |
| 006.1 | 57552440 | 265752440 | Ring, Snap |
| 008.1 | 57552457 | 265752457 | Ring, Locating |
| 011.2 | 57552465 | 265752465 | Planet Gear |
| 012.2 | 57552473 | 265752473 | Bearing, Planet |
| 016.0 | 57552481 | 265752481 | Ring, Snap |
| 017.0 | 57552499 | 265752499 | Shaft, Sun Gear |
| 018.0 | 57552507 | 265752507 | Ring, Snap |
| 019.0 | 57552515 | 265752515 | Nut, Shaft |
| 020.0 | 57552523 | 265752523 | Bearing, Tapered Roller |
| 021.0 | 57552531 | 265752531 | Seal, Face |
| 022.0 | 57552549 | 265752549 | O-Ring |
| 023.0 | 57552556 | 265752556 | Bolt, Hex Head |
| 024.0 | 57552564 | 265752564 | Bolt, Socket Head |
| 025.0 | 57552572 | 265752572 | Piston |
| 026.0 | 57552580 | 265752580 | Plate, Back-Up |
| 028.0 | 57552598 | 265752598 | Ring, Snap |
| 029.0 | 57457293 | 2657457293 | Kit, Disc (Brake) |
| 035.0 | 57457301 | 2657457301 | Kit, Seal (Brake) |
| 039.0 | 57552622 | 265752622 | Plug, Cap |
| 042.0 | 57552630 | 265752630 | Plug, Expanding |
| 049.0 | 57552648 | 265752648 | Gear, Ring |
| 051.0 | 57552655 | 265752655 | Cover, Ring Gear |
| 052.0 | 57552663 | 265752663 | Shaft, Sun Gear |
| 053.0 | 57552671 | 265752671 | Carrier, Planet |
| 054.1 | 57552689 | 265752689 | Gear, Planet |
| 055.1 | 57552697 | 265752697 | Bearing, Planet |
| 058.0 | 57552705 | 265752705 | Ring, Snap |
| 059.0 | 57552713 | 265752713 | Ring, Snap |
| 066.0 | 57552721 | 265752721 | O-Ring |
| 067.0 | 57552739 | 265752739 | Bolt, Hex Head |
| 069.0 | 57552747 | 265752747 | Plug, Screw |
| 070.0 | 57552754 | 265752754 | Ring, Seal |
| 088.0 | 57552762 | 265752762 | Gear, Sun |
| 089.0 | 57552770 | 265752770 | Carrier, Planet |
| 090.1 | 57552788 | 265752788 | Gear, Planet |
| 091.1 | 57552796 | 265752796 | Bearing, Planet |
| 092.0 | 57552804 | 265752804 | Ring, Snap |
| 100.0 | 57552812 | 265752812 | Cover |
| 101.0 | 57552820 | 265752820 | Sleeve, Locating |
| 102.0 | 57552838 | 265752838 | Shaft, Input |
| 103.0 | 57552846 | 265752846 | Sleeve, Shift |
| 104.0 | 57552853 | 265752853 | Bolt, Socket Head |
| 105.0 | 57552861 | 265752861 | Washer, Thrust |
| 106.0 | 57552879 | 265752879 | Bolt, Hex Head |
| 107.0 | 57552887 | 265752887 | O-Ring |
| 108.0 | 57552895 | 265752895 | Plug, Screw |
| 109.0 | 57552903 | 265752903 | Bolt, Hex Head |
| 110.0 | 57552911 | 265752911 | Bolt, Hex Head |
| 111.0 | 57552929 | 265752929 | Adapter |
| 112.0 | 57552937 | 265752937 | Ring, Seal |
| 113.0 | 57552754 | 265752754 | Ring, Seal |
| 114.0 | 57552952 | 265752952 | Adapter |
TechCom delivers complete final drive assemblies and spare parts for undercarriage systems. See the full catalog of Epiroc DM45 spare parts.
