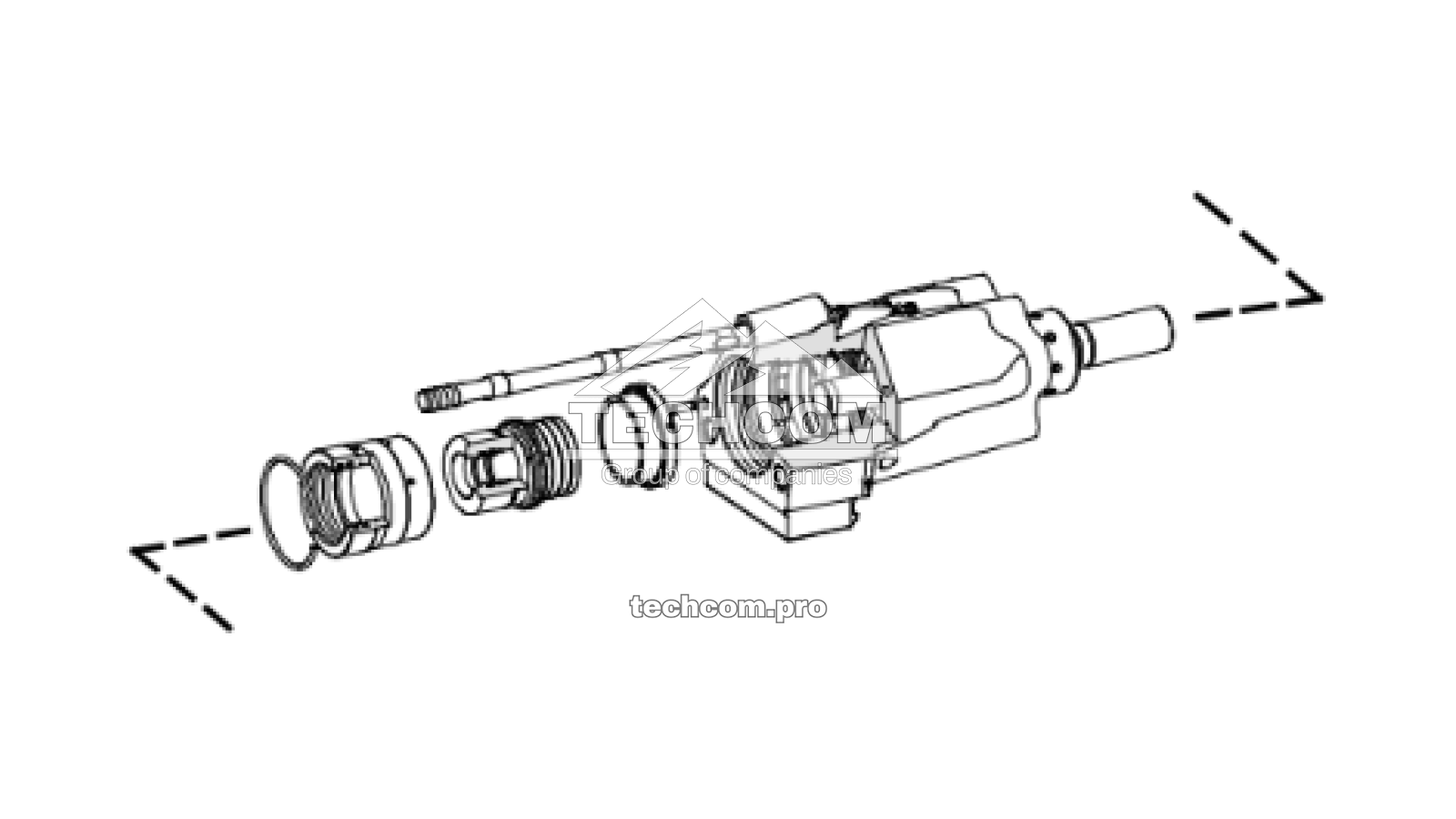

Hydraulic stop parts for Montabert HC160
The hydraulic stop system used in Montabert HC160 controls impact limitation and protects internal components during operation. It includes pistons, seals, guiding elements and structural components ensuring stable energy absorption and operational safety.

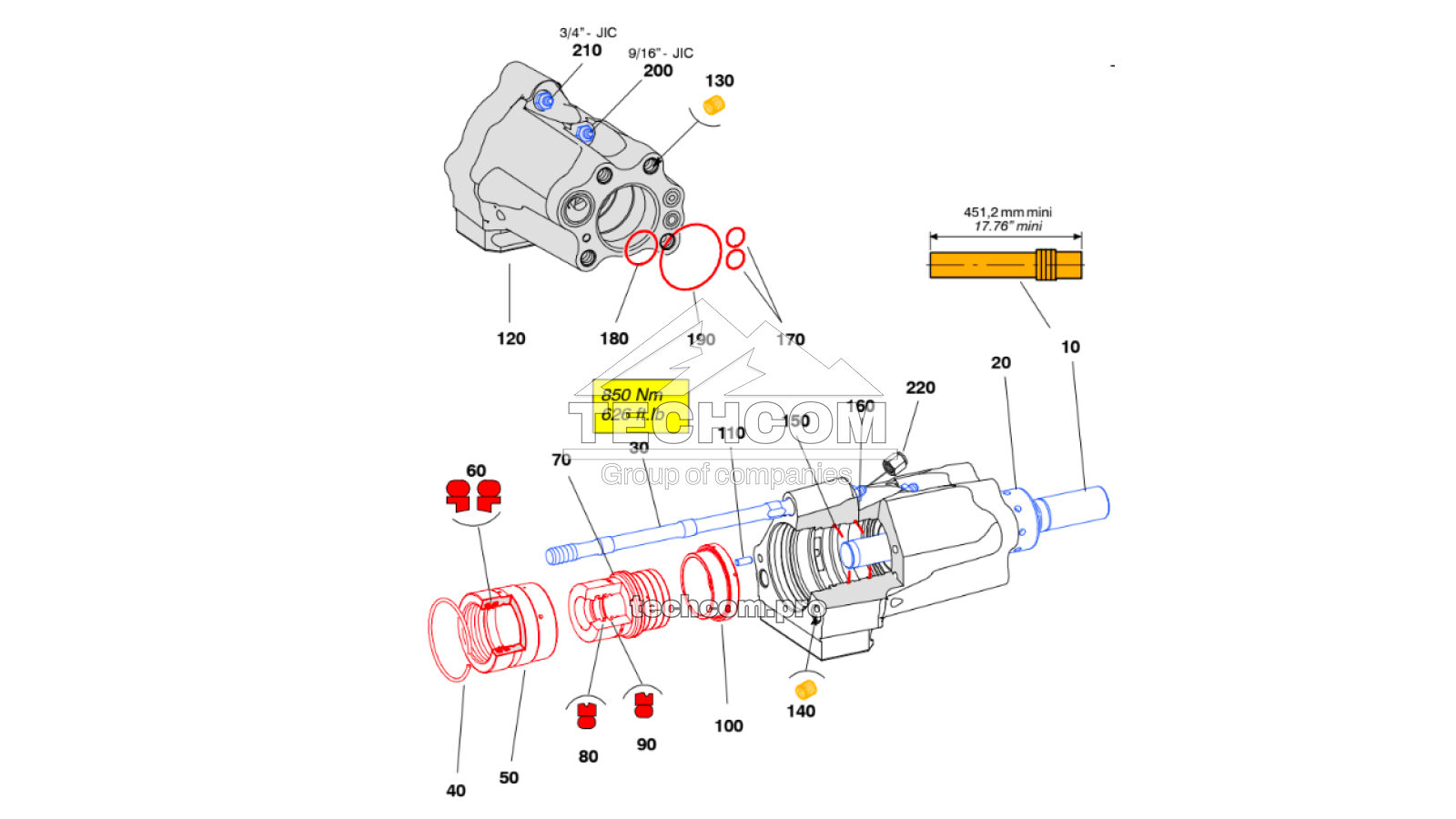

Components included in the hydraulic stop system
| Item | Part No. | Name | Qty | Remarks |
| 10 | 86590072 | Strike piston | 1 | Main impact component |
| 20 | 86588555 | Guide lining | 1 | Guiding element |
| 30 | 86609443 | UNF 1" gudgeon | 1 | Connection element |
| 40 | 86590148 | Snap ring | 1 | Retaining element |
| 50 | 86588977 | Front thrust lining | 1 | Wear protection |
| 60 | 86588068 | Seal | 2 | Sealing component |
| 70 | 86602182 | Thrust piston | 1 | Force transmission component |
| 80 | 86606068 | Seal | 1 | Sealing component |
| 90 | 86588043 | Seal | 1 | Sealing component |
| 100 | 86607363 | Rear thrust lining | 1 | Wear protection |
| 110 | 86223419 | Pin | 1 | Fixing element |
| 120 | 86586294 | Stop body (including internal parts) | 1 | Includes items 130–140 |
| 130 | 86642444 | Helicoil thread UNF 7/8" | 4 | Thread insert |
| 140 | 86642451 | Helicoil thread UNF 1" | 3 | Thread insert |
| 150 | 86588035 | O-ring | 1 | Sealing component |
| 160 | 86588027 | O-ring | 1 | Sealing component |
| 170 | 86228996 | O-ring | 2 | Sealing component |
| 180 | 86606274 | O-ring | 1 | Sealing component |
| 190 | 86502234 | O-ring | 1 | Sealing component |
| 200 | 95231031 | Adapter | 1 | Connection element |
| 210 | 95219721 | Adapter | 1 | Connection element |
| 220 | 86247723 | Plug | 1 | Closing element |

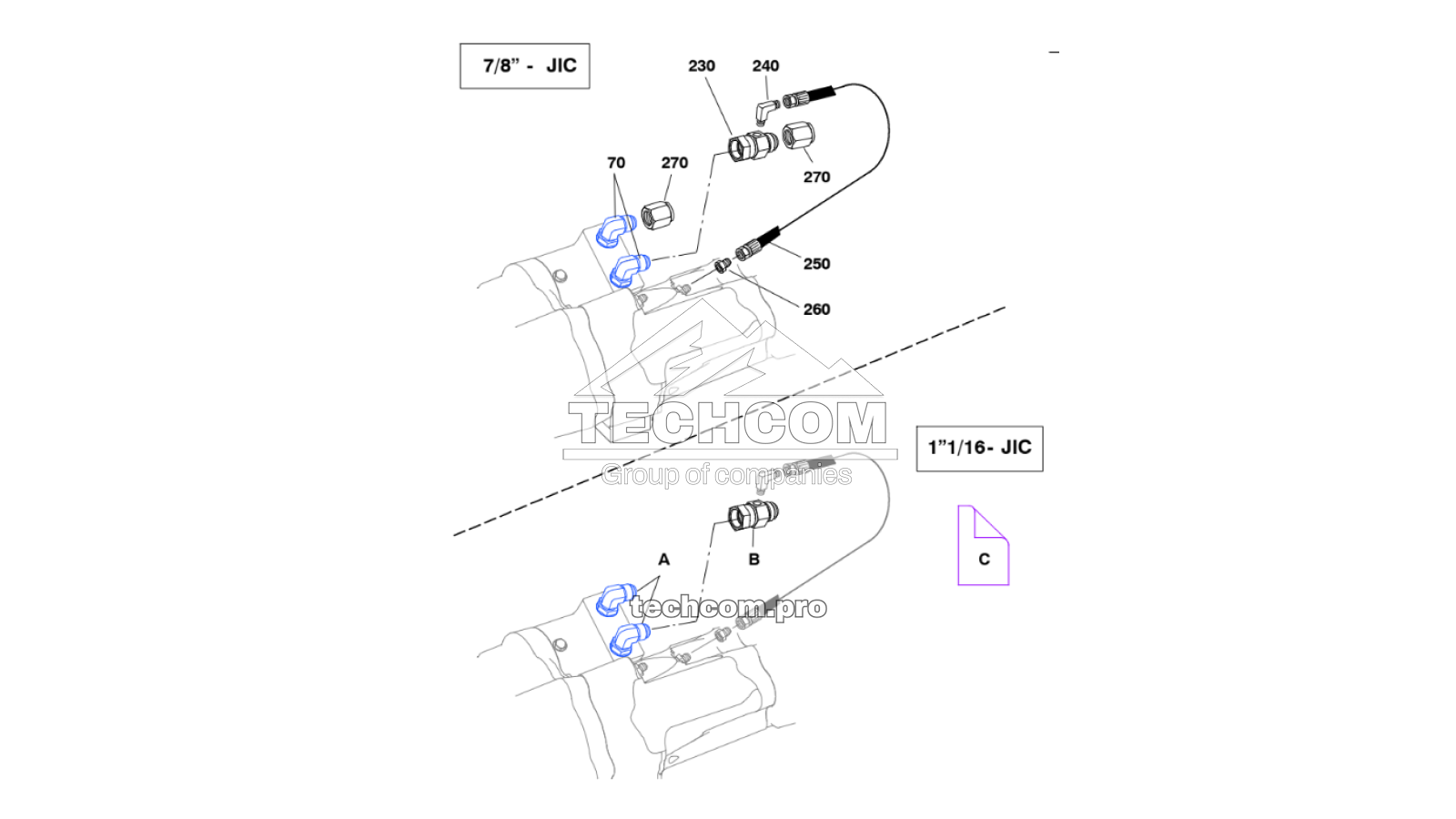

Standard delivered components
| Item | Part No. | Name | Qty | Remarks |
| 70 | 86482999 | Adapter | 2 | Connection element |
| 230 | 86313384 | T-piece | 1 | Connection component |
| 240 | 95209094 | Adapter | 1 | Connection element |
| 250 | 86674892 | Hose | 1 | Hydraulic line |
| 260 | 86603966 | Restrictor adapter (Ø 1.6 mm) | 1 | Flow control element |
| 270 | 86263233 | Plug | 2 | Closing element |
Optional kit configuration
| Item | Part No. | Name | Qty | Remarks |
| A | 86361912 | Adapter | 2 | Connection element |
| B | 86313392 | T-piece | 1 | Connection component |
| C | 100983269 | External HP connection notice | 1 | Documentation |
Browse the complete spare parts catalog for the Montabert HC160 hydraulic drifter to find original components and service parts for hydraulic stop system maintenance and repair.
