Distribution parts for Montabert HC160
The distribution system used in Montabert HC160 hydraulic drifters controls hydraulic flow and ensures precise operation of internal components. It includes the valve system, distributor, sealing elements and structural parts required for stable energy transfer and efficient drilling performance.

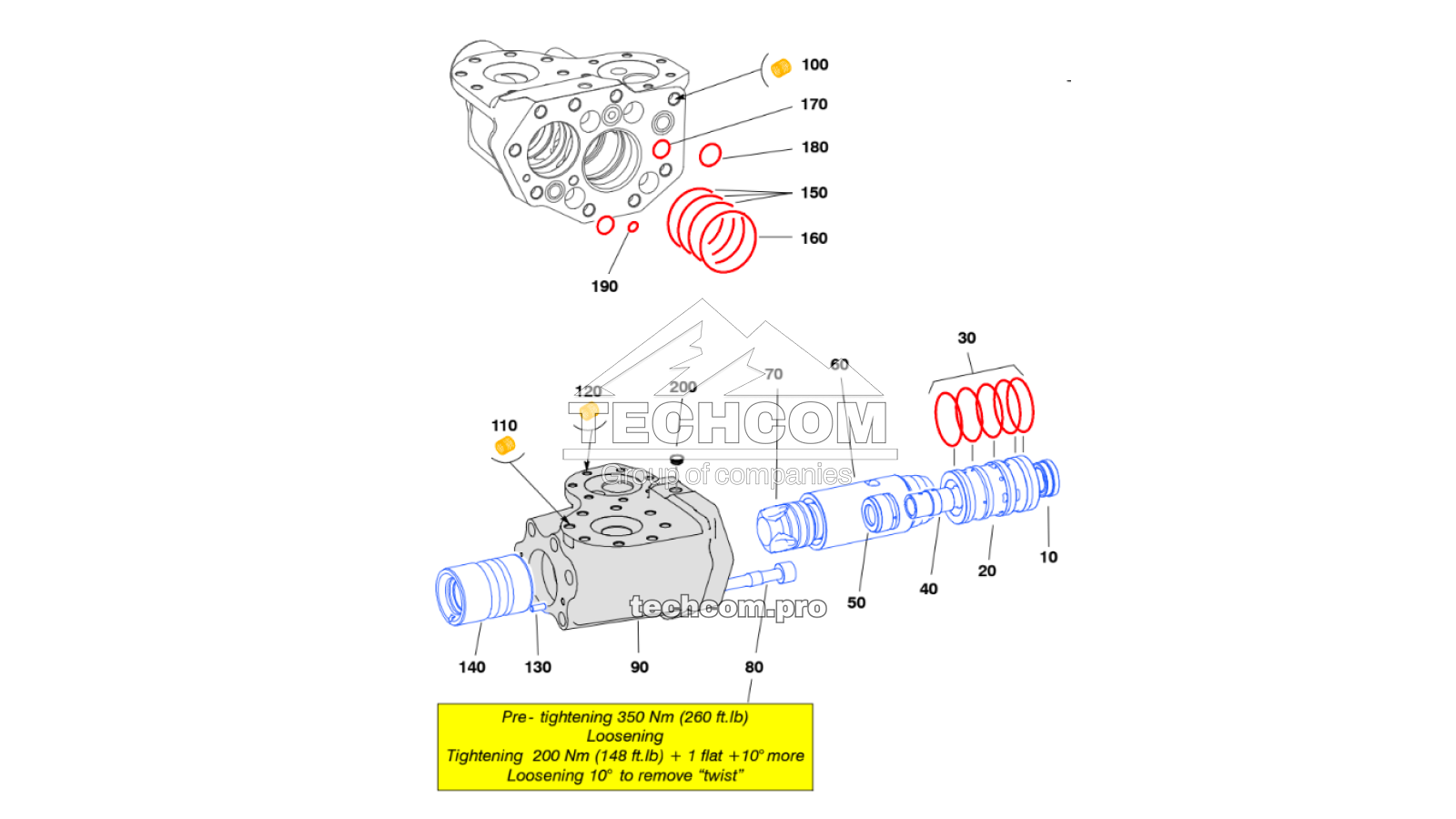

Components included in the distribution system
| Item | Part No. | Name | Qty | Remarks |
| 10 | 86503224 | Valve | 1 | Control element |
| 20 | 86602430 | Distribution box | 1 | Main housing |
| 30 | 86588019 | O-ring | 5 | Sealing component |
| 40 | 86590098 | Distributor | 1 | Flow distribution element |
| 50 | 86599941 | Cover | 1 | Protective element |
| 60 | 86588522 | Lining | 1 | Wear protection |
| 70 | 86590064 | Thrust piston | 1 | Force transmission component |
| 80 | 86608841 | UNF 7/8" screw | 4 | Fastening component |
| 90 | 86605268 | Main body (including internal parts) | 1 | Includes items 100–120 |
| 100 | 86264678 | Helicoil thread UNF 3/4" | 1 | Thread insert |
| 110 | 86249067 | Helicoil thread UNF 5/8" | 1 | Thread insert |
| 120 | 86586302 | Helicoil thread UNF 1/2" | 1 | Thread insert |
| 130 | 86223419 | Pin | 1 | Fixing element |
| 140 | 86608213 | Cylinder | 1 | Main functional component |
| 150 | 86221918 | O-ring | 3 | Sealing component |
| 160 | 86502234 | O-ring | 1 | Sealing component |
| 170 | 86231461 | O-ring | 2 | Sealing component |
| 180 | 86236593 | O-ring | 1 | Sealing component |
| 190 | 86223740 | O-ring | 1 | Sealing component |
| 200 | 86249265 | Plastic plug | 1 | Closing element |
| 210 | 86752979 | UNF 1/2" socket head screw | 7 | Fastening component |
| 220 | 86252327 | O-ring | 1 | Sealing component |
| 230 | 86265048 | Inflating screw | 1 | Service component |
| 240 | 86241403 | BS ring | 1 | Sealing element |
| 250 | 86398229 | Plastic plug | 7 | Closing element |
| 260 | 86751401 | UNF 1/2" socket head screw | 7 | Fastening component |
| 270 | 86672623 | Lid | 1 | Protective element |
| 280 | 86634003 | Diaphragm kit | 1 | Service kit |
| 290 | 86590122 | Lower flange | 1 | Structural component |
| 300 | 86590056 | Ring | 1 | Support element |
| 310 | 86223427 | Spring | 1 | Elastic element |
| 320 | 86312196 | Washer | 4 | Fastening accessory |
| 330 | 86366259 | Slide | 1 | Control element |
| 340 | 86590049 | Lining | 1 | Wear protection |
| 350 | 86301272 | O-ring | 3 | Sealing component |
| 360 | 86588001 | Back-up ring | 3 | Anti-extrusion seal |
| 370 | 86503323 | UNF 5/8" socket head screw | 8 | Fastening component |
| 380 | 86252327 | O-ring | 1 | Sealing component |
| 390 | 86265048 | Inflating screw | 1 | Service component |
| 400 | 86241403 | BS ring | 1 | Sealing element |
| 410 | 86405081 | Plastic plug | 8 | Closing element |
| 420 | 86580982 | UNF 5/8" socket head screw | 8 | Fastening component |
| 430 | 86422359 | Lid | 1 | Protective element |
| 440 | 86635620 | Diaphragm kit | 1 | Service kit |
| 450 | 86590114 | Lower flange | 1 | Structural component |
