Spare parts for Explorac 100 Epiroc

Chassis Assembly – Explorac 100 Epiroc]

Spare Parts for Epiroc Explorac 100

The chassis assembly for the Epiroc Explorac 100 is an OEM-grade structural module forming the base frame for all major drilling, hydraulic and control systems of the rig. It includes load-bearing elements, mounting brackets, hydraulic housings, air and lubrication subsystems and protective structures designed to ensure stability, alignment and long-term operational reliability.

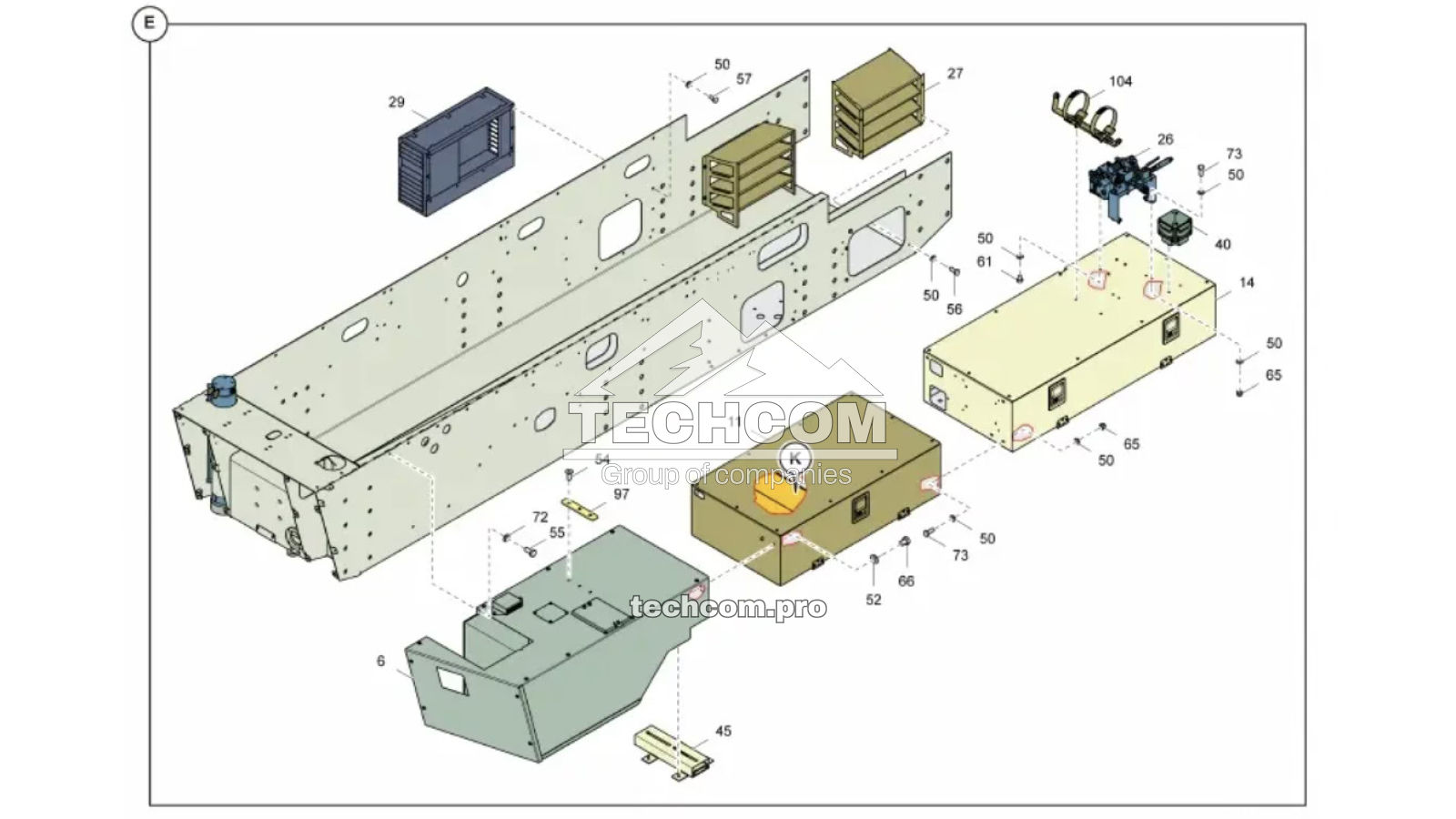

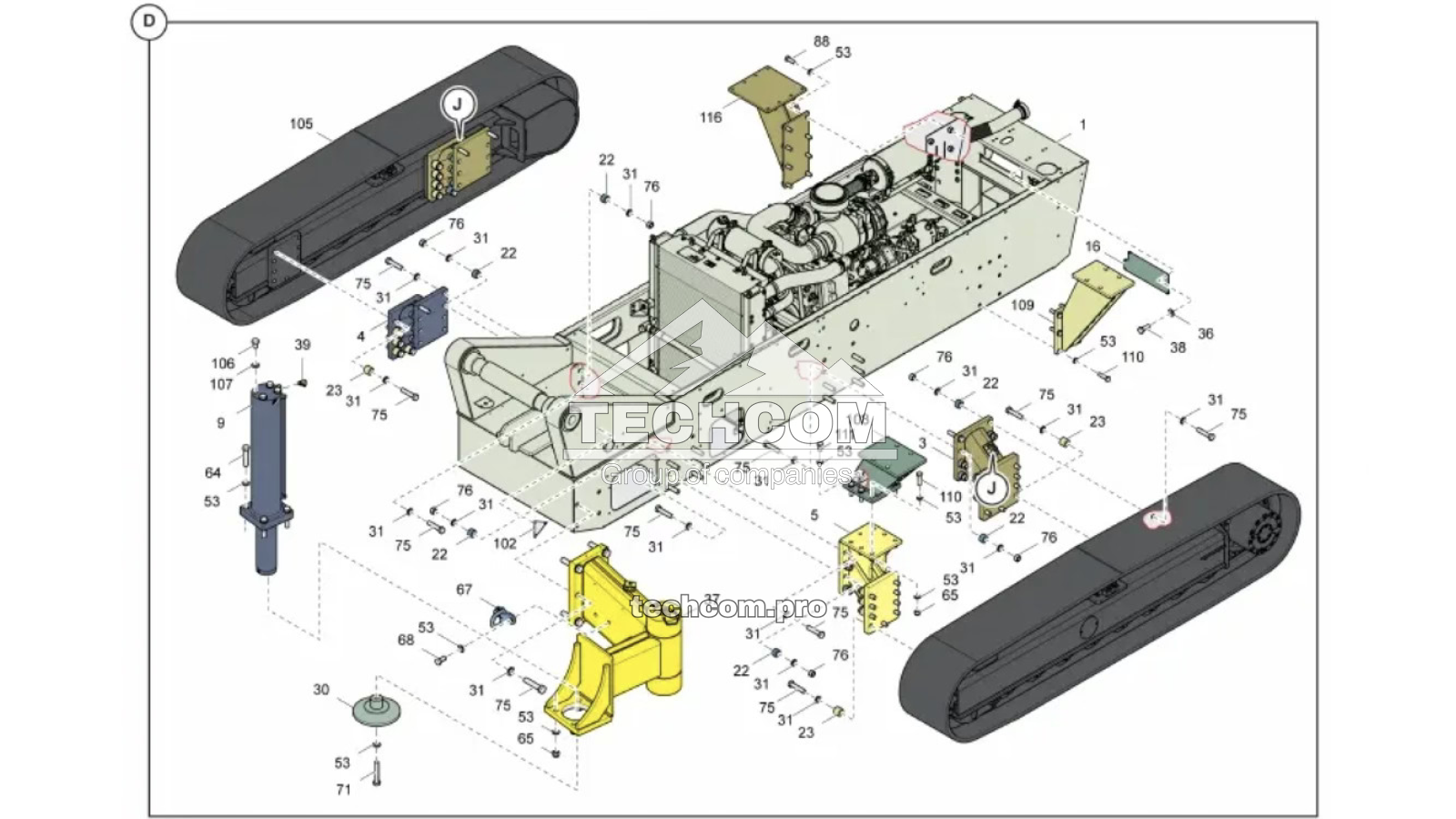

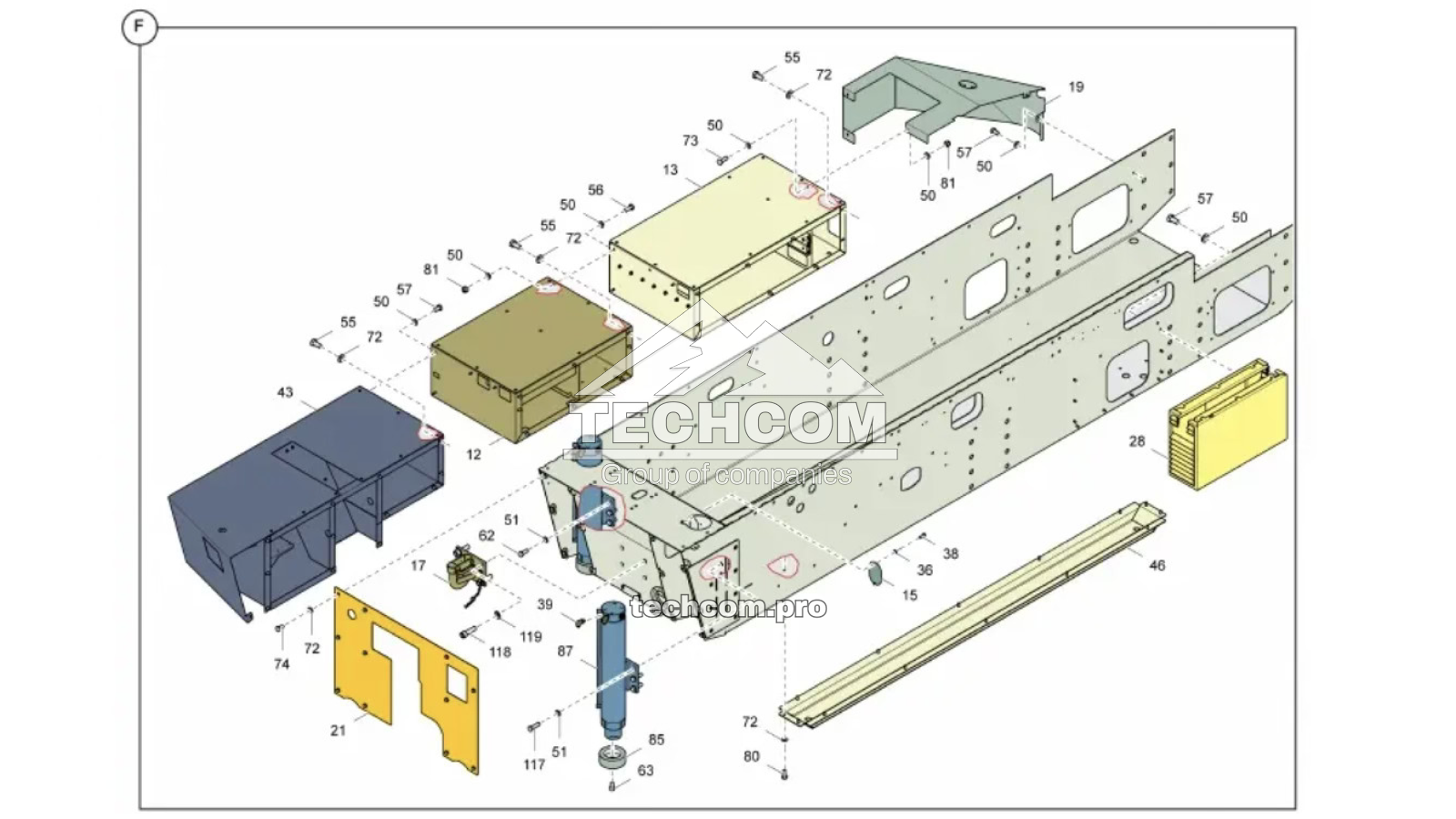

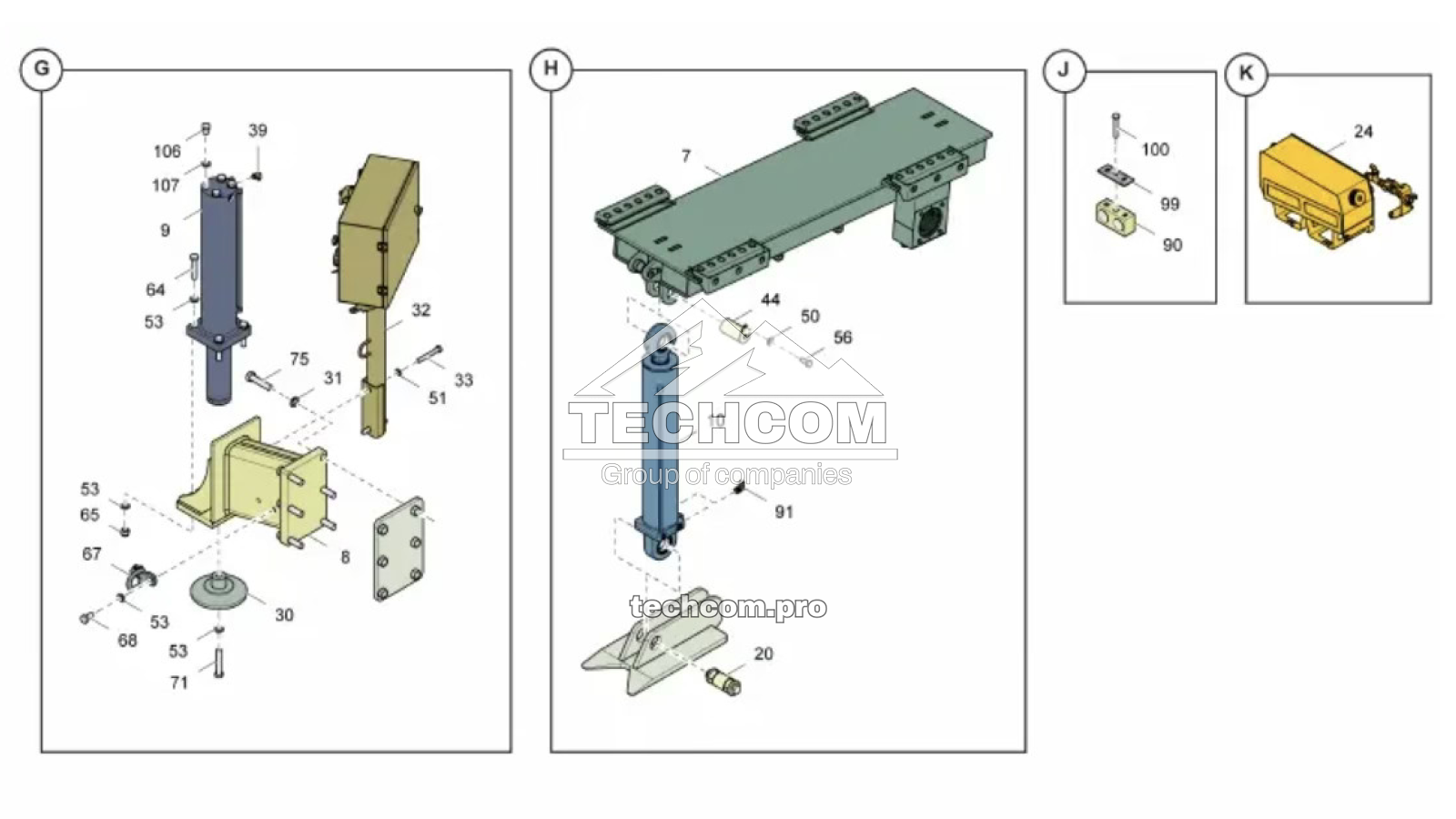

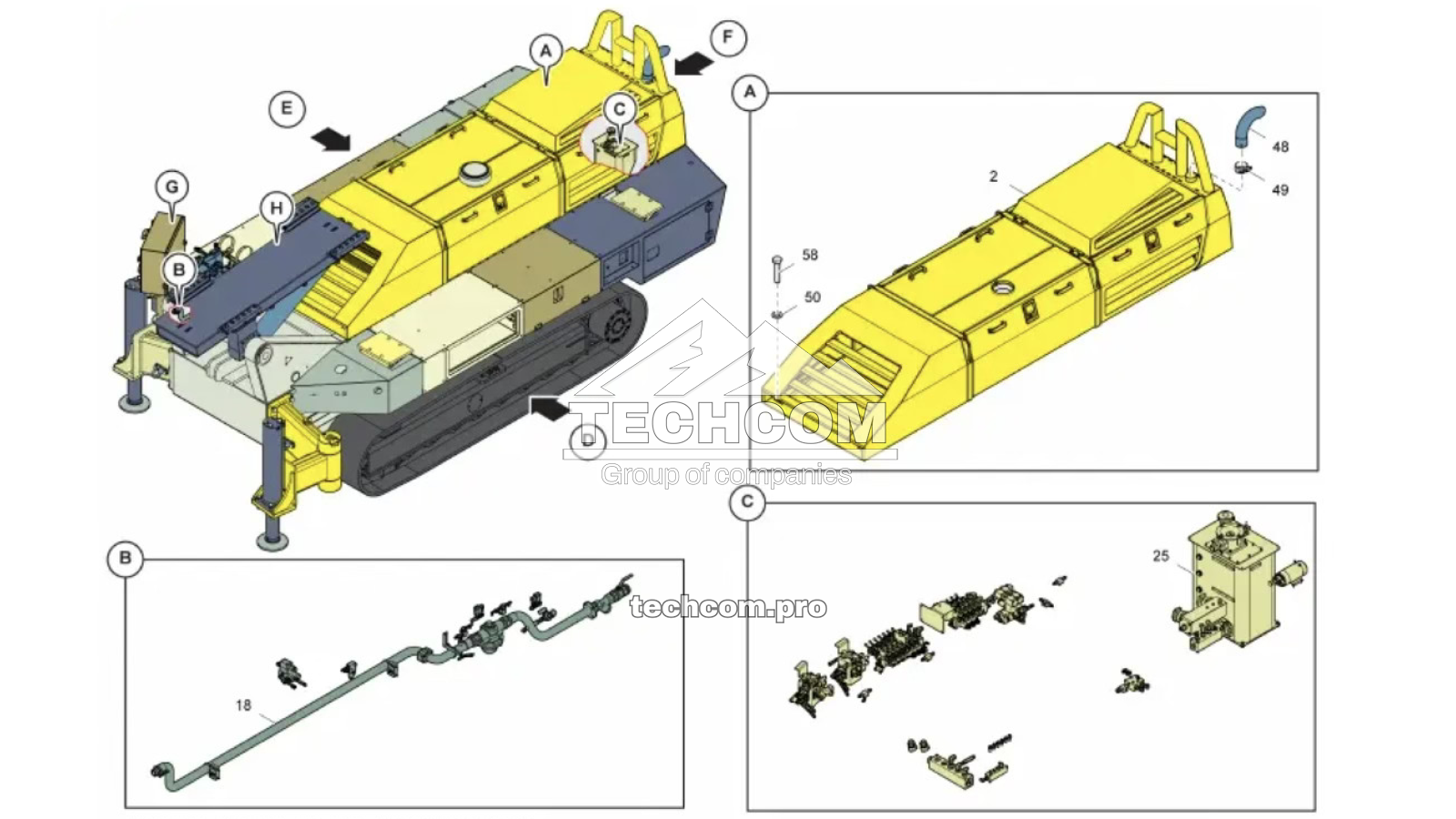

Components included in the Chassis Assembly

Item Part No. Alt No. Name Qty Remarks
- - - CHASSIS 1 COMPLETE ASSEMBLY
001 - - ENGINE PARTS 1 -
002 3717005100 3717 0051 00 CANOPY 1 -
003 3717003139 3717 0031 39 CRAWLER TRACK BRACKET BACK 2 BACK
004 3717003218 3717 0032 18 CRAWLER TRACK BRACKET LEFT 1 LEFT
005 3717003002 3717 0030 02 CRAWLER TRACK BRACKET RIGHT 1 RIGHT
006 - - FUEL TANK 1 DIESEL FUEL TANK
007 - - MAST SUPPORT ASSEMBLY 1 -
008 3717003003 3717 0030 03 FRONT JACK BRACKET 1 E100
009 3717003762 3717 0037 62 JACK CYLINDER 2 E100-M10
010 3717002950 3717 0029 50 CYLINDER MAST LIFT PUSH 1 MAST LIFT
011 3717005420 3717 0054 20 REAR HYDRAULIC BOX ASSEMBLY 1 -
012 3717005467 3717 0054 67 BATTERY WELDING BOX 1 BATTERY BOX
013 3717004299 3717 0042 99 ELECTRICAL SIDE BOX 1 SIDE BOX
014 3717005444 3717 0054 44 HYDRAULIC BOX 1 -
015 3717006406 3717 0064 06 COVER HYDRAULIC HOLE 1 -
016 3717006405 3717 0064 05 COVER WINCH HOLE 1 -
017 3717005902 3717 0059 02 MANUAL TOWING HOOK 1 -
018 3717005183 3717 0051 83 H.P AIR SYSTEM ASSEMBLY 1 HIGH-PRESSURE AIR SYSTEM
019 3717003038 3717 0030 38 TEAR PLATE – -
020 3717003158 3717 0031 58 EXPANDER SHAFT 620851 1 -
021 3717003034 3717 0030 34 PLATE 1 -
022 3717003336 3717 0033 36 SHIM 32 -
023 3717003335 3717 0033 35 SHIM 36 -
024 3717003219 3717 0032 19 AIR/LUBE SYSTEM 1 -
025 - - HYDRAULIC SYSTEM 1 -
026 3717003396 3717 0033 96 FOAM PUMP ASSEMBLY 1 -
027 3717003411 3717 0034 11 AIR INTAKE ASSY FRONT 2 -
028 3717003421 3717 0034 21 AIR INTAKE LOW ASSY REAR LEFT 1 -
029 3717003442 3717 0034 42 AIR INTAKE LOW ASSY REAR RIGHT 1 -
030 9110896800 9110 8968 00 FOOT PLATE 2 -
031 5540112900 5540 1129 00 WASHER 113 FLAT M24 HT PLTD
032 3717005415 3717 0054 15 MANOMETER PANEL ASSEMBLY 1 -
033 0147149203 0147 1492 03 HEX HEAD SCREW 2 M16×120 – 8.8 FZB
036 0301231800 0301 2318 00 PLAIN WASHER 7 5.3/10×1 HB200 FZB
037 3717004279 3717 0042 79 SUPPORTING LEG LEFT 1 -
038 0147120603 0147 1206 03 SCREW 7 M5×14 – 8.8 FZB
039 0570704136 0570 7041 36 ELBOW NIPPLE 8 A1 6–1/4 UNF 9/16-18
040 - - LEVEL INDICATOR 1 -
043 3717005196 3717 0051 96 BOX 1 -
044 3717005080 3717 0050 80 SHAFT COMPLETE 1 -
045 3717005186 3717 0051 86 ASSY FOOTBOARD 1 -
046 3717005229 3717 0052 29 POWER HOSE COVER 1 -
048 3717005052 3717 0050 52 EXHAUST PIPE 1 -
049 3222999097 3222 9990 97 CLAMP 1 -
050 0301233500 0301 2335 00 PLAIN WASHER 86 8.4/16×1.6 HB200 FZB
051 0301237800 0301 2378 00 PLAIN WASHER 14 17/30×3 HB200 FZB
052 0301235800 0301 2358 00 FLAT WASHER 2 13/24×2.5 HB200 FZB
053 0301239400 0301 2394 00 PLAIN WASHER 50 21/37×3 HB200 FZB
054 0216195726 0216 1957 26 HEX SOCK. SCREW 3 M6×16 DIN7991-10.9
055 0147136103 0147 1361 03 SCREW, HEX HEAD 62 M10×22 – 8.8 FZB
056 0147132303 0147 1323 03 SCREW, HEX HEAD 28 M8×20 – 8.8 FZB
057 0147132203 0147 1322 03 SCREW, HEX HEAD 25 M8×16 – 8.8 FZB
058 0147196044 0147 1960 44 SCREW, HEX HEAD 2 AM 8 × 40
061 0147132003 0147 1320 03 SCREW, HEX HEAD 4 M8 × 12 – 8.8 FZB
062 0147147703 0147 1477 03 SCREW, HEX HEAD 6 M16 × 40 – 8.8 FZB
063 0211147503 0211 1475 03 SCREW 2 MC6S M16 × 30 – 8.8 FZB
064 0147196132 0147 1961 32 SCREW, HEX HEAD 8 A M20 × 100
065 0291112828 0291 1128 28 LOCK NUT 18 M20 – 8 FZB / ISO 7040
066 0147139703 0147 1397 03 Screw 2 M12 × 16 – 8.8 FZB
067 3717006237 3717 0062 37 LASHING LOOP 2 -
068 0147154903 0147 1549 03 SCREW, HEX HEAD 4 M20 × 40 – 8.8 FZB
071 0147156403 0147 1564 03 SCREW, HEX HEAD 2 M20 × 120 – 8.8 FZB
072 0301234400 0301 2344 00 PLAIN WASHER 97 10.5 / 20 × 2 – HB200 FZB
073 0147132403 0147 1324 03 SCREW, HEX HEAD 13 M8 × 22 – 8.8 FZB
074 0147136003 0147 1360 03 SCREW, HEX HEAD 10 M10 × 20 – 8.8 FZB
075 0147110780 0147 1107 80 SCREW 80 -
076 5540128500 5540 1285 00 HEXAGON NUT 32 -
080 0147136203 0147 1362 03 SCREW, HEX HEAD 17 M10 × 25 – 8.8 FZB
081 0291112818 0291 1128 18 LOCK NUT - M8 – 8 FZB / ISO 7040
085 3717005380 3717 0053 80 REAR JACK PLATE 2 -
087 3717005442 3717 0054 42 REAR JACK CYLINDER 2 -
088 0147155203 0147 1552 03 SCREW, HEX HEAD 8 M20 × 55 – 8.8 FZB
090 5541575100 5541 5751 00 INSERT 2 -
091 0570704104 0570 7041 04 ELBOW NIPPLE 2 A1 12 – 1/2 UNF 13/16-16
092 9106001787 9106 0017 87 RUBBERMOULDING 0.40 -
097 3717005898 3717 0058 98 CYCLONE REST PAD 1 -
099 5541573700 5541 5737 00 PLATE 2 -
100 0147133003 0147 1330 03 SCREW, HEX HEAD 2 M8 × 50 – 8.8 FZB
101 3115021200 3115 0212 00 STRAP 20 L=1200, W=25
102 3717004447 3717 0044 47 POSITION TRIANGLE 2 -
103 3163185200 3163 1852 00 WIRE MESH HOSE 1 -
104 - - MOUNT 1 -
105 3222341149 3222 3411 49 TRACK FRAME 1 COMPL., GFT8140/40. 3-GROUSER
106 0147154703 0147 1547 03 SCREW, HEX HEAD 8 M20 × 30 – 8.8 FZB
107 0300027413 0300 0274 13 WASHER 8 21 / 37 × 3 – HB 200 FZB
108 3717002829 3717 0028 29 ATTACHMENT 1 -
109 3717002830 3717 0028 30 ATTACHMENT 1 -
110 0147196259 0147 1962 59 SCREW 13 -
111 0147155003 0147 1550 03 SCREW, HEX HEAD 1 M20 × 45 – 8.8 FZB
113 3718040135 3718 0401 35 HOSE GUARD 2 -
115 3717002084 3717 0020 84 WIRE MESH HOSE TYPE A D50-3 1 -
116 3717007000 3717 0070 00 BRACKET 1 -
117 0147148012 0147 1480 12 SCREW, HEX HEAD 6 M16 × 55 – 8.8 FZB
118 0211196318 0211 1963 18 SCREW 4 MC6S M20 × 70 – 12.9
119 0333520012 0333 5200 12 LOCK WASHER 4 M20 A – 21.4 × 39 × 3.4

Browse the complete catalog of high-quality replacement components for the Epiroc Explorac 100.

Compatible with

Drilling Rig Explorac 100 Epiroc
