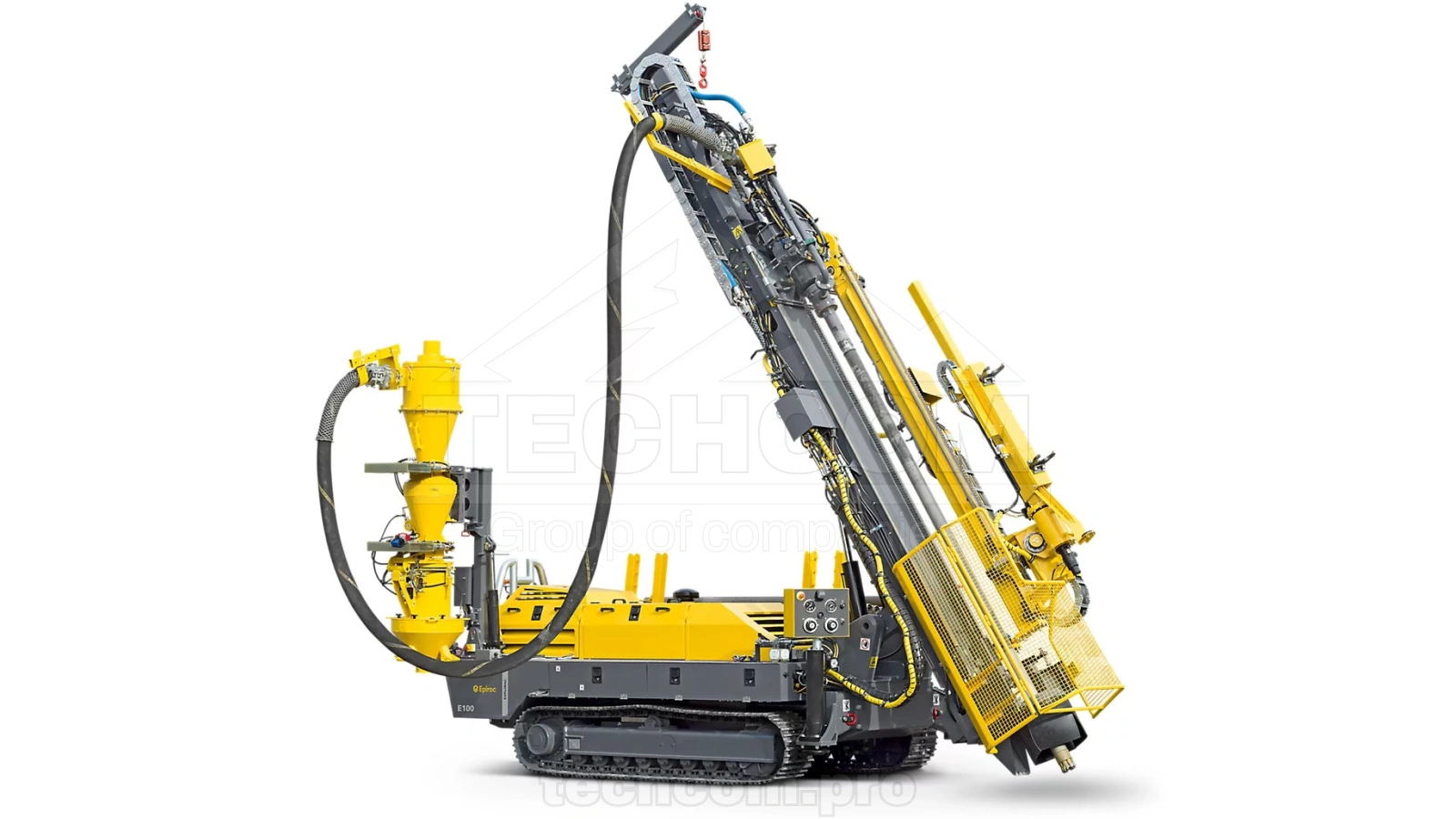

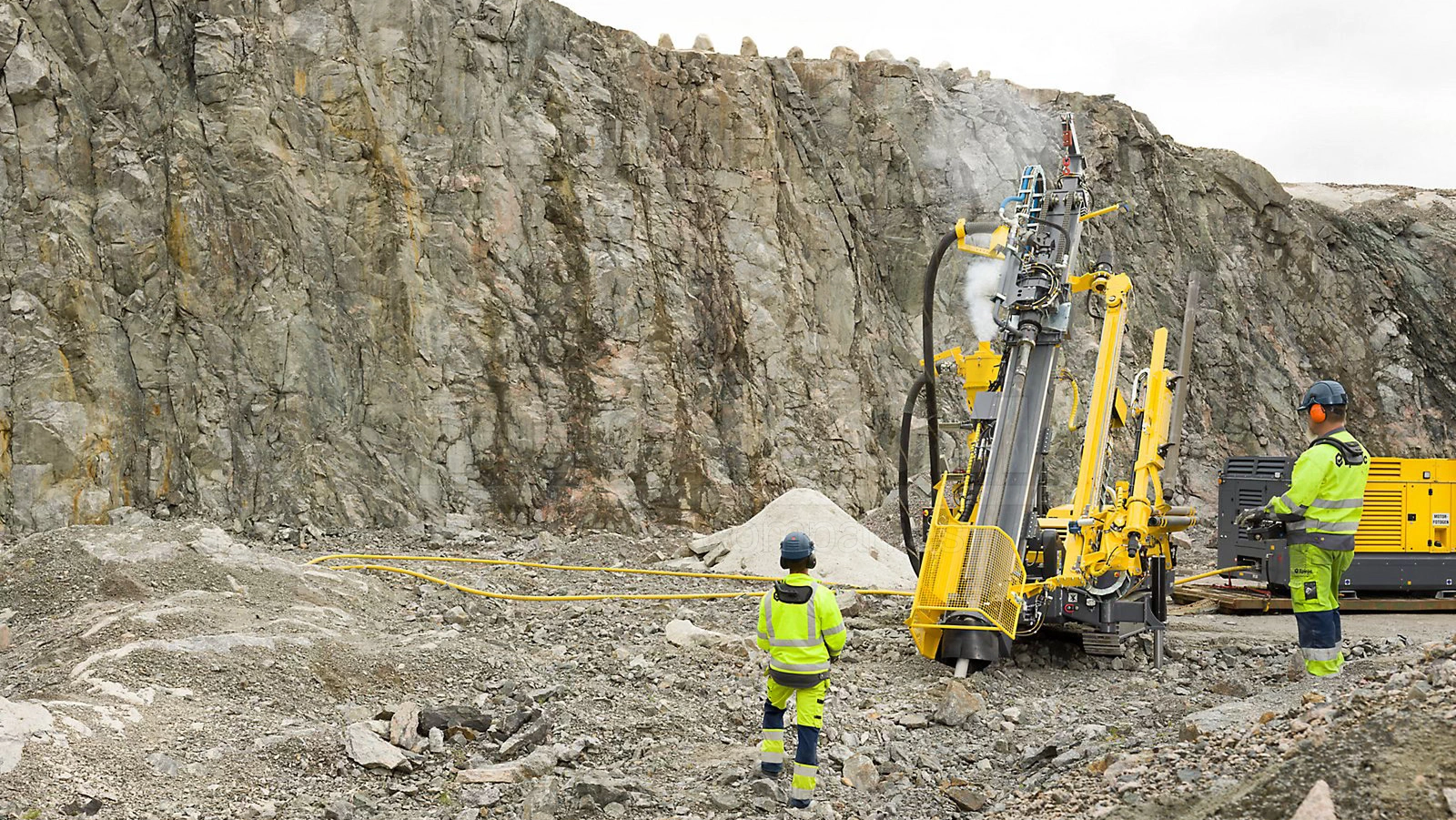

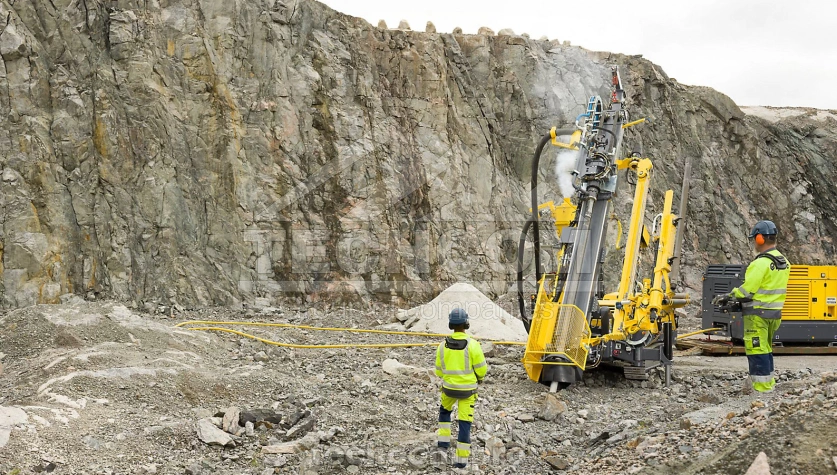

The Epiroc Explorac 100 is a compact reverse circulation (RC) drilling rig designed for efficient surface exploration and high-quality mineral sampling. Optimized for RC drilling down to 250 meters, the rig ensures fast sample collection, low contamination risk and stable drilling performance in demanding field conditions. Its crawler platform and operator-friendly systems make it ideal for remote or hard-to-reach exploration sites.
Main advantages
- Fast, economical and accurate RC mineral sampling
- Hands-free rod handling system for maximum operator safety
- Dual remote-control units enabling drilling from up to 40 meters away
- Three splitter options (riffle, cone, rotary) for precise sample distribution
- Compact crawler design offering high mobility in rough terrain
Technical specifications
| Main application | Surface exploration |
| Method | Down-the-hole (Reverse Circulation) |
| Rod length | 3 m |
| Depth capacity | 0–250 m |
| Max torque | 7,475 Nm |
| Feed type | Cylinder with chain |
| Feed force (limited) | 60 kN |
| Pull force | 100 kN |
| Engine | Cummins QSB4.5, 82 kW |
| Control system | RCS with radio remote |
| Carrier option | Crawler mounted |
Browse spare parts for the Epiroc Explorac 100 to find OEM and high-quality replacement components for the rotation unit, rod handling system, feed mechanism, hydraulic assemblies, filters and structural parts compatible with your RC drilling rig.
