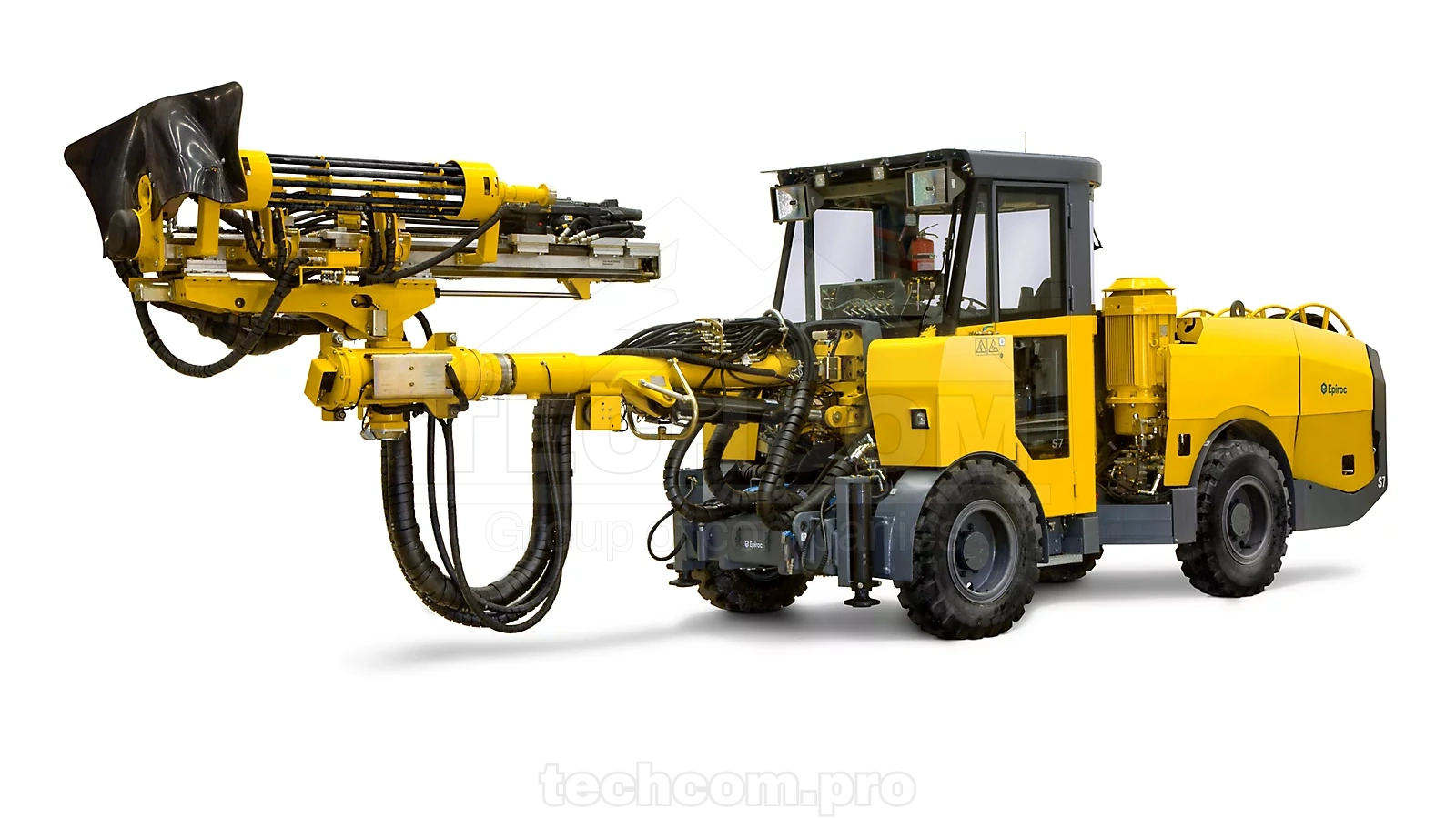

Epiroc Simba S7 and Atlas Copco Simba S7D Drilling Rigs
The Simba S7D and Simba S7 are compact long-hole production rigs designed for underground mining in small to medium-sized drifts. The earlier Atlas Copco Simba S7D combines a boom-mounted unit, hydraulic top-hammer rock drill and Direct Control System (DCS), providing flexible positioning and reliable operation in confined underground areas.
After the Atlas Copco mining equipment business became part of the Epiroc brand, the Simba range continued with the modern Epiroc Simba S7. Both machines follow a similar compact production concept, while the newer S7 incorporates an updated platform, advanced control technology and a higher level of automation.
Technical Specifications
| Parameter | Simba S7D |
|---|---|
| Application | Underground long-hole production drilling |
| Recommended drift size | Small to medium |
| Hole diameter | 51–89 mm |
| Standard rock drill | COP 1838ME |
| Rock drill options | COP 1638, COP 1838MUX, COP 1838HE, COP 1838HUX |
| Impact power | 18 kW |
| Maximum hydraulic pressure | 230 bar |
| Rotation speed | 0–210 rpm |
| Boom | BUT 32PD |
| Feed | BMHP 6800 series |
| Rod handling system | RHS 10, 10+1 rods |
| Drill rods | R32, TC35, T38 and T45 |
| Maximum mechanized drilling depth | 20 m |
| Control system | Direct Control System DCS II |
| Diesel engine | Deutz D914 L04, Tier 3 / Stage IIIA |
| Diesel engine power | 55 kW @ 2300 rpm |
| Total installed electrical power | 80 kW |
| Main electric motor | 75 kW |
| Compressor | Atlas Copco LE7 |
| Hydraulic oil tank | 145 l |
| Fuel tank | 60 l |
| Drive | Four-wheel drive |
| Steering angle | ±40° |
| Width | 2000 mm |
| Tramming height, roof down | 2100 mm |
| Height, roof up | 2800 mm |
| Ground clearance | 335 mm |
| Turning radius, outer / inner | 5000 / 2850 mm |
| Gross weight | 11,800 kg |
Simba S7D and Simba S7 – Key Differences
The Atlas Copco Simba S7D and current Epiroc Simba S7 perform a similar role in underground production but belong to different equipment generations. The S7D uses the DCS II direct hydraulic control system and configurations typical of the Atlas Copco generation. The newer S7 is based on updated control architecture with more advanced automation and operator assistance capabilities.
| Feature | Atlas Copco Simba S7D | Epiroc Simba S7 |
|---|---|---|
| Generation | Earlier Atlas Copco generation | Current Epiroc generation |
| Application | Long-hole drilling in small to medium drifts | Long-hole drilling in small to medium drifts |
| Hole diameter | 51–89 mm | 51–89 mm |
| Control technology | DCS II direct control system | Modern control and automation platform |
| Rock drill | COP 1800-series configurations | Modern high-performance tophammer configuration |
| Automation | Basic positioning and operating functions | Extended automation and operator assistance functions |
| Brand | Atlas Copco | Epiroc |
Simba S7D Spare Parts
TechCom supplies spare parts and replacement components for the Atlas Copco Simba S7D. Available components cover COP 1800-series rock drills, the BUT 32PD boom, BMHP 6800-series feeds, RHS 10 rod handling system, DCS II controls, hydraulics, electrical equipment and carrier assemblies.
When selecting spare parts, check the machine model, serial number, installed rock drill and original part number, as equipment configurations may vary. Components for the modern Epiroc Simba S7 should likewise be identified according to the specific machine configuration and should not be assumed to be interchangeable with S7D parts.
Looking for Atlas Copco Simba S7D spare parts or components for an Epiroc Simba S7? Contact our specialists with the machine model, serial number or required part number, and we will help identify the correct components.
