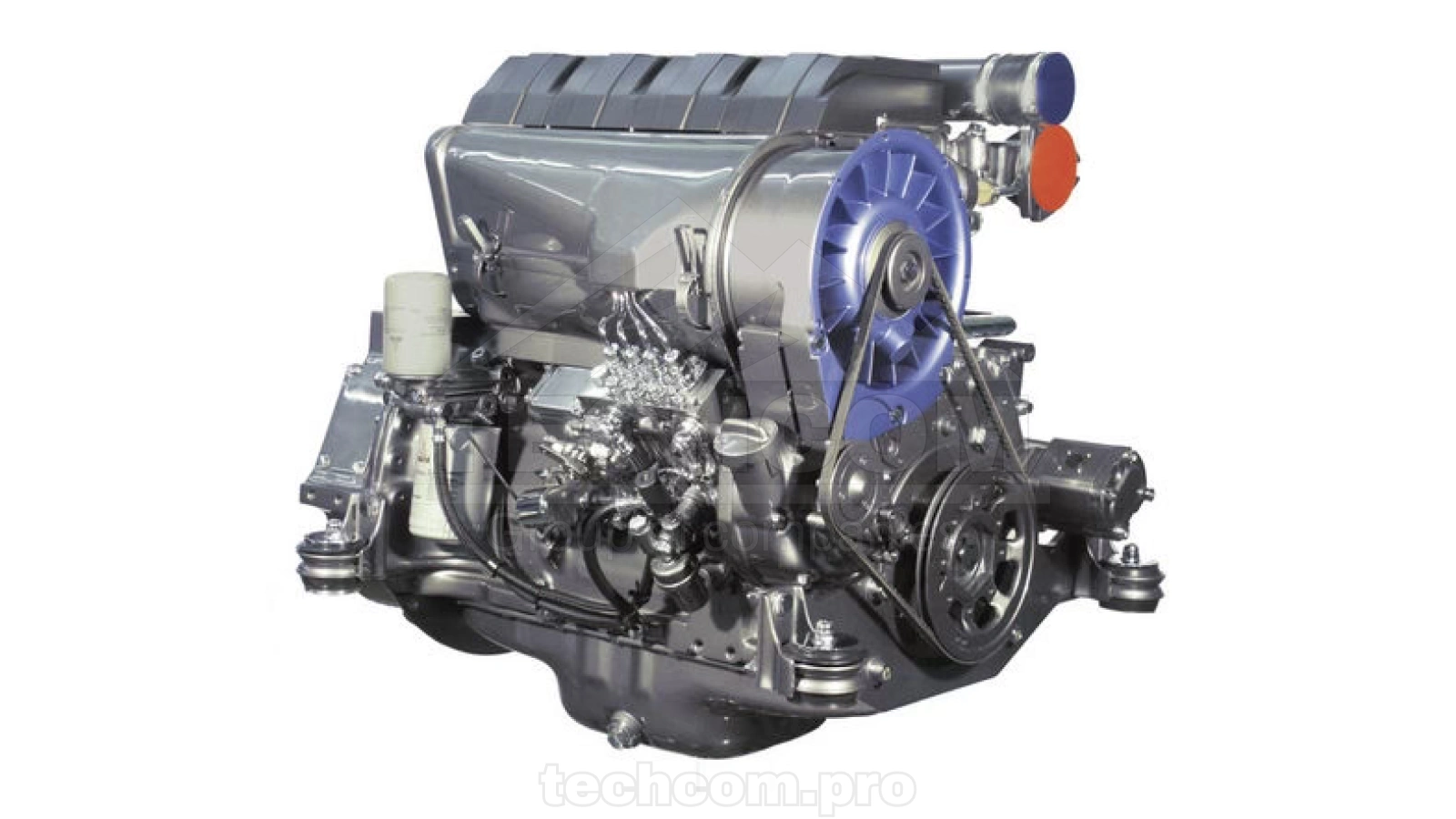

Diesel Engine Deutz 914

The Deutz 914 series includes lightweight, air-cooled diesel engines designed for mobile applications, generator sets, and compact industrial equipment. These engines are ideal for power requirements between 45 and 75 kW and stand out for their low weight, compact footprint, and long service intervals.

The modular cylinder concept allows each section to be serviced independently, streamlining maintenance and reducing downtime. Thanks to an optimized injection and combustion system, the engines ensure clean, efficient fuel burn—even in cold environments. Optional GAC electronic governors are available upon request for more precise control.

Deutz 914 engines are available in multiple configurations, including naturally aspirated and turbocharged versions. All models feature direct injection, OHV valve design, and robust air-cooling, making them suitable for harsh climates and off-grid operations.

Key Benefits

  • Clean combustion with improved fuel injection and ignition
  • Cold-start capable in extremely low temperatures
  • Extended maintenance intervals
  • Optional electronic governor (GAC) for precise speed control

Available Models & Specifications

Model Cylinders Displacement (L) Power (hp / kW) Max Torque (Nm) Compression Ratio Dry Weight (kg) Fuel Consumption (g/kWh) Dimensions (L×W×H, mm)
F3L914 3 3.2 59 / 44 202 20:1 277 215 703.5×696×795
F4L914 4 4.3 79.1 / 59 270 20:1 307 215 811×696×796
F5L914 5 5.4 96.1 / 71.7 333 20:1 380 215 958.5×696×833
F6L914 6 6.5 119.3 / 89 400 20:1 430 220 1083.5×675.5×885

Need help choosing the right Deutz 914 engine model or compatible spare parts? Contact our team for expert assistance and tailored recommendations.
