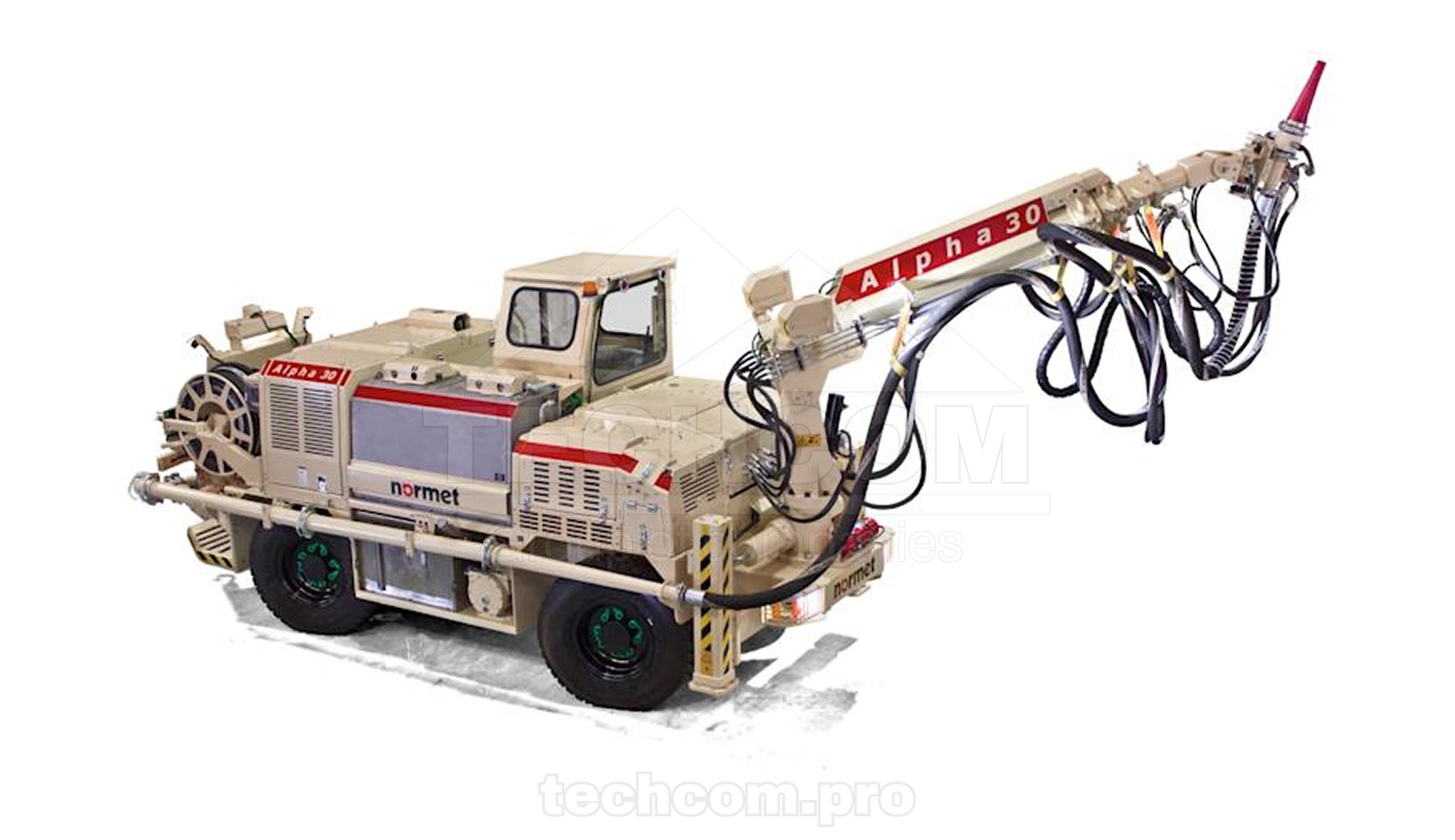

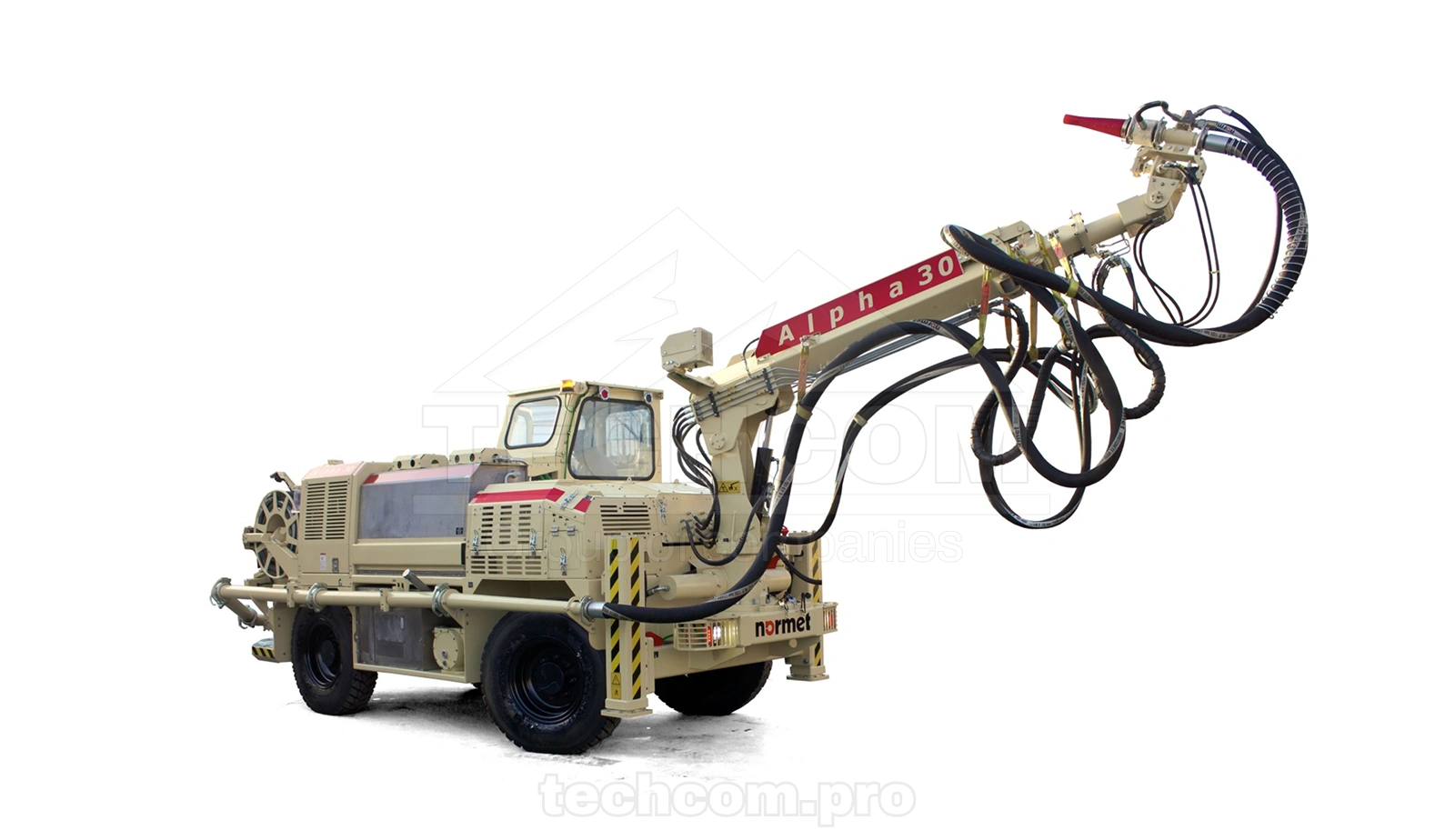

Normet Alpha 30 DC7 Underground Wet Mix Concrete Sprayer
Alpha 30 DC7 is a diesel-hydraulic mobile concrete sprayer designed for tunnel profiles up to 7 m in height and 9 m in width. The machine is equipped with a hydraulically driven screw-type air compressor (FAD 7 m³/min @ 7 bar) and the NSP 30 low-wear double piston concrete pump with a theoretical pumping capacity of 3–12 m³/h. The accelerator dosing system utilizes a hydraulically driven peristaltic pump with two stainless steel tanks totaling 420 liters.
Built for reliable underground operation, the Alpha 30DC7 features four-wheel steering, four-wheel drive, and a 120 kW Deutz TCD 2013 L4 Tier 3 diesel engine. The open one-man FOPS/ROPS-approved cockpit ensures operator safety, while optional radio or wired remote control systems allow precise control of boom movements, nozzle rotation, accelerator dosing, and concrete pump functions.
Technical specifications – Alpha 30 DC7
| Parameter | Value |
|---|---|
| Application | Rigid frame wet mix concrete sprayer for tunnelling |
| Max tunnel profile | Up to 7 m height × 9 m width |
| Concrete pump | Normet NSP 30 double piston pump |
| Pump output | 3–12 m³/h (theoretical) |
| Pumping pressure | Max 50 bar (250 bar hydraulic) |
| Max aggregate size | 16 mm (fibres up to 60 mm) |
| Air compressor | Hydraulically driven screw type, FAD 7 m³/min @ 7 bar |
| Accelerator system | Hydraulic peristaltic pump, 0.5–16 L/min, 7 bar |
| Accelerator tank capacity | 420 L (stainless steel) |
| Concrete line diameter | 2 1/2" (63.5 mm) |
| Engine | Deutz TCD 2013 L4, 120 kW @ 2300 rpm, Tier 3 |
| Transmission | Hydrostatic 4-wheel drive |
| Steering | Four-wheel steering with crabwalk |
| Max speed | 20 km/h |
| Max tractive effort | 44 kN |
| Fuel tank | 125 L (stainless steel) |
| Hydraulic oil tank | 500 L |
| Electrical system | 24 VDC, IP65 protected components |
| Dimensions (L × W × H) | 9500 × 2515 × 2700 mm |
| Wheelbase | 2696 mm |
| Ground clearance | 360 mm |
| Turning radius | Outer 4953 mm / Inner 1650 mm |
| Operating weight | 10 400 kg |
TechCom supplies spare parts for Alpha 30 DC7, including NSP 30 pump components, accelerator dosing systems, hydraulic assemblies, compressor parts, and wear components to ensure reliable underground sprayed concrete operations.
