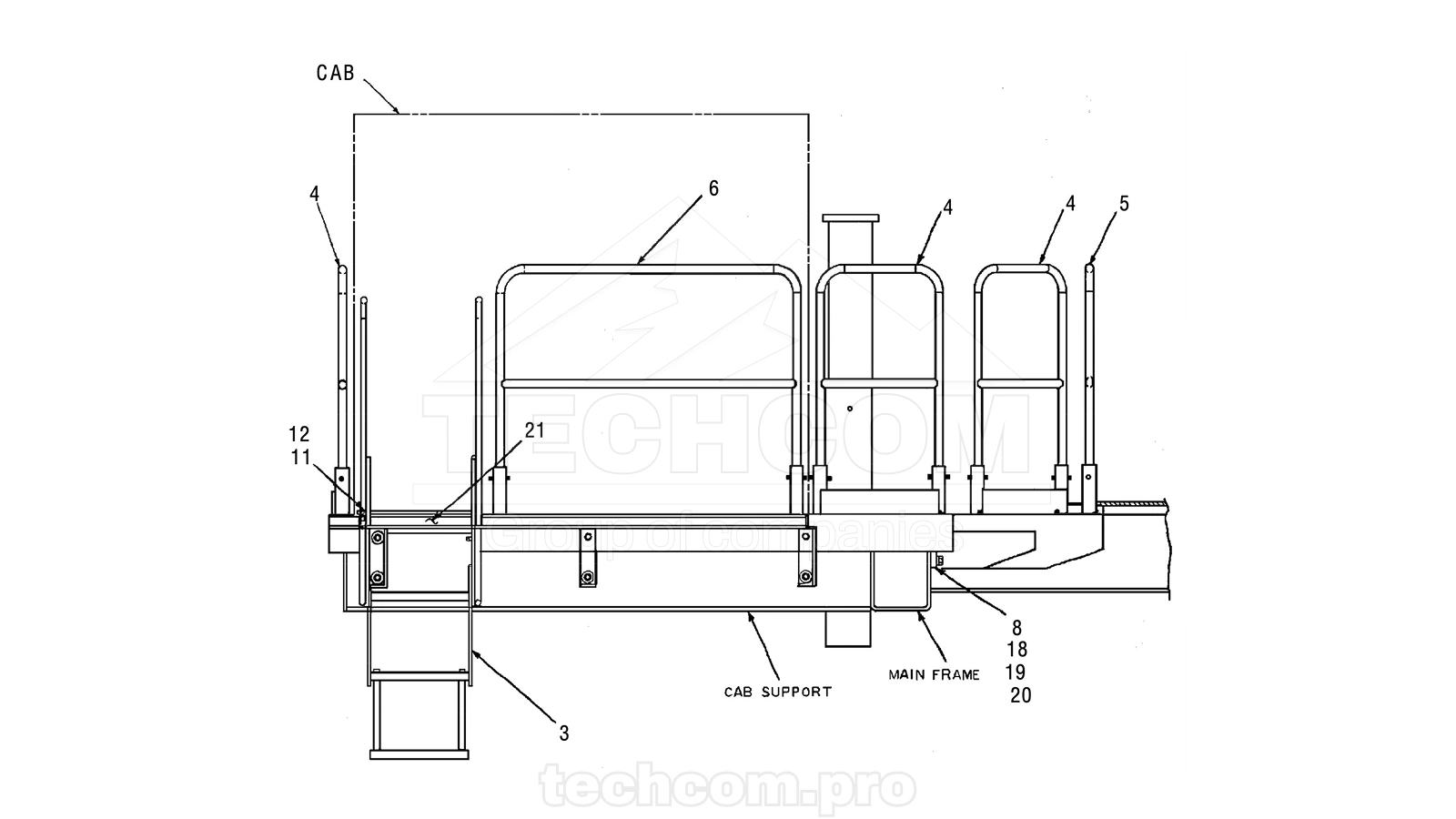

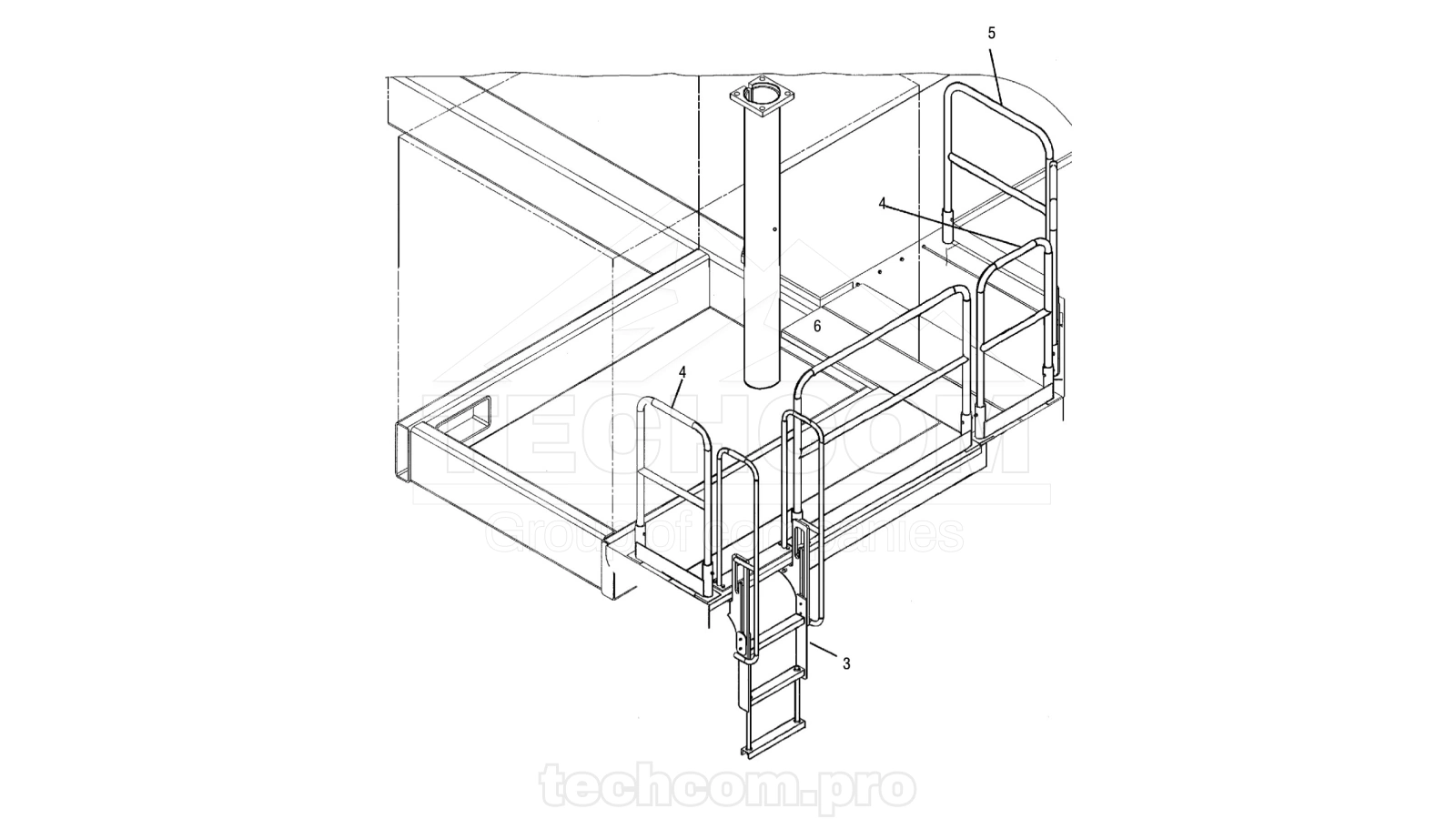

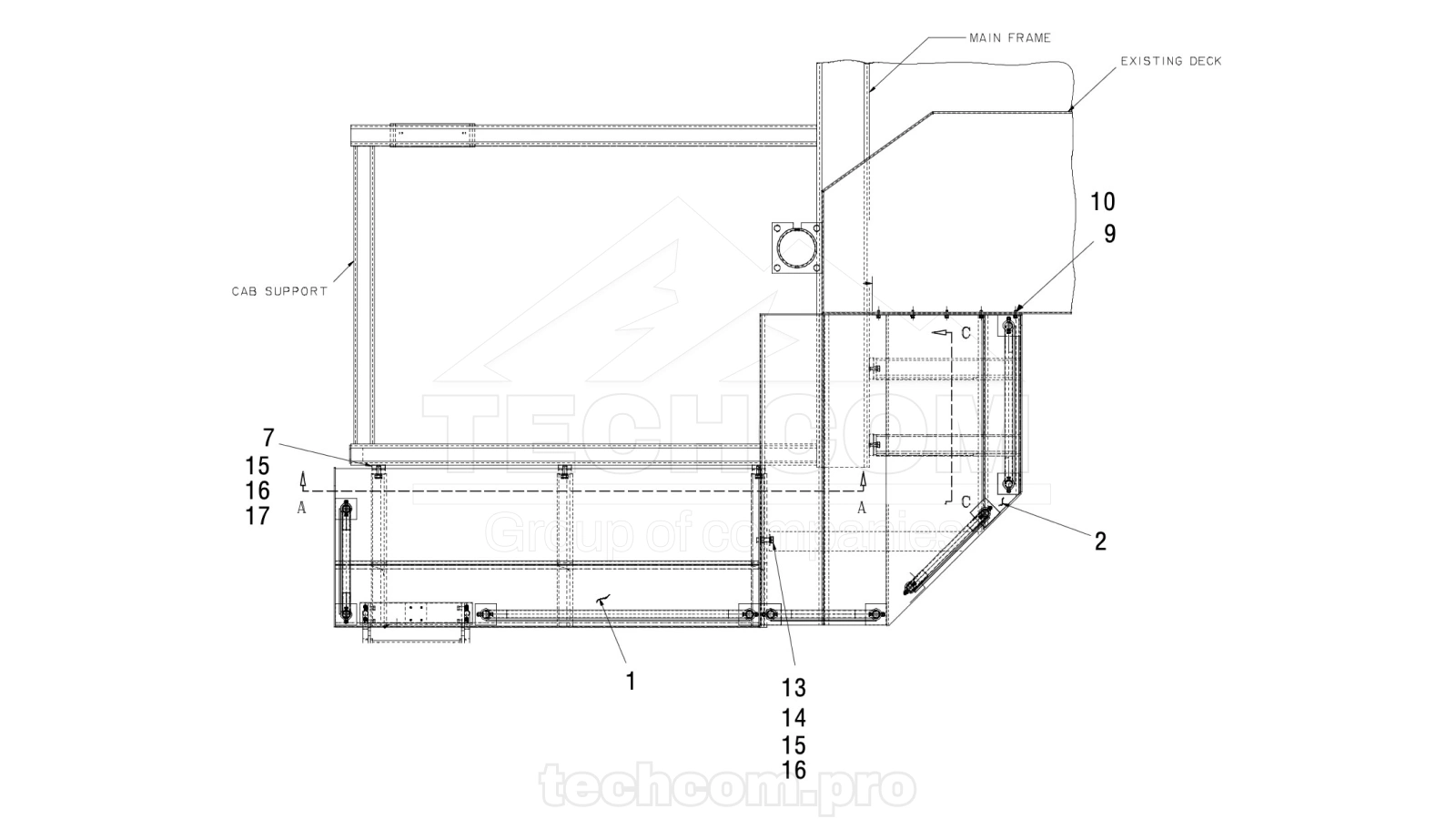

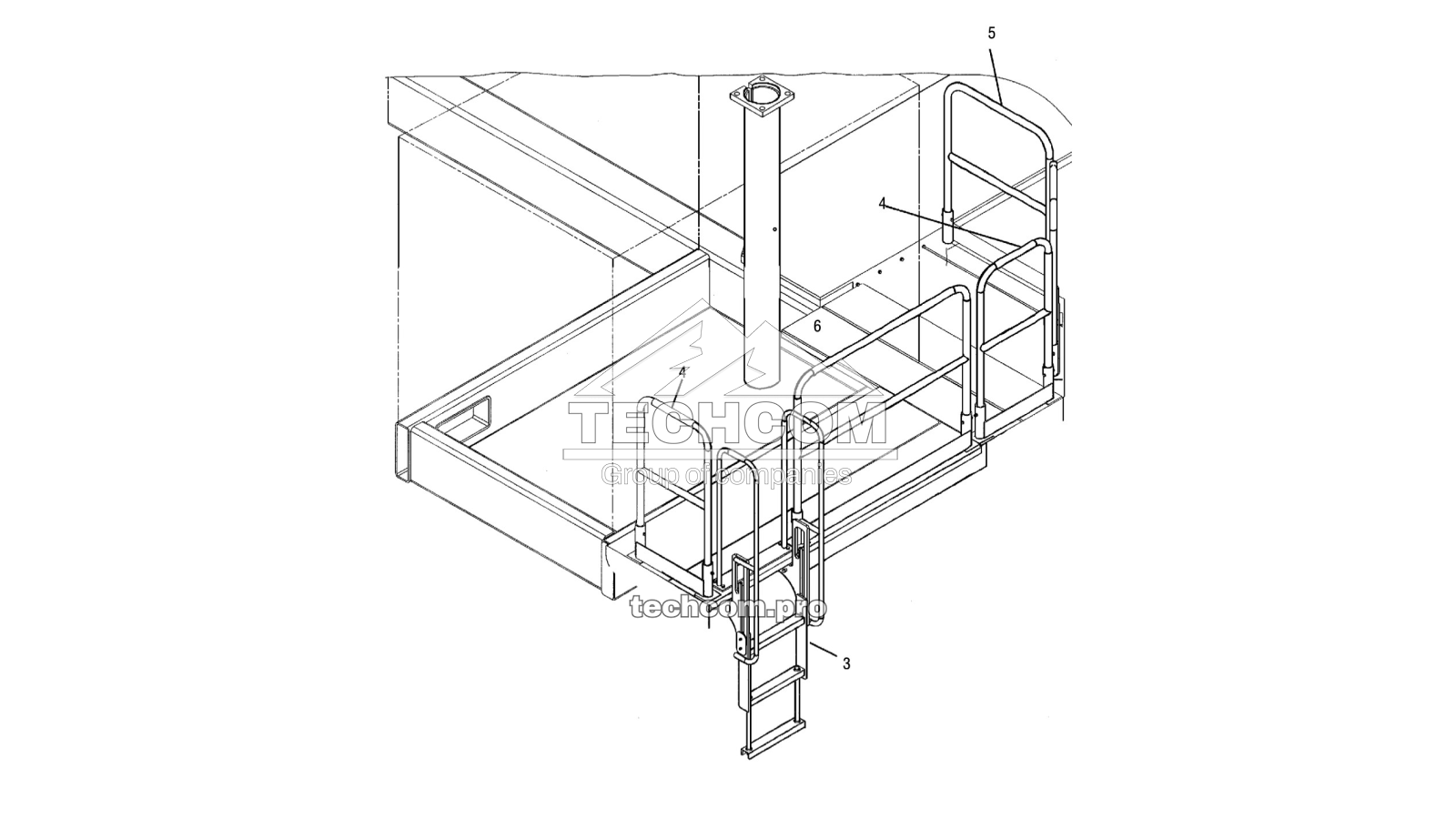

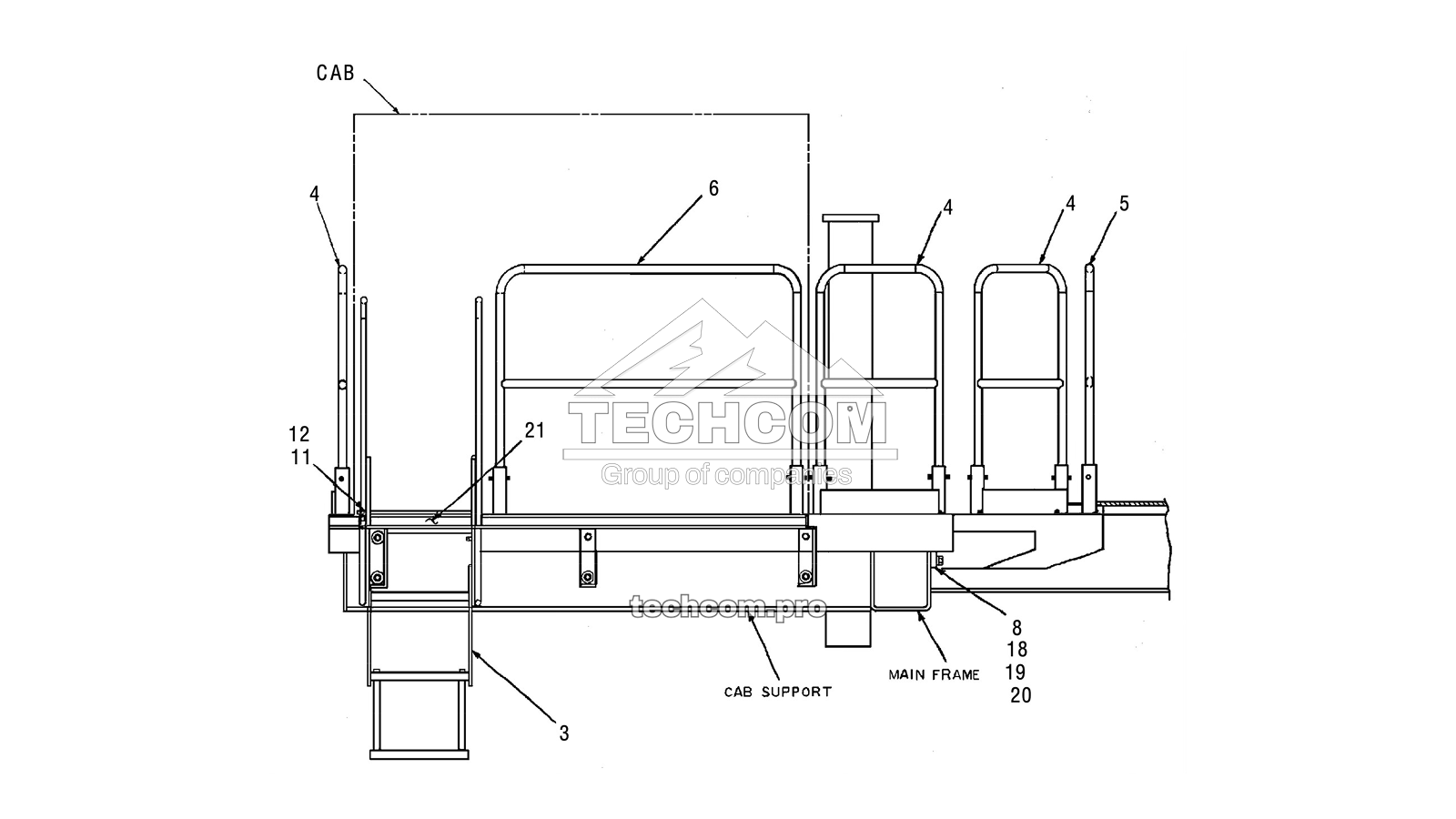

The 57713034 (265713034) Decking Assembly for the Epiroc DML rotary blasthole drill rig is a complete structural set designed to ensure safe operation and stability. It includes side and rear decking panels, foldable ladder with handrail assemblies, mounting brackets, plates, and fastening hardware. All listed parts are fully compatible with the DML series and provide durability in demanding mining environments.
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57590788 | 2657590788 | Decking, Side DML |
| 002.0 | 57590796 | 2657590796 | Decking, Rear DML |
| 003.0 | 57724619 | 265724619 | Ladder with Handrail, Fold |
| – | 57664666 | 2657664666 | Ladder Assembly |
| – | 57664674 | 2657664674 | Handrail Assembly |
| 004.0 | 57533622 | 2657533622 | Handrail Assembly – 20 CNTDIST |
| 005.0 | 57424392 | 2657424392 | Handrail Assembly – 30 CNTDIST |
| 006.0 | 57424418 | 2657424418 | Handrail Assembly – 50 CNTDIST |
| 007.0 | 57588535 | 2657588535 | Bracket, Mounting, Side Deck |
| 008.0 | 57573958 | 2657573958 | Plate, Mounting Rear Decking |
| 009.0 | 95920674 | 2695920674 | Capscrew, Hex Head |
| 010.0 | 95922894 | 2695922894 | Nut, Hex, Finished |
| 011.0 | 95937413 | 2695937413 | Washer, Lock, Helical |
| 012.0 | 95958989 | 2695958989 | Screw, Cap 3/8–16 × 1–3/4 |
| 013.0 | 95104659 | 2695104659 | Screw, Cap 3/4–10 × 2–3/4 |
| 014.0 | 95922928 | 2695922928 | Nut, Hex, Finished |
| 015.0 | 95934691 | 2695934691 | Washer, Lock, Helical |
| 016.0 | 95972246 | 2695972246 | Washer, Flat, Plated |
| 017.0 | 95104642 | 2695104642 | Screw, Cap 3/4–10 × 1–3/4 |
| 018.0 | 95934501 | 2695934501 | Capscrew, Hex Head |
| 019.0 | 95209425 | 2695209425 | Washer, Lock 5/8 |
| 020.0 | 95094314 | 2695094314 | Washer, Flat, Wide |
| 021.0 | 57711145 | 2657111145 | Mount, Ladder |
| – | 95934766 | 2695934766 | Washer, Lock, Helical |
| – | 95928982 | 2695928982 | Screw, Cap 1/4–20 × 3/4 |
TechCom supplies the complete range of spare parts and structural assemblies for the Epiroc DML drill rig. See all spare parts for Epiroc DML.
