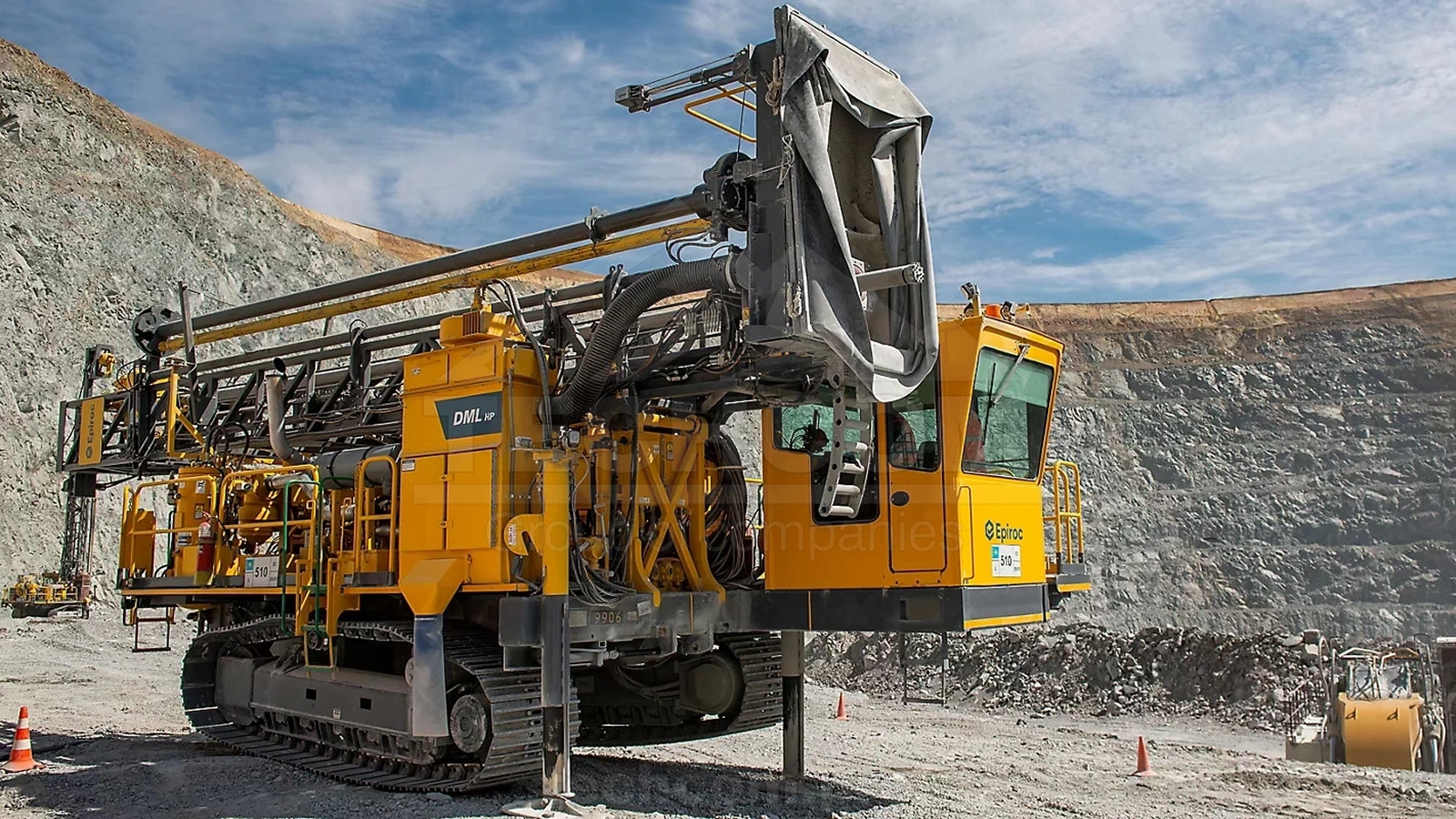

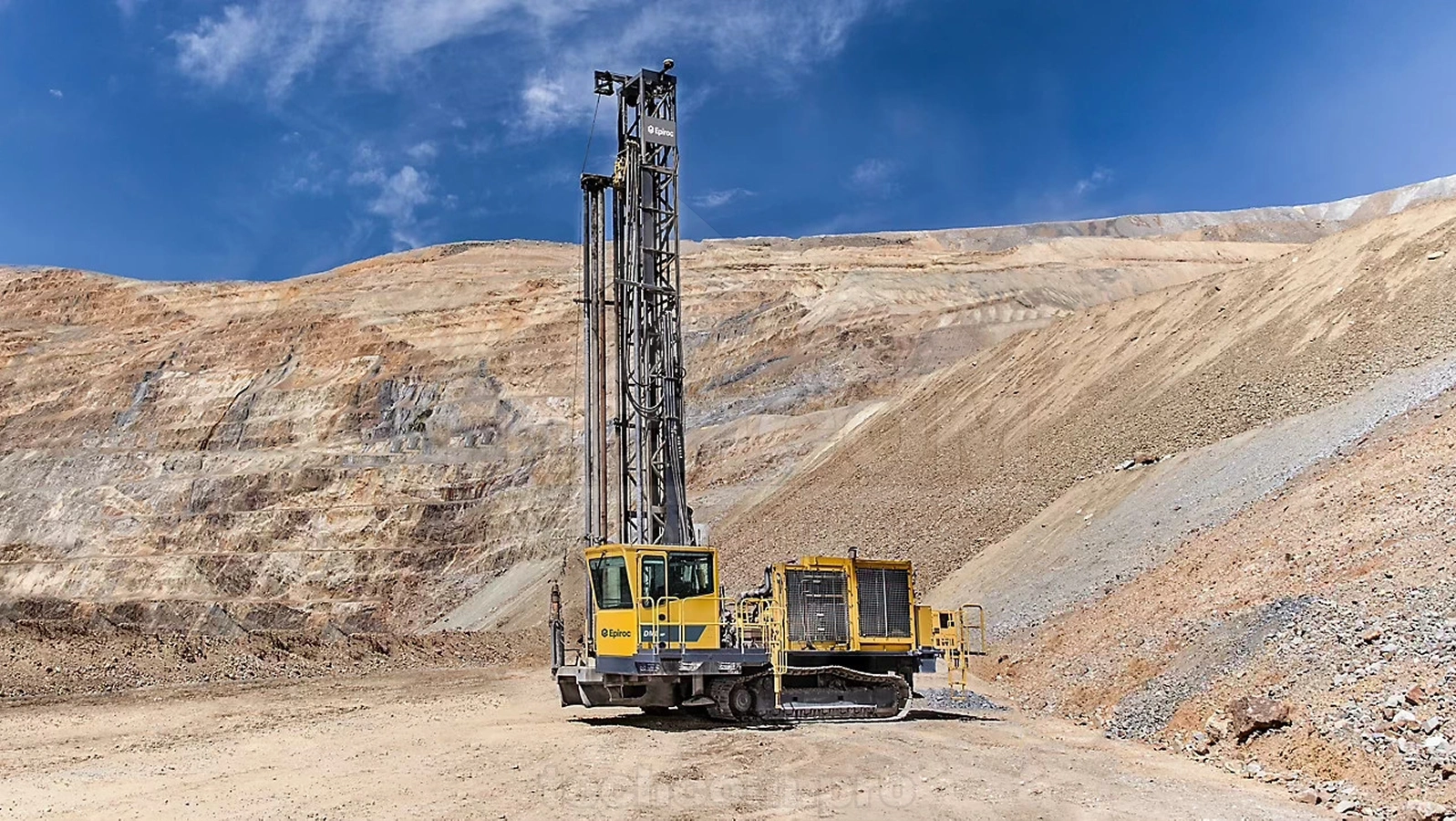

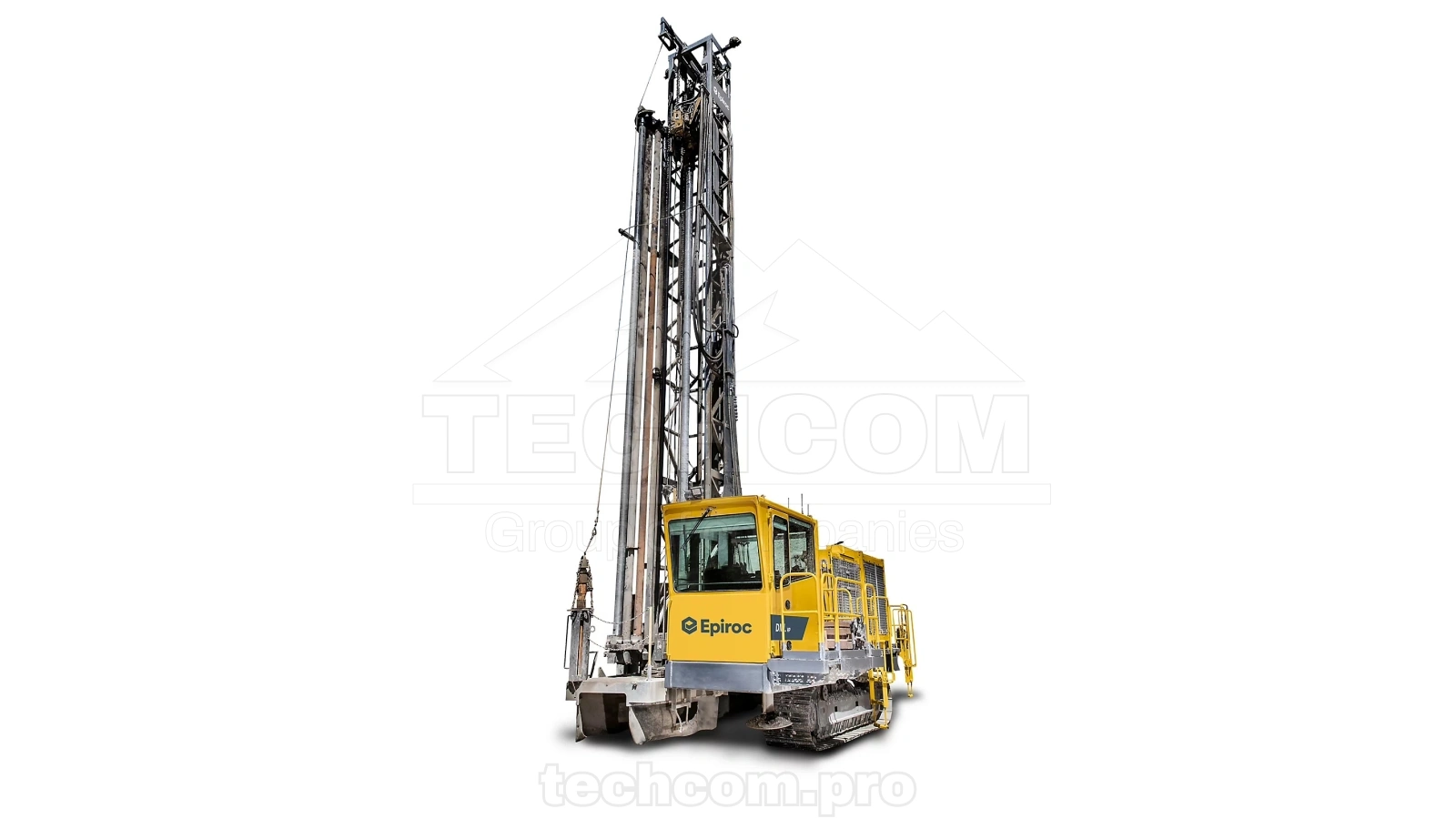

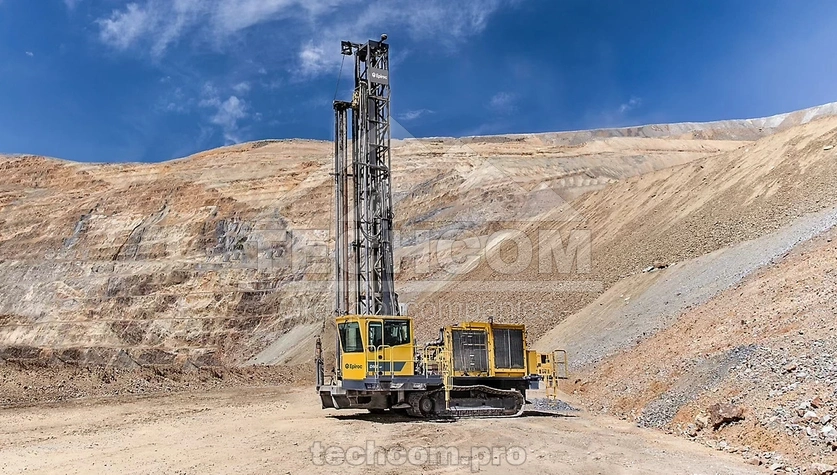

Drilling Rig Epiroc DML
The Epiroc DML is a crawler-mounted, hydraulic tophead-drive blasthole drill engineered for multi-pass rotary tricone and down-the-hole drilling in open-pit mines. Covering a hole diameter range of 150–270 mm (5 7/8–10 5/8 in), it delivers a clean single-pass depth of 9.9 m (32.5 ft) and up to 62.5 m (205 ft) in multi-pass applications. A reinforced main frame, double-cut tower lacing and proven DM-series systems ensure high availability, low operating cost and long service life.
Main Benefits
- Multi-pass rotary and DTH capability with high pulldown for tough formations.
- Multiple diesel/electric power packages and high/low-pressure compressor options.
- Electronic Air Regulation System (EARS) standard for optimized airflow and fuel savings.
- Optional Rig Control System Lite (RCS Lite) for onboard automation, data and safety interlocks.
- FOPS-certified, pressurized A/C cab (≈80 dBA) with ergonomic driller’s console for productivity.
- Service-friendly deck layout, external filter mounting and optional ground-level quick-connects.
Technical Data
| Application area | Open-pit mining, production blastholes |
| Method | Rotary and DTH, multi-pass |
| Series | DM family |
| Hole diameter | 150–270 mm (5 7/8–10 5/8 in) |
| Single-pass depth | 9.9 m (32.5 ft) clean hole |
| Maximum depth | 62.5 m (205 ft) multi-pass |
| Weight on bit | Up to 27,216 kg |
| Pulldown capacity | Up to 267 kN |
| Pullback capacity | Up to 98 kN |
| Power/air options | Diesel or electric packages; high/low-pressure compressors with EARS |
| Note | Specifications vary by configuration |
The DML has earned a reputation as a reliable, high-capacity blasthole rig used worldwide. We also provide original spare parts and components. See all spare parts for Epiroc DML.
