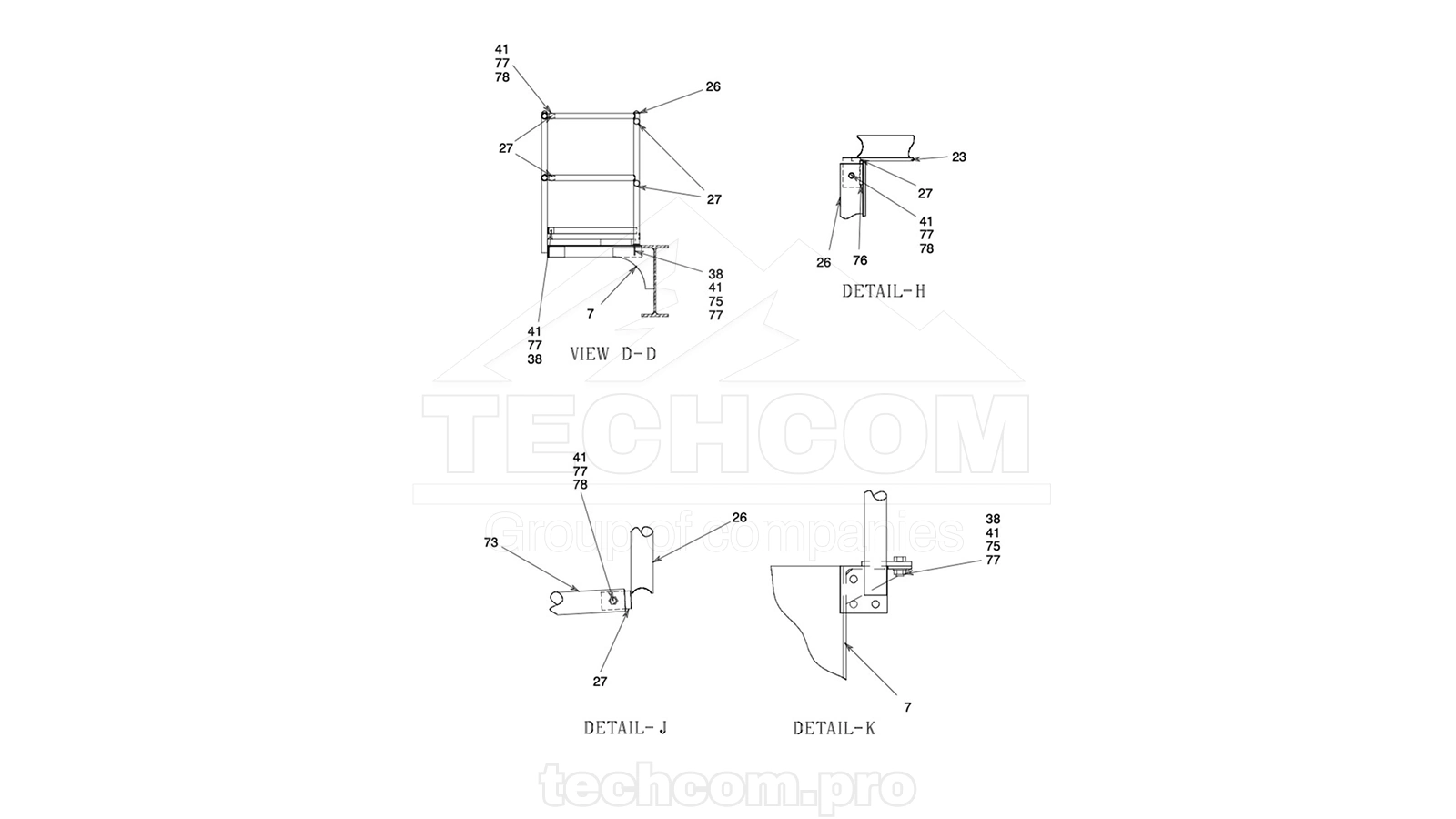

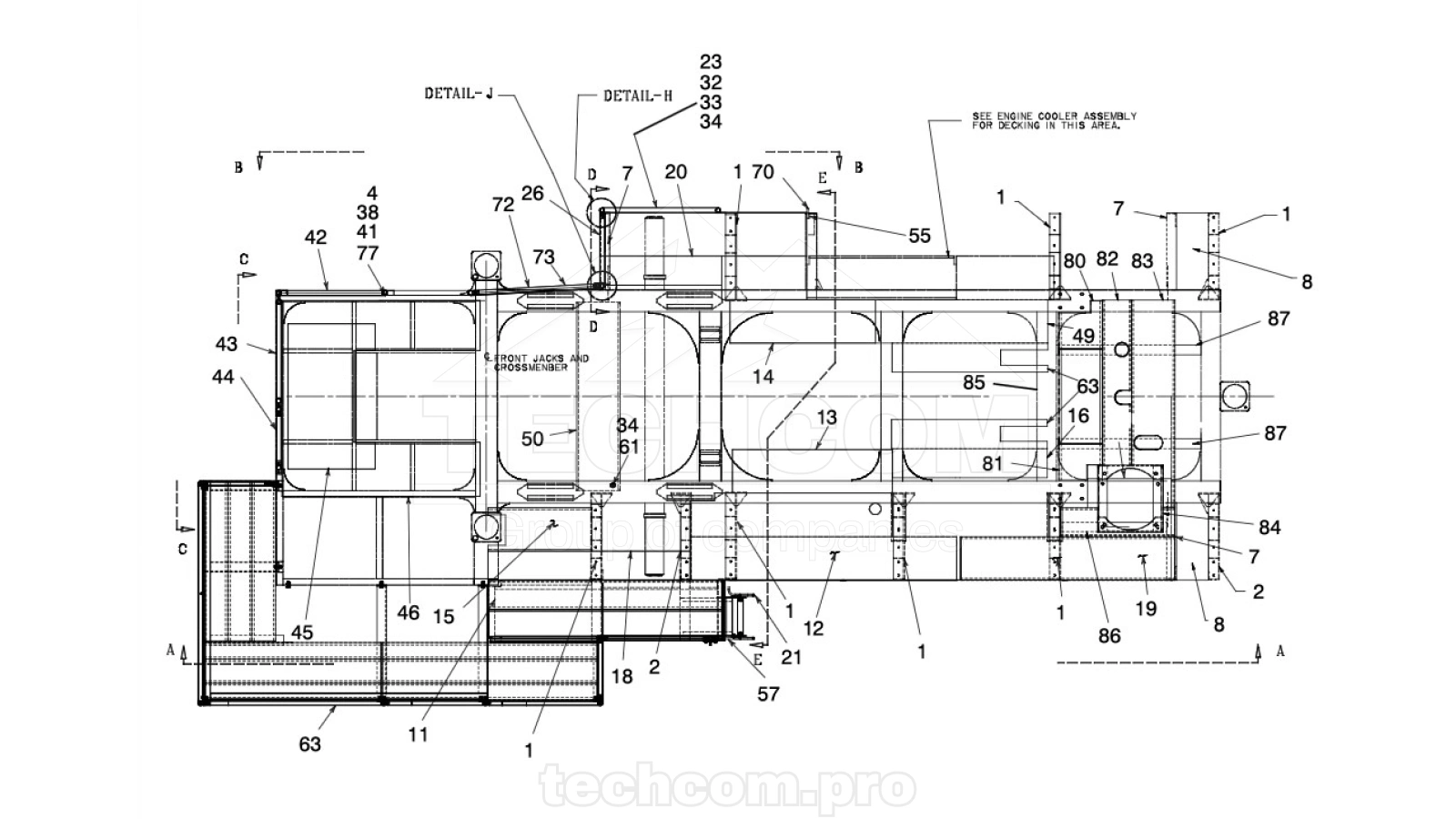

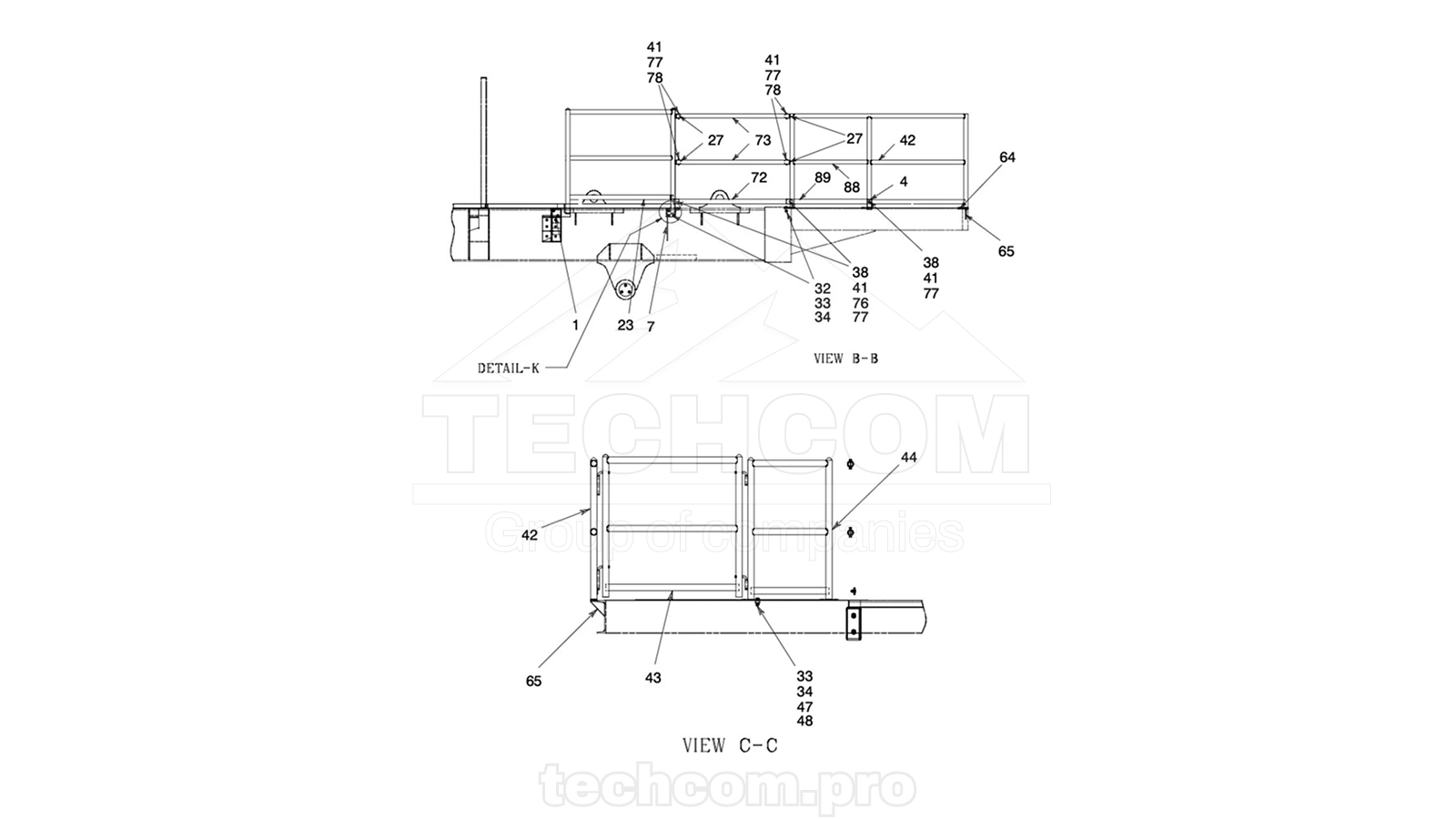

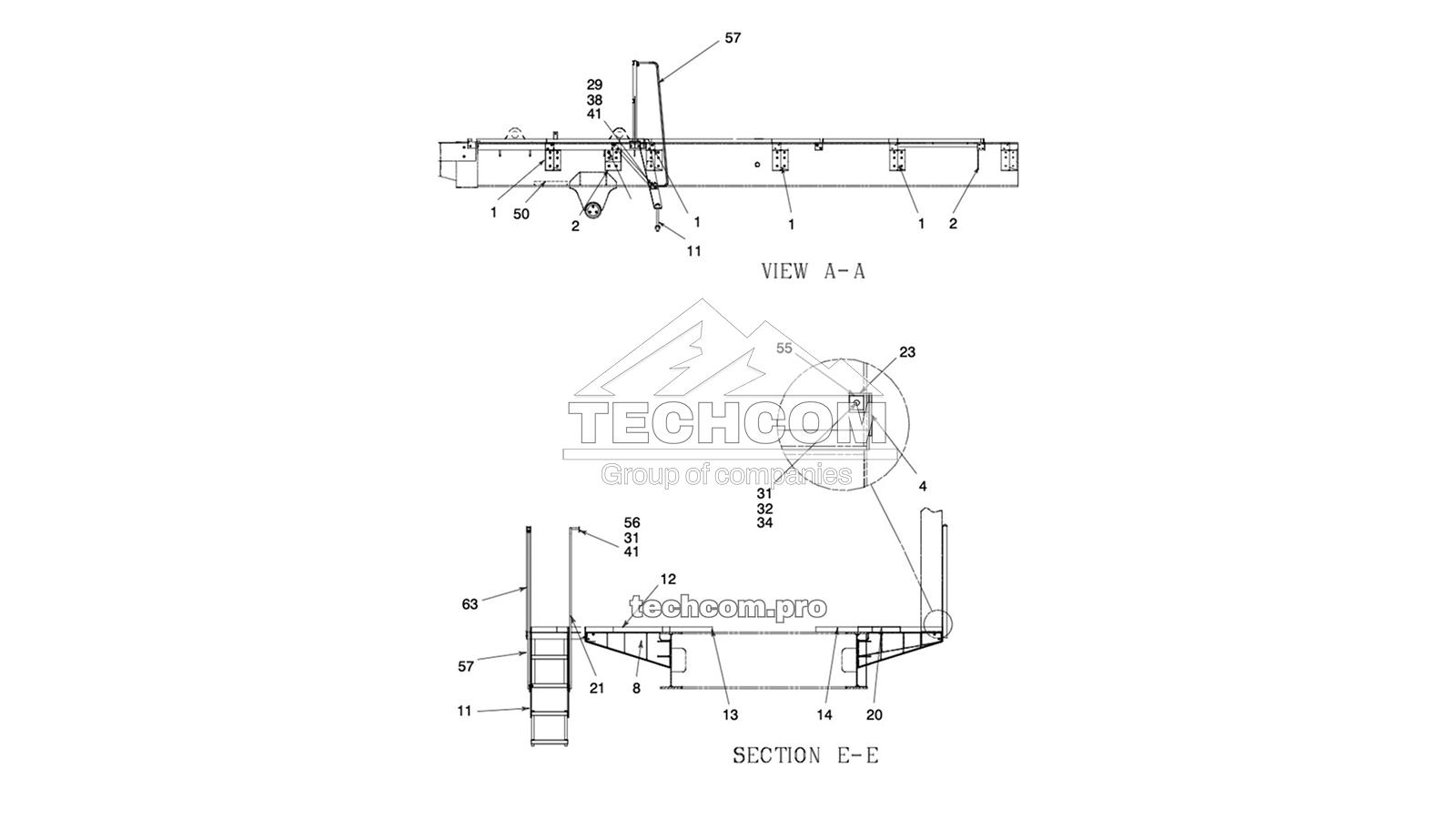

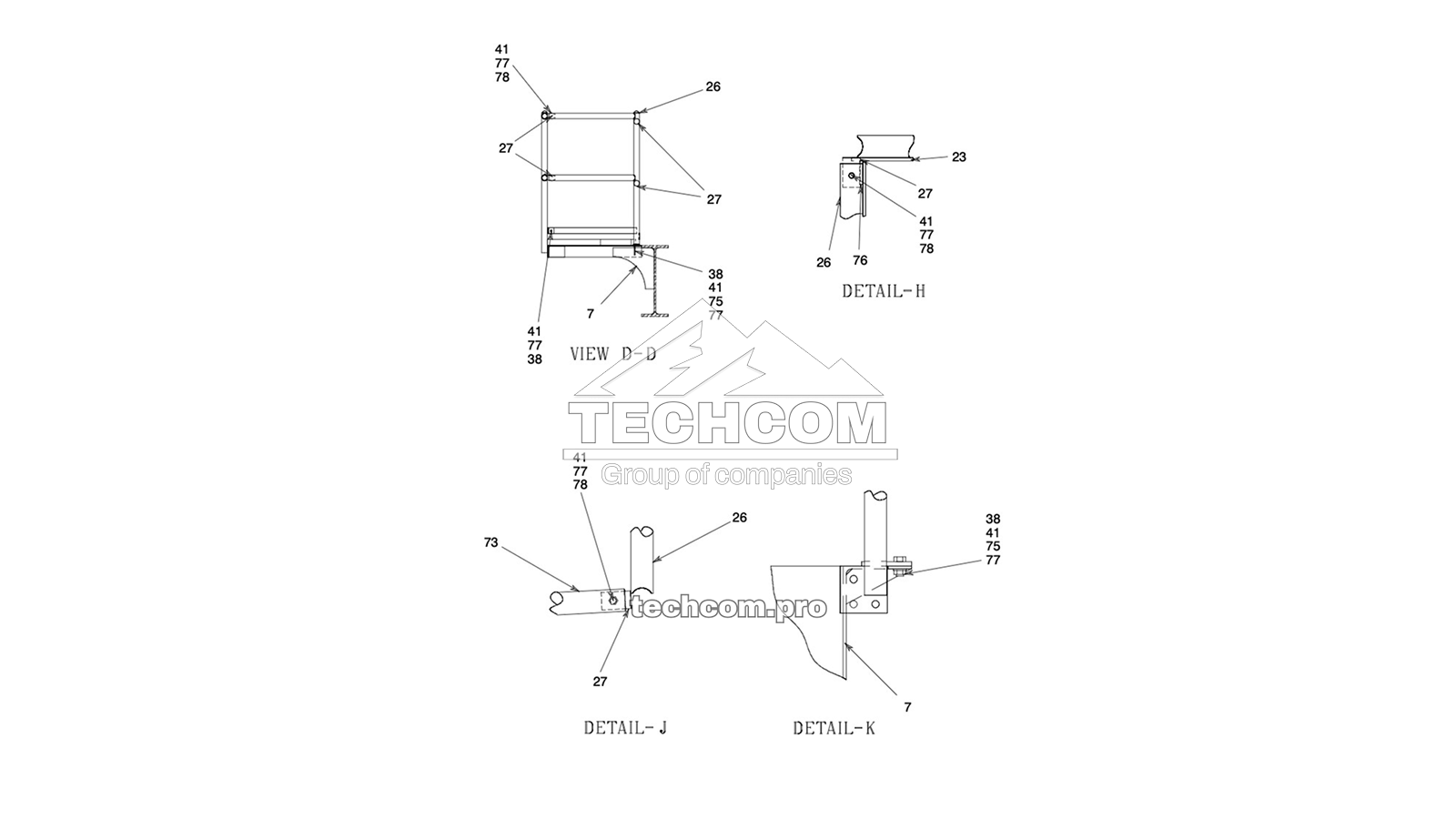

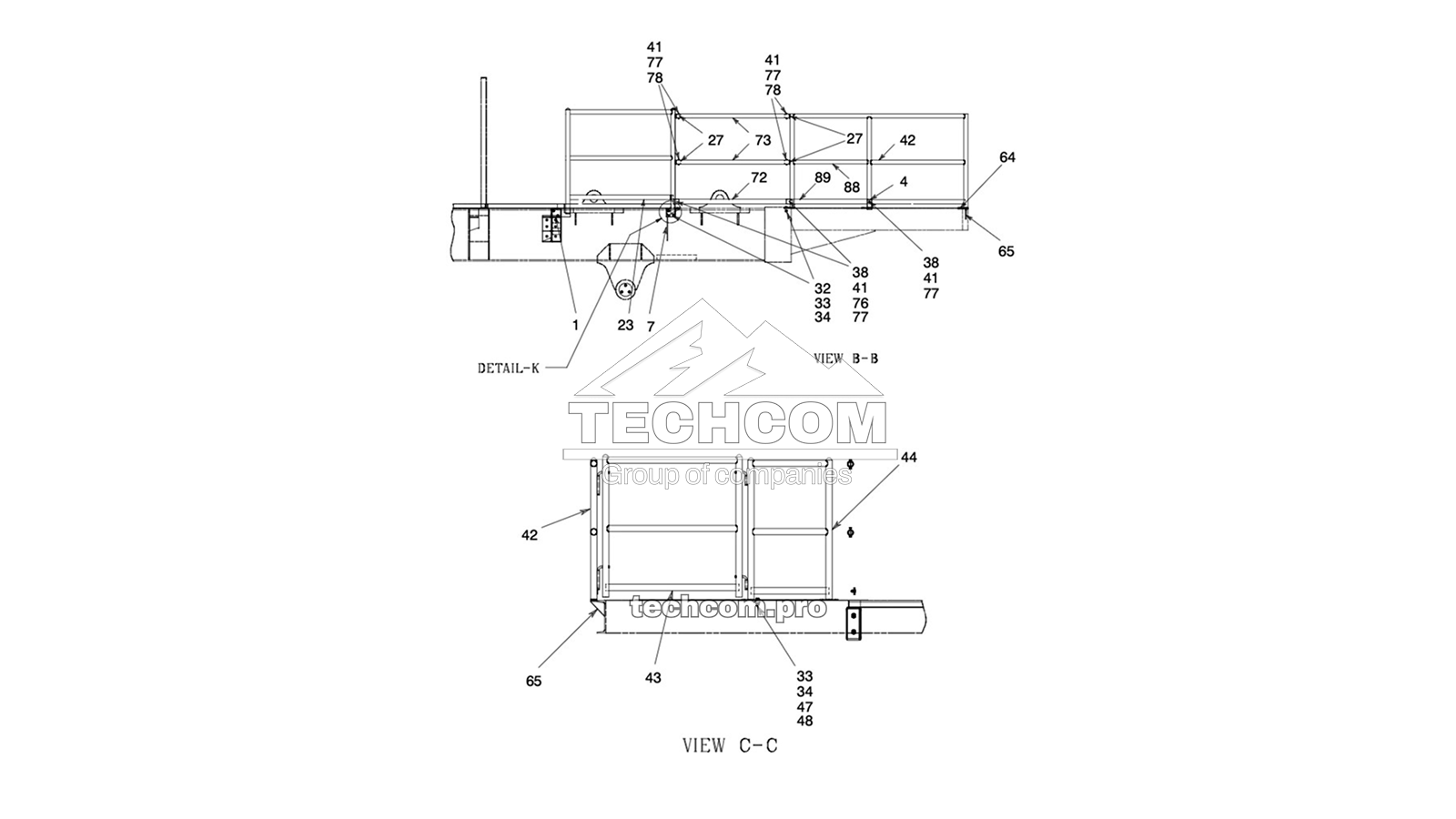

The 57641318 (2657641318) Walkway Assembly for the Epiroc DM-M2 drill rig is a complete access and support module. It integrates multiple gratings, handrails, toe boards, supports, decking panels and fastening components to provide safe operator access and reinforce the overall structure. This assembly ensures reliability, structural integrity and long-term durability in open-pit mining environments.
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 58249392 | 2658249392 | Mount, Tank |
| 002.0 | 58249400 | 2658249400 | Mount, Tank |
| 004.0 | 57190605 | 2657190605 | Bar, Flat |
| 007.0 | 57186058 | 2657186058 | Support |
| 008.0 | 57641342 | 2657641342 | Grating |
| 011.0 | 57186082 | 2657186082 | Support, Walkway |
| 012.0 | 58249988 | 2658249988 | Grating |
| 013.0 | 58250028 | 2658250028 | Grating |
| 014.0 | 58250036 | 2658250036 | Grating |
| 015.0 | 58250044 | 2658250044 | Grating |
| 016.0 | 58250143 | 2658250143 | Grating |
| 017.0 | 57161689 | 2657161689 | Grating |
| 018.0 | 58250135 | 2658250135 | Grating |
| 019.0 | 57569824 | 2657569824 | Grating |
| 020.0 | 58250192 | 2658250192 | Grating |
| 021.0 | 57186173 | 2657186173 | Handrail |
| 023.0 | 57641326 | 2657641326 | Handrail Assembly |
| 026.0 | 57192718 | 2657192718 | Handrail |
| 027.0 | 57193377 | 2657193377 | Bar, Round |
| 029.0 | 95922894 | 2695922894 | Nut, Hex, Finished |
| 030.0 | 57186231 | 2657186231 | Bar, Toe Board |
| 031.0 | 95934550 | 2695934550 | Screw, Cap, Hex |
| 032.0 | 95920708 | 2695920708 | Screw, Cap, Hex |
| 033.0 | 95934733 | 2695934733 | Washer, Lock |
| 034.0 | 95922902 | 2695922902 | Nut, Hex, Finished, Plated |
| 035.0 | 95035465 | 2695035465 | Screw, Cap, Hex |
| 036.0 | 95934691 | 2695934691 | Washer, Lock, Helical |
| 037.0 | 95922928 | 2695922928 | Nut, Hex, Finished |
| 038.0 | 95934592 | 2695934592 | Screw, Cap, Hex |
| 041.0 | 95937413 | 2695937413 | Washer, Lock, Helical |
| 042.0 | 57268146 | 2657268146 | Handrail, Front |
| 043.0 | 57268161 | 2657268161 | Handrail, Front |
| 044.0 | 57268153 | 2657268153 | Handrail, Front |
| 045.0 | 57130924 | 2657130924 | Grating |
| 046.0 | 57268351 | 2657268351 | Plate, Floor |
| 047.0 | 95934469 | 2695934469 | Screw, Cap, Hex |
| 048.0 | 95245767 | 2695245767 | Washer, Bevel |
| 049.0 | 57047706 | 2657047706 | Grating |
| 050.0 | 57068405 | 2657068405 | Walkway – Main Pump |
| 055.0 | 57068504 | 2657068504 | Bar, Handrail |
| 056.0 | 57068801 | 2657068801 | Bar, Tapped |
| 057.0 | 57186249 | 2657186249 | Handrail |
| 061.0 | 95972246 | 2695972246 | Washer, Flat, Plated |
| 063.0 | 57468480 | 2657468480 | Decking Assembly, Walk Around |
| 064.0 | 57118804 | 2657118804 | Bar, With Holes |
| 065.0 | 57720401 | 2657720401 | Gusset, Platform |
| 066.0 | 57118796 | 2657118796 | Bar, With Holes |
| 068.0 | 57157109 | 2657157109 | Bar, Support |
| 070.0 | 57120362 | 2657120362 | Bar, Handrail |
| 072.0 | 57193203 | 2657193203 | Toe Board |
| 073.0 | 57193195 | 2657193195 | Pipe |
| 075.0 | 57193328 | 2657193328 | Support |
| 076.0 | 57190597 | 2657190597 | Bar, Flat |
| 077.0 | 95922894 | 2695922894 | Nut, Hex, Finished |
| 078.0 | 95941100 | 2695941100 | Screw, Cap 3/8–16 × 2–1/2 |
| 080.0 | 57584252 | 2657584252 | Grating |
| 081.0 | 57584245 | 2657584245 | Grating |
| 082.0 | 57546186 | 2657546186 | Decking |
| 083.0 | 57546293 | 2657546293 | Decking |
| 084.0 | 57545972 | 2657545972 | Support, Receiver |
| 085.0 | 57584260 | 2657584260 | Grating |
| 086.0 | 57584229 | 2657584229 | Support, Tank |
| 087.0 | 57584286 | 2657584286 | Channel |
| 088.0 | 57615726 | 2657615726 | Railing, Pipe |
| 089.0 | 57615734 | 2657615734 | Toe Board |
TechCom supplies the complete range of walkway assemblies and structural spare parts for the Epiroc DM-M2 drill rig, helping operators ensure safe access, maximize uptime and extend service life. See all spare parts for Epiroc DM-M2.
