Blasthole Drilling Rig Epiroc DM-M2

Name: Blasthole Drilling Rig Epiroc DM-M2
Brand: Epiroc

Request price and lead time

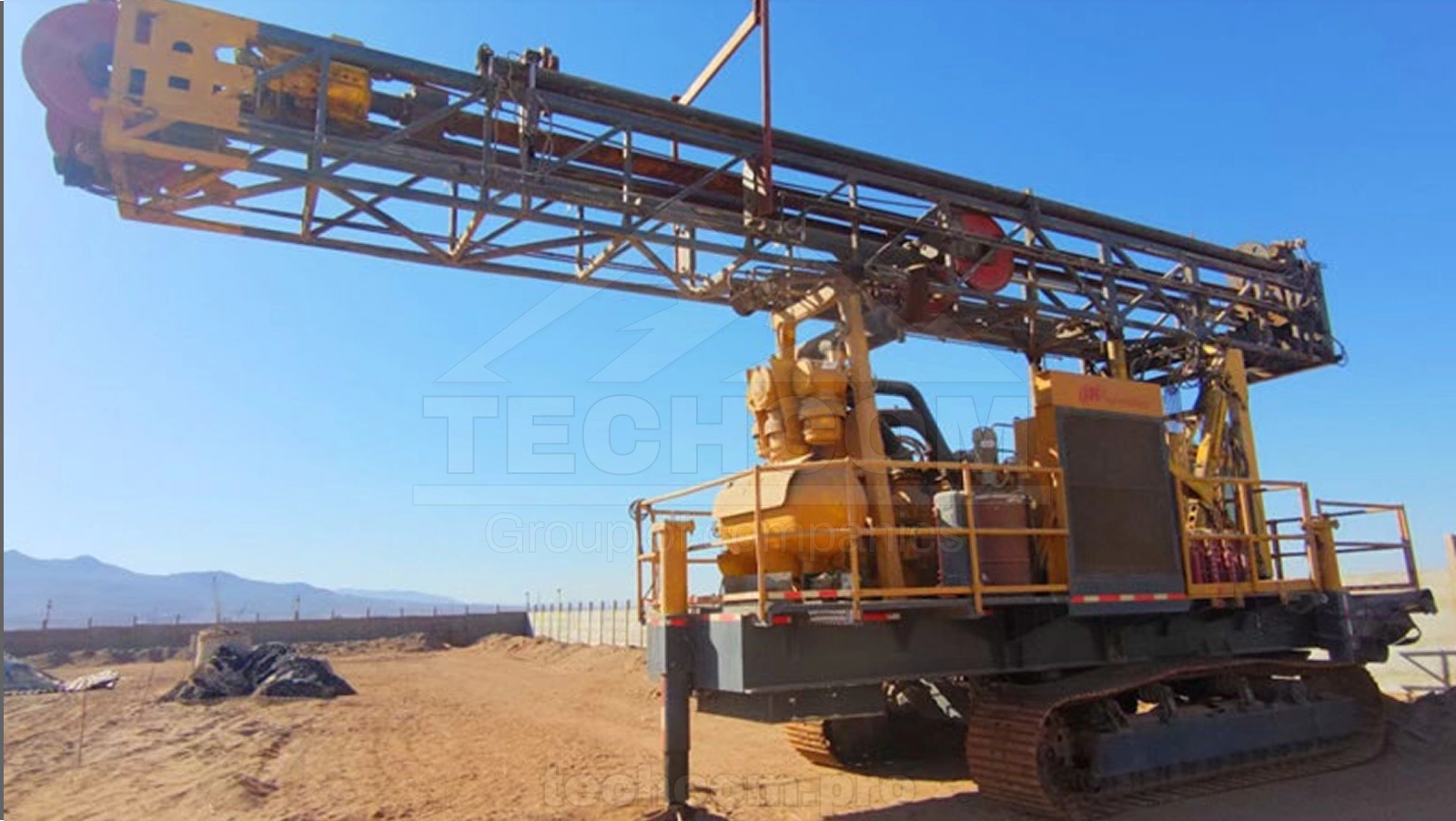

Drilling Rig Epiroc DM M2

The DM-M2 is a large rotary blasthole drill rig built for high-productivity drilling in surface mining. Designed for both rotary and down-the-hole (DTH) applications, it delivers deep, straight holes with reliable performance in demanding environments.

With a multi-pass tower design, the DM-M2 achieves drilling depths of up to 54 meters, handling hole diameters from 9⅞″ to 10⅝″. Its crawler undercarriage provides stability on uneven ground, while the operator cab is equipped with heating, air conditioning, and ergonomic controls for safe and comfortable operation during long shifts.

Optional upgrades include dust suppression, angle drilling, automatic lubrication, and cold-weather kits, making the DM-M2 adaptable to various mine site conditions.

Technical Specifications

Parameter	Value
Engine	Caterpillar 3412 (890 hp / 654 kW)
Drilling Method	Rotary and DTH, multi-pass
Hole Diameter	9⅞″–10⅝″ (250–270 mm)
Drilling Depth	Up to 54 m
Compressor Output	Up to 1,800 cfm
Operating Weight	Approx. 127 t

Looking for spare parts for your DM-M2 drill rig? Explore our complete catalog of genuine components, including engine parts, compressor units, rotary head assemblies, and structural elements. View spare parts catalog for this model.

Spare parts for this machine

57407678 MAINFRAMEASSY,VERT DM-M2 (2657407678)

57407678 (2657407678)

57407678 MAINFRAMEASSY,VERT DM-M2 (2657407678)

Mainframe Assembly, Vertical, DMM2 57407678 (2657407678) – structural assembly for the Epiroc DM-M2 drill rig, integrating the welded frame, supports and fittings to maintain strength, precision and service life in mining operations.

57189847 TOWERSUPPORT-VERTICAL DM-M2 (2657189847)

57189847 (2657189847)

57189847 TOWERSUPPORT-VERTICAL DM-M2 (2657189847)

Tower Support – Vertical, DMM2 57189847 (2657189847) is a key structural assembly for the Epiroc DM-M2 drill rig. It integrates the welded tower support with legs, retaining pins, safety hooks and fastening hardware, ensuring stability, precision and durability under demanding mining conditions.

57188377 BLOCK,TRUNION DM-M2 (2657188377)

57188377 (2657188377)

57188377 BLOCK,TRUNION DM-M2 (2657188377)

57188377 Block, Trunion, DMM2 (2657188377) is a structural component of the Epiroc DM-M2 drill rig. Designed as part of the tower support assembly, it integrates the body, cap, screws, washers, pin and lifting lug, ensuring strength, alignment and long service life in mining conditions.

57641318 (2657641318)

57641318 WALKWAYASM DM-M2 (2657641318)

Walkway Assembly, DMM2 57641318 (2657641318) is a structural module of the Epiroc DM-M2 drill rig. Designed to provide secure access and stability, it integrates gratings, handrails, decking panels, toe boards, supports and fastening hardware, ensuring durability and safety in heavy-duty mining conditions.

57530198 CONTERWEIGHTASSY DM-M2 (2657530198)

57530198 (2657530198)

57530198 CONTERWEIGHTASSY DM-M2 (2657530198)

The Counterweight Assembly 57530198 (2657530198) is designed for the Epiroc DM-M2 blasthole drill rig to provide proper balance and stability of the machine. This assembly includes four counterweight plates that help maintain structural integrity and safe operation under demanding mining conditions.
