2658588670 Rotary Head Gearbox (2658 5886 70)

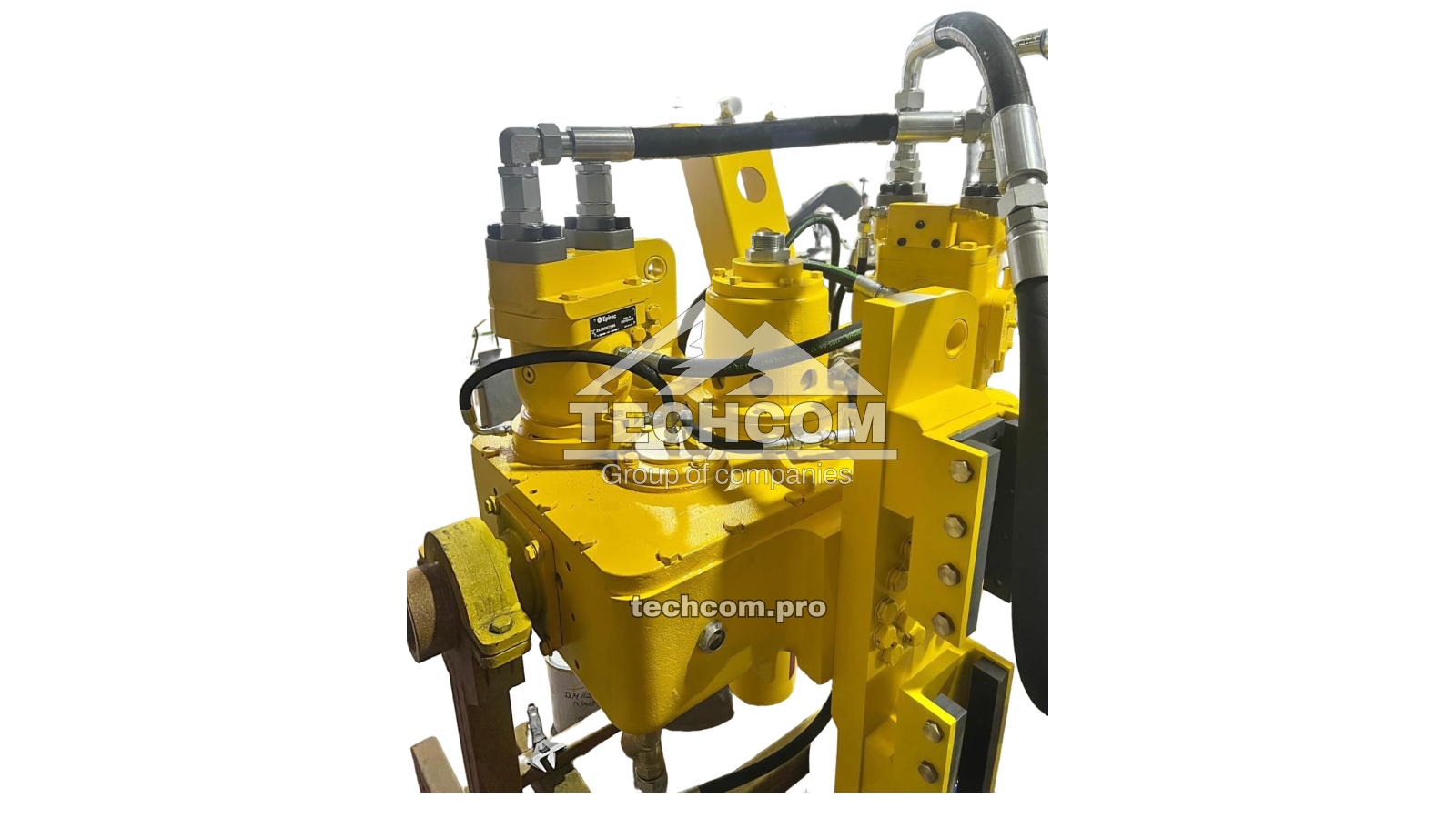

2658588670 is a rotary head gearbox (part of the rotary head / rotation unit assembly) used on Epiroc surface drilling rigs. This mechanical transmission module transfers power from the drive system to the spindle, reducing rotational speed and increasing torque to deliver stable, controlled rotation during drilling operations.
In the rotary head assembly, the gearbox works together with the spindle, bearings, seals and housings to maintain drilling accuracy, proper load distribution and reliable performance under demanding operating conditions.
This component is typically associated with Epiroc (Atlas Copco) DM and DML series rigs.
Spare parts for Rotary Head Gearbox 2658588670

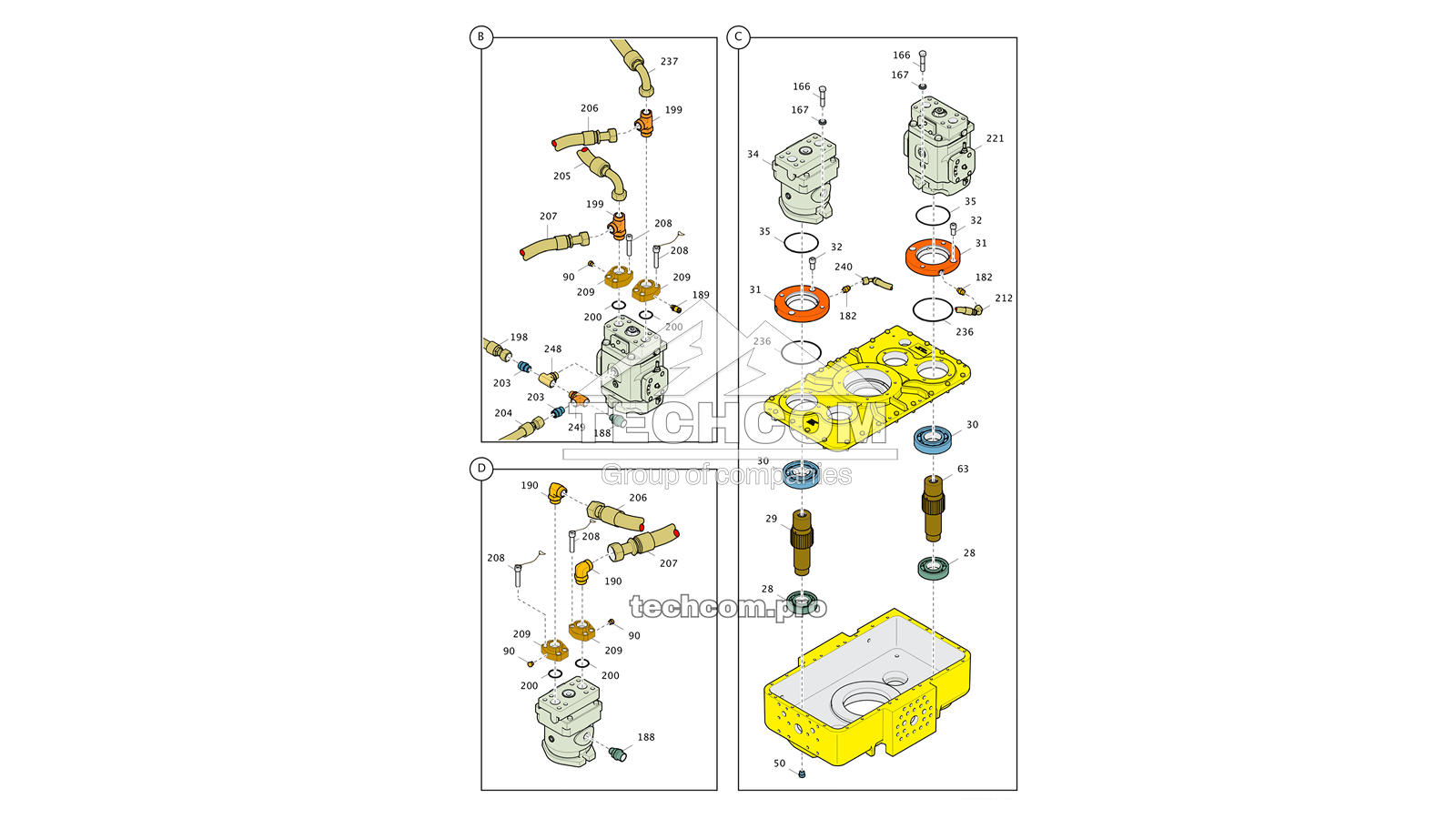

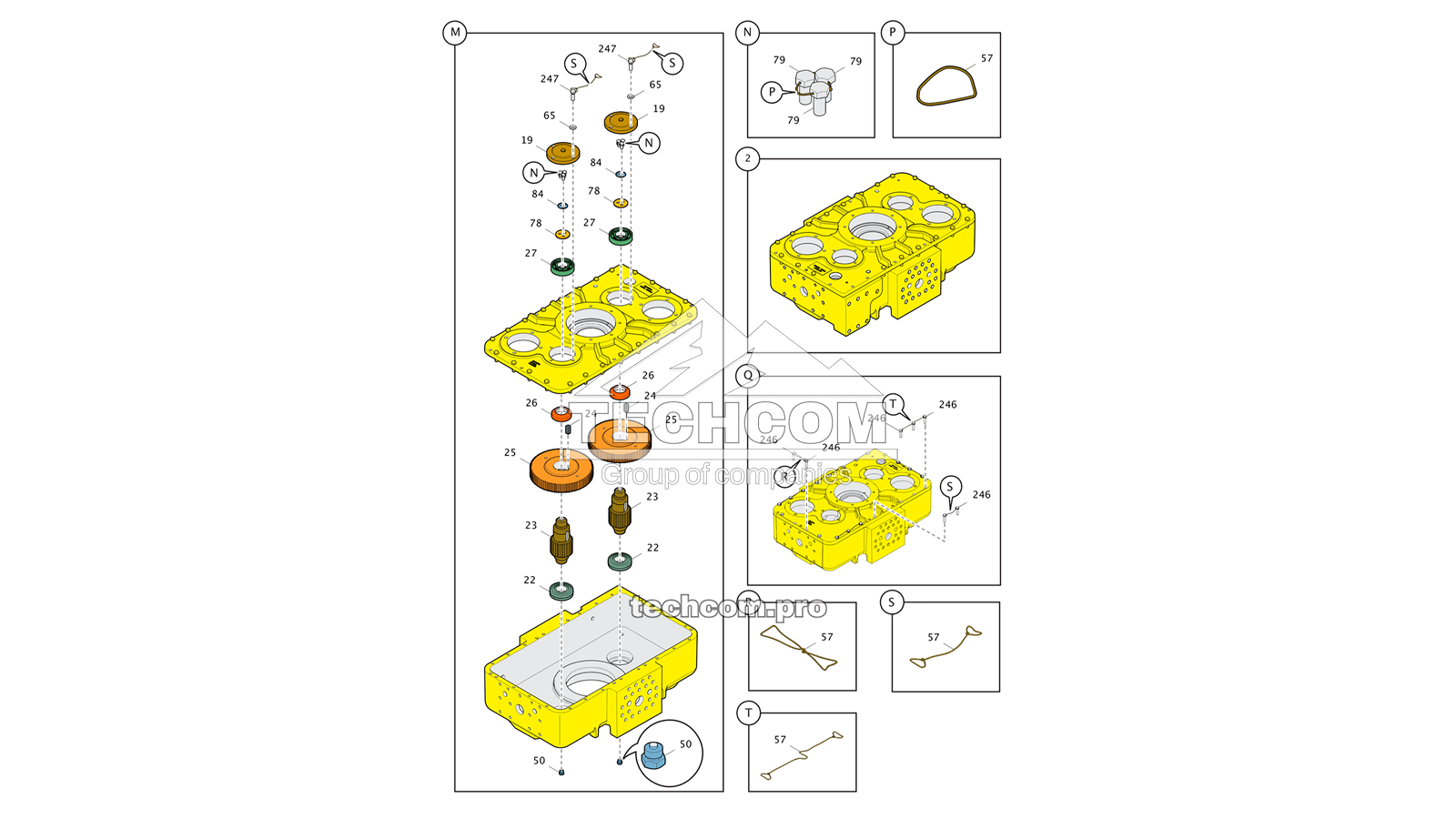

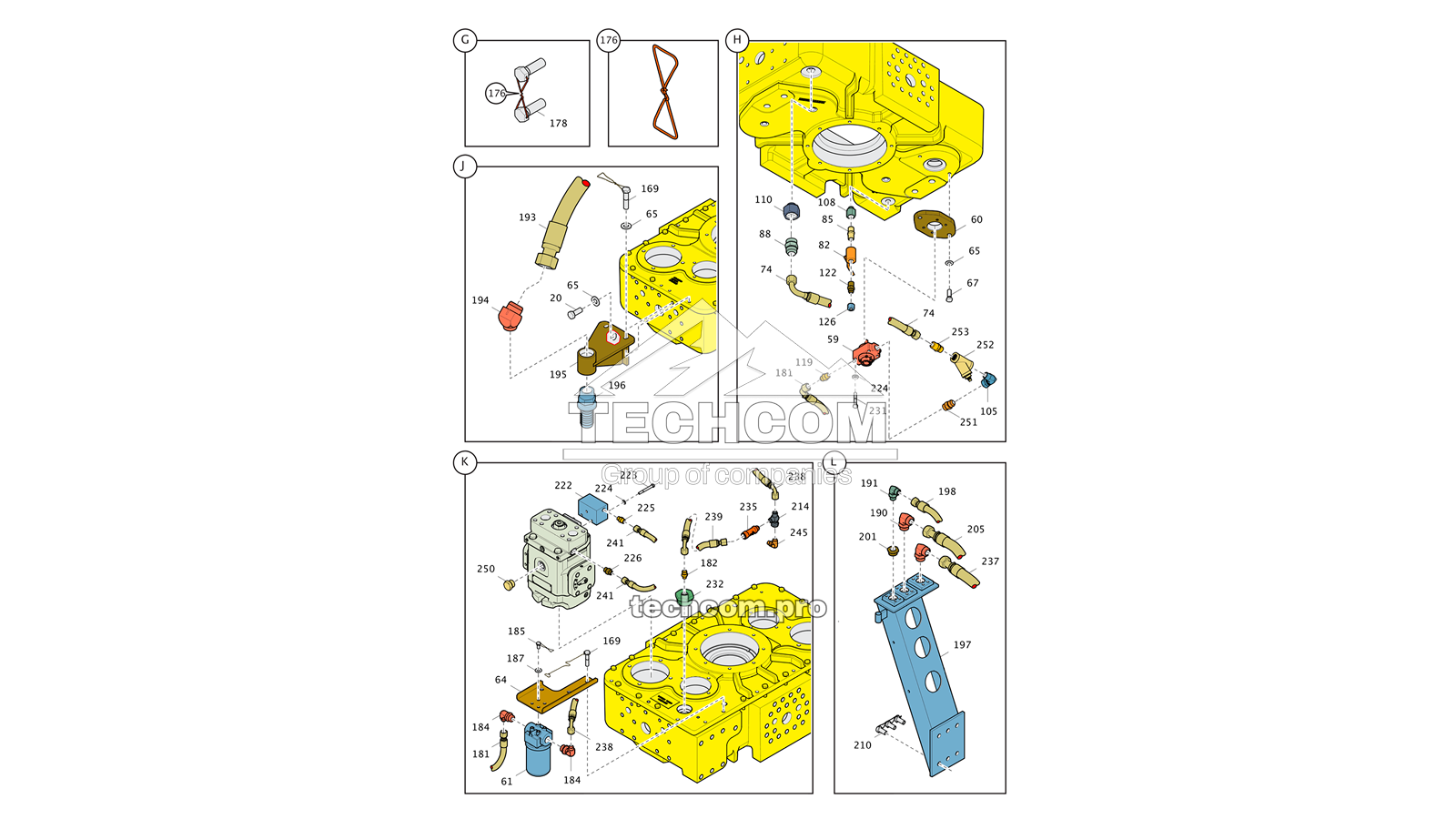

Below is the parts list for the 2658588670 rotary head gearbox assembly, including complete assemblies and individual components used within the rotary head and rotation unit.
| Item | Part No. | Name | Qty | Remarks |
|---|---|---|---|---|
| COMPLETE ASSEMBLY | 2658588670 | ROTARYHEAD, LUBE | 1 | |
| 1 | 2658588971 | SPINDLEROTARY HEAD | 1 | ROTARY HEAD |
| 2 | 2658564660 | HOUSING,MACHINE,R.HEAD | 1 | ROTARY HEAD |
| 3 | 2657265258 | SEAL,OIL-SINGLELIP | 2 | OIL-SINGLE LIP |
| 4 | 2695180600 | BEARING,RLR. | 1 | |
| 5 | 2658470230 | CAPSCREW | 8 | |
| 7 | 2657762502 | KEY | 1 | |
| 8 | 2657936874 | OUTPUTGEAR | 1 | |
| 9 | 2657762528 | SPINDLECLAMP | 1 | |
| 10 | 2695055281 | CAPSCREW,HEXSOCKETHEAD | 2 | HEX SOCKET HEAD |
| 11 | 2695958831 | NUT, HEX-LOCK | 2 | LOCK NUT, 10MM, HEX-LOCK, 3/8-16UNC |
| 12 | 2657762494 | SPACER | 1 | |
| 13 | 2657090920 | HOUSING,LWR | 1 | |
| 14 | 2652180585 | SEAL,OIL | 1 | |
| 15 | 2695382735 | BEARING,ROLLER | 1 | |
| 16 | 2657954422 | LOCKNUT,BEARING | 1 | |
| 17 | 2657954430 | WASHER,LOCK,TONGUED | 1 | LOCK, TONGUED |
| 18 | 2695270815 | CAPSCREW | 6 | 5/16-18X1 |
| 19 | 2658317585 | CAP,BEARINGPORT | 2 | BEARING PORT |
| 20 | 2695919551 | CAPSCREW | 1 | |
| 22 | 2695711156 | BEARING,SPHERICAL,ROLLER | 2 | SPHERICAL,ROLLER |
| 23 | 2657191017 | SHAFT,INTERMEDIATE | 2 | INTERMEDIATE |
| 24 | 2657159139 | KEY,INTERMEDIATE SHAFT | 2 | INTERMEDIATE SHAFT |
| 25 | 2657159113 | GEAR,INTERMEDIATE | 2 | INTERMEDIATE |
| 26 | 2657159121 | SPACER,INTERMEDIATEGEAR | 2 | INTERMEDIATE GEAR |
| 27 | 2659596051 | BEARING BALL | 2 | |
| 28 | 2695214037 | BEARING | 2 | |
| 29 | 2657170110 | PINION,INPUT | 1 | |
| 30 | 2657363822 | BEARING,BALL | 2 | |
| 31 | 2657799710 | ADAPTER,MOTOR-LUBEPUMP | 2 | MOTOR-LUBE PUMP |
| 32 | 2695055232 | CAPSCREW,HEXSOCKETHEAD | 4 | HEX SOCKET HEAD |
| 34 | 2658607584 | MOTOR,M6,SPLINE | 1 | ITEM INCL. POS 34.1 TO 34.3 |
| 34.1 | 2654472170 | KIT,RETAININGRING | 1 | RETAINING RING |
| 34.2 | 2654472147 | KIT,SEAL M6F | 1 | SEAL M6F |
| 34.3 | 2658367491 | KIT, SEAL SHAFT | 1 | SEAL SHAFT |
| 35 | 2695086724 | O'RING | 2 | |
| 42 | 2650696160 | HOUSING | 1 | |
| 43 | 2650696103 | SLEEVE,WEAR | 1 | |
| 44 | 2652164290 | SEAL,OIL | 1 | |
| 45 | 2650706761 | SLINGER | 1 | |
| 46 | 2650701762 | BUSHING,WEAR | 1 | |
| 47 | 2650701754 | PACKING | 2 | |
| 48 | 2650696152 | PLATE | 1 | |
| 49 | 2658662163 | CAPSCREW | 4 | |
| 50 | 2658450980 | PLUG,MAGNETIC,SAE-8,ORB | 3 | MAGNETIC,SAE-8,ORB |
| 51 | 2650700764 | SHIM SET | 1 | |
| 52 | 2652238706 | SWIVEL CAP | 1 | |
| 53 | 2658662170 | CAPSCREW | 4 | |
| 56 | 2695033585 | PLUG,PIPE,SQHEAD,SOLID | 2 | SQUARE HEAD,SOLID,1/8" |
| 57 | 2658479211 | WIRE,LOCK20GA,SS | 37 | 20GA,SS |
| 58 | 2657782708 | SHIM PACK | 1 | |
| 59 | 2658537878 | PUMP,SELFREVERSING-LUBE | 1 | SELF REVERSING-LUBE |
| 60 | 2658537885 | MOUNT,PUMP-LUBE | 1 | PUMP-LUBE |
| 61 | 2657968968 | FILTERASSY,LUBE OIL | 1 | ITEM INCL. POS 61.1 |
| 61.1 | 2658456181 | ELEMENT | 1 | |
| 63 | 2657810400 | PINION,INPUT-MODIFIED | 1 | MODIFIED, ITEM INCL. POS 63.1 |
| 63.1 | 2657170110 | PINION,INPUT | 1 | |
| 64 | 2658456174 | BRACKET,LUBE FILTER | 1 | LUBE FILTER |
| 65 | 2695935003 | WASHER,FLAT, 1/2" | 61 | FLAT,1/2" |
| 67 | 2695919569 | CAPSCREW | 2 | |
| 74 | 2657342628 | HOSE ASSEMBLY | 1 | F12X019J--/J90 |
| 78 | 2657191033 | PLATE, END | 2 | |
| 79 | 2658366210 | CAPSCREW,HEXHEAD | 6 | HEX HEAD |
| 82 | 2650829605 | VALVE,BALL-1/2 | 1 | 1/2" |
| 84 | 2657243719 | SHIM,POWERHEAD-SPURGEAR | 2 | POWERHEAD-SPURGEAR |
| 85 | 2695315214 | NIPPLE,NPTFDRYSEAL | 1 | NPTF DRYSEAL |
| 87 | 2652253176 | GAUGE,SIGHT | 1 | |
| 88 | 2695356960 | CONNECTOR,STRTTHRD | 1 | STRAIGHT THREADED |
| 90 | 2695343596 | PLUG,HEXHEAD,O-RING | 3 | HEX HEAD,O-RING |
| 105 | 2659604170 | FITTING | 1 | L90,12NPTX12JIC |
| 108 | 2695775623 | FITTING,HYD | 1 | HYDRAULIC |
| 110 | 2695528808 | ADAPTER | 1 | |
| 119 | 2695303368 | CONNECTOR,STRTTHRD | 1 | STRAIGHT THREADED |
| 122 | 2695219721 | CONNECTOR,MALE,37DEG. | 1 | MALE,37 DEG. |
| 126 | 2695257325 | CAP,37DEG FLARED | 1 | 57A10C11 |
| 166 | 2695919866 | CAPSCREW | 4 | |
| 167 | 2656951700 | TUBE | 4 | |
| 169 | 2658487128 | SCREW,CAP,HEX,.50X2.25L | 5 | CAP,HEX,.50X2.25 |
| 170 | 2657149080 | SHIM | 8 | |
| 171 | 2657386427 | GUIDE,BLOCK-LONGR.H. | 8 | LONG R.H. |
| 172 | 2650624709 | SHIM, GUIDE | 24 | |
| 173 | 2657376832 | GUIDESLIDE - R.H. | 4 | R.H. |
| 175 | 2695442646 | CAPSCREW,SOCKETFLAT | 16 | SOCKET FLAT |
| 176 | 2650344605 | WIRE,LOCK | 18 | 16GA,BLACK ANNEAL |
| 177 | 2657883332 | GUIDESLIDE,ROTARY HEAD | 4 | ROTARY HEAD |
| 178 | 2695157731 | CAPSCREW,HEXHEAD | 32 | HEX HEAD, 1/2 X 1.5" |
| 181 | 2657496135 | HOSEASSEMBLY | 1 | F08X017J--/J90 |
| 182 | 2695372173 | FITTING,HYD | 4 | HYDRAULIC |
| 183 | 2695246724 | FITTING,RELIEF,HYD | 1 | HYDRAULIC |
| 184 | 2695330692 | ELBOW,90DEG STRT THRD | 2 | 90 DEG STRAIGHT THREAD |
| 185 | 2658508226 | CAPSCREW,HEXHEAD | 4 | HEX HEAD |
| 186 | 2695040952 | ELBOW,STREET,90DEG | 1 | STREET,90DEG,1/8 NPT |
| 187 | 2695934907 | WASHER,PLAIN,WIDE | 4 | PLAIN,WIDE |
| 188 | 2657568487 | VALVE,RELIEF(ATM) | 2 | RELIEF(ATM) |
| 189 | 2657328676 | FITTING,TEST | 1 | TEST |
| 190 | 2657174070 | FITTING,L90,20OFSX20SAE | 4 | L90,20OFS X20SAE |
| 191 | 2657167934 | FITTING,L90-120FSX12SAE | 1 | L90-120FSX12SAE |
| 192 | 2695286910 | ELBOW,90DEG MALE | 1 | 90 DEG MALE |
| 193 | 2656999113 | HOSEASSEMBLY | 1 | E32X022J--/J-- |
| 194 | 2695279147 | FITTING,HYD | 1 | HYDRAULIC |
| 195 | 2657559577 | BRACKET-HOSE,ROTARYHEAD | 1 | HOSE, ROTARY HEAD |
| 196 | 2650023910 | STEM | 1 | |
| 197 | 2657966871 | BRACKET,HOSE | 1 | HOSE |
| 198 | 2657786782 | HOSE,ASSEMBLY,ARCTIC | 1 | ARCTIC,CA12X034A--/A-- |
| 199 | 2657308983 | FITTING,RNT,20OFSX20SAE | 2 | RNT,20OFS X20SAE |
| 200 | 2695086567 | O'RING | 4 | |
| 201 | 2695650149 | REDUCER,EXPANDER | 1 | EXPANDER |
| 203 | 2657167942 | FITTING,STR,12OFSX12SAE | 3 | STR,12OFS X12SAE |
| 204 | 2657786790 | HOSE,ASSEMBLY,ARCTIC | 1 | ARCTIC,CA12X019A--/A-- |
| 205 | 2658317601 | HOSE,ASSEMBLY | 1 | P20X021A--/A90 |
| 206 | 2658258481 | HOSE,ASSEMBLY | 1 | P20X024A--/A-- |
| 207 | 2658258473 | HOSE,ASSEMBLY | 1 | P20X018A--/A-- |
| 208 | 2659603583 | BOLT SET | 4 | |
| 209 | 2657213936 | BLOCK,FLANGE | 4 | |
| 210 | 2658380532 | SCREW,CAP-3/4-10 X1-1/2 | 6 | 3/4-10 X1-1/2 |
| 211 | 2658366308 | CAPSCREW,HEXHEAD | 52 | HEX HEAD |
| 212 | 2656255243 | HOSEASSEMBLY | 1 | F08X011J--/J90 |
| 214 | 2695416731 | NUT,SWIVELTEE | 1 | |
| 215 | 2658366294 | CAPSCREW,HEXHEAD | 8 | HEX HEAD |
| 216 | 2695642484 | FITTINGHYD | 1 | HYDRAULIC |
| 217 | 2658589006 | GUIDE,MACHINED, CABSIDE | 1 | ITEM INCL. POS 217.1 TO 217.3 |
| 217.1 | 2658588992 | GUIDE,CAST,PWRHEADCS | 1 | POWERHEAD CS |
| 217.2 | 2658589020 | INSERT,HARDENED | 2 | HARDENED |
| 217.3 | 2658589027 | PIN, SHEAR | 1 | |
| 218 | 2658589013 | GUIDE,MACHINED,NONCABSID | 1 | ITEM INCL. POS 218.1 TO 218.3 |
| 218.1 | 2658588999 | GUIDE,CAST,PWRHEADNCS | 1 | POWERHEAD NCS |
| 218.2 | 2658589020 | INSERT,HARDENED | 2 | HARDENED |
| 218.3 | 2658589027 | PIN, SHEAR | 1 | |
| 221 | 2658607591 | MOTOR,M6,SPLINE | 1 | M6,SPLINE |
| 222 | 2657167298 | VALVE,MOTOR CONTROL | 1 | MOTOR CONTROL |
| 223 | 2695920583 | CAPSCREW,HEXHEAD | 3 | HEX HEAD |
| 224 | 2695934998 | WASHER, FLAT | 7 | FLAT,5/16" |
| 225 | 2657319618 | FITTING,STR,06OFSX06SAE | 1 | STR,06OFS X06SAE |
| 226 | 2657319626 | FITTING,STR,06OFSX08SAE | 1 | STR,06OFS X08SAE |
| 227 | 2657786733 | HOSE,ASSEMBLY,ARCTIC | 1 | ARCTIC,CA06X008A--/A90 |
| 229 | 2695033619 | PLUG,PIPE-1/2SQ HEAD | 1 | 1/2" SQUARE HEAD |
| 230 | 2695935011 | WASHER | 40 | |
| 231 | 2695920526 | CAPSCREW,HEX | 4 | HEX |
| 232 | 2658314209 | PLUG | 1 | |
| 233 | 2695037354 | BUSHING | 1 | |
| 235 | 2658507463 | CHECKVALVE, 10PSI | 1 | 10PSI |
| 236 | 2695097929 | O-RING | 2 | |
| 237 | 2658258457 | HOSE,ASSEMBLY | 1 | P20X027A--/A90 |
| 238 | 2657480774 | HOSEASSEMBLY | 1 | F08X019J--/J90 |
| 239 | 2658540615 | HOSEASSEMBLY | 1 | F08X07J--/J90 |
| 240 | 2657480766 | HOSEASSEMBLY | 1 | F08X009J--/J90 |
| 241 | 2657380099 | HOSEASSEMBLY | 1 | F06X029A--/A90 |
| 242 | 2657195570 | PIN, DOWEL | 4 | |
| 245 | 2695480109 | FITTING,HYD-90DEGO-RING | 1 | HYDRAULIC-90DEGO-RING |
| 246 | 2658366217 | CAPSCREW,HEXHEAD | 19 | HEX HEAD |
| 247 | 2695919577 | CAPSCREW | 8 | |
| 248 | 2658566571 | FITTING-TEE,-12 | 1 | |
| 249 | 2657867335 | FITTING,TEE | 1 | |
| 250 | 2695280541 | FITTING,HYD | 1 | HYDRAULIC |
| 251 | 2695364949 | FITTING,HYD | 1 | HYDRAULIC |
| 252 | 2659603971 | STRAINER | 1 | ROTARY HEAD |
| 253 | 2695219747 | CONNECTOR,MALE,37DEG | 1 | MALE,37 DEG |

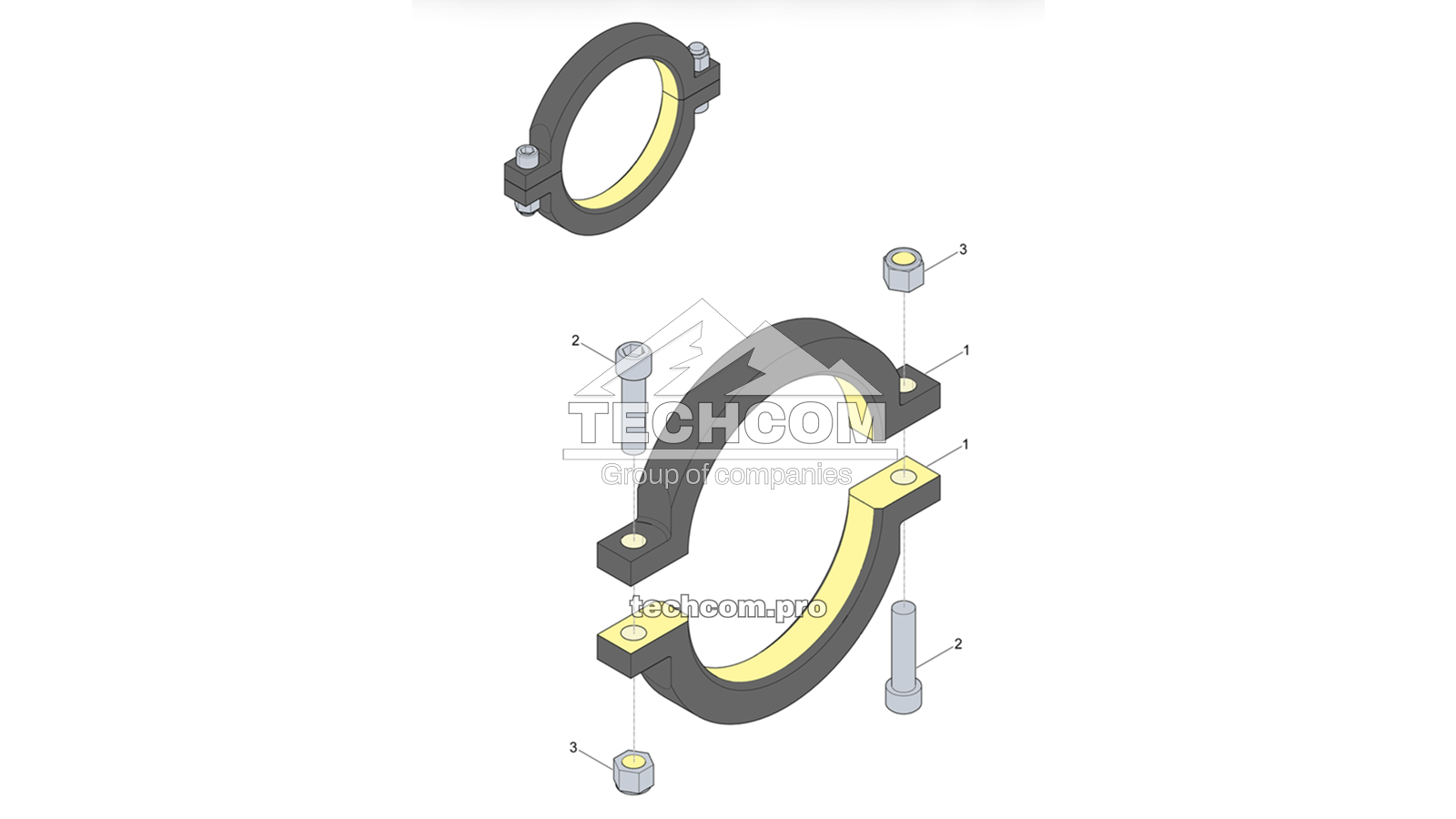

Spindle clamp (sub-assembly)
| Item | Part No. | Name | Qty | Remarks |
|---|---|---|---|---|
| COMPLETE ASSEMBLY | 2657762528 | SPINDLECLAMP | 1 | |
| 1 | 2657762536 | CLAMP | 2 | |
| 2 | 2695055281 | CAPSCREW,HEXSOCKETHEAD | 2 | HEX SOCKETHEAD |
| 3 | 2695923322 | NUT,ELASTICLOCK | 2 | ELASTIC LOCK |
Support and supply
Rotary head gearbox 2658588670 is in stock for fast dispatch.
Contact our specialists for part identification, compatibility verification and technical support. We supply rotary head gearboxes and matching rotation unit components for surface drilling equipment, and can help you select the correct configuration for your rig.
