ANFO Charging Machine Normet Charmec SF 505 DA(V)

Normet Charmec SF 505 DA(V) Overview

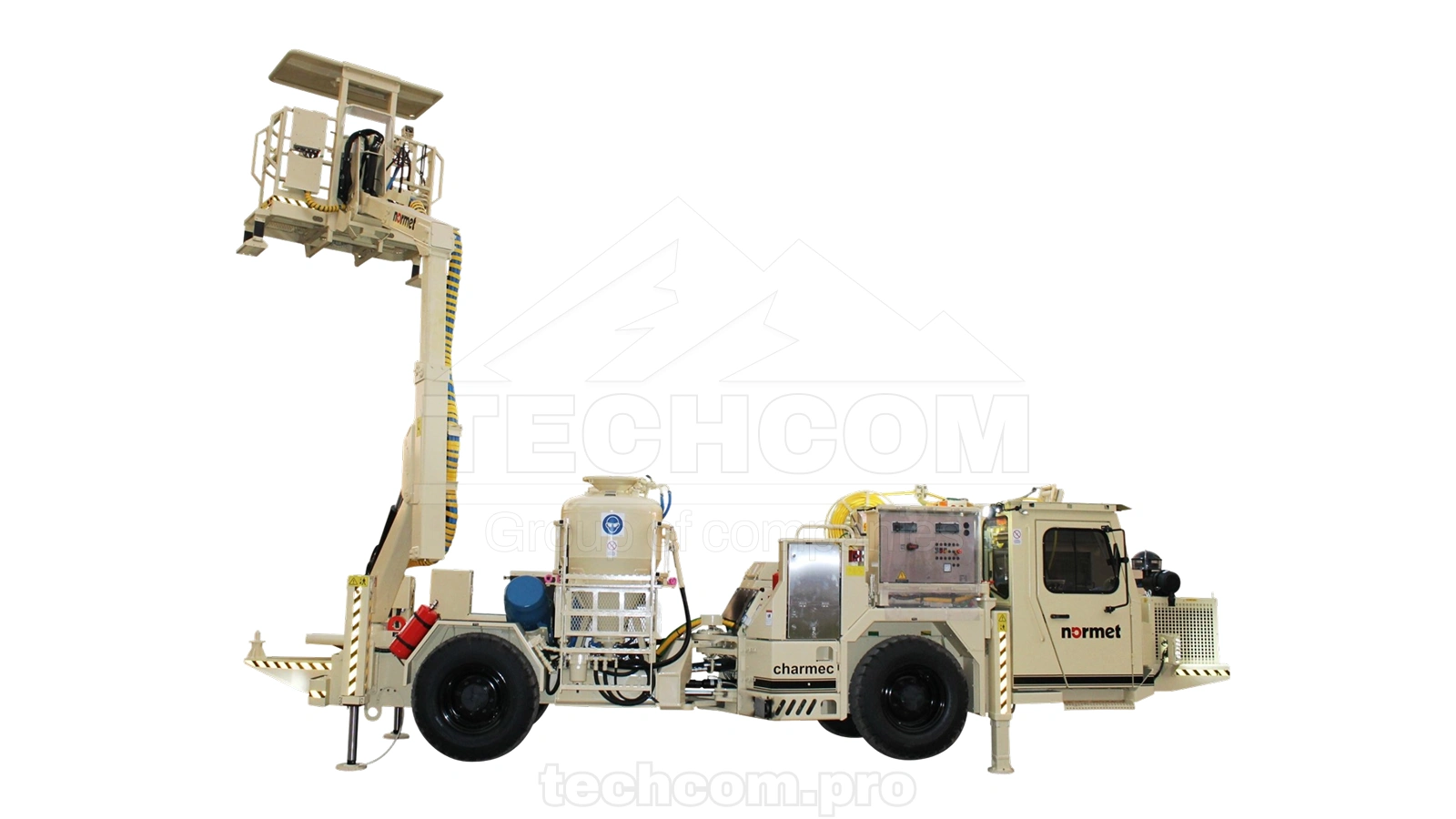

The Normet Charmec SF 505 DA(V) is a diesel-hydraulic underground ANFO charging machine engineered for face and production charging in mining drifts and tunnels with face heights up to 7.4 meters. Its robust carrier platform and articulated basket boom provide stability, maneuverability and efficient explosive delivery in confined underground environments.

The machine is equipped with dual ANFO vessel configurations, allowing sufficient explosive storage capacity for multiple charging cycles without frequent refilling. Integrated storage areas for stick powder, primers and detonators enable operators to transport all necessary blasting materials directly to the working face, eliminating the need for additional service vehicles. Optional onboard compressor solutions remove dependency on external compressed air lines.

Key features and advantages

• Designed for both development and production charging operations.
• Dual ANFO vessels available in 300 L, 500 L or 720 L configurations.
• Maximum charging pressure up to 7 bar.
• Integrated storage compartments for explosives and accessories.
• NBB455 basket boom with automatic leveling and diesel start/stop from basket.
• FOPS/ROPS certified operator cabin ensuring safety and comfort.
• All daily service points accessible from ground level.

Technical specifications

TechCom supplies components and assemblies for the Normet Charmec SF 505 DA(V), supporting safe and efficient underground charging operations.
