BG 006 266 00 aF Drilling Module LF/RC704 – Sandvik DL2720
BG 006 266 00 aF drilling module LF/RC704 for the Sandvik DL2720 longhole drill is available from stock with fast worldwide delivery.

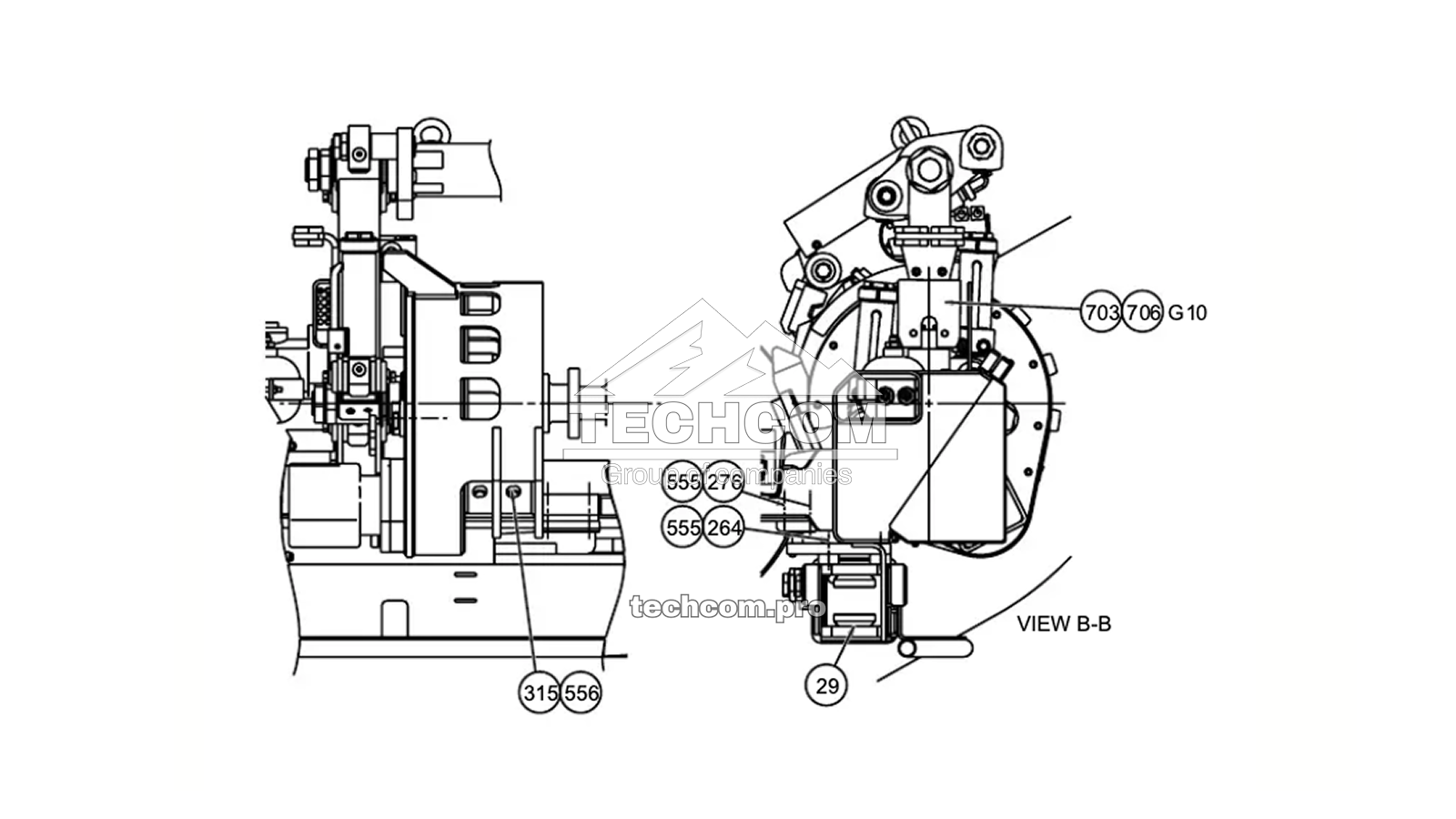

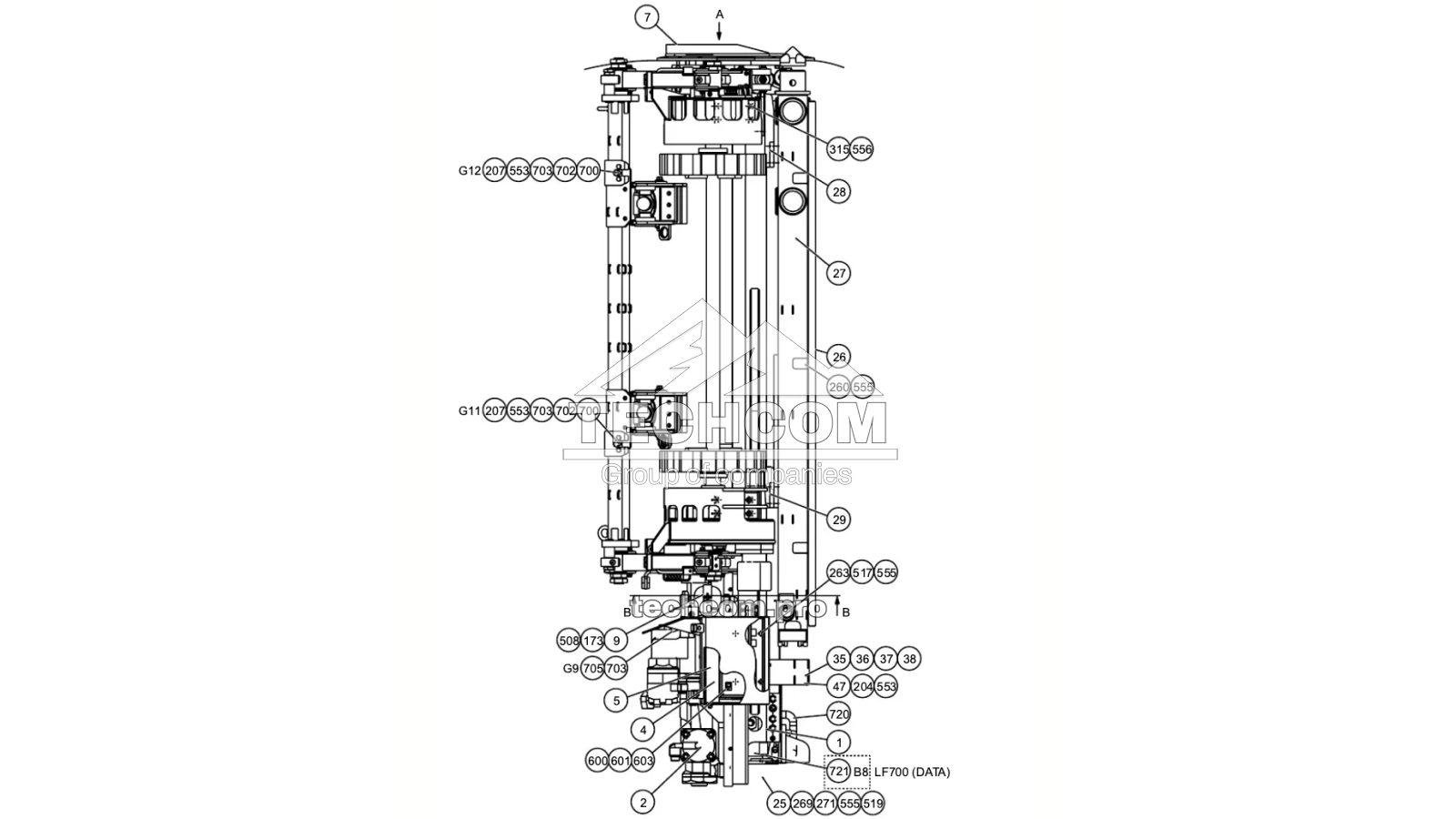

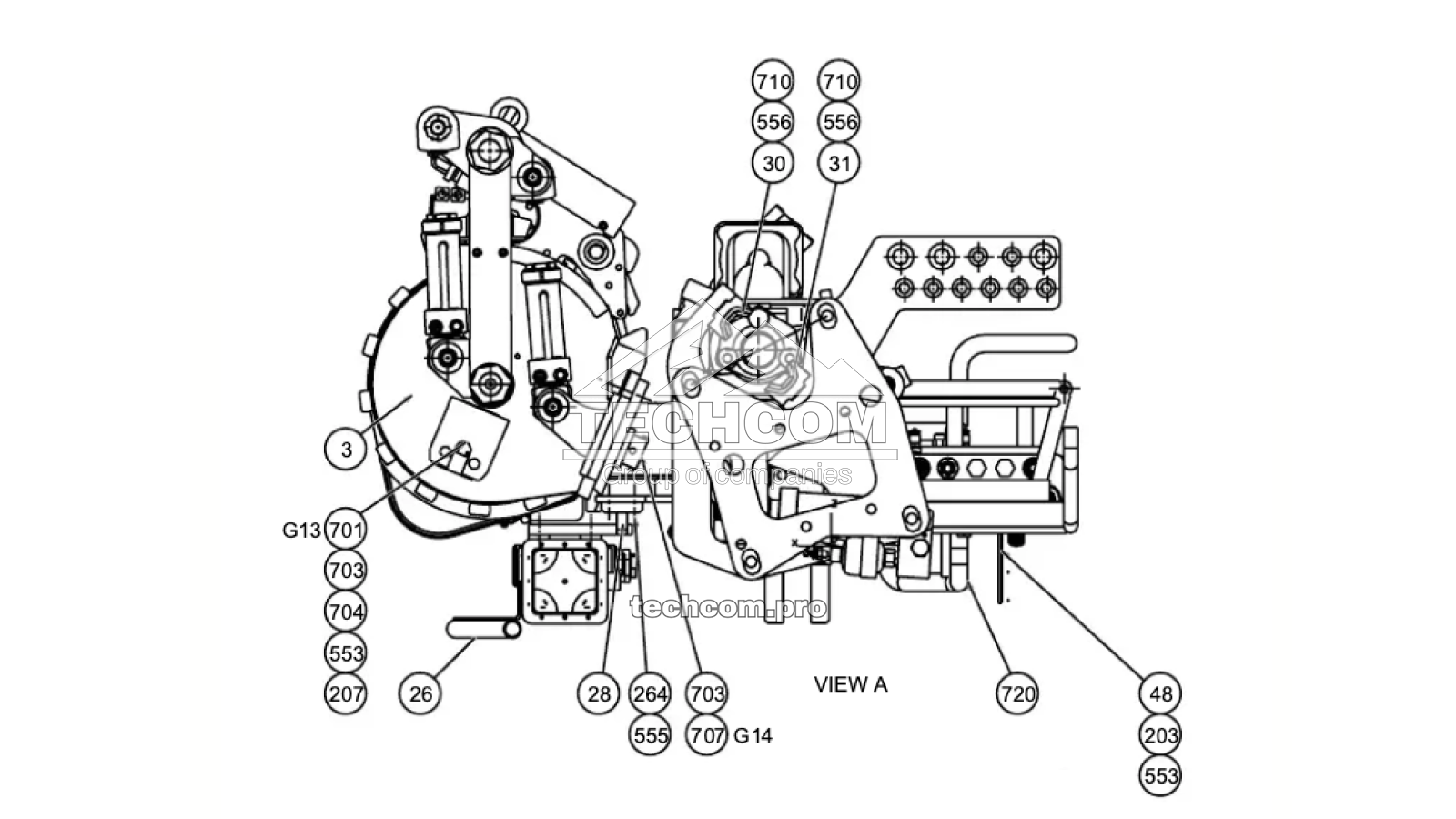

Components included in drilling module BG 00626600 aF
| Ref. | Part No. | Alt. No. | Description | Qty |
|---|---|---|---|---|
| 1 | BG 006 170 53 NSS | BG00617053NSS | Feed Assembly | 1 |
| 3 | 550 775 05 NSS | 55077505NSS | Rod Changer | 1 |
| 4 | 550 451 15 | 55045115 | Valve Assembly | 1 |
| 5 | 550 718 71 | 55071871 | Mounting, Sensor | 1 |
| 7 | 550 451 01 NSS | 55045101NSS | Collector, Cuttings | 1 |
| 9 | 265 572 92 | 26557292 | Accumulator | 1 |
| 25 | 550 987 33 | 55098733 | Bumper | 1 |
| 26 | 551 581 78 | 55158178 | Guide, Hose | 1 |
| 27 | 550 434 58 | 55043458 | Support, Front | 1 |
| 28 | 550 594 14 | 55059414 | Supporting Block | 1 |
| 29 | 550 594 15 | 55059415 | Supporting Block | 1 |
| 30 | 623 924 18 | 62392418 | Jaw | 1 |
| 31 | 623 924 18 | 62392418 | Jaw | 1 |
| 38 | 807 695 29 | 80769529 | Strap | 20 |
| 47 | 330 952 68 | 33095268 | Support, Hose | 1 |
| 720 | 550 728 99 | 55072899 | Guide, Hose | 1 |
| 721 | BG 002 300 18 NSS | BG00230018NSS | Sensor Assembly | 1 |
| 723 | 550 141 41 NSS | 55014141NSS | Shank Lubrication Assembly | 1 |
| 724 | 331 928 08 | 33192808 | Angle Indicator/Mounting | 1 |
| 799 | 550 458 45 NSS | 55045845NSS | Screw Kit | 1 |
| 801 | 552 239 72 | 55223972 | Hosing Set | 1 |
| 802 | 550 845 97 | 55084597 | Hosing Set | 1 |
If the required component is not listed on this page, contact our team for assistance. Our specialists will help you identify compatible spare parts and drilling module components for Sandvik DL2720.
