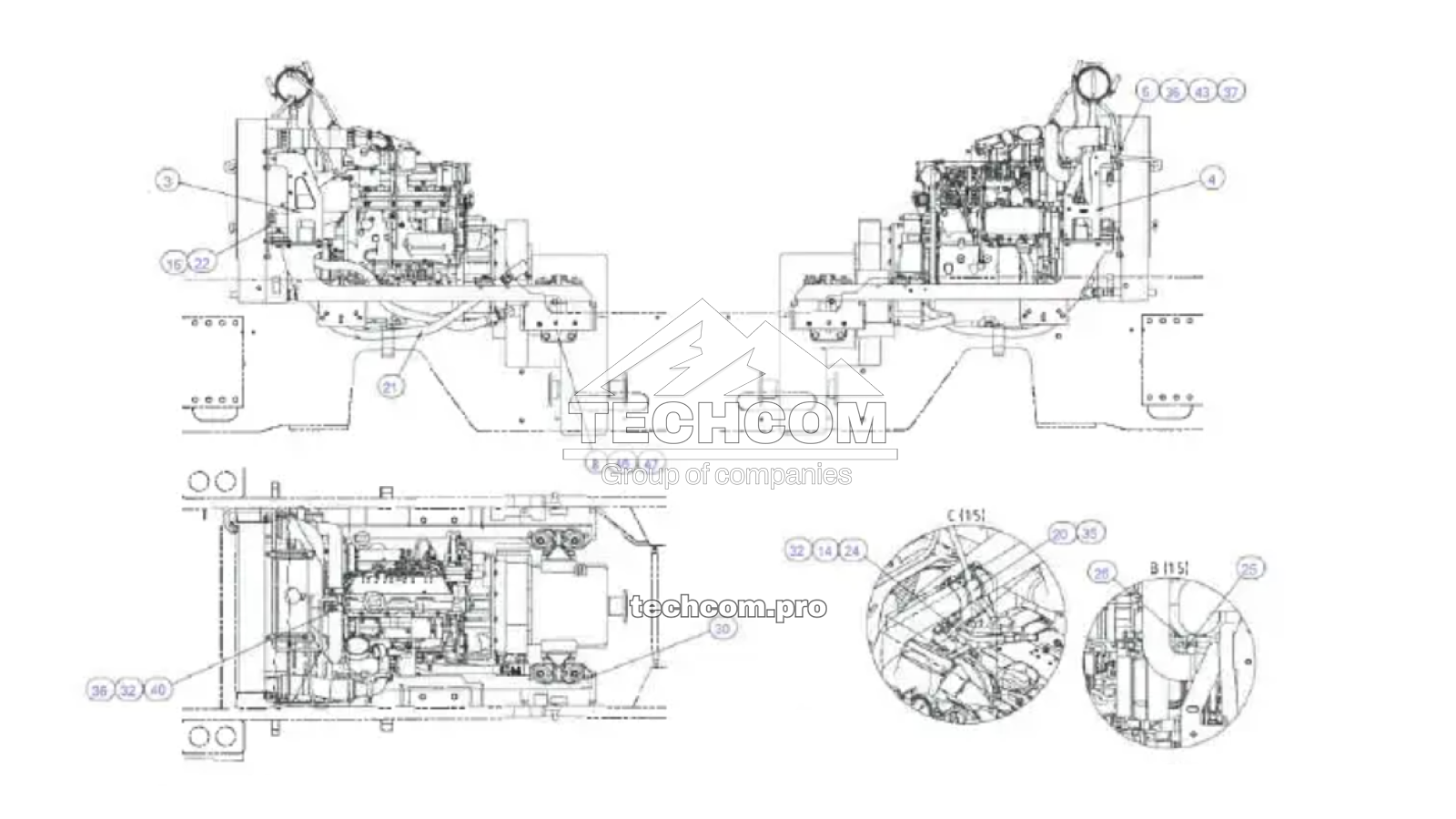

The engine installation kit for the Normet Himec 9905 BT includes all key elements required for secure mounting and connection of the Deutz TCD2012 L04 96 kW engine. The set contains support plates, cooler, vibration dampers, air hoses, brackets, fasteners, and clamps — all designed for durability in underground conditions.
| No. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 54825750 | Engine, Deutz TCD2012 L04 2V 96 kW / 220 | 1 |
| 2 | 54851360 | Powershift Transmission | 1 |
| 3 | 46081520 | Support Plate, Left | 1 |
| 4 | 46081510 | Support Plate, Right | 1 |
| 5 | 54848750 | Cooler | 1 |
| 6 | 45952340 | Fastener | 2 |
| 7 | 46081530 | Support, Right | 1 |
| 8 | 41950908 | Bracket2 | 2 |
| 9 | 46081490 | Support | 1 |
| 10 | 46131150 | Support, Left | 2 |
| 11 | 46081540 | Support | 1 |
| 12 | 46081500 | Support | 1 |
| 13 | 54923321 | Vibration Damper | 4 |
| 14 | 54916556 | Hose Fastener | 2 |
| 15 | 46081580 | Charged Air Hose, Cold | 1 |
| 16 | 45957710 | Water Hose | 1 |
| 17 | 46081570 | Charged Air Hose, Hot | 1 |
| 18 | 46081590 | Upper Water Hose | 1 |
| 19 | 46081600 | Upper Water Hose | 1 |
| 20 | 46081630 | Support | 1 |
| 22 | 54952040 | Hose Clamp | 2 |
| 23 | 46131180 | Bracket | 2 |
| 24 | 46097170 | Support Plate | 1 |
| 25 | 46096920 | Pipe | 1 |
| 26 | 46096940 | Pipe | 1 |
| 28 | 46154670 | Fastening Plate | 1 |
| 29 | 46134790 | Expansion Tank Assembly | 1 |
| 30 | 52062627 | Hex Screw M12×50 DIN933 8.8 ZN | 4 |
| 31 | 52062056 | Hex Screw M12×60 DIN931 8.8 ZN | 8 |
| 32 | 52214251 | Lock Washer M10 Nord-Lock | 22 |
| 33 | 52060241 | Hex Screw M10×35 DIN933 8.8 ZN | 12 |
| 34 | 52114311 | Lock Washer M8 Nord-Lock | 4 |
| 35 | 52060175 | Hex Screw M8×25 DIN933 8.8 ZN | 4 |
| 36 | 52060225 | Hex Screw M10×25 DIN933 8.8 ZN | 14 |
| 37 | 52171108 | Lock Nut M10 DIN985 8 ZN | 26 |
| 38 | 54917830 | Hose Clamp | 2 |
| 39 | 54952070 | Hose Clamp | 2 |
| 40 | 54952030 | Hose Clamp | 4 |
| 41 | 52060233 | Hex Screw M10×30 DIN933 8.8 ZN | 6 |
| 42 | 52117124 | Lock Nut M12 DIN985 8 ZN | 20 |
| 43 | 52200045 | Washer M10 DIN126 5.8 ZN | 40 |
| 44 | 52200052 | Washer M12 DIN126 5.8 ZN | 40 |
| 45 | 52063658 | Hex Screw M12×120 DIN933 8.8 ZN | 8 |
| 46 | 52214020 | Lock Washer M20 Nord-Lock | 8 |
| 47 | 52064078 | Hex Screw UNC 3/4×50 A18 B2 ZN | 8 |
TechCom supplies original Normet Himec 9905 BT spare parts — including full engine installation kits, mounting supports, hoses, clamps, bolts, washers, and Deutz engine components. All parts meet OEM standards, ensuring perfect fit, high durability, and safe operation in underground mining environments.
