Normet Himec 9905 BT Overview

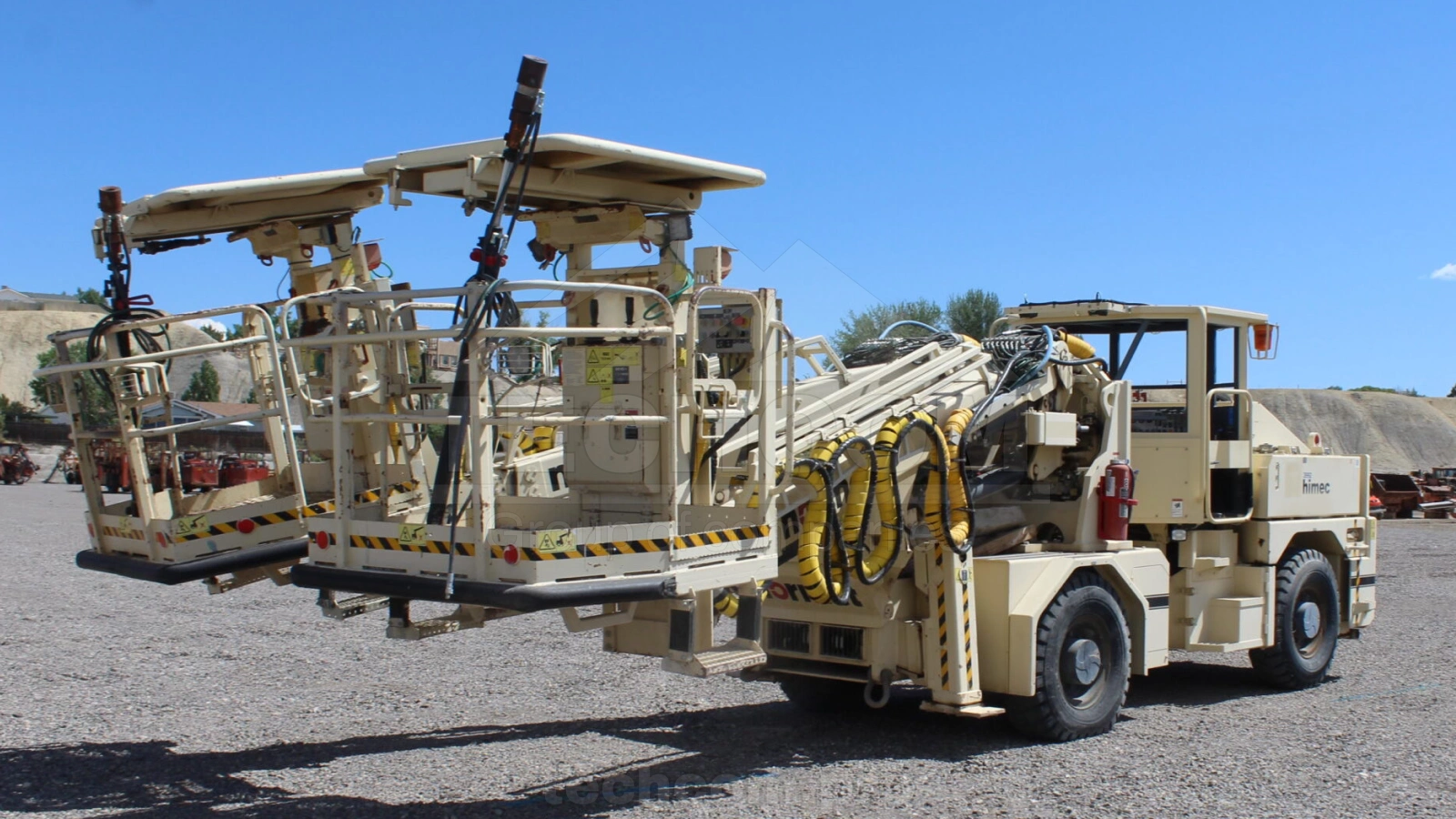

The Himec 9905 BT is a self-propelled twin-boom lifting vehicle designed for personnel lifting, installation work, and explosive charging in underground tunnels. Its advanced design provides a wide working area, allowing all operations to be performed across the tunnel face from a single machine position. Independent control of each boom enhances safety and productivity when performing multiple tasks simultaneously.
Key features and advantages
- Capable of charging, bolting, and installation work from a single position.
- Hydraulic outriggers with side extensions ensure stability on uneven ground.
- Work area lighting: 4×70 W on the platform and 4×70 W on the chassis.
- The operator canopy complies with European safety standards.
- Rugged chassis and reliable braking system designed for harsh underground conditions.
Technical specifications
| Type | Twin-boom lifting platform (Twin Boom Platform Lifter) |
| Base chassis | NC 98, specially designed for underground applications |
| Engine | Diesel, power 96 kW |
| Drive | Full (4×4), hydrodynamic transmission |
| Maximum speed | 25 km/h |
| Braking system | Dual-circuit multi-disc brakes, parking and emergency brake |
| Platform capacity | 500 kg |
| Maximum lifting height | 9.5 m |
| Vertical working reach | 11.7 m |
| Lateral working reach | 16 m |
| Boom tilt range | −20° to +60° |
| Boom rotation | −8° to +40° |
| Dimensions (L×W×H) | 9640 × 2040/3800 × 2900 mm |
| Wheelbase | 3350 mm |
| Ground clearance | 360 mm |
| Weight (max.) | 19 600 kg |
TechCom offers a complete catalog of spare parts for the Himec 9905 BT, ensuring reliable operation and long service life of your equipment.
