The power frame assembly of the Aramine T1601C underground mining truck serves as the main structural component supporting the drivetrain, braking, and steering systems. It provides strength, rigidity, and protection for key mechanical elements during underground operations.

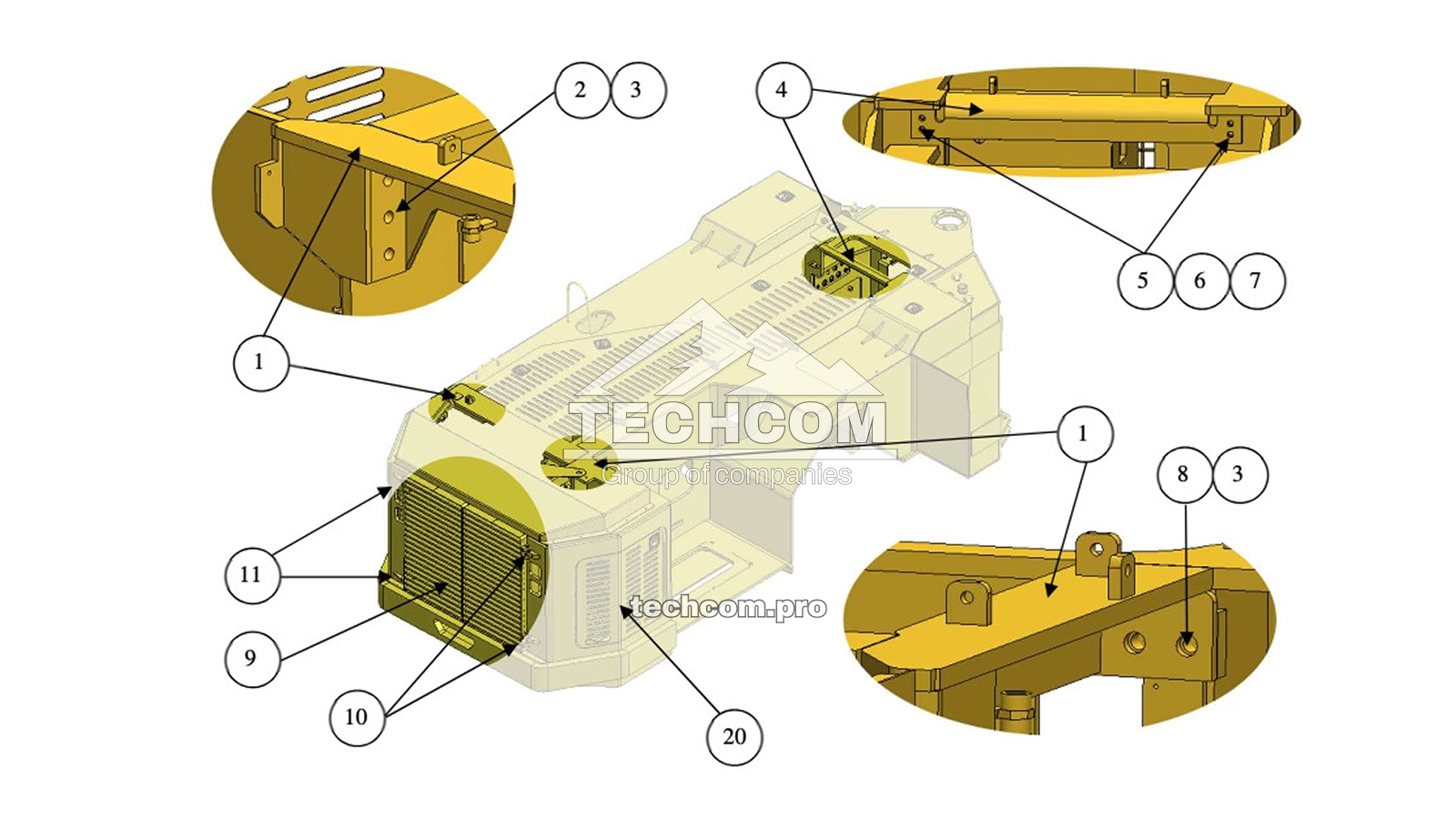

Spare Parts List – Power Frame Assembly
| Ref. | Part No. | Qty | Description |
|---|---|---|---|
| – | – | 1 | Power Frame Assembly (Main structure) |
| 1 | 7970847 | 1 | Crossmember |
| 2 | 7700556 | 3 | Capscrew |
| 3 | 7700921 | 6 | Flat Washer |
| 4 | 7970846 | 1 | Cross Brace |
| 5 | 7714479 | 4 | Capscrew |
| 6 | 7766573 | 8 | Flat Washer |
| 7 | 7703519 | 4 | Nut |
| 8 | 7737865 | 3 | Capscrew |
| 9 | 8177875 | 1 | Grill Door |
| 10 | 7793661 | 2 | Hinge Set (1 set = 2 hinges) |
| 11a | 7728021 | 2 | Pin |
| 11b | 8034132 | 2 | Rubber Pad |
| 12 | 7970850 | 1 | Back Cover |
| 13 | 7729422 | 2 | Capscrew |
| 14 | 7700921 | 2 | Flat Washer |
| 15 | 7701847 | 22 | Capscrew |
| 16 | 7701581 | 30 | Flat Washer |
| 17 | 7735328 | 8 | Nut |
| 18 | 7779981 | 2 | Insert |
| 19 | 7799384 | 2 | Insert |
| 20 | 8177879 | 1 | Left Access Door |
TechCom supplies a complete range of spare parts for the Aramine T1601C, including frame assemblies, fasteners, and structural components for safe and efficient underground operation.
