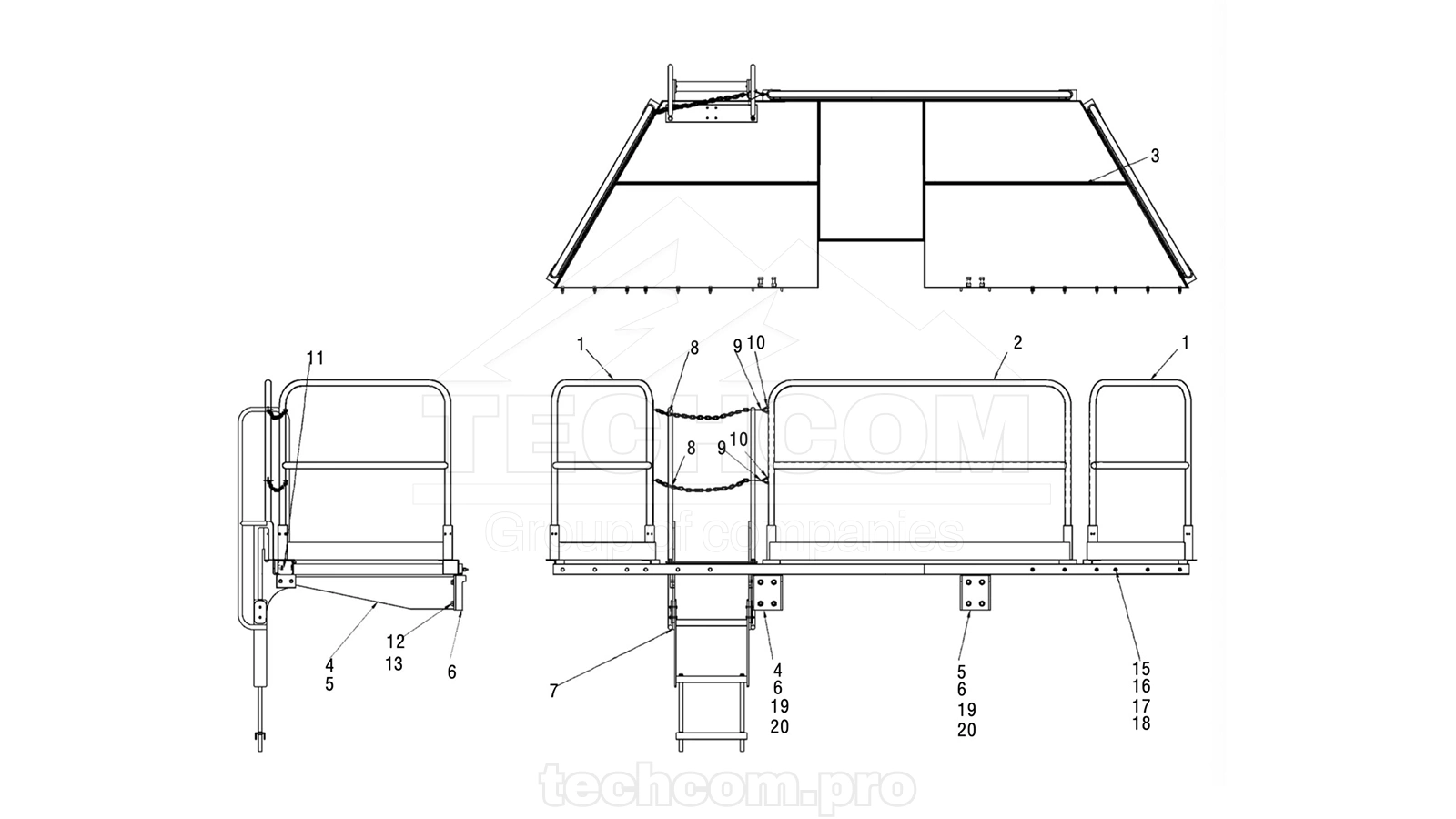

The 57711194 (265711194) Rear Platform Decking Assembly for the Epiroc DML rotary blasthole drill rig is designed as a complete structural set to provide safe rear access and operator protection. It integrates the platform frame, handrails, ladder assemblies, supports, brackets, and fastening elements. All listed components are fully compatible with the DML series and ensure durability under heavy-duty mining operations.
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57622243 | 2657622243 | Handrail |
| 002.0 | 57455859 | 2657455859 | Handrail – 70 |
| 003.0 | 57480873 | 2657480873 | Frame Platform |
| 004.0 | 57455941 | 2657455941 | Support – L.H. |
| 005.0 | 57455958 | 2657455958 | Support – R.H. |
| 006.0 | 57455966 | 2657455966 | Bracket |
| – | 95922928 | 2695922928 | Nut, Hex, Finished |
| 007.0 | 57660714 | 265760714 | Ladder with Handrail, Fold |
| – | 57664666 | 2657664666 | Ladder Assembly |
| – | 57664674 | 2657664674 | Handrail Assembly |
| 008.0 | 50699321 | 2650699321 | Chain, Bulk – 3/16 Coil |
| 009.0 | 57376246 | 2657376246 | Hook, Safety Snap |
| 010.0 | 56801053 | 2656801053 | Link |
| 011.0 | 57711145 | 2657111145 | Mount, Ladder |
| – | 57711152 | 2657111152 | Plate, Ladder Mount |
| – | 57711160 | 2657111160 | Plate, Ladder Mount |
| – | 57711178 | 2657111178 | Plate, Ladder Mounting |
| – | 95934766 | 2695934766 | Washer, Lock, Helical |
| – | 95928982 | 2695928982 | Screw, Cap 1/4–20 × 3/4 |
| 012.0 | 95934378 | 2695934378 | Capscrew, Hex Head, Plated |
| 013.0 | 95352415 | 2695352415 | Washer, Lock – 3/4 |
| 015.0 | 95934584 | 2695934584 | Screw, Cap 3/8–16 × 1–1/2 |
| 016.0 | 95922654 | 2695922654 | Washer, Lock 3/8 HVY Plated |
| 017.0 | 95922373 | 2695922373 | Washer, Flat |
| 018.0 | 95923223 | 2695923223 | Nut, Elastic Lock 3/8–16 |
| 019.0 | 95937413 | 2695937413 | Washer, Lock, Helical |
| 020.0 | 95958989 | 2695958989 | Screw, Cap 3/8–16 × 1–3/4 |
TechCom provides the full range of spare parts and structural assemblies for the Epiroc DML drill rig. See all spare parts for Epiroc DML.
