The 57711103 Handrail Installation (2657711103) is a safety and access component for the Epiroc DML drill rig. This assembly provides reliable operator access and protection, integrating multiple handrail assemblies, a folding ladder, and fastening elements such as screws, lock washers, and hex nuts. Designed for structural stability and long-term service, it ensures safe operation under demanding mining conditions.

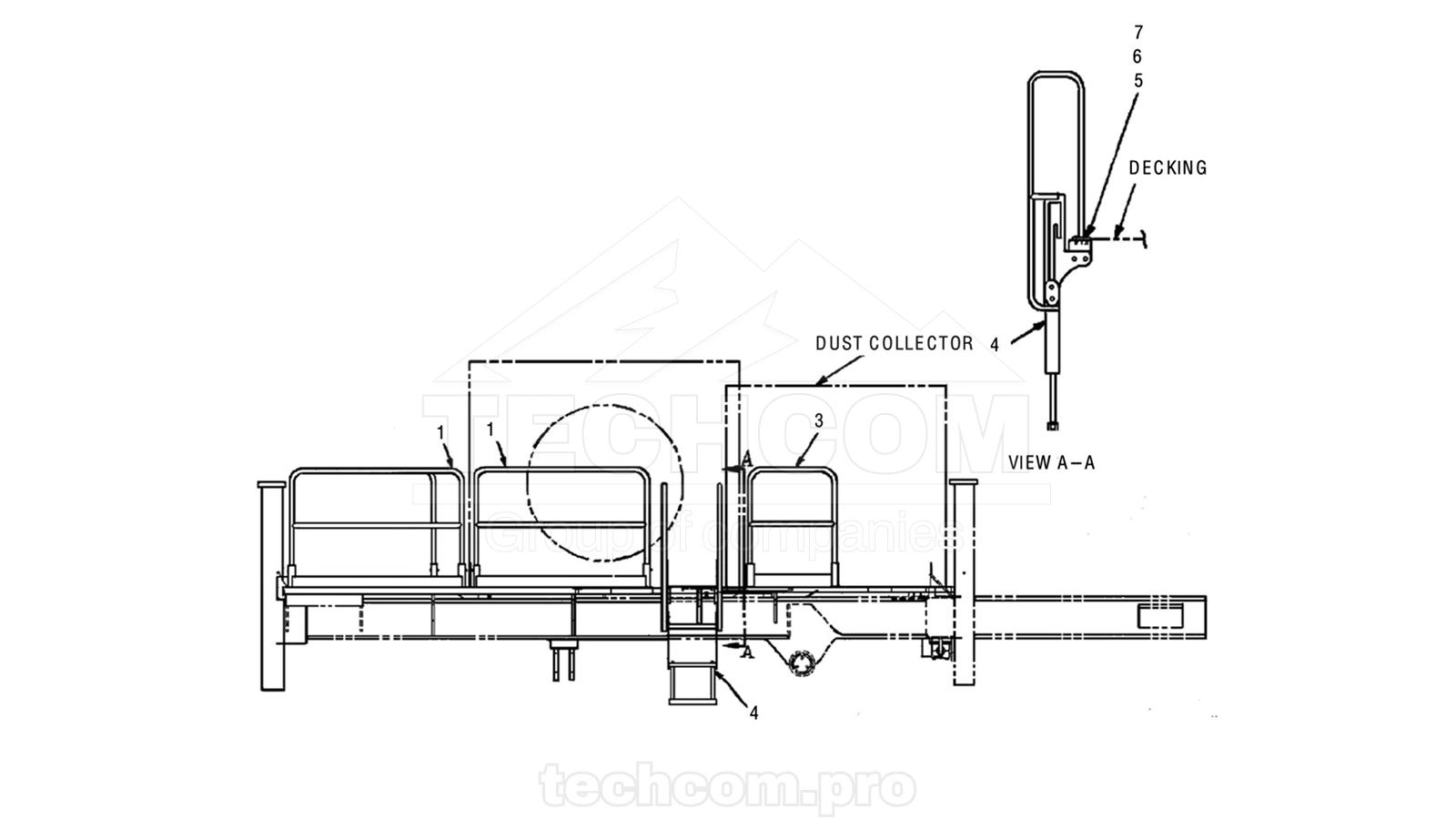

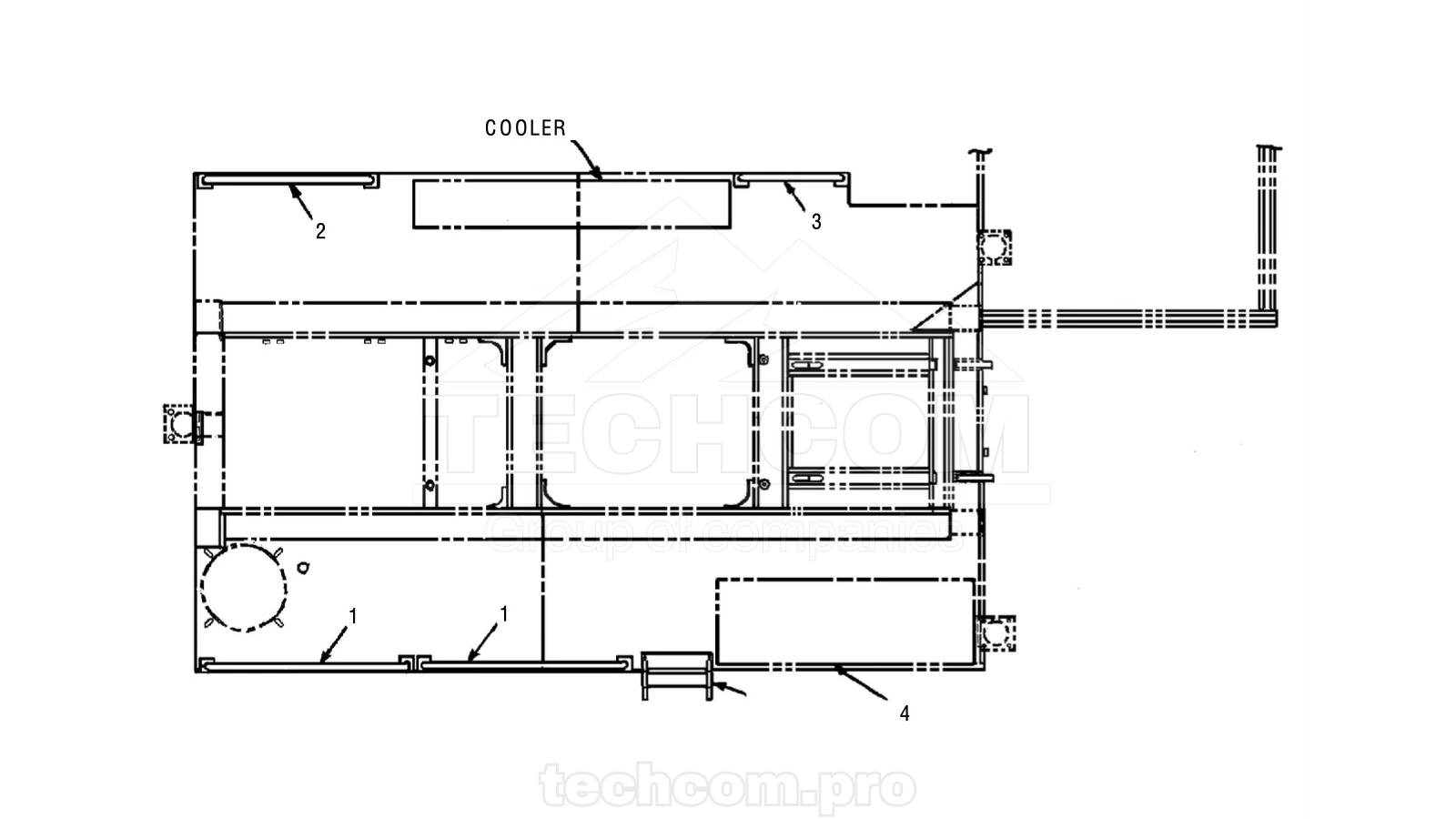

Spare Parts List
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001 | 57471989 | 2657471989 | Handrail Assembly – 60 CNTDIST |
| 002 | 57424418 | 2657424418 | Handrail Assembly – 50 CNTDIST |
| 003 | 57424392 | 2657424392 | Handrail Assembly – 30 CNTDIST |
| 004 | 57660714 | 2657660714 | Folding Ladder with Handrail |
| – | 57664666 | 2657664666 | Ladder Assembly |
| – | 57664674 | 2657664674 | Handrail Assembly |
| 005 | 95934584 | 2695934584 | Screw, Cap – 3/8–16 × 1 1/2 |
| 006 | 95937413 | 2695937413 | Lock Washer, Helical |
| 007 | 95922894 | 2695922894 | Hex Nut, Finished |
TechCom supplies the full catalog of spare parts and assemblies for the Epiroc DML drill rig. View all spare parts for Epiroc DML.
