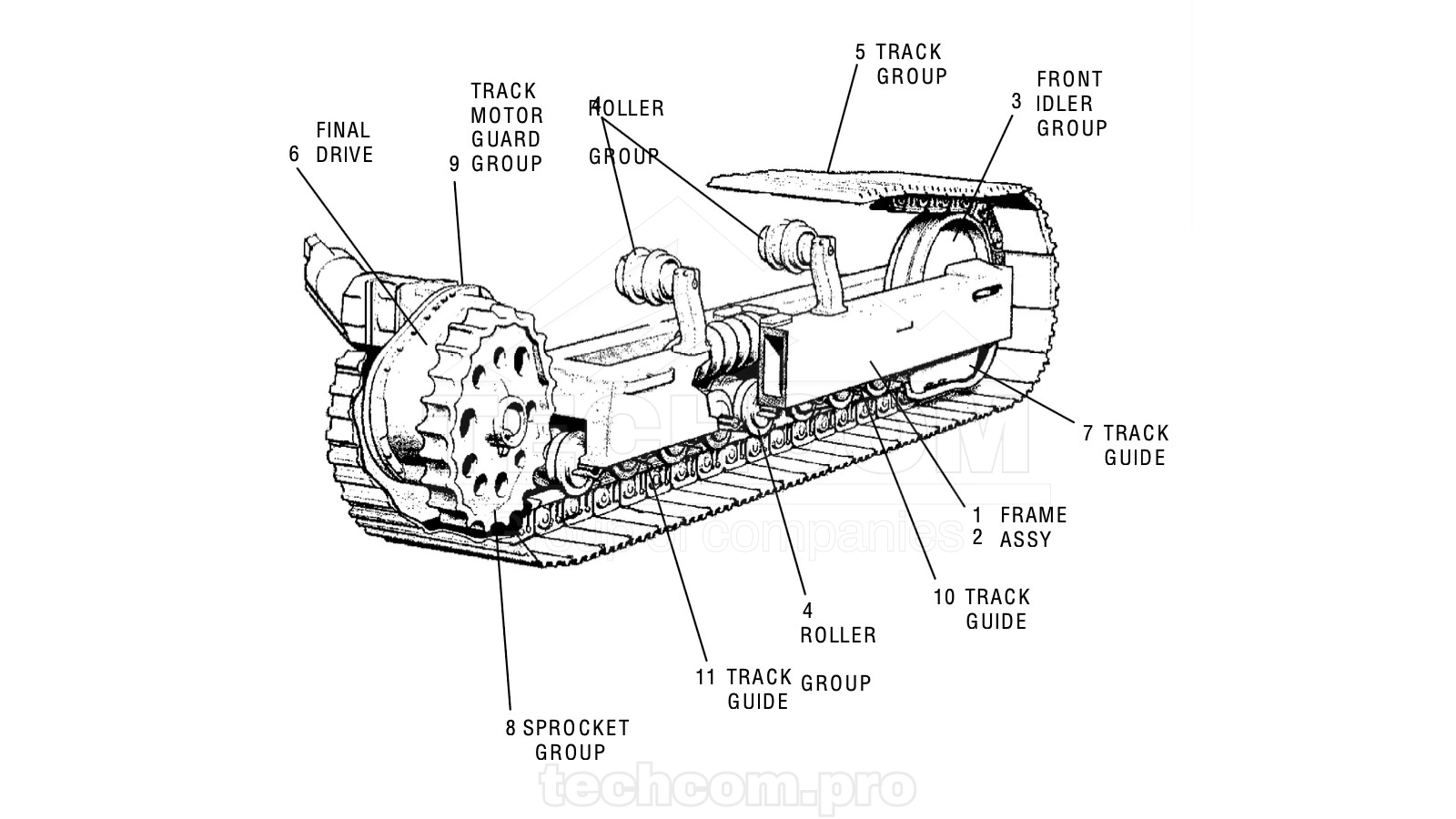

The 57483653 Undercarriage Assembly (330S W/Y&A) (2657483653) is a key component of the Epiroc DML drill rig. It combines frames, idler groups, rollers, track groups, sprockets, final drives, and guard units, ensuring traction, durability, and stability in demanding open-pit mining conditions.
Spare Parts List
| 001 | 57566408 | 2657566408 | Frame Assy, RH |
| 002 | 57566416 | 2657566416 | Frame Assy, LH |
| 003 | 57522922 | 2657522922 | Front Idler Group |
| 004 | 57522930 | 2657522930 | Roller Group |
| 005 | 57457673 | 2657457673 | Track Group |
| 006 | 57522914 | 2657522914 | Final Drive |
| – | 57457178 | 2657457178 | Drive Group |
| – | 57416927 | 2657416927 | Propel Motor |
| – | 57457194 | 2657457194 | Final Drive Group |
| – | 57457186 | 2657457186 | Washer |
| – | 57356776 | 2657356776 | Bolt |
| 007 | 57522955 | 2657522955 | Guard Group, Track Guide |
| – | 57457806 | 2657457806 | Guard Assy |
| – | 57457814 | 2657457814 | Bolt |
| – | 57457186 | 2657457186 | Washer |
| 008 | 57522906 | 2657522906 | Sprocket Group |
| – | 57457152 | 2657457152 | Sprocket |
| – | 57457160 | 2657457160 | Bolt |
| 009 | 57563561 | 2657563561 | Guard Group, Track Motor |
| 010 | 57522989 | 2657522989 | Guard Group, Track Guide |
| 011 | 57522971 | 2657522971 | Guard Group, Track Guide |
TechCom provides the complete catalog of undercarriage spare parts and assemblies for the Epiroc DML drill rig. View all spare parts for Epiroc DML.
