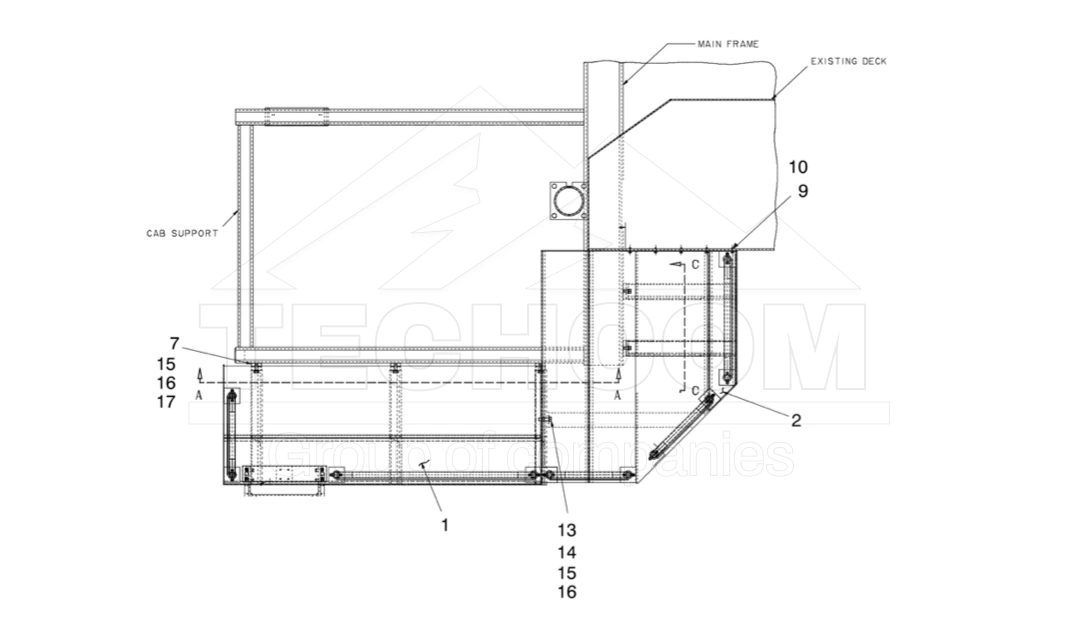

57713034 (265713034) Decking, DM45/50/L, Assembly represents the complete platform unit of the Epiroc DM45/DM50 drill rig. It includes side and rear deck panels, protective handrails, folding ladder with mounts, support brackets and fastening elements. Each component listed below is fully compatible with the DM45/50/L series, ensuring operational safety and reliability in mining applications.
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57590788 | 2657590788 | Decking, Side DM45/50/L |
| 002.0 | 57590796 | 2657590796 | Decking, Rear DM45/50/L |
| 003.0 | 57724619 | 2657724619 | Ladder, w/Handrail, Fold |
| 004.0 | 57533622 | 2657533622 | Handrail Assy – 20 Cntdist |
| 005.0 | 57424392 | 2657424392 | Handrail Assy – 30 Cntdist |
| 006.0 | 57424418 | 2657424418 | Handrail Assy – 50 Cntdist |
| 007.0 | 57588535 | 2657588535 | Bracket, MTG, Side Deck |
| 008.0 | 57573958 | 2657573958 | Plate, MTG Rear Decking |
| 009.0 | 95920674 | 2695920674 | Capscrew, Hex |
| 010.0 | 95922894 | 2695922894 | Nut, Hex |
| 011.0 | 95937413 | 2695937413 | Washer, Lock, Helical |
| 012.0 | 95958989 | 2695958989 | Capscrew, Plated |
| 013.0 | 95104659 | 2695104659 | Capscrew |
| 014.0 | 95922928 | 2695922928 | Nut, Hex, Finished |
| 015.0 | 95934691 | 2695934691 | Washer, Lock, Helical |
| 016.0 | 95972246 | 2695972246 | Washer, Flat, Plated |
| 017.0 | 95104642 | 2695104642 | Capscrew, Hex |
| 018.0 | 95934501 | 2695934501 | Capscrew, Hex |
| 019.0 | 95209425 | 2695209425 | Washer, Lock |
| 020.0 | 95094314 | 2695094314 | Washer, Flat, Wide |
| 021.0 | 57711145 | 2657711145 | Mount, Ladder |
| – | 57711152 | 2657711152 | Plate, Ladder Mount |
| – | 57711160 | 2657711160 | Plate, Ladder Mount |
| – | 57711178 | 2657711178 | Plate, Ladder Mounting |
| – | 95934766 | 2695934766 | Washer, Lock, Helical |
| – | 95928982 | 2695928982 | Capscrew |
| 022.0 | 95037255 | 2695037255 | Bolt, Eye |
| 023.0 | 57376246 | 2657376246 | Hook, Safety Snap |
| 024.0 | 56801053 | 2656801053 | Link |
| 025.0 | 50699321 | 2650699321 | Chain, Bulk – 3/16 Coil |
We also provide a complete catalog of spare parts and components. See all spare parts for Epiroc DM45/DM50 drill rigs.
