The 57565996 (2657565996) Lower Arm Assembly for the Epiroc DM-M2 drill rig with Caterpillar 330 undercarriage provides structural stability and supports power transmission. It includes guard groups, fastener sets, final drives, roller groups, frame assemblies, sprockets, and front idler groups.

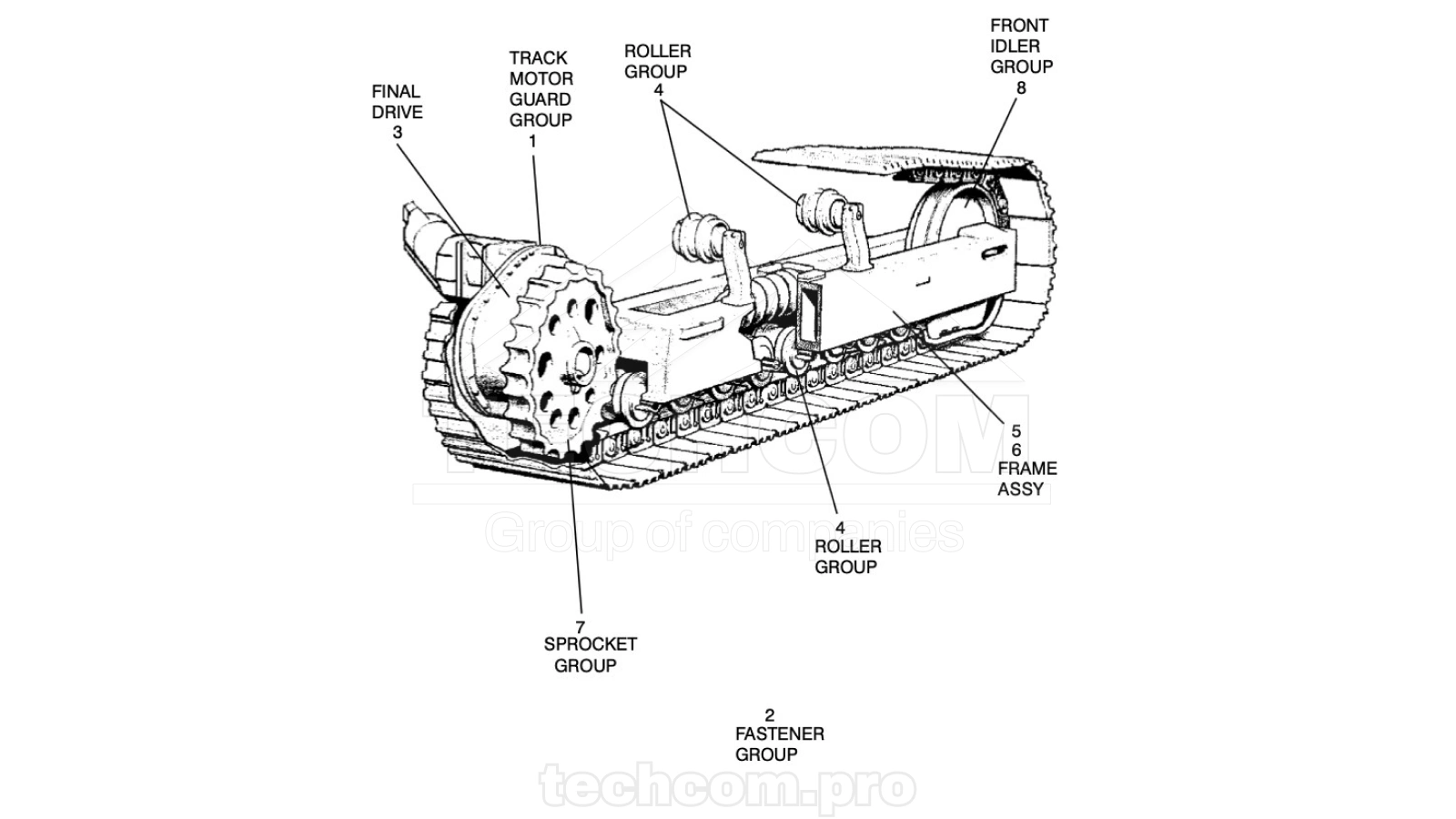

Spare Parts List
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57563561 | 2657563561 | Guard Group – Track Motor |
| 002.0 | 57566002 | 2657566002 | Fastener Group |
| – | 57457186 | 2657457186 | Washer |
| – | 57356776 | 2657356776 | Bolt |
| – | 57566010 | 2657566010 | Fastener Group |
| 003.0 | 57522914 | 2657522914 | Final Drive |
| – | 57457178 | 2657457178 | Drive Group |
| – | 57416927 | 2657416927 | Propel Motor |
| – | 57457194 | 2657457194 | Final Drive Group |
| – | 57457186 | 2657457186 | Washer |
| – | 57356776 | 2657356776 | Bolt |
| 004.0 | 57521122 | 2657521122 | Roller Group |
| 005.0 | 57566077 | 2657566077 | Frame Assembly, RH |
| – | 57564395 | 2657564395 | Support Assembly, Idler |
| – | 57564403 | 2657564403 | Support Assembly, Motor |
| – | 57566085 | 2657566085 | Frame Assembly |
| 006.0 | 57566101 | 2657566101 | Frame Assembly, LH |
| – | 57564395 | 2657564395 | Support Assembly, Idler |
| – | 57564056 | 2657564056 | Support Assembly, Motor |
| – | 57566119 | 2657566119 | Frame Assembly |
| 007.0 | 57522906 | 2657522906 | Sprocket Group |
| – | 57457152 | 2657457152 | Sprocket |
| – | 57457160 | 2657457160 | Bolt |
| 008.0 | 57566127 | 2657566127 | Idler Group, Front |
| – | 57566135 | 2657566135 | Adjustment Group |
| – | 57566218 | 2657566218 | Setscrew |
| – | 57566226 | 2657566226 | Idler Group, Front |
| – | 57566234 | 2657566234 | Spring Group, Recoil |
| – | 57356479 | 2657356479 | Bolt |
| – | 57457442 | 2657457442 | Front Idler |
TechCom supplies the complete range of lower arm assemblies and undercarriage components for the Epiroc DM-M2 drill rig. See all spare parts for Epiroc DM-M2.
