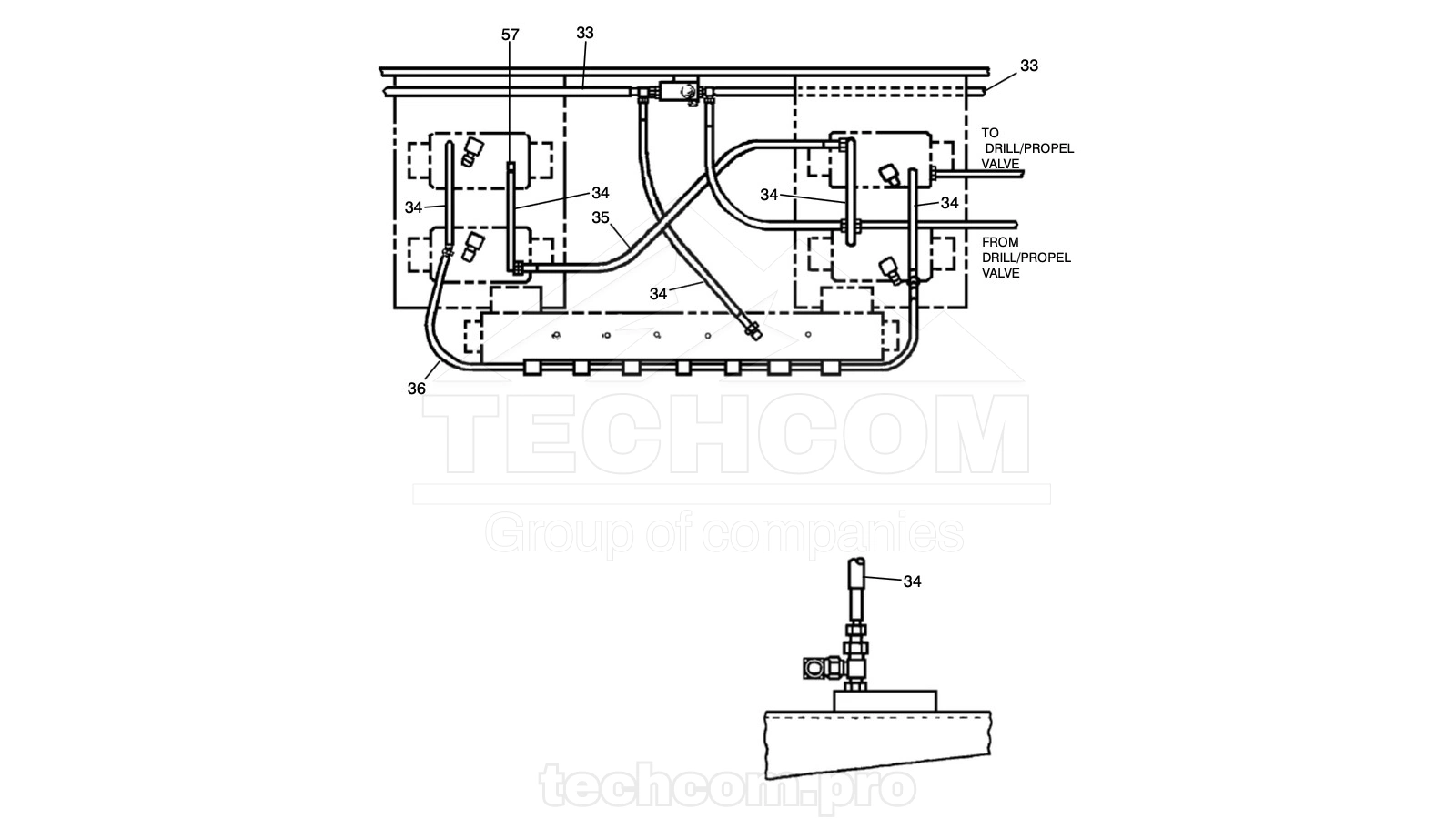

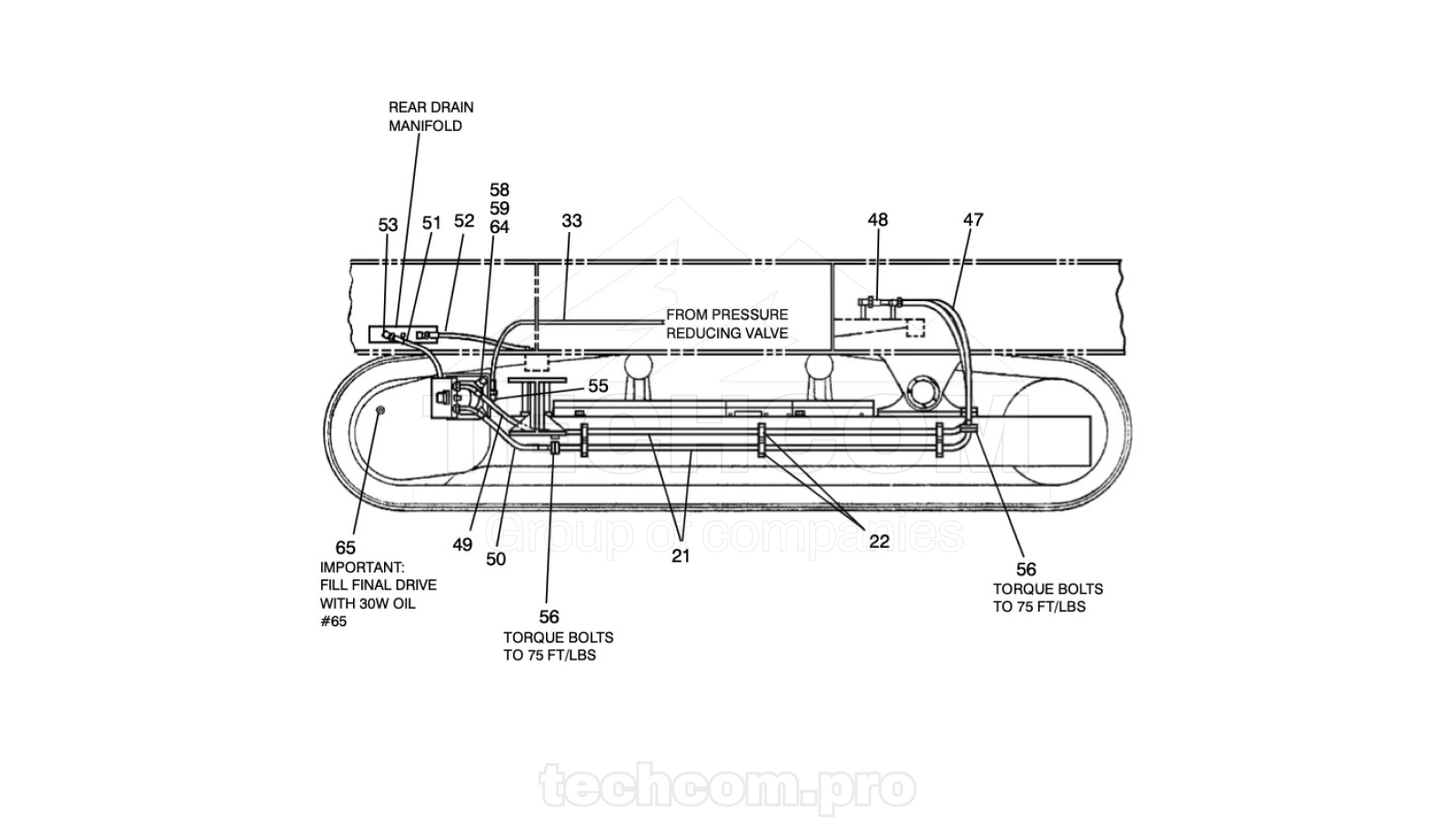

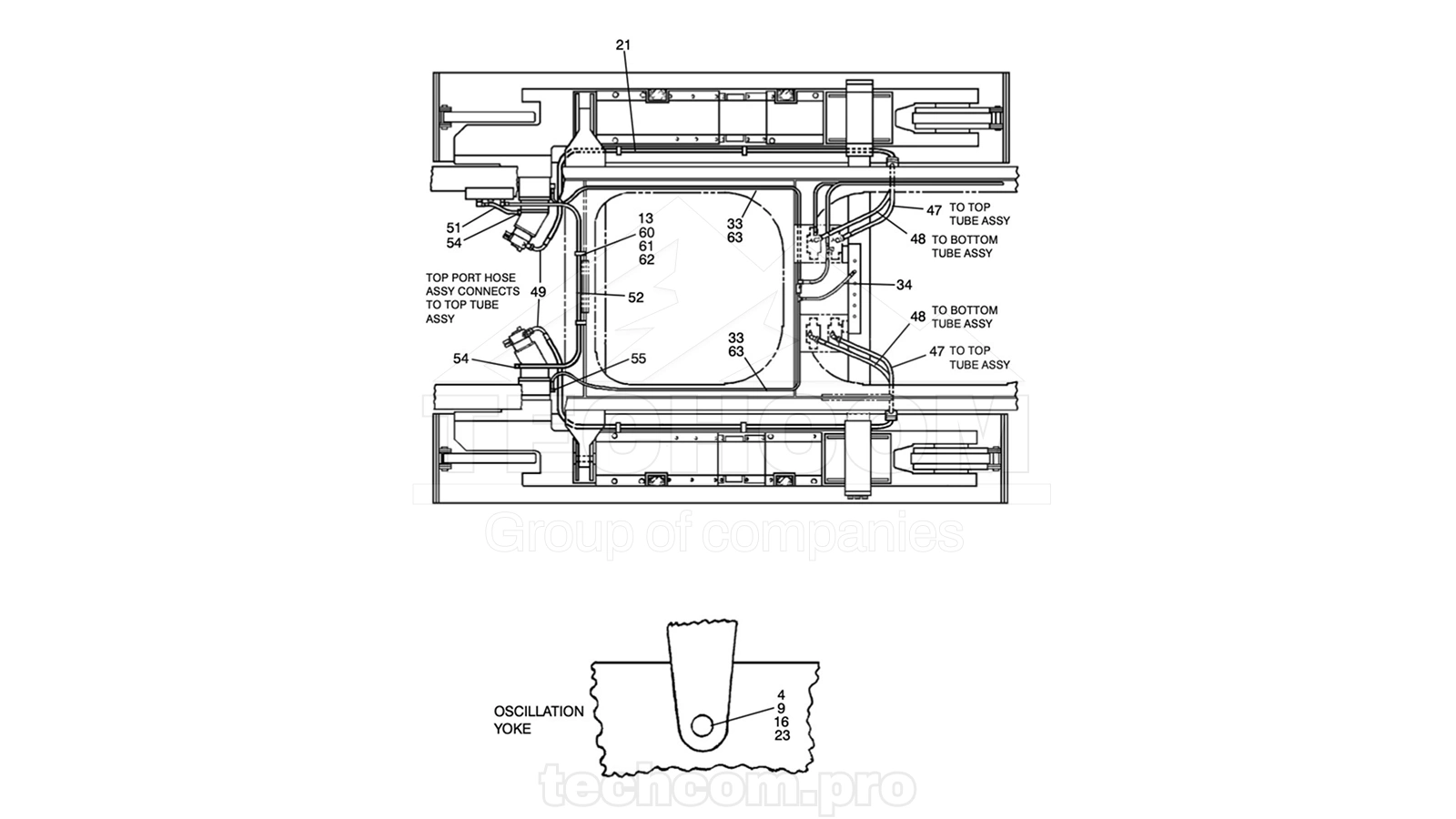

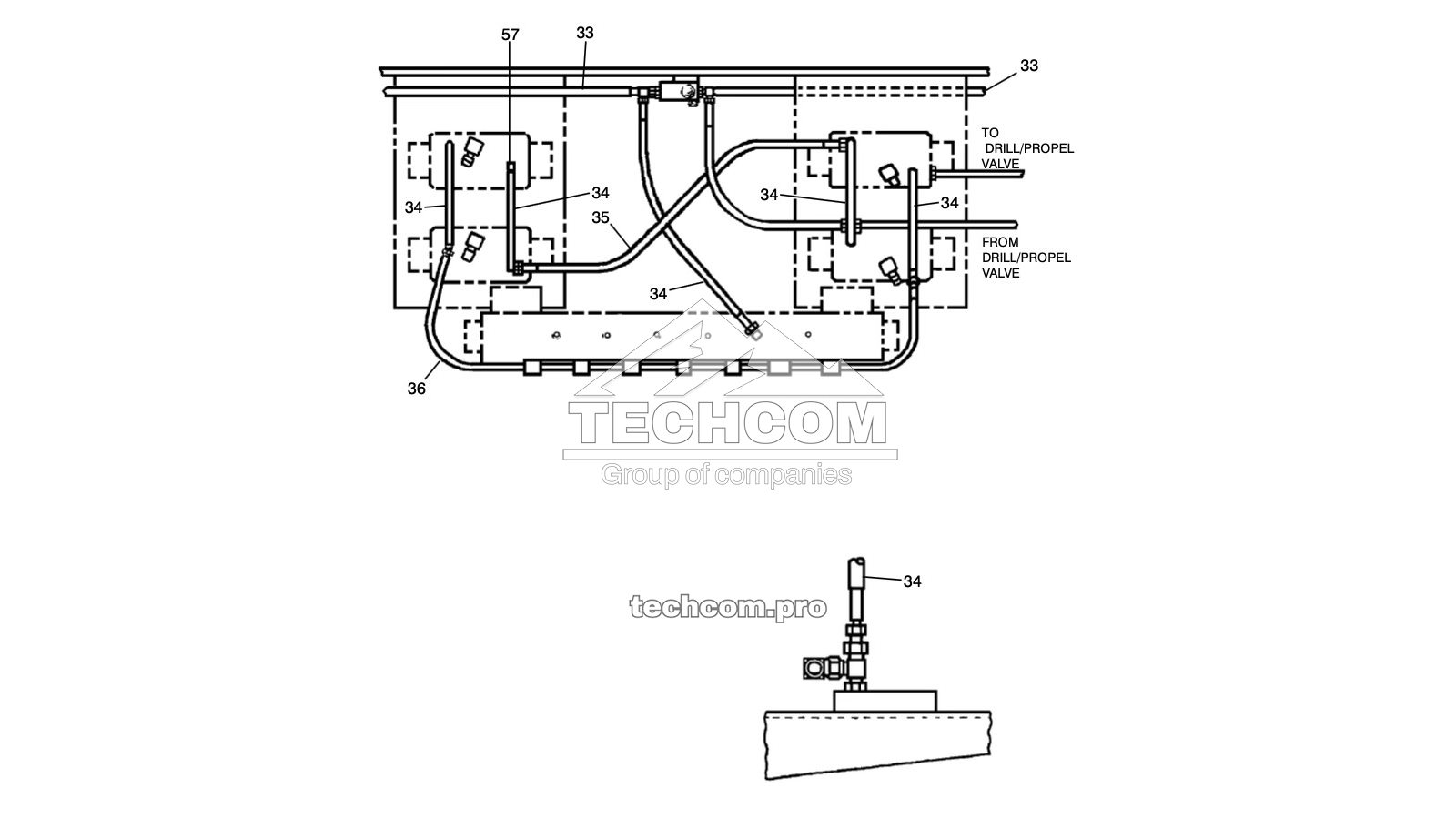

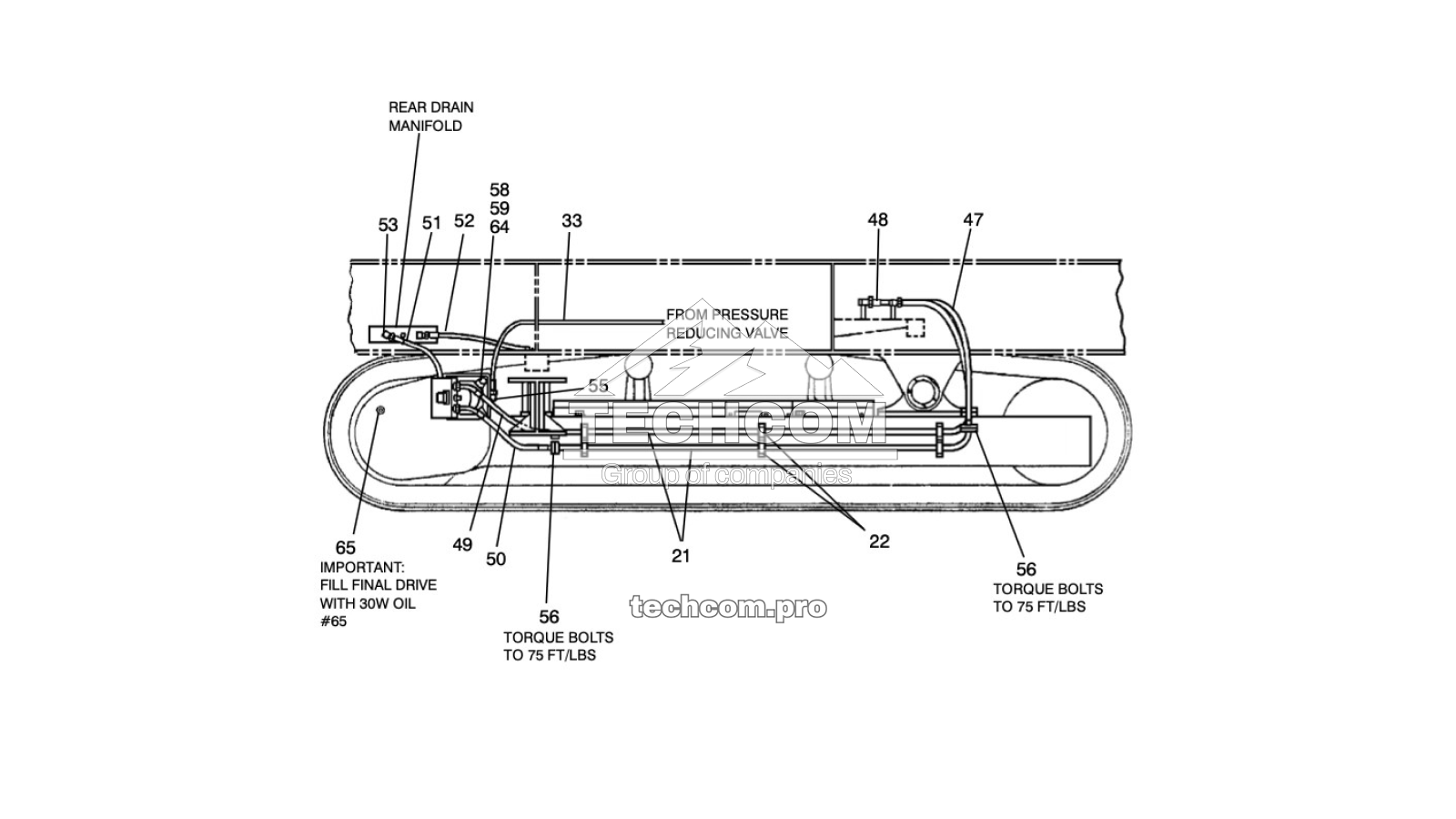

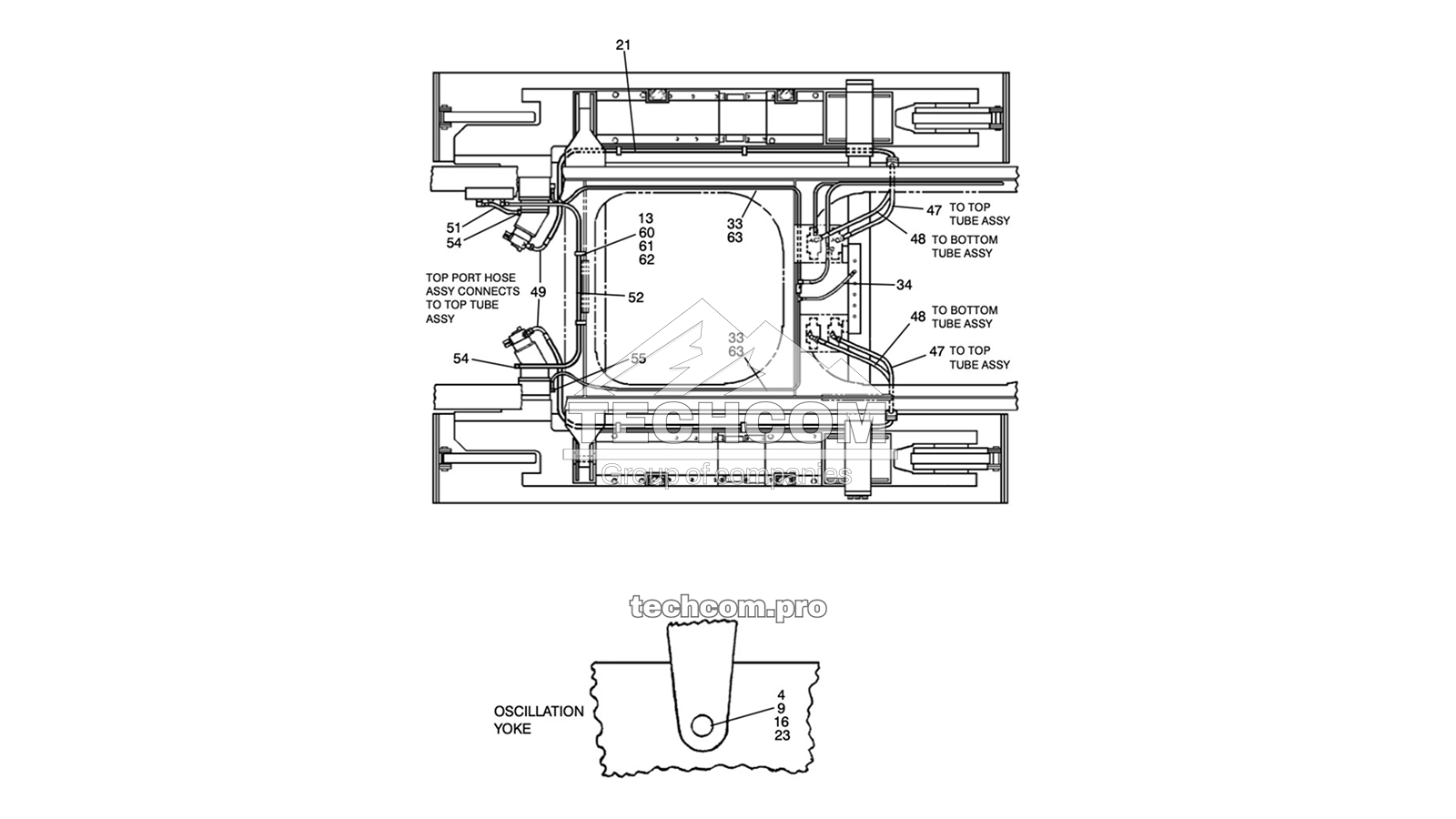

The 57538506 (2657538506) Undercarriage Assembly for the Epiroc DM-M2 drill rig provides a stable base for machine operation and ensures smooth performance under heavy-duty conditions. It consists of clevises, oscillation yoke, center pin, pillow blocks, bearings, clamps, hoses, lubrication fittings, plates, and fastening elements.
Spare Parts List
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57403784 | 2657403784 | Undercarriage Base |
| 002.0 | 57542433 | 2657542433 | Clevis |
| 004.0 | 57180168 | 2657180168 | Center Pin |
| 005.0 | 57267916 | 2657267916 | Pillow Block |
| 008.0 | 57406639 | 2657406639 | Oscillation Yoke – DMM2 |
| 009.0 | 57180184 | 2657180184 | Center Bushing |
| 010.0 | 57169815 | 2657169815 | Spherical Plain Bearing |
| 011.0 | 56901853 | 2656901853 | Flat Bar |
| 012.0 | 58249608 | 2658249608 | End Cap |
| 013.0 | 95934584 | 2695934584 | Cap Screw, 3/8–16 × 1–1/2 |
| 014.0 | 95359436 | 2695359436 | Lock Washer – 1" |
| 015.0 | 57542425 | 2657542425 | Insert |
| 016.0 | 95902789 | 2695902789 | Retainer Ring |
| 017.0 | 95920252 | 2695920252 | Capscrew, Hex, Plated |
| 018.0 | 57188468 | 2657188468 | Stop Block |
| 019.0 | 57178147 | 2657178147 | Shim |
| 021.0 | 57130627 | 2657130627 | Tube Assembly |
| 022.0 | 52263803 | 2652263803 | Clamp Assembly |
| 023.0 | 95201547 | 2695201547 | Fitting, Lube |
| 033.0 | 57011355 | 2657011355 | Hose Assembly |
| 034.0 | 57004004 | 2657004004 | Hose Assembly |
| 035.0 | 56964182 | 2656964182 | Hose Assembly |
| 036.0 | 56964232 | 2656964232 | Hose Assembly |
| 037.0 | 57542417 | 2657542417 | Pin |
| 047.0 | 57131211 | 2657131211 | Hose Assembly |
| 048.0 | 57131229 | 2657131229 | Hose Assembly |
| 049.0 | 57131237 | 2657131237 | Hose Assembly |
| 050.0 | 57131245 | 2657131245 | Hose Assembly |
| 051.0 | 57003915 | 2657003915 | Hose Assembly |
| 052.0 | 56992126 | 2656992126 | Hose Assembly |
| 053.0 | 95279402 | 2695279402 | Elbow, 90° Male 37° Flare |
| 054.0 | 95280186 | 2695280186 | Elbow, 90° Straight Thread |
| 055.0 | 95303335 | 2695303335 | Elbow, 90° Straight Thread |
| 056.0 | 52226115 | 2652226115 | Kit, Split Flange |
| 057.0 | 95329983 | 2695329983 | Connector, Straight Thread |
| 058.0 | 95668901 | 2695668901 | Cap Screw |
| 059.0 | 56784267 | 2656784267 | Adhesive |
| 060.0 | 95301883 | 2695301883 | Clamp, Hose |
| 061.0 | 95958831 | 2695958831 | Hex Nut, Lock, 3/8–16 |
| 062.0 | 95922373 | 2695922373 | Flat Washer |
| 063.0 | 95668042 | 2695668042 | Cable Tie |
| 064.0 | 95200093 | 2695200093 | Flat Washer |
| 065.0 | 52253804 | 2652253804 | Engine Oil, 25 gal |
| 067.0 | 57511131 | 2657511131 | Axle Filler Plate |
| 068.0 | 57511149 | 2657511149 | Yoke Filler Plate |
| 069.0 | 57511156 | 2657511156 | Spacer Plate |
| 070.0 | 57687170 | 2657687170 | Decal, Undercarriage |
| 071.0 | 95064192 | 2695064192 | Drive Screw, #6 × 1/4 |
TechCom provides the full catalog of undercarriage assemblies and original spare parts for the Epiroc DM-M2 drill rig. See all spare parts for Epiroc DM-M2.
