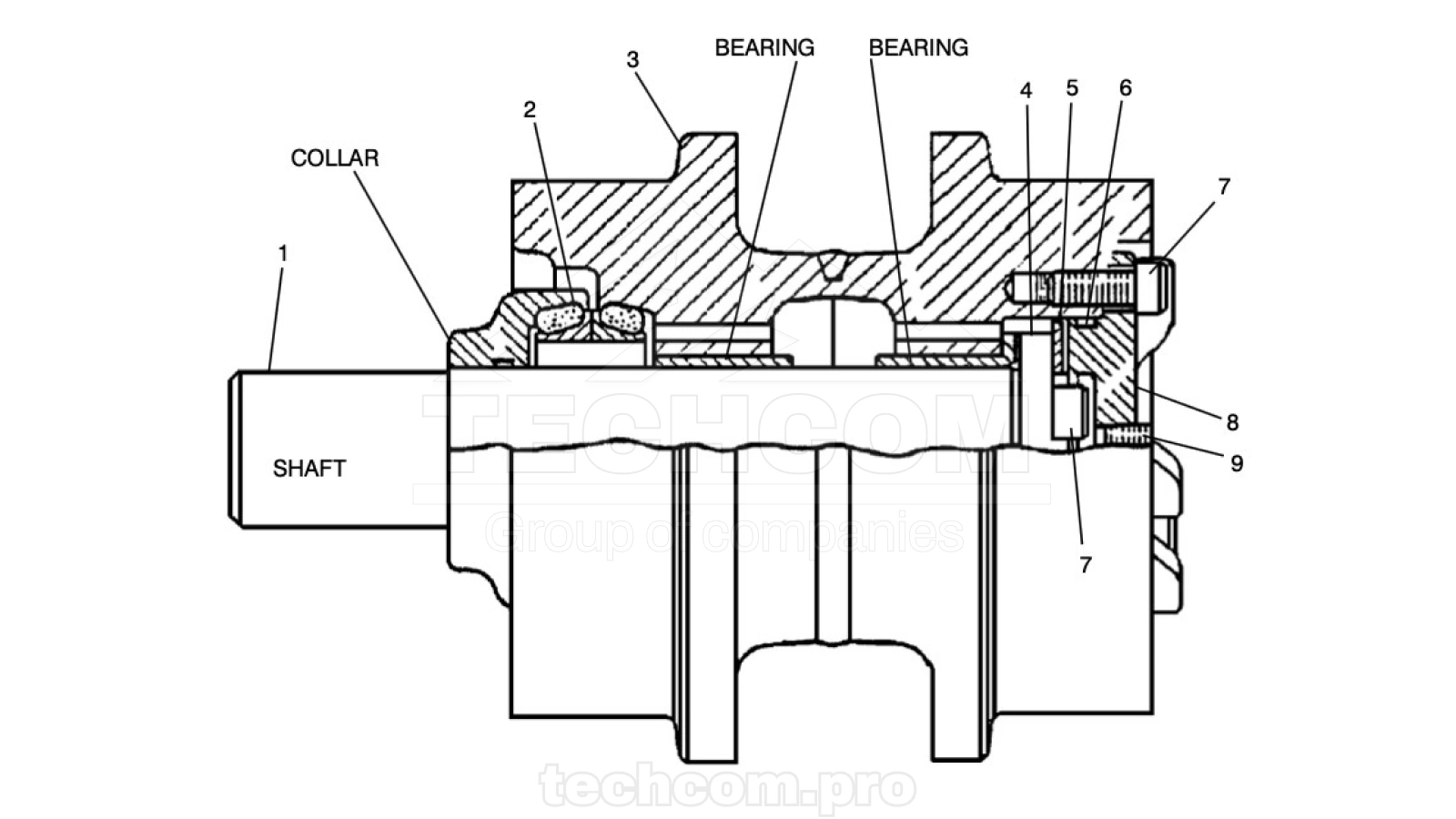

The 57457566 (2657457566) Carrier Roller Group for the Epiroc DM-M2 drill rig undercarriage ensures proper track support and smooth machine movement. This assembly integrates shaft components, roller with bearings, seals, retainer, thrust washer, cover, and fastening elements.
Spare Parts List
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57457590 | 2657457590 | Shaft Assembly |
| – | 57562985 | 2657562985 | Shaft, Track Roller |
| – | 57562993 | 2657562993 | Collar, Roller End |
| 002.0 | 57563009 | 2657563009 | Seal Group |
| 003.0 | 57457608 | 2657457608 | Roller & Bearing Assembly |
| – | 57563017 | 2657563017 | Rim Assembly, Carrier Roller |
| – | 57563033 | 2657563033 | Bearing, Carrier Roller |
| – | 57563025 | 2657563025 | Bearing, Carrier Roller |
| 004.0 | 57356859 | 2657356859 | Retainer |
| 005.0 | 57356867 | 2657356867 | Thrust Washer |
| 006.0 | 50727429 | 2650727429 | Seal |
| 007.0 | 57356875 | 2657356875 | Bolt, Socket Head |
| 008.0 | 57356834 | 2657356834 | Cover, Carrier Roller |
| 009.0 | 57356768 | 2657356768 | Plug, Pipe |
| 010.0 | 57632150 | 2657632150 | O-Ring |
| 011.0 | 57632168 | 2657632168 | Shaft Seal, Arctic |
TechCom delivers complete carrier roller groups and undercarriage parts for the Epiroc DM-M2 drill rig, ensuring long service life and reliable performance. See all spare parts for Epiroc DM-M2.
