The 57457194 (2657457194) Final Drive Group for the Epiroc DM-M2 drill rig ensures reliable transmission of torque to the undercarriage. This group includes spindle, coupler, planetary gear carriers, bearings, seals, O-rings, hydraulic motor, and multiple fastening components for stable and efficient performance.

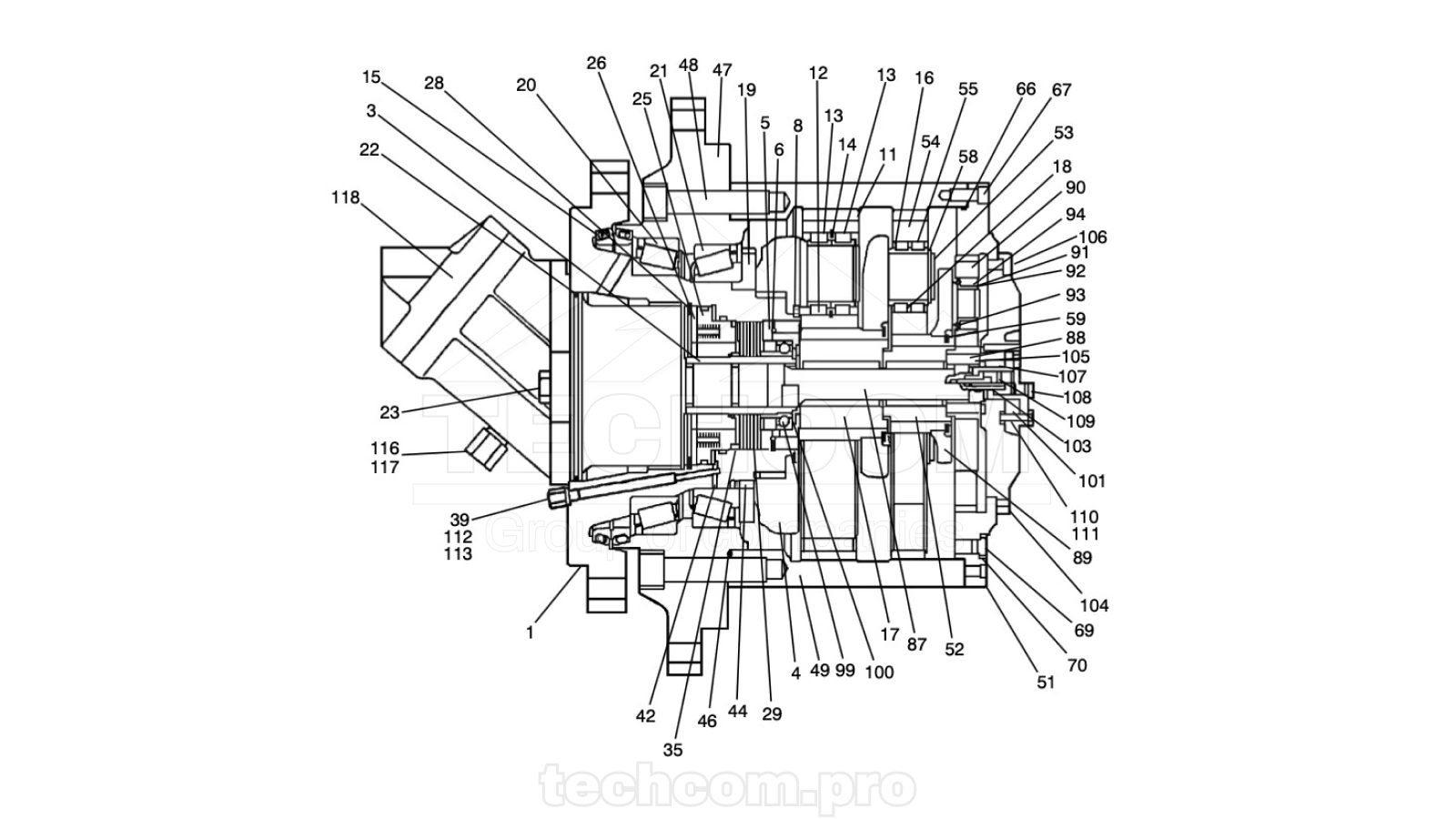

Spare Parts List
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57552960 | 265752960 | Spindle |
| 003.0 | 57552978 | 265752978 | Coupler |
| 004.0 | 57552986 | 265752986 | Carrier, Planet |
| 005.0 | 57552994 | 265752994 | Ring, Pilot |
| 006.0 | 57552440 | 265752440 | Ring, Snap |
| 008.0 | 57553018 | 265753018 | Ring, Snap |
| 011.0 | 57553026 | 265753026 | Planet Gear |
| 012.0 | 57553034 | 265753034 | Planet Bearing |
| 013.0 | 57553042 | 265753042 | Locating Ring |
| 014.0 | 57553059 | 265753059 | Ring, Snap |
| 015.0 | 57553067 | 265753067 | Seal, Face |
| 016.0 | 57553075 | 265753075 | Ring, Snap |
| 017.0 | 57553083 | 265753083 | Gear, Sun |
| 018.0 | 57553091 | 265753091 | Ring, Snap |
| 019.0 | 57553109 | 265753109 | Nut, Shaft |
| 020.0 | 57553117 | 265753117 | Bearing, Tapered Roller |
| 021.0 | 57553125 | 265753125 | Bearing, Tapered Roller |
| 022.0 | 57553133 | 265753133 | O-Ring |
| 023.0 | 57552556 | 265752556 | Bolt, Hex Head |
| 025.0 | 57552572 | 265752572 | Piston |
| 026.0 | 57552580 | 265752580 | Plate, Backup |
| 028.0 | 57552598 | 265752598 | Ring, Snap |
| 029.0 | 57457293 | 2657457293 | Disc Kit (Brake) |
| 035.0 | 57457301 | 2657457301 | Seal Kit (Brake) |
| 039.0 | 57552622 | 265752622 | Plug, Cap |
| 042.0 | 57552630 | 265752630 | Plug, Expanding |
| 044.0 | 57553224 | 265753224 | Pin, Dowel |
| 046.0 | 57553232 | 265753232 | O-Ring |
| 047.0 | 57553240 | 265753240 | Flange, Intermediate |
| 048.0 | 57553257 | 265753257 | Bolt, Socket Head |
| 049.0 | 57553265 | 265753265 | Gear, Ring |
| 051.0 | 57553273 | 265753273 | Cover, Ring Gear |
| 052.0 | 57553281 | 265753281 | Gear, Sun |
| 053.0 | 57553299 | 265753299 | Carrier, Planet |
| 054.0 | 57553307 | 265753307 | Planet Gear |
| 055.0 | 57553315 | 265753315 | Planet Bearing |
| 058.0 | 57552481 | 265752481 | Ring, Snap |
| 059.0 | 57553331 | 265753331 | Ring, Snap |
| 066.0 | 57553349 | 265753349 | O-Ring |
| 067.0 | 57553356 | 265753356 | Bolt, Socket Head |
| 069.0 | 57552747 | 265752747 | Plug, Screw |
| 070.0 | 57552754 | 265752754 | Seal Ring |
| 087.0 | 57553380 | 265753380 | Shaft, Input |
| 088.0 | 57553398 | 265753398 | Gear, Sun |
| 089.0 | 57553406 | 265753406 | Carrier, Planet |
| 090.0 | 57553414 | 265753414 | Planet Gear |
| 091.0 | 57553422 | 265753422 | Planet Bearing |
| 092.0 | 57553430 | 265753430 | Ring, Snap |
| 093.0 | 57553448 | 265753448 | Locating Ring |
| 094.0 | 57553455 | 265753455 | Ring, Snap |
| 099.0 | 57553463 | 265753463 | Bearing, Ball |
| 100.0 | 57553471 | 265753471 | Thrust Washer |
| 101.0 | 57552820 | 265752820 | Sleeve, Locating |
| 103.0 | 57552846 | 265752846 | Sleeve, Shift |
| 104.0 | 57552812 | 265752812 | Cover |
| 105.0 | 57553513 | 265753513 | Thrust Washer |
| 106.0 | 57552879 | 265752879 | Bolt, Hex Head |
| 107.0 | 57552887 | 265752887 | O-Ring |
| 108.0 | 57552895 | 265752895 | Plug, Screw |
| 109.0 | 57552853 | 265752853 | Bolt, Socket Head |
| 110.0 | 57553562 | 265753562 | Bolt, Hex Head |
| 111.0 | 57552911 | 265752911 | Bolt, Hex Head |
| 112.0 | 57552929 | 265752929 | Adapter |
| 113.0 | 57552937 | 265752937 | Seal Ring |
| 116.0 | 57552242 | 265752242 | Adapter |
| 117.0 | 57552259 | 265752259 | Seal Ring |
| 118.0 | 57552267 | 265752267 | Hydraulic Motor |
TechCom provides the full range of final drive assemblies and genuine spare parts for the Epiroc DM-M2 drill rig. See all spare parts for Epiroc DM-M2.
