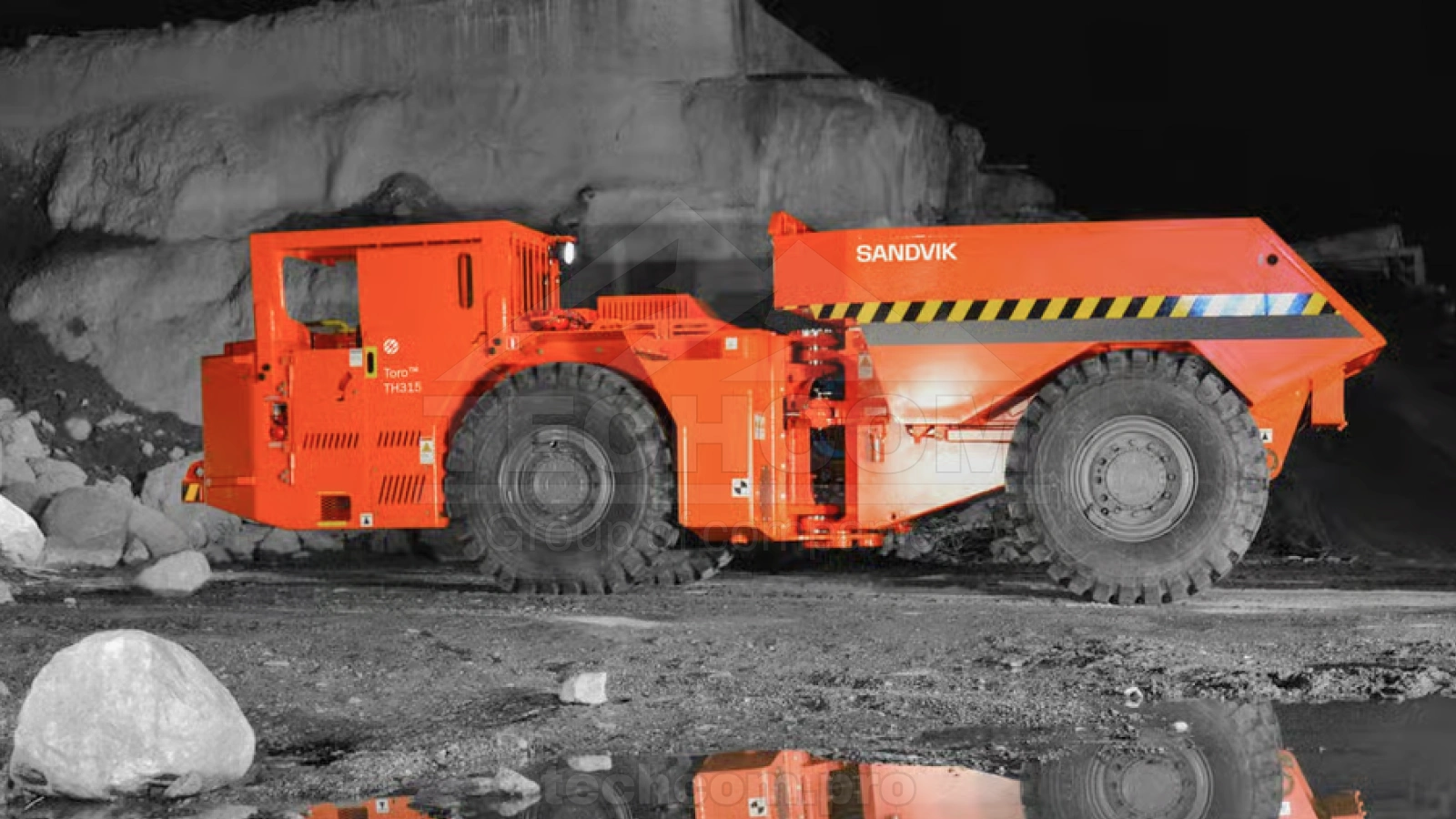

Underground Mining Truck Sandvik TH315
The Sandvik TH315 is a narrow underground mining truck designed for small tunnels, ramp development and narrow-vein mining applications. With a 15-tonne payload capacity, a compact structure and a 7.5 m³ dump box, the truck provides efficient material haulage in restricted underground conditions and headings as small as 3 × 3 metres.
The machine combines a reliable Volvo diesel engine, strong power-to-weight ratio and maneuverable frame design for productive operation on inclines and in confined mine layouts. Its operator compartment with sideways seating, joystick steering and dump box control improves comfort, visibility and control during both forward and reverse driving.
Key advantages
- 15-tonne payload capacity for narrow-vein underground haulage
- Compact dimensions suitable for 3 × 3 metre headings
- 7.5 m³ dump box for efficient material transport
- High power-to-weight ratio for productive operation on inclines
- Sideways operator seating for forward and reverse driving
- Joystick steering and dump box control for easier operation
- Sandvik Intelligent Control System with 7-inch display and diagnostics
- Suitable for small mines, ramp development and tunneling projects
Technical specifications
| Payload capacity | 15,000 kg |
| Standard dump box capacity | 7.5 m³ |
| Operating weight | 18,400 kg |
| Loaded weight | 33,400 kg |
| Engine | Volvo TAD851VE diesel engine |
| Engine power | 185 kW |
| Maximum torque | 1,150 Nm |
| Maximum travel speed | 35.9 km/h |
| Fuel tank capacity | 240 l |
| Hydraulic oil tank capacity | 182 l |
| Operating temperature | From -20 °C to +50 °C |
| Application | Underground mining and tunneling operations |
