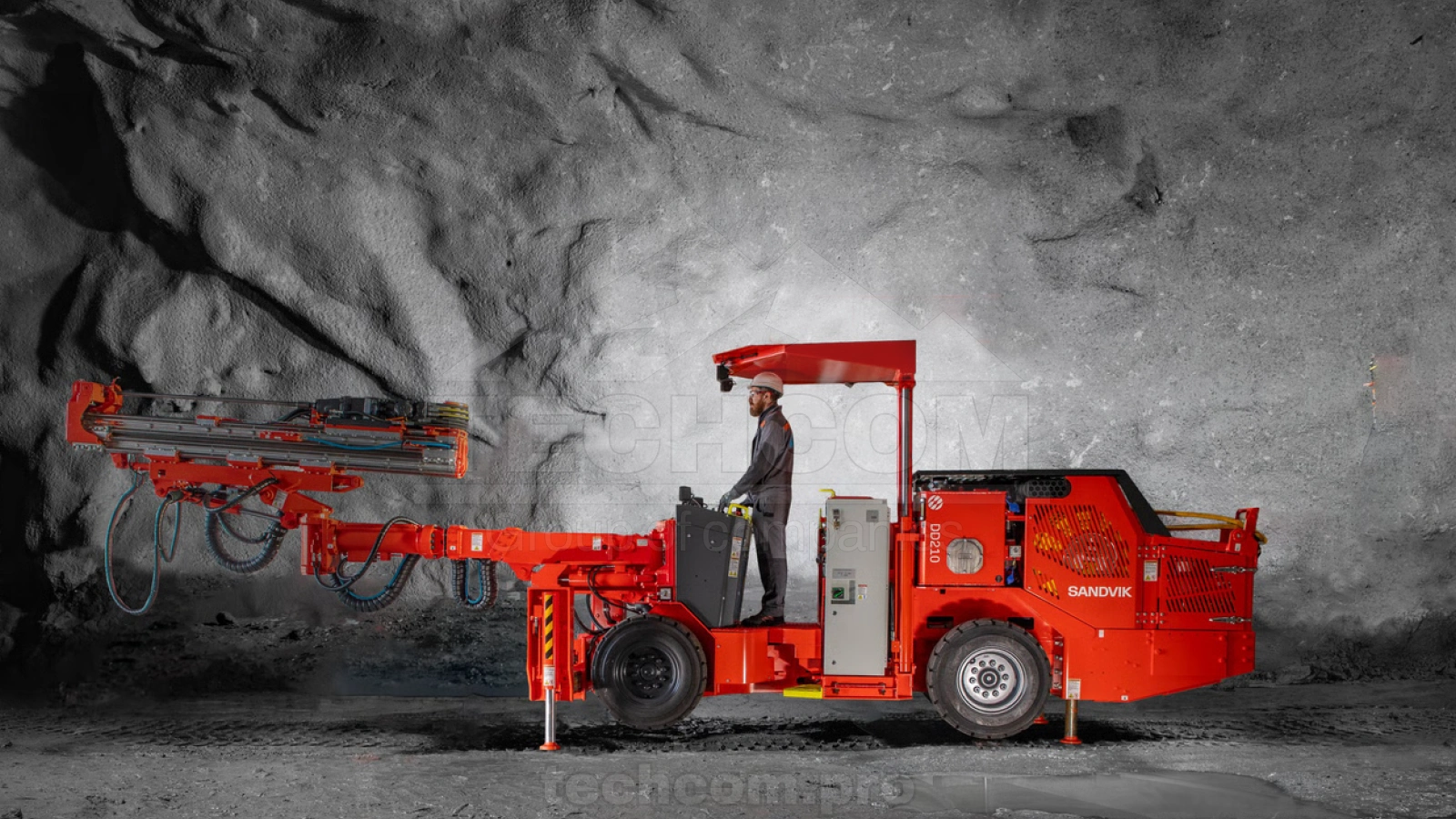

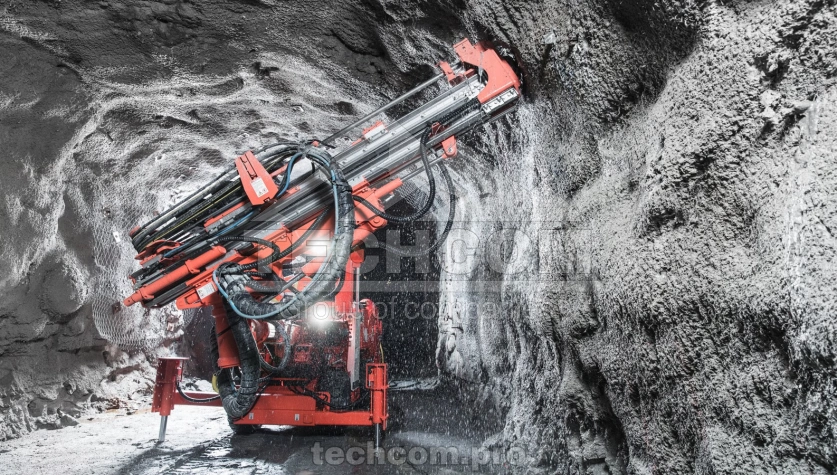

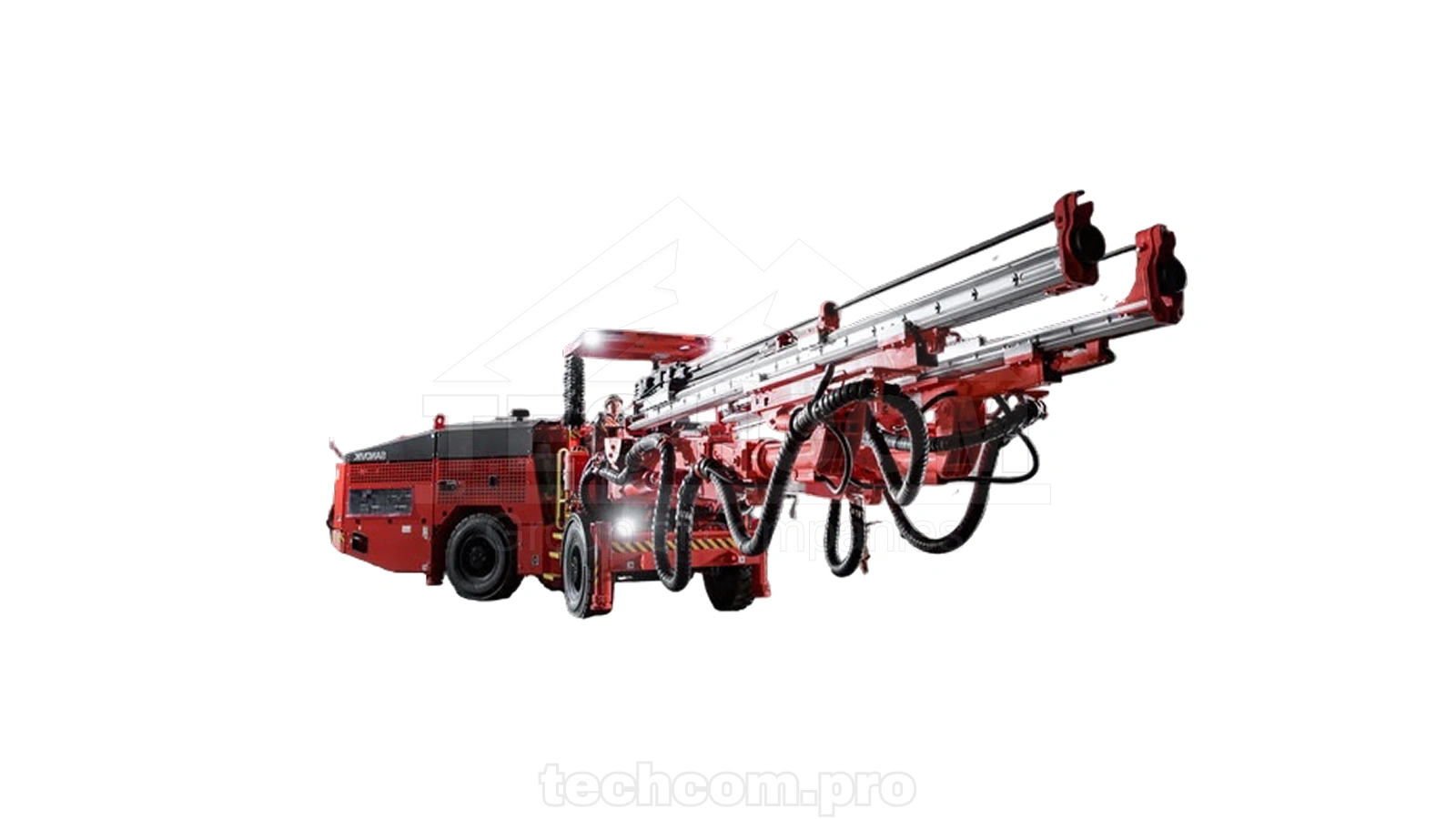

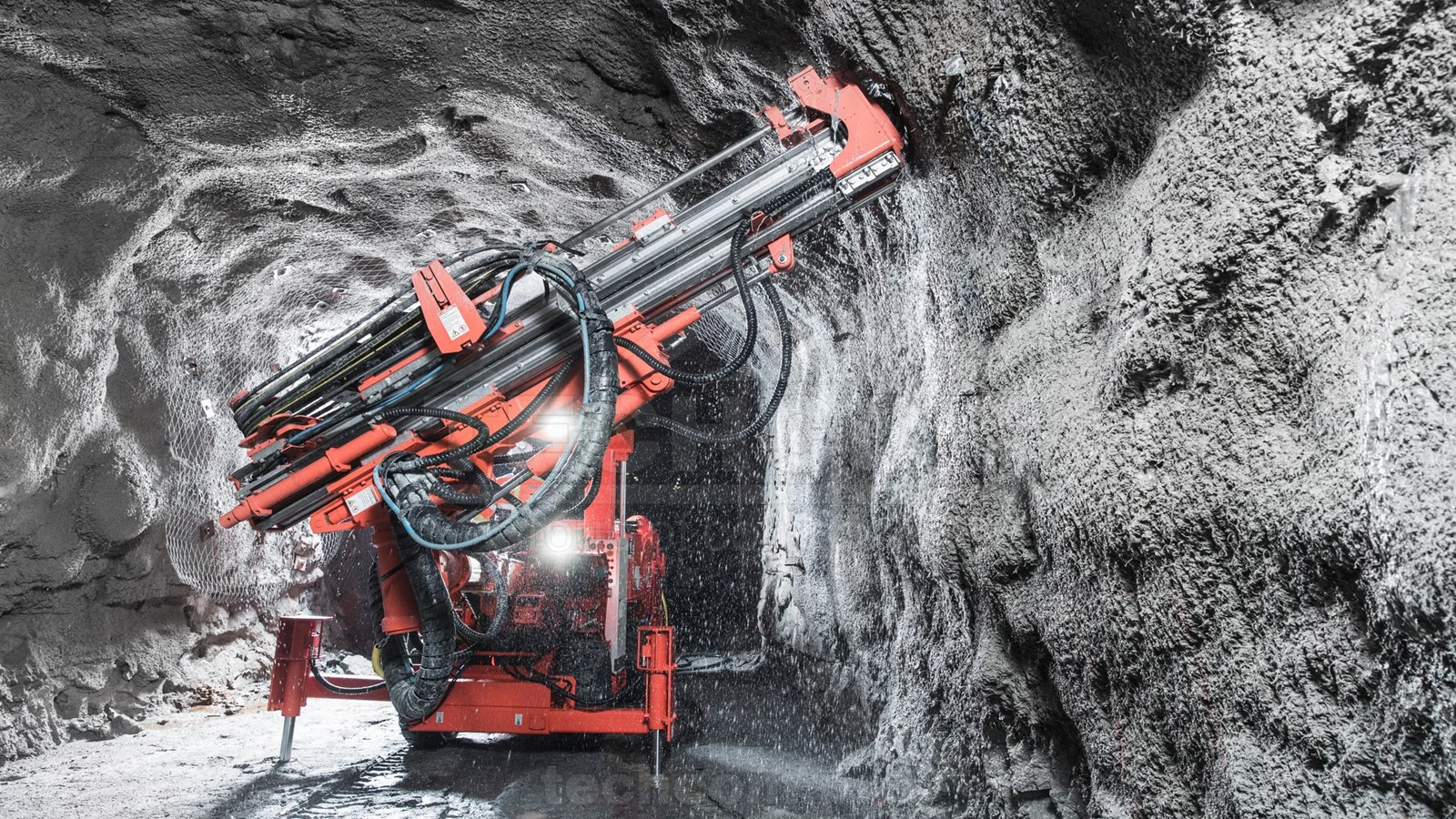

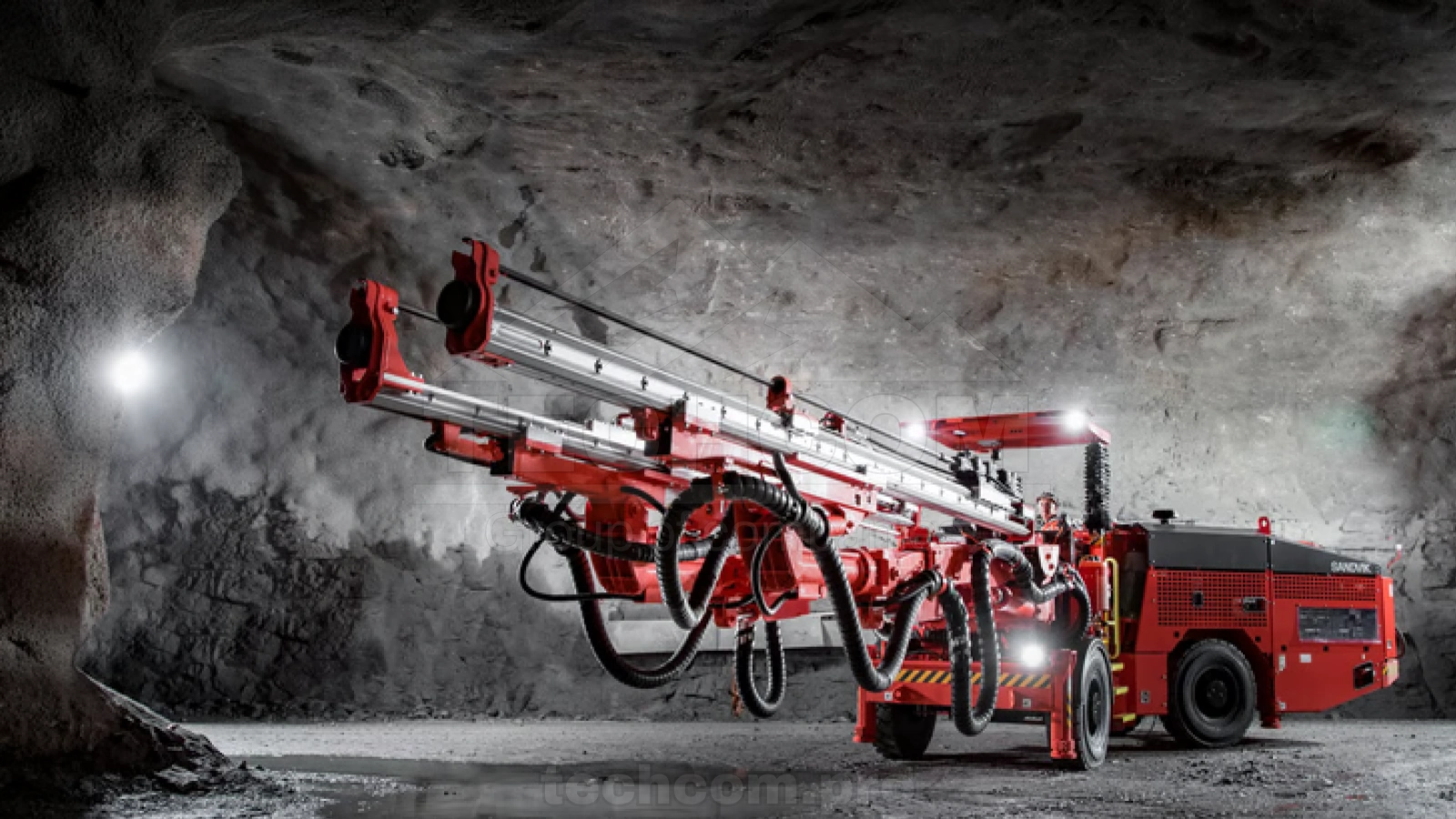

Sandvik DD210-V Underground Drill Rig
Sandvik DD210-V is a compact electro-hydraulic underground drill rig designed for drilling operations in narrow vein mining conditions. Its optimized boom geometry provides efficient coverage and precise positioning in confined underground environments.
The machine is equipped with a B14NV boom, NVTF feed system (cylinder – wire rope) and HL510 hydraulic rock drill, ensuring reliable drilling performance and accurate control. The TCQ carrier with articulated frame and four-wheel drive обеспечивает стабильную работу и хорошую маневренность в ограниченных выработках.
Technical Specifications
| Parameter | Value |
|---|---|
| Machine type | Underground drill rig |
| Coverage | 27 m² |
| Boom | B14NV |
| Feed system | NVTF 8/12 (cylinder – wire rope) |
| Feed force | 12 kN |
| Feed extension | 1,400 mm |
| Rock drill | HL510 |
| Hole diameter | 43–51 mm |
| Hole length | Up to 4,090 mm |
| Control system | IBCQNV |
| Total input power | 60 kW |
| Carrier | TCQ |
| Tramming speed | 5.7 km/h |
| Operator protection | FOPS canopy (ISO 3449) |
| Total weight | Approx. 8,650 kg |
Spare parts for Sandvik DD210-V are available, including rock drill components, feed system parts, hydraulic elements, boom components, carrier systems and electrical parts. If you cannot find the required parts, our specialists will assist you in selecting the correct components for your equipment.
