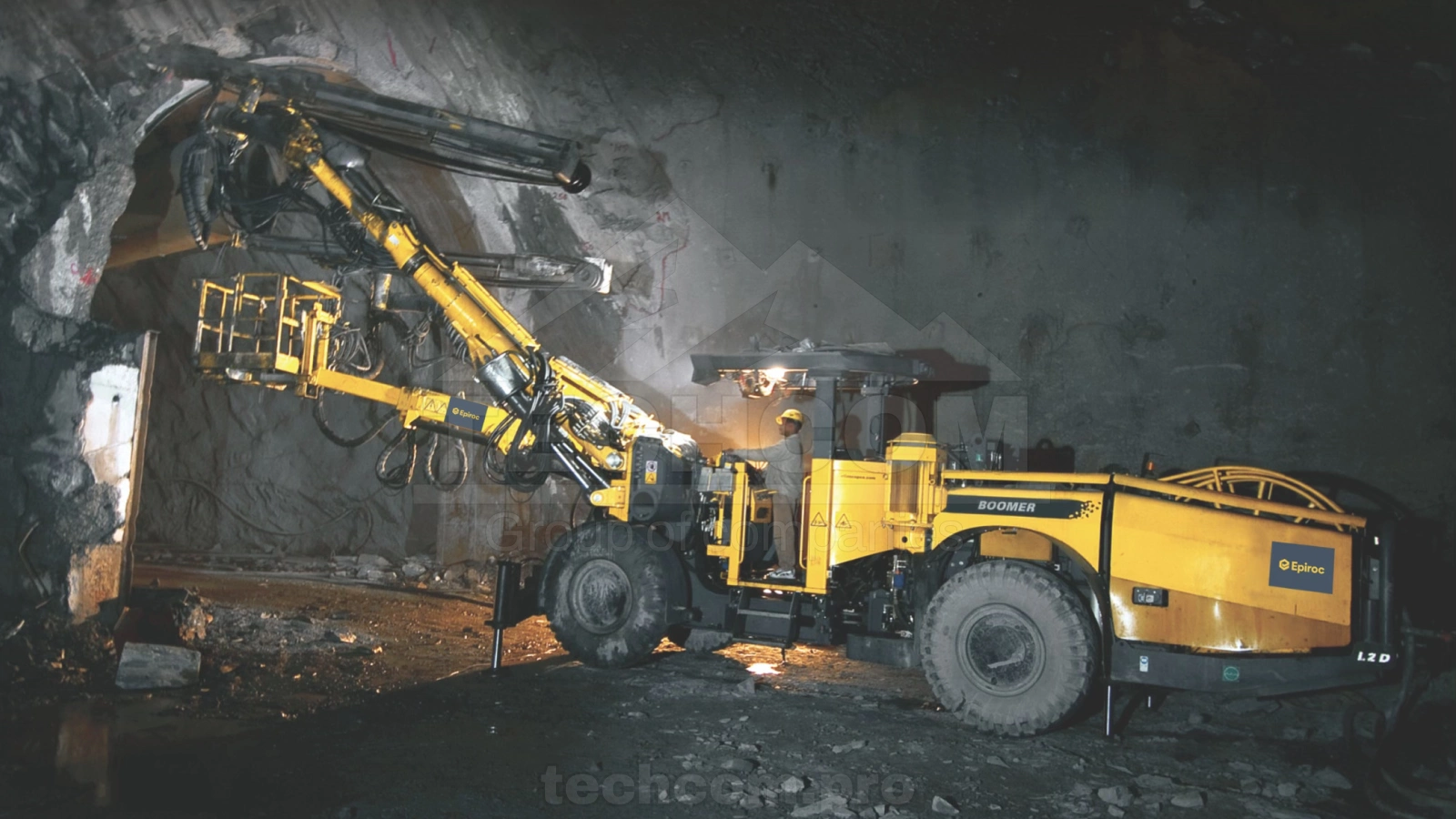

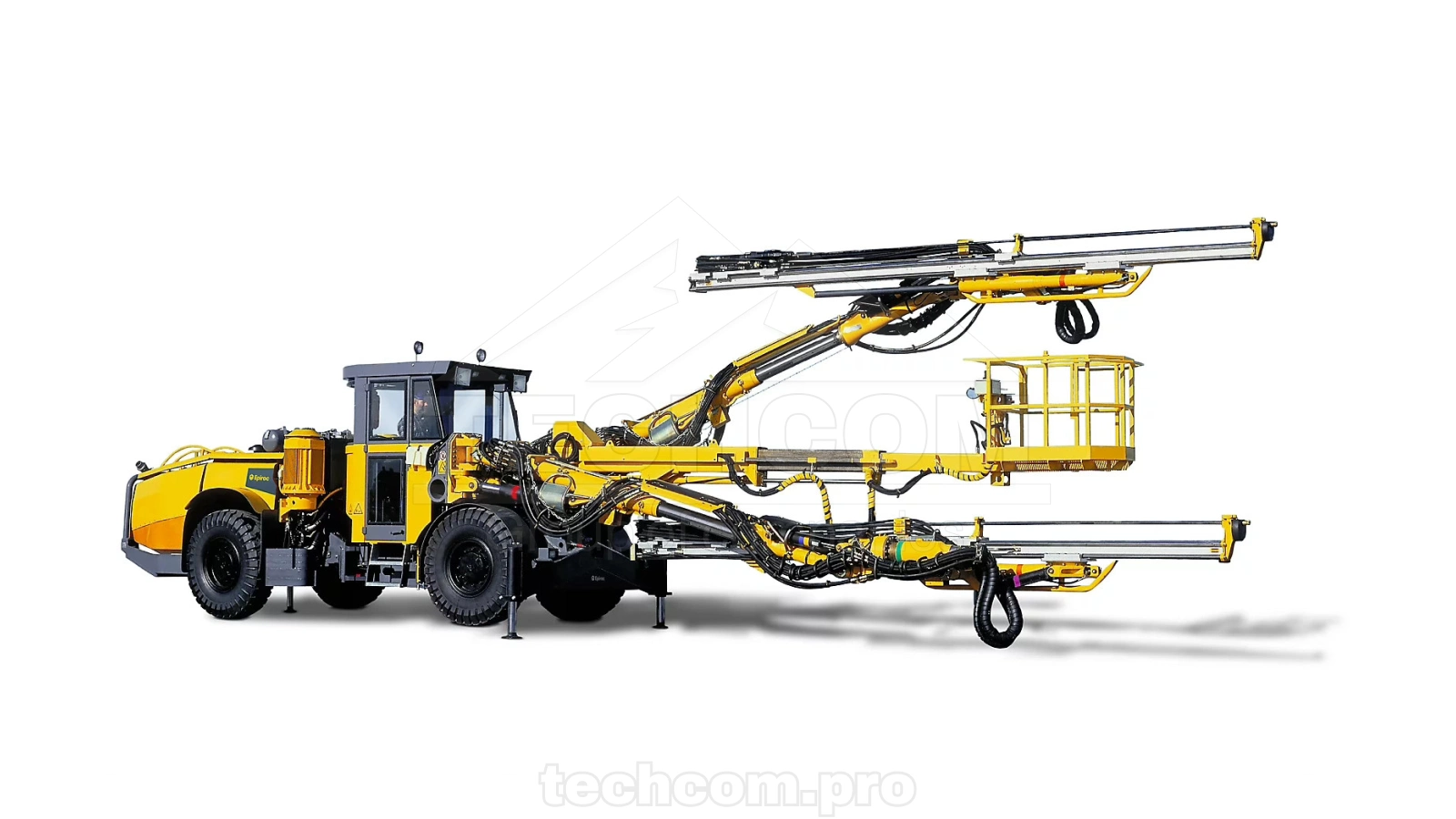

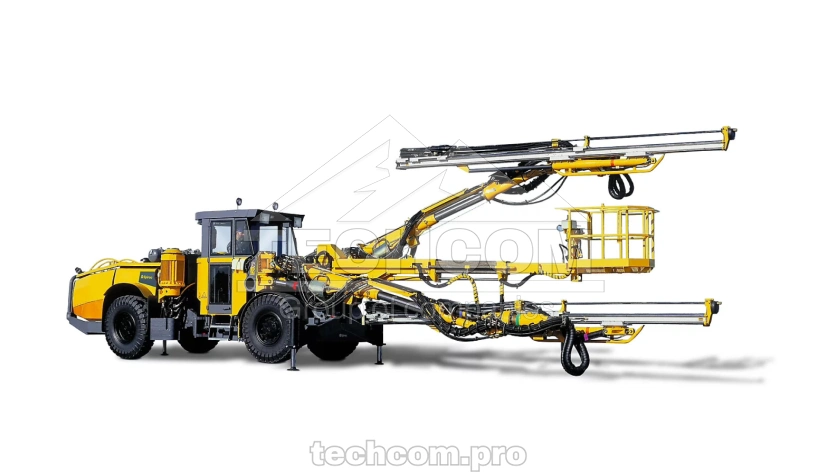

The Epiroc (Atlas Copco) Boomer L2D is a two-boom hydraulic face drilling rig designed for tunneling and underground excavations up to 90 m². Equipped with BUT 35 booms, BMH feed beams, and a four-wheel-drive articulated carrier, it ensures stability, maneuverability, and precise drilling even in demanding mining conditions. The model can be fitted with different rock drills to optimize performance for specific applications.
| Parameter | Boomer L2D (COP 1238) | Boomer L2D (COP 1638) | Boomer L2D (COP 1838) | Boomer L2D (COP 2238) |
|---|---|---|---|---|
| Rock Drill | COP 1238, 15 kW, 40–60 Hz | COP 1638, 17 kW, 55–60 Hz | COP 1838, 18–20 kW, 60 Hz | COP 2238, 22 kW, high performance |
| Boom | BUT 35F, lifting angle +65°/–30°, swing ±45° | |||
| Feed | BMH 6300 | BMH 6800 series (14–20 ft) | ||
| Control System | Hydraulic Direct Control System (DCS) with RPCF function | |||
| Diesel Engine | Deutz BF4M 1013C or TCD 2013, 115–120 kW | |||
| Carrier | Articulated, four-wheel drive, hydrodynamic transmission Clark 24000 | |||
| Coverage Area | up to 90 m² | |||
| Operating Weight | 23,600 kg | |||
Looking for a reliable solution for tunneling and face drilling? Explore the Boomer L2D spare parts catalog to select the right components and ensure continuous performance of your equipment.
