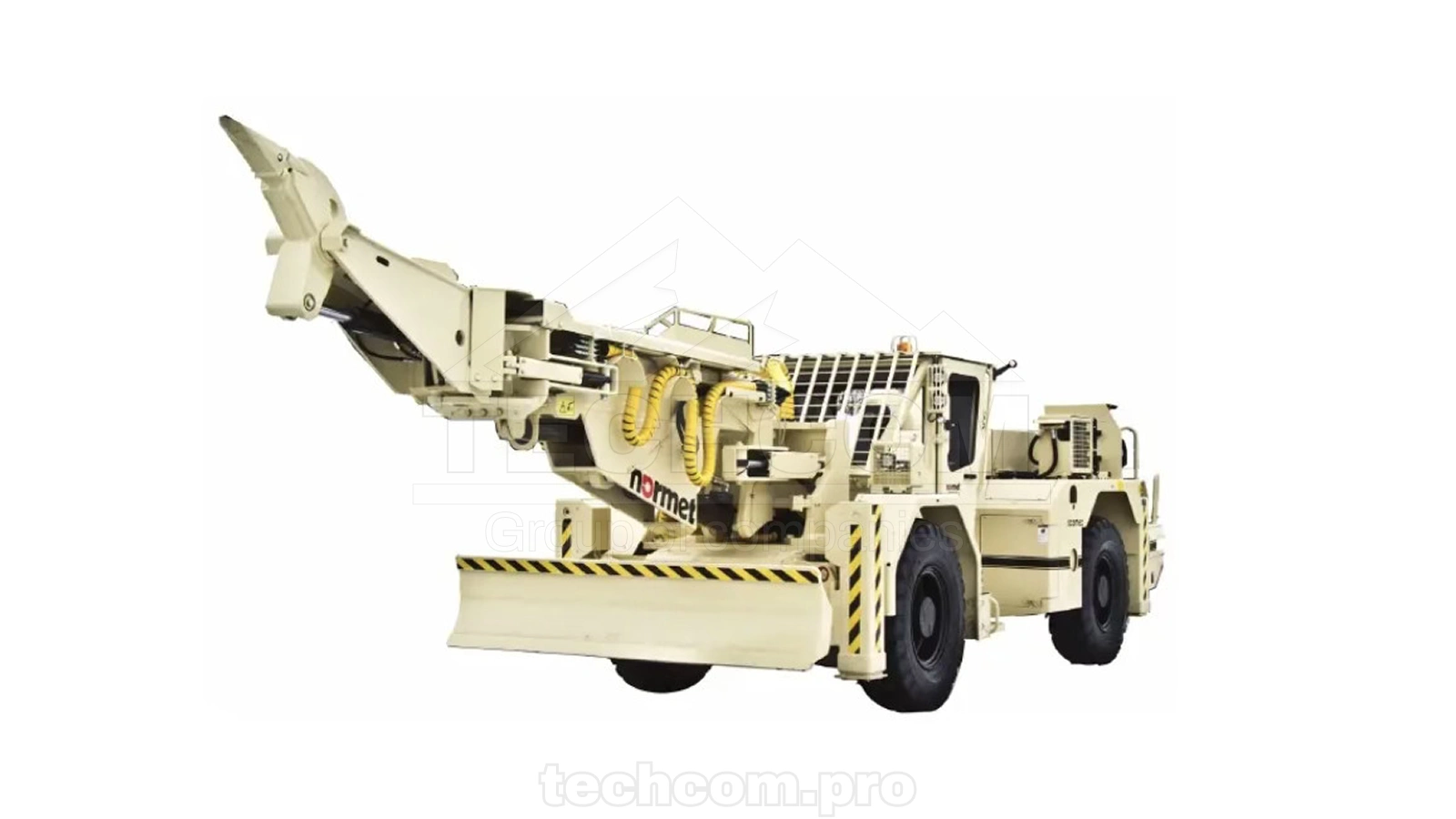

The Normet Scamec 2000 S is a diesel-powered mechanised scaler designed for safe and efficient rock scaling in underground mines and tunnels with tramming heights of 2.4 m or more. The machine combines the robust NC200 articulated carrier, NSB1000 telescopic scaling boom, and Epiroc SB302 hydraulic impact hammer to ensure precise scaling and maximum operator safety. The FOPS/ROPS-approved cabin offers superior visibility, low noise levels below 75 dB, and ergonomic controls for comfortable operation even in demanding conditions.
Powered by a Deutz TCD 2012 L6 (155 kW) or Mercedes-Benz OM906LA (170 kW) TIER 3 engine, the Scamec 2000 S provides strong tractive performance and smooth maneuverability with a Dana 32 000 power shift transmission and 4-wheel drive. Its heavy-duty design, centralized greasing system, and multiple optional tools — including Normet pick units and automatic lubrication — make it a reliable choice for modern underground scaling operations focused on productivity, safety, and low maintenance.
| Parameter | Value |
|---|---|
| Application | Mechanised scaler for underground mines and tunnels |
| Carrier | NC200 articulated chassis, 4-wheel drive |
| Scaling boom | NSB1000 heavy-duty telescopic boom |
| Vertical reach | 8.4 m |
| Horizontal reach | 11 m |
| Boom slew | ±40° |
| Hammer rotation / tilt | Rotation ±45°, Tilt 120° |
| Scaling tool | Epiroc (Atlas Copco) SB302 hydraulic impact hammer |
| Impact energy | 450 J |
| Impact rate | Max. 1300 bpm |
| Engine options | Deutz TCD 2012 L6, 155 kW or MB OM906LA, 170 kW (TIER 3) |
| Transmission | Dana 32 000 power shift, 3 speeds forward/reverse |
| Max speed | 17–19 km/h (up to 7 km/h in 1:7 incline) |
| Tractive effort | Up to 172 kN |
| Axles | Dana 113 planetary type, fixed rear, oscillating front |
| Tyres | 14.00–24 PR 28 |
| Cabin | FOPS/ROPS approved, open or enclosed, lift +600 mm, tilt 15° |
| Noise level | < 75 dB in enclosed cabin |
| Dust suppression | Manual water reel, hose length 30 m |
| Greasing system | Centralized fittings, Ramlube automatic hammer lubrication |
| Optional features | Electric boom control, rotating pick unit, enclosed cabin, DPF, reversing camera |
| Operating weight | Approx. 18,000 kg |
TechCom supplies spare parts for Scamec 2000 S, including scaling tools, hydraulic components, boom parts, filters, and wear elements to ensure reliable operation and maximum uptime in underground scaling applications.
