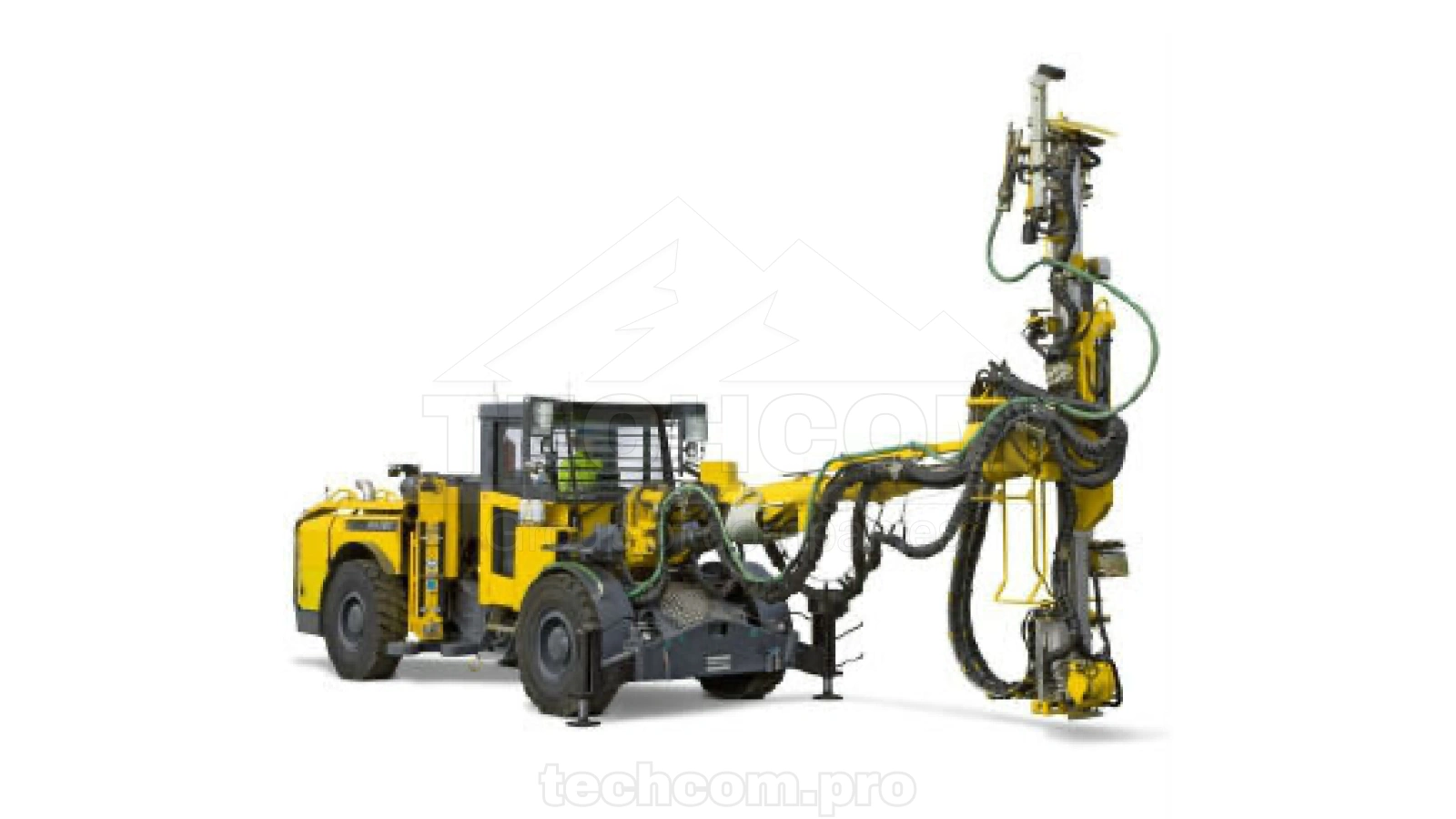

The Epiroc (Atlas Copco) Boltec LC is a fully mechanized rock bolting rig designed for efficient roof support in tunnels and underground excavations up to 11 meters high. The rig is available in several configurations, including Boltec LC DH and Boltec LC 1B, to meet different project and height requirements.
| Parameter | Boltec LC |
|---|---|
| Application height | Up to 11 m |
| Bolt types | Swellex, Split Set, rebar, resin and cement-grouted bolts |
| Bolt length | 1.5 – 6.0 m |
| Bolting unit | MBU with 10-bolt magazine |
| Rock drill | COP 1532 (15 kW, 65 Hz) or COP 1132 (11 kW, 100 Hz) |
| Boom | BUT 35HBE, feed extension 1.6 m, rotation 360°, tilt ±45° |
| Control system | Rig Control System (RCS) with diagnostics and parameter memory |
| Hydraulic system | Working pressure 150–240 bar, tank 250 L, filtration 16 µm |
| Diesel engine | Deutz BF4M 1013C, 115 kW (156 hp) at 2300 rpm |
| Carrier | Articulated 4×4 L-series chassis, Dana 24000 transmission, Dana 176HD axles |
| Operating weight | Approx. 26 000 kg |
| Dimensions (L × W × H) | 14 096 × 2 510 × 3 100 mm |
Explore the Epiroc Boltec LC spare parts catalog to find compatible components for your machine.
