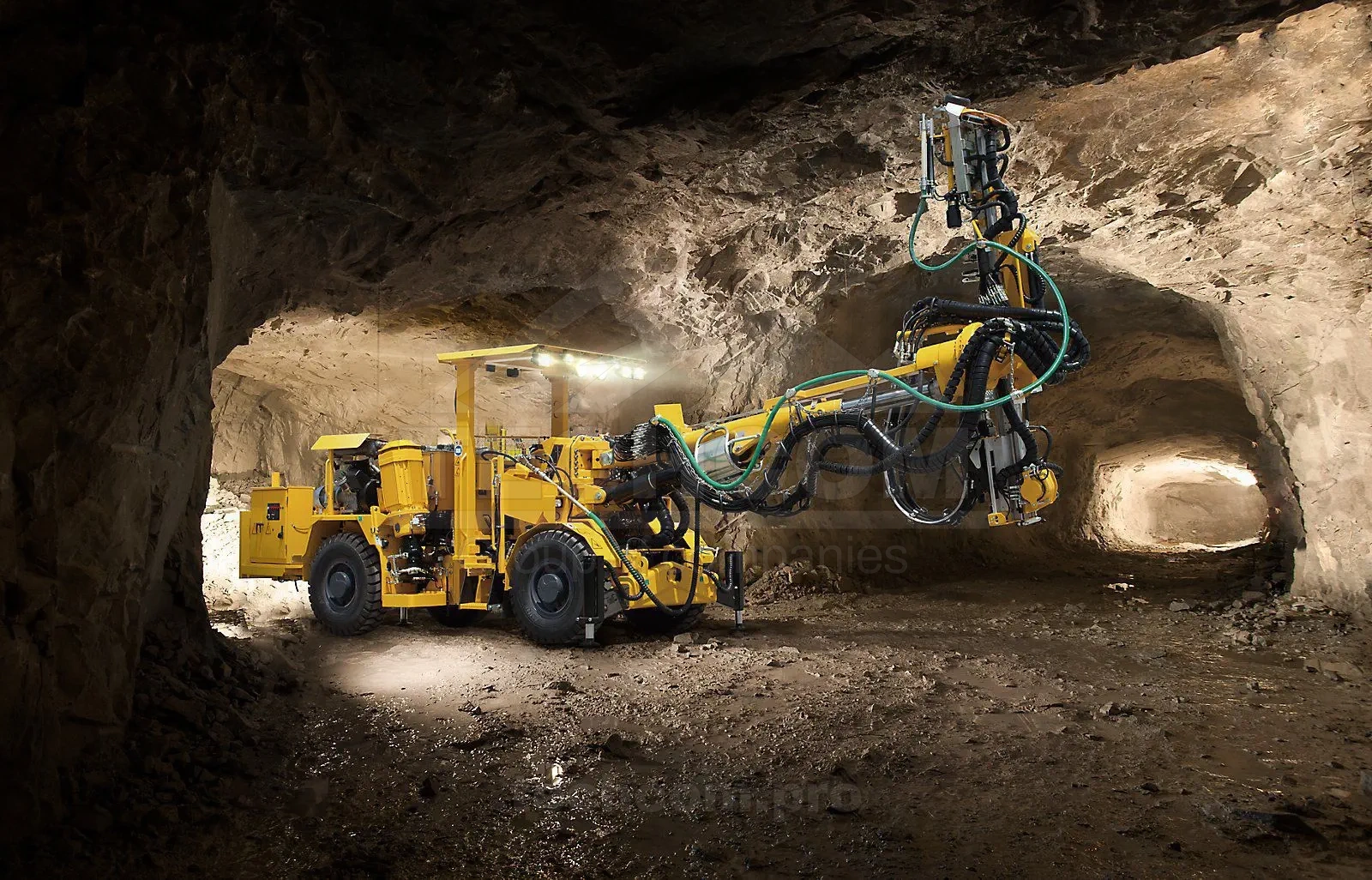

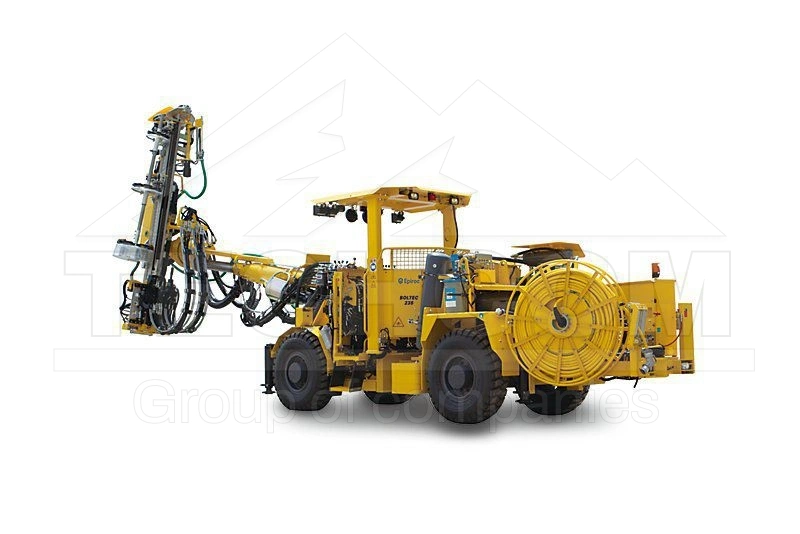

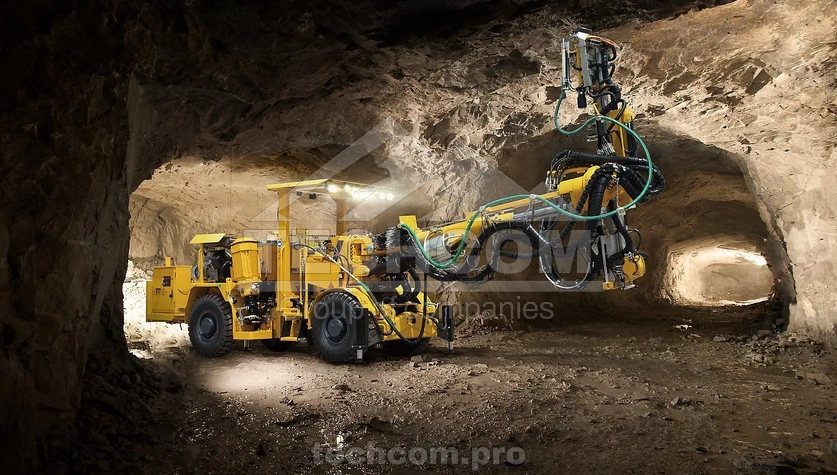

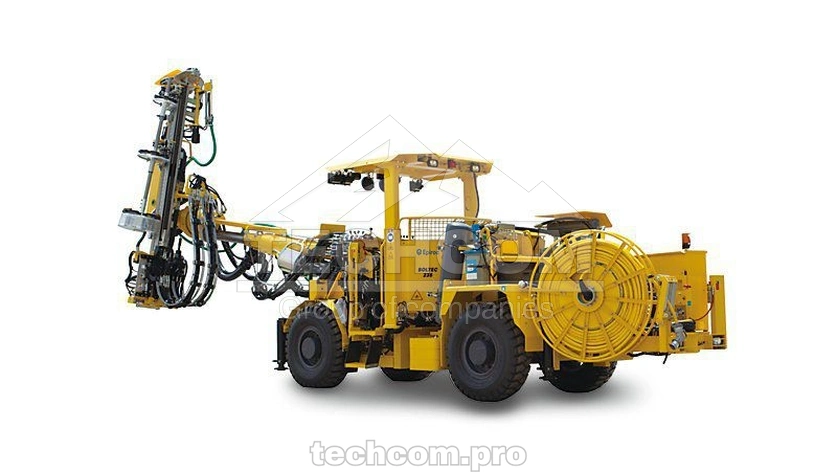

The Epiroc Boltec 235 is an automated rock reinforcement rig designed for underground mining operations with limited space. It ensures efficient and safe installation of rock bolts ranging from 1.5 to 2.4 meters in length at working heights of up to 9.4 meters, making it an ideal solution for medium-sized drifts in challenging ground conditions.
Key Benefits
- Mechanized bolting unit with a 10-bolt carousel magazine
- DCS (Direct Control System) with overload and anti-jamming protection
- Compatible with all major bolt types: Swellex, SplitSet, resin and mechanical anchors
- Optimized for consistent drilling in unpredictable or abrasive ground conditions
- Compact and maneuverable DC15 chassis with easy service access
Main Specifications
| Rock drill model | COP RR11 |
| Boom type | BUT 35HB |
| Bolting unit | MBU with 10-bolt magazine |
| Bolt length | 1.5–2.4 m |
| Max working height | 9.4 m |
| Carrier | DC15C |
| Engine | Deutz D914 L04, 58 kW |
| Dimensions (L × W × H) | 11,152 × 1,930 × 3,000 mm |
| Turning radius | 5,800 / 3,000 mm |
| Weight | 17,500 kg |
Contact our team to configure your Boltec 235 or get assistance with spare parts and service options.
