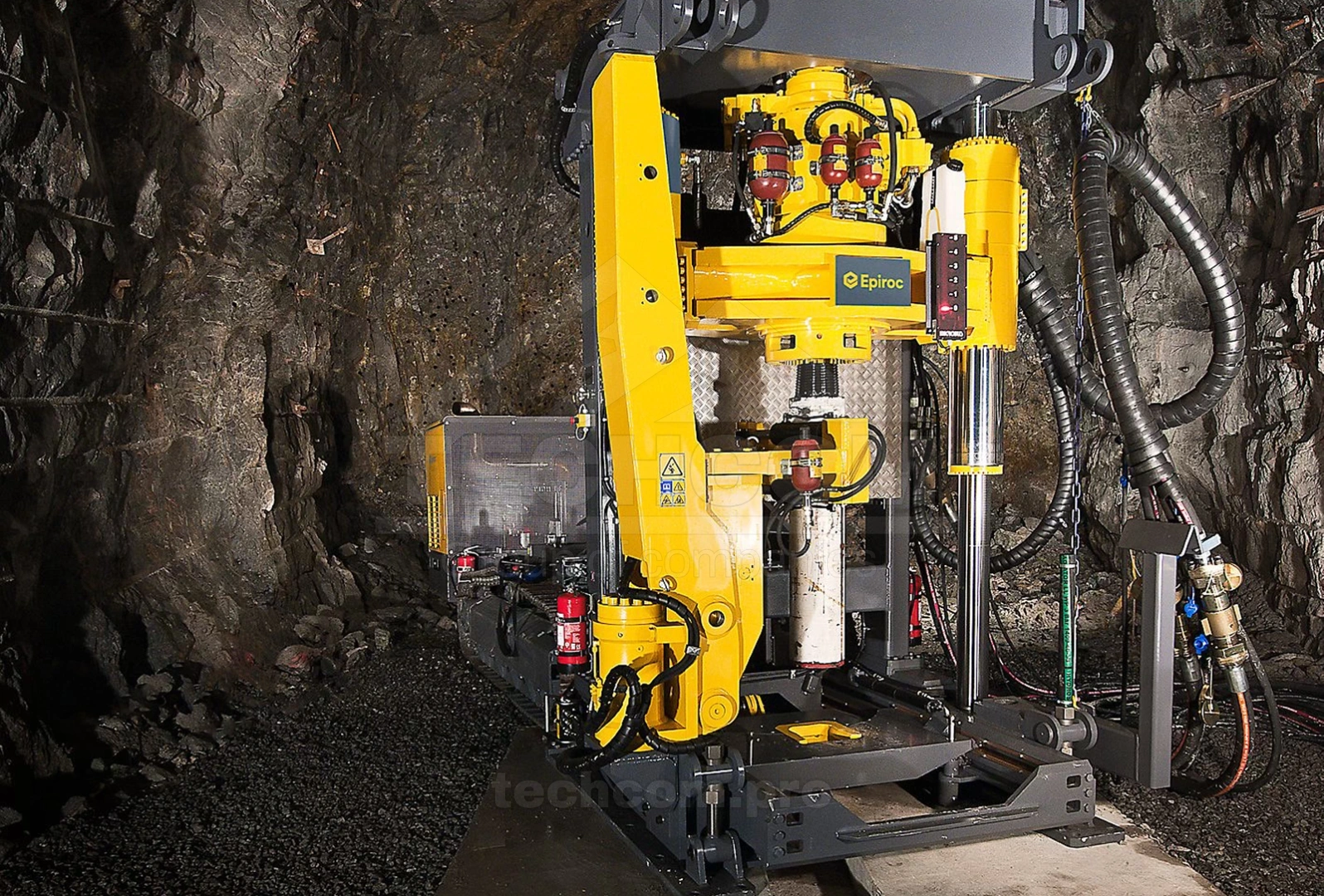

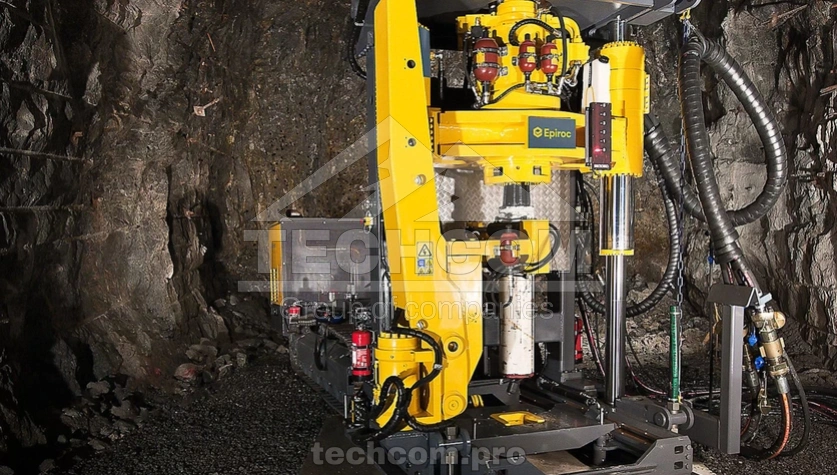

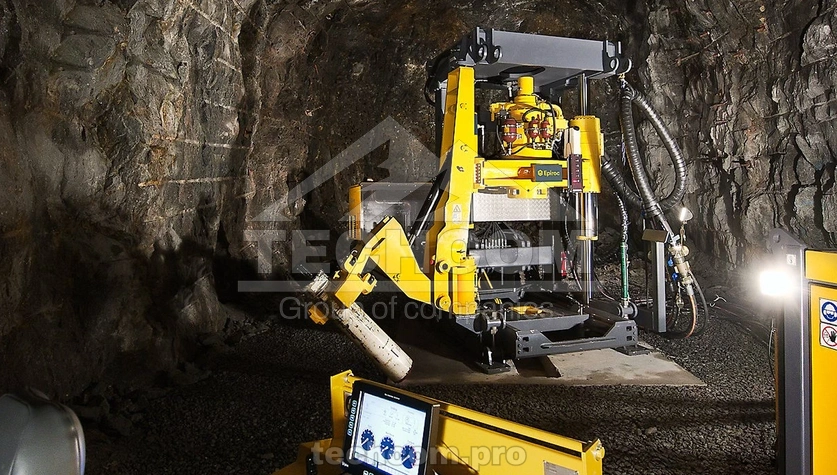

The Epiroc Robbins 34RH C is a compact raiseboring rig with a modular design, purpose-built for precise operations in tight underground environments. Its low-profile frame suits small-diameter raises, slot drilling, backfilling, and boxhole applications.

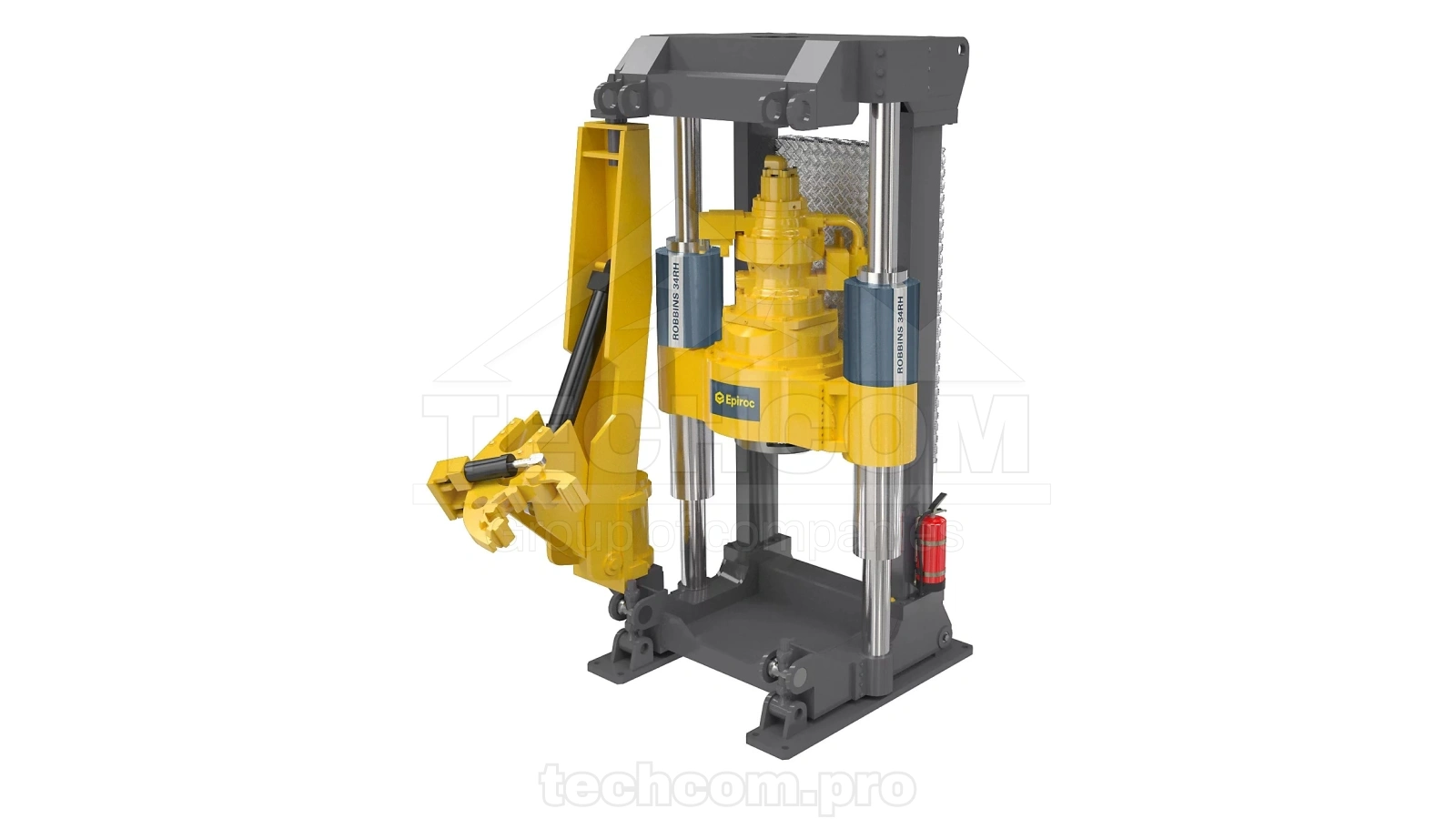

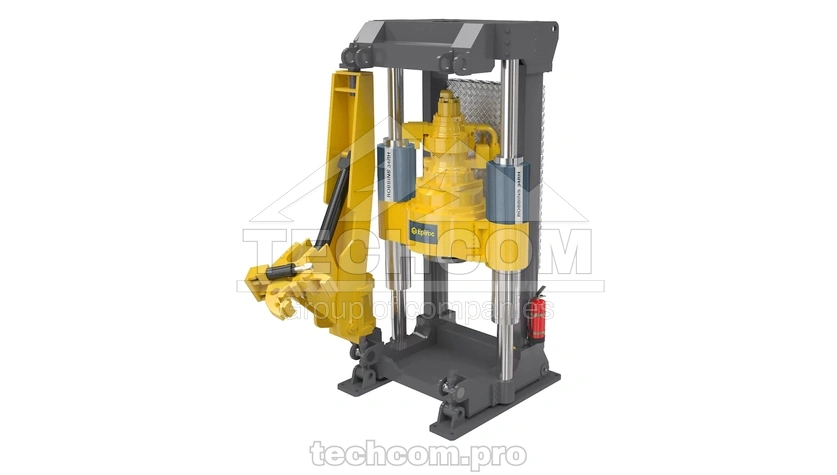

Powered by a robust hydraulic system and the advanced Rig Control System (RCS), the 34RH C ensures accurate control of torque and thrust while enhancing safety and diagnostics. The patented rotation head and integrated worktable simplify handling of stabilizers and reamers. The rig accommodates both standard (720 mm) and wide (1,060 mm) frames.
Key Benefits
- Low-profile configuration ideal for restricted access areas
- Performs slot raises, backfilling, boxhole and reverse reaming
- Remote-controlled pipe handling and hydraulic wrench
- Precise force and torque control via RCS automation
- Modular frame for fast transport and setup
Technical Data
| Nominal raise diameter | 1.2 m |
| Raise diameter range | 0.6 – 1.5 m |
| Maximum raise length | Up to 610 m |
| Pilot hole diameter | 229 – 279 mm |
| Pipe diameter | 203 / 254 mm |
| Pipe length | 750 / 1219 mm |
| Rotation torque | Up to 64 kNm / 96 kNm breakout |
| Thrust capacity | 1,150 kN |
| Drive power | 160–185 kW (400–1000 V, 50/60 Hz) |
| Traverse speed | 5.9 m/min |
| Feed rate | 3.0 m/min |
| Air/water flushing | Up to 530 l/min |
| Derrick height | 3,950–4,915 mm |
| Total weight (standard/wide) | 9,300–13,800 kg |
Optional Features
- Reamer-compatible pipe loader
- Semi-automatic wrenches
- Integrated muck chute (up to 1.5 m)
- Remote access, MWD tools, and shutdown systems
- Transport modules: crawler or sled (diesel/air)
