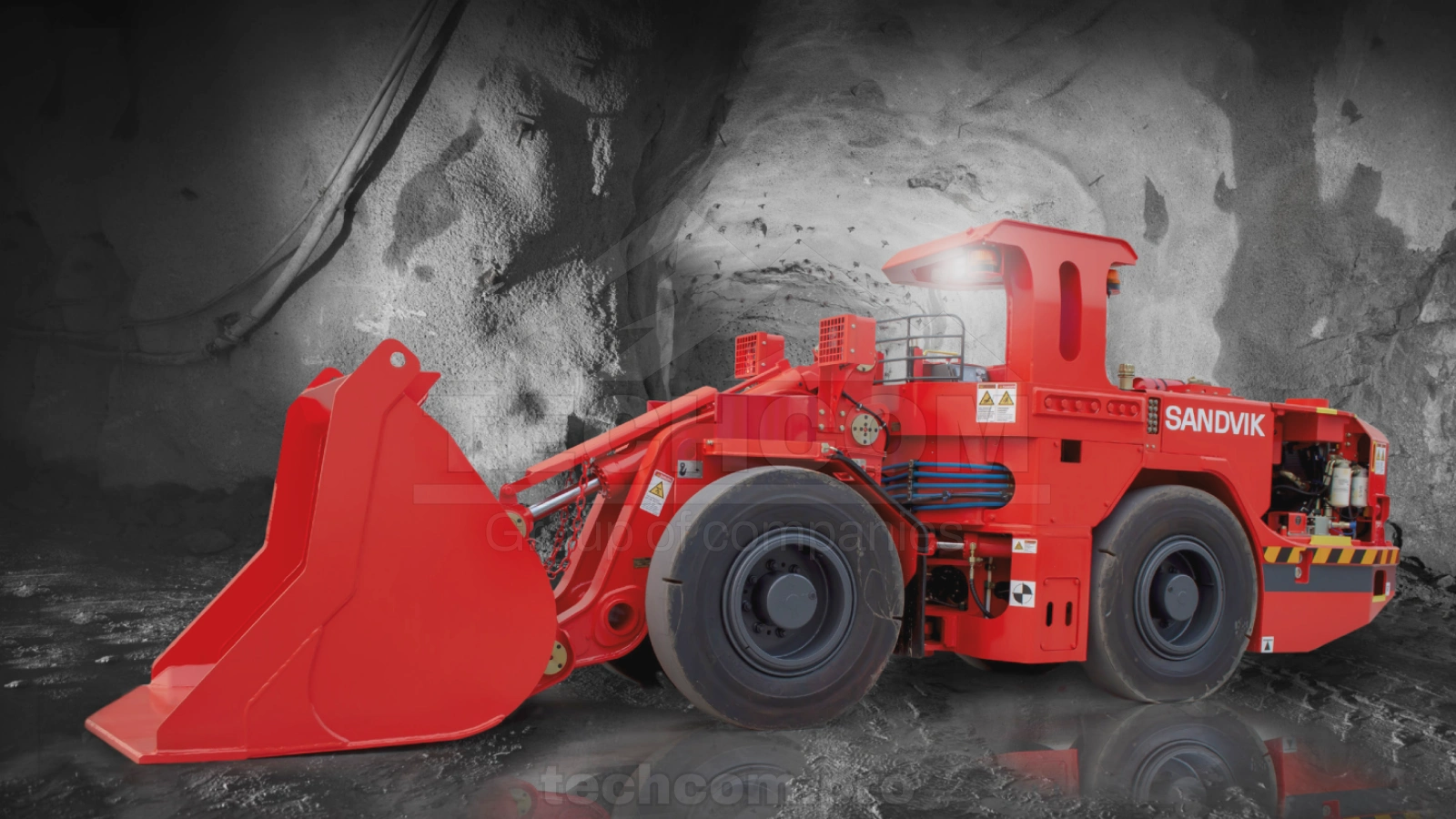

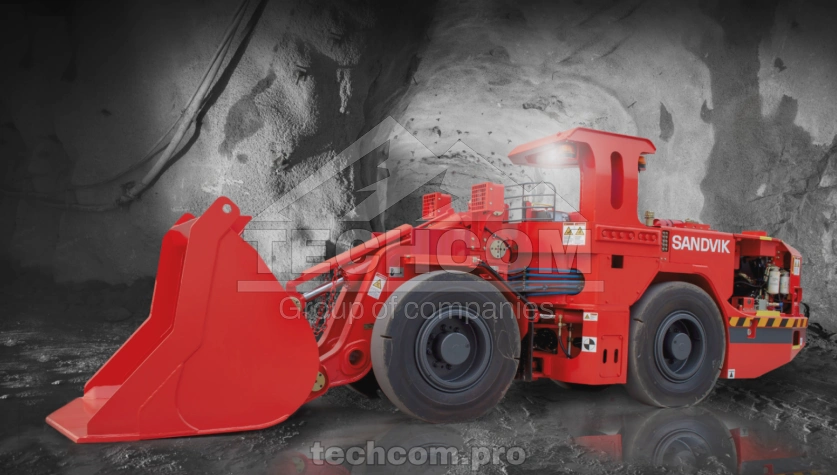

Underground Loader Toro LH202 Sandvik
The Sandvik Toro LH202 is a compact underground loader designed for narrow vein mining applications where maneuverability, safety, and operational efficiency are essential. The machine features a lightweight structure, optimized dimensions, and one of the best payload-to-own-weight ratios in its class, making it suitable for confined underground conditions and small-profile tunnels.
The loader is engineered for reliable operation in demanding underground environments while maintaining low fuel consumption and reduced maintenance requirements. Its rear-frame operator compartment improves operator protection and visibility during loading and hauling operations.
Key advantages
- Compact dimensions and optimized turning radius for narrow underground drifts
- High payload-to-weight ratio for improved operational efficiency
- Rear-frame operator compartment designed for increased safety
- Durable welded steel frame for demanding mining applications
- Low fuel consumption and reduced operating costs
- Easy maintenance access and simplified service procedures
- Suitable for underground mining, tunneling, and civil engineering projects
- Available with low-emission Deutz engine configurations
Technical specifications
| Operating weight | 8,800 kg |
| Loaded weight | 11,800 kg |
| Tramming capacity | 3,000 kg |
| Standard bucket capacity | 1.3 m³ |
| Optional bucket capacity | 1.5 m³ |
| Breakout force, lift | 5,810 kg |
| Breakout force, tilt | 6,425 kg |
| Engine | Deutz BF4L914 diesel engine |
| Engine power | 50 kW at 2,300 rpm |
| Torque | 245 Nm at 1,600 rpm |
| Maximum travel speed | 10 km/h |
| Fuel tank capacity | 80 l |
| Hydraulic oil tank capacity | 120 l |
| Operating altitude | Below 4,500 m |
| Operating temperature | From -20 °C to +48 °C |
| Application | Underground mining and tunneling operations |
