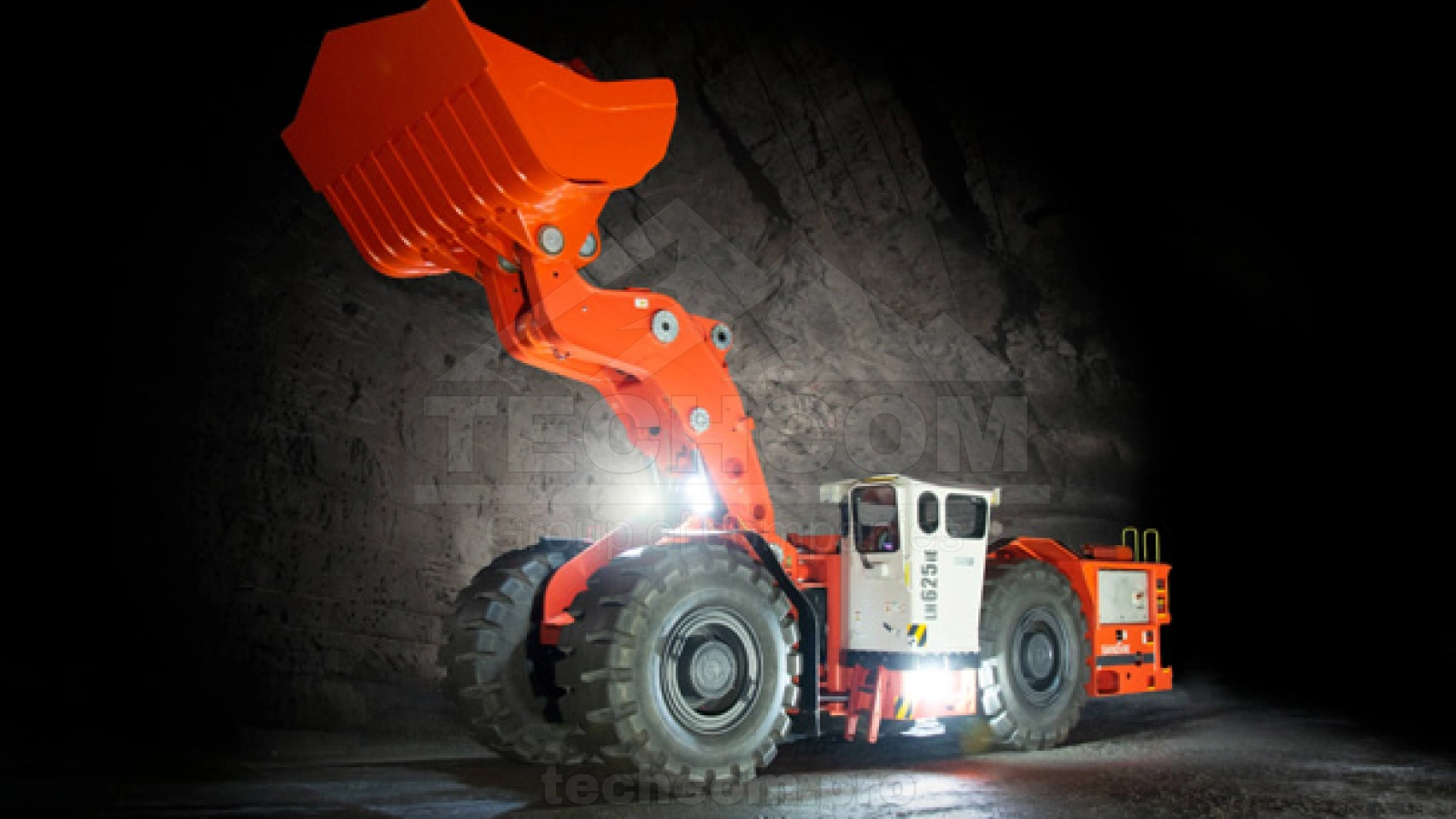

Electric Loader Sandvik Toro LH625iE
The Sandvik Toro LH625iE is a high-capacity electric underground loader designed for demanding hard rock mining applications. With a payload capacity of 25 tonnes and a 10 m³ bucket, the machine combines zero underground diesel emissions with exceptional productivity and low operating costs.
Powered by energy-efficient Siemens electric motors delivering a total output of 471.6 kW, the Toro LH625iE provides outstanding loading performance and reduced ventilation requirements. Advanced digital technologies, the Sandvik Intelligent Control System and compatibility with OptiMine® solutions make the loader an ideal choice for modern underground operations focused on productivity, sustainability and operator safety.
Technical Specifications
| Parameter | Value |
|---|---|
| Machine Type | Electric underground loader |
| Maximum Payload Capacity | 25,000 kg |
| Standard Bucket Capacity | 10 m³ |
| Total Operating Weight | 77,500 kg |
| Total Loaded Weight | 101,600 kg |
| Main Drive Motor | Siemens electric motor, 315 kW, IE4 |
| Pump Motors | 2 × Siemens electric motors, 75 kW each |
| Total Electric Power | 471.6 kW |
| Motor Voltage | 1,000 V |
| Transmission | Dana 8000 Series powershift transmission |
| Torque Converter | Dana 9000 Series |
| Axles | Kessler D116 heavy-duty axles |
| Rear Axle Oscillation | ±8° |
| Hydraulic Oil Tank Capacity | 595 l |
| Brake Oil Tank Capacity | 100 l |
| Maximum Travel Speed | 16.2 km/h |
| Cabin Certification | ROPS and FOPS certified |
| Operator Display | 7-inch touchscreen display |
| Operator Seat | 180° rotating seat with suspension |
| Operating Temperature Range | -20°C to +50°C |
