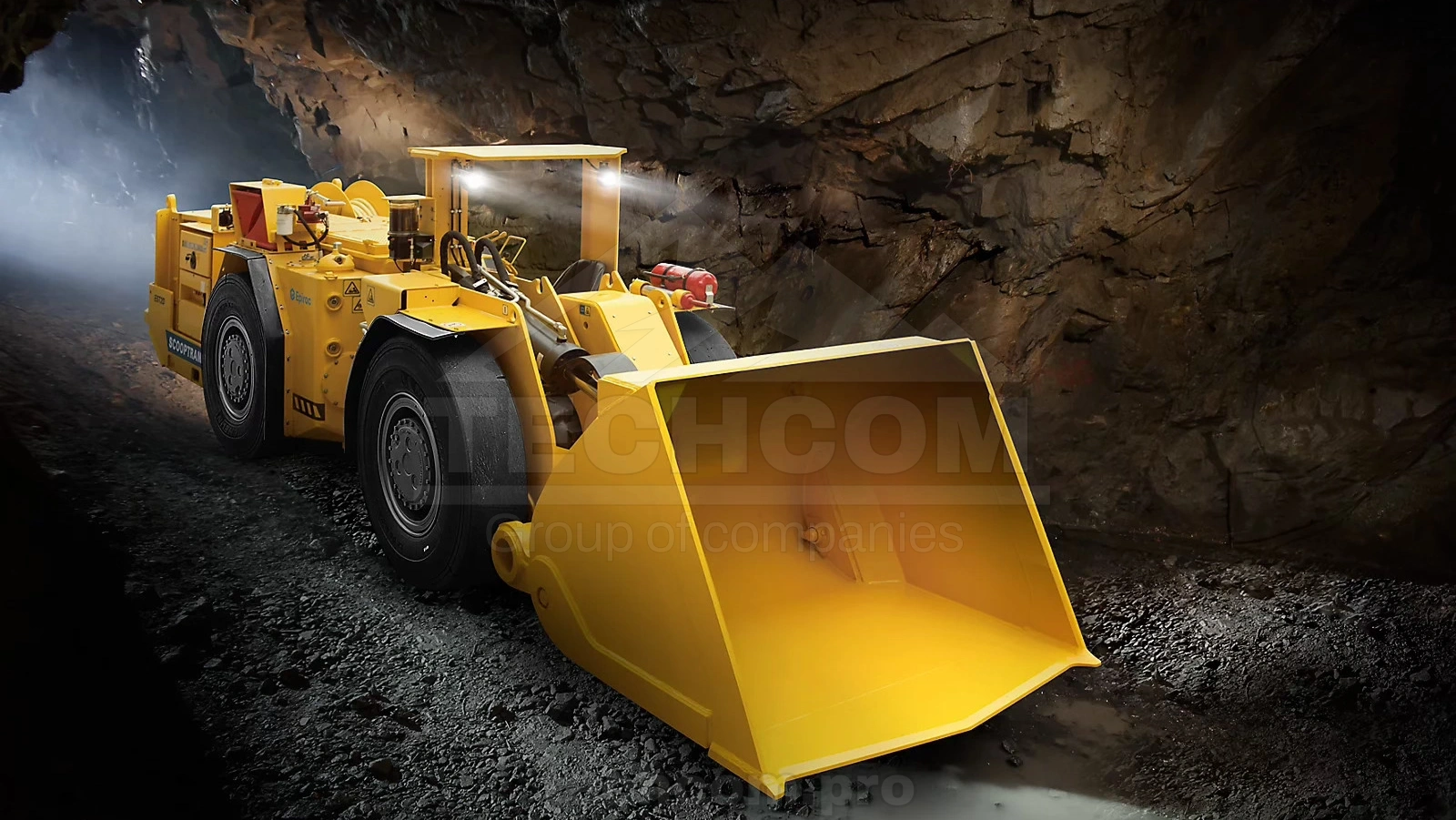

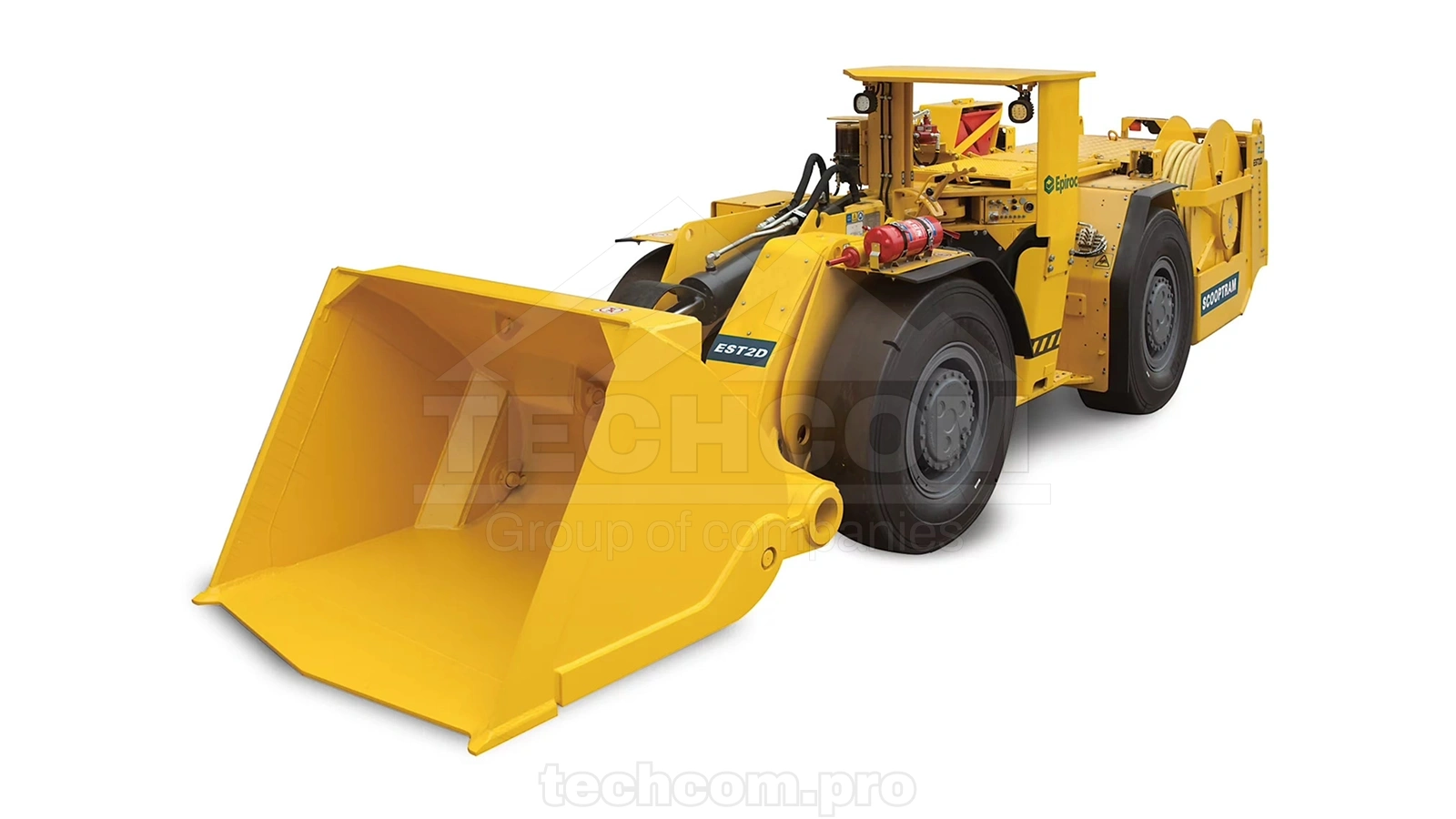

The Epiroc Scooptram EST2D is a robust electric LHD designed for underground mining and tunneling projects, especially where narrow vein operations or limited ventilation prevent the use of diesel machines. With a tramming capacity of 3.6 tonnes and a compact profile, this loader is ideal for demanding underground environments with high ambient temperatures or air quality restrictions.
Key Advantages
- Powered by a high-performance ABB electric motor with onboard start and overload protection
- Random wrap cable reel with automatic tensioning, compatible with multiple cable types and voltages
- Operator safety features including ground fault protection, automatic brake activation, and anti-slip access steps
- Side-seated cab with ergonomic layout for optimal bi-directional visibility and control
- Enhanced mucking and breakout capabilities thanks to a parallel boom setup and heavy-duty bucket design
- Heavy-duty 16-ply L-5S tires for enhanced traction in rugged underground conditions
Technical Specifications
| Tramming capacity | 3,629 kg |
| Bucket capacity | 1.1 – 2.4 m³ |
| Operating weight | 13,000 kg |
| Recommended drift profile (W × H) | 2.5 × 3.0 m |
| Engine | ABB 3-phase, 50/60 Hz, 75 hp |
| Axles | Dana 14D |
| Brakes | Hydraulically actuated wet disc brakes (LCB) |
| Bucket width | 1,650 mm |
| Cab height | 2,085 mm |
| Dump height @ 40° | 1,490 mm |
| Transmission | Full power shift, 3 speeds forward/reverse |
| Hydraulic system | Pressure 11.4 MPa, tank 144 L |
| Pump flow (dump/hoist) | 163 L/min at 1,800 rpm |
| Tires | 12.00×24, 16-ply, L-5S |
| Steering | Articulated, mono-stick control |
| Speed (loaded) | Up to 9.8 km/h |
Looking for genuine parts or remote control options? Get in touch for expert advice, performance upgrades, or tailored configuration of the EST2D to match your operations.
