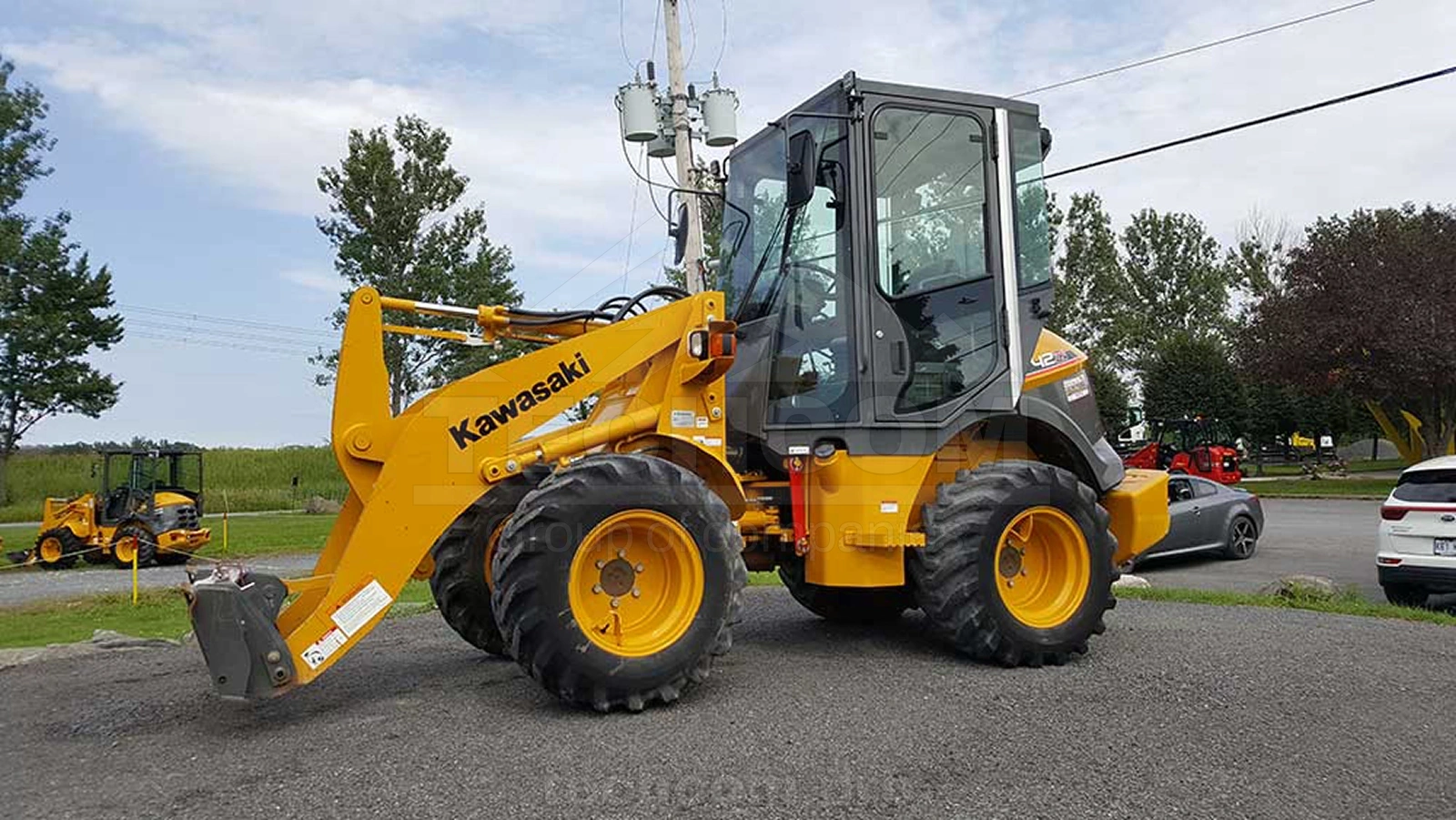

Wheel Loader Kawasaki 42ZV-2

The Kawasaki 42ZV-2 wheel loader combines advanced engineering with decades of industry expertise to deliver a reliable and efficient performance in demanding environments.

Commonly applied in both construction sites and urban projects, this loader handles diverse material transport and loading operations with ease.

Key Features:

  • The cabin is equipped with integrated ROPS and FOPS structures to ensure full protection against rollovers and falling objects;
  • Cab mounting features rubber isolators to minimize noise and vibration during operation;
  • An automatic parking brake engages by default when the engine shuts off, improving safety;
  • A locking fuel cap system provides secure refueling and prevents tampering;
  • The anti-theft engine immobilizer system disables engine start-up if the main unit is tampered with or disconnected;
  • Easy cab access is available from both sides of the machine;
  • On-board monitoring system displays real-time operating data and alerts for enhanced control;
  • The fuel filter includes an integrated water separator;
  • Operating weight: 4.19 tons;
  • Powered by a Kubota V2403-MDI engine.

Technical Specifications

Specification Kawasaki 42ZV-2
Bucket capacity, m³ 0.60 – 0.76
Operating weight, kg 4195 – 4315
Static tipping load, kg 2470 – 2650
Engine
Model Kubota V2403-MDI
Engine output, hp/rpm 45 / 2400
Displacement, L 2.4
Dimensions
Turning radius (outside bucket edge), mm 3870 – 3950
Bucket lift height (pin center) (A), mm 3140
Dumping height (lower bucket edge) (C), mm 2280 – 2380
Overall length (D), mm 4925 – 5110
Overall width (bucket) (E), mm 1690
Overall height (F), mm 2560

Application
