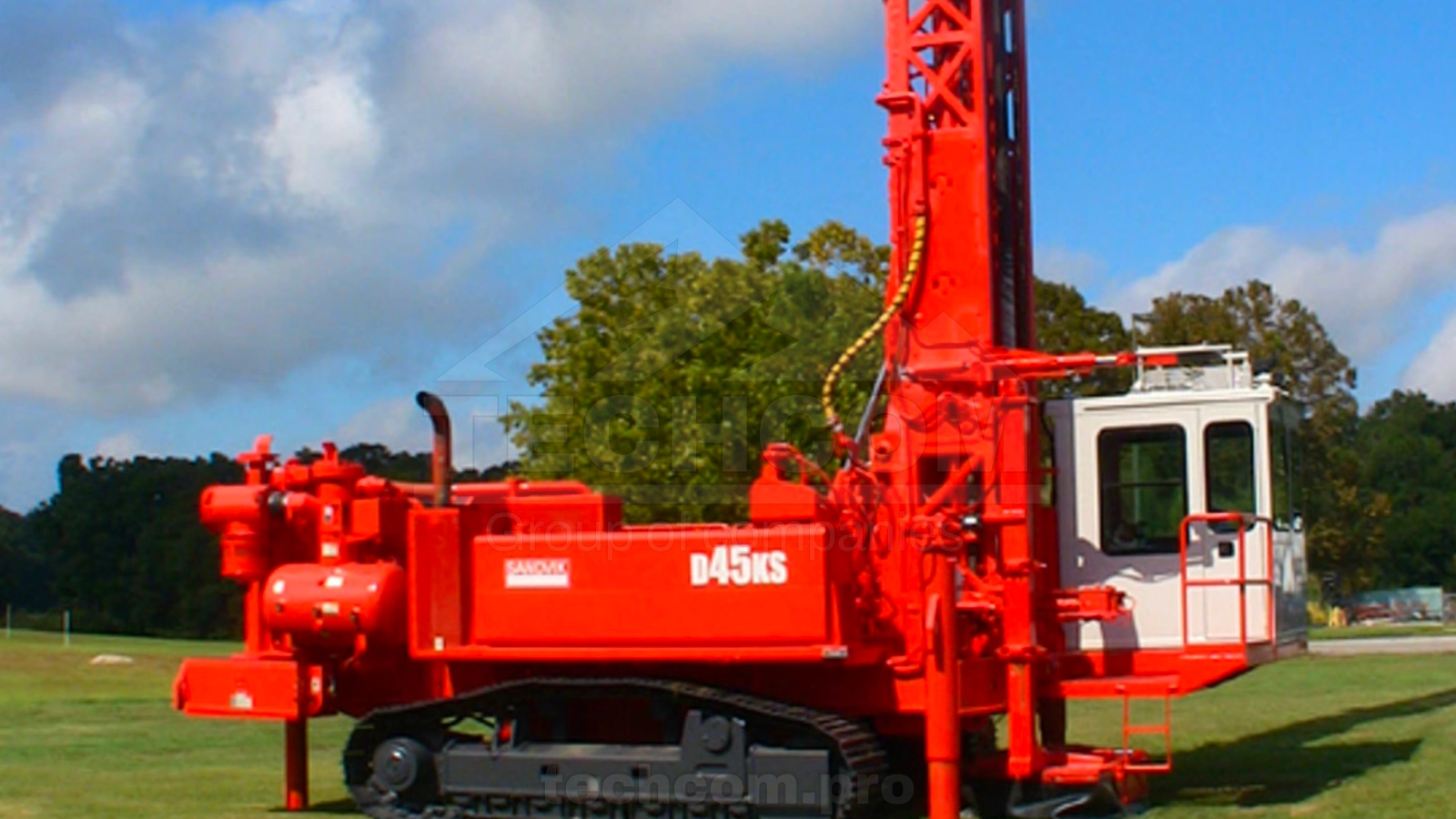

Drilling Rig Sandvik D45KS
The Sandvik D45KS is a diesel-powered, self-propelled down-the-hole drilling rig designed for surface mining and large-scale quarrying operations. Equipped with a high-pressure air compressor and mounted on a heavy-duty crawler undercarriage, the machine delivers reliable performance and efficient production drilling in demanding environments.
Designed for hole diameters from 165 to 222 mm, the Sandvik D45KS provides first-pass depths of 8.7 m and maximum hole depths of up to 63 m. Its 447 kW diesel engine, robust feed system and high-torque rotary head ensure excellent penetration rates, dependable operation and high productivity for blast hole drilling applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Drilling Method | Down-the-hole (DTH) |
| Recommended Hole Diameter | 165–222 mm |
| First Pass Hole Depth | 8.7 m |
| Maximum Hole Depth | 63 m |
| Drill Pipe Length | 9.14 m |
| Maximum Pulldown Force | 200 kN |
| Maximum Bit Load | 244 kN |
| Feed Rate | 0–38 m/min |
| Engine Power | 447 kW (600 hp) |
| Fuel Tank Capacity | 1,105 l |
| Air Compressor Capacity | 28.3 m³/min |
| Working Pressure | 24.1 bar |
| Hydraulic Oil Reservoir | 511 l |
| Rotary Head Speed | 125 rpm |
| Maximum Torque | 9,934 Nm |
| Undercarriage | Sandvik S30HD crawler undercarriage |
| Track Width | 750 mm |
| Maximum Travel Speed | 3.2 km/h |
| Gradeability | 33° |
| Mast Height | 14.3 m |
| Operating Width | 4.42 m |
| Base Unit Weight | 39,917 kg |
| Operating Weight | 47,726 kg |
Looking for genuine Sandvik spare parts? Contact our specialists to obtain pricing, availability and technical support for your Sandvik drilling equipment.
