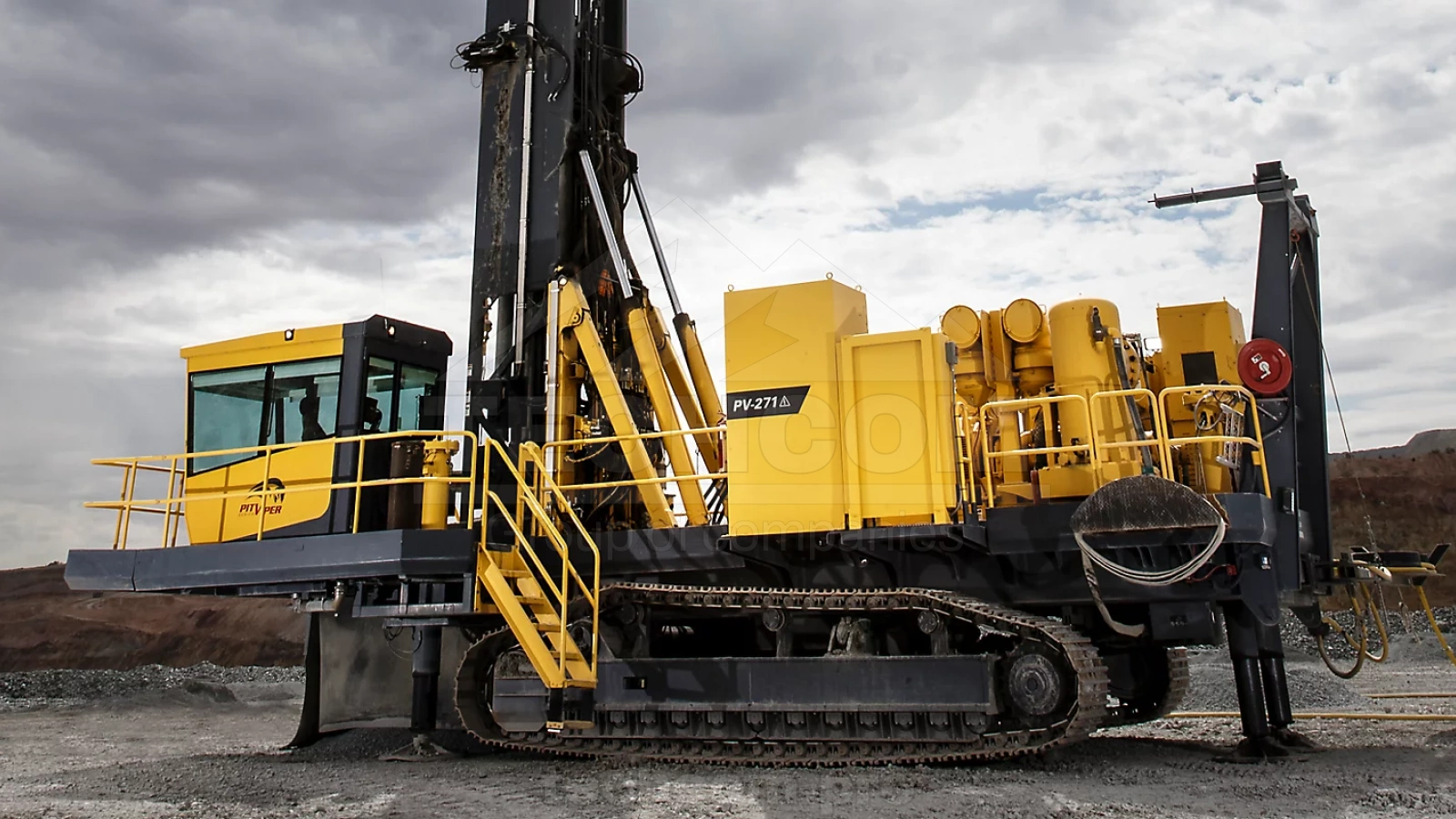

Rotary blasthole drill Epiroc Pit Viper 271
The Epiroc Pit Viper 271 is a high-performance rotary blasthole drill designed for single-pass drilling in surface mining operations. The machine supports both rotary tricone drilling and down-the-hole (DTH) methods, delivering reliable performance in demanding conditions across applications such as gold, copper, coal and iron ore mining.
With single-pass capability up to 16.8–18 m and hole diameters from 171 to 270 mm, the Pit Viper 271 delivers high productivity with pulldown force up to 311 kN and weight on bit up to 34 tonnes. The integration of the EARS (Electronic Air Regulation System) and a patented automatic cable tensioning system increases component life and reduces total operating costs.
Technical specifications – Pit Viper 271
| Parameter | Value |
|---|---|
| Application | Rotary blasthole drilling for surface mining |
| Drilling method | Rotary (tricone) and DTH |
| Hole diameter range | 171–270 mm |
| Single-pass depth | Up to 16.8–18 m |
| Maximum hole depth | Up to 32 m |
| Weight on bit | Up to 34,800 kg (up to 42,500 kg with XC package) |
| Pulldown force | 0–311 kN |
| Pullback force | 0–156 kN |
| Rotation speed | Optimized for high penetration rates |
| Air system | EARS electronic air regulation system |
| Power options | Diesel or electric drive |
| Special features | Automatic cable tensioning system, heavy-duty design, extended service intervals |
The Pit Viper 271 can be configured with the XC (extra capacity) package, increasing weight on bit up to 42.5 tonnes and enhancing drilling efficiency for the most demanding applications. Its modular design and wide range of options allow precise adaptation to specific project requirements.
TechCom supplies spare parts for Epiroc Pit Viper 271 drilling rig, including rotary head components, compressor units, hydraulic systems and structural elements to ensure reliable operation, reduced downtime and stable drilling performance.
