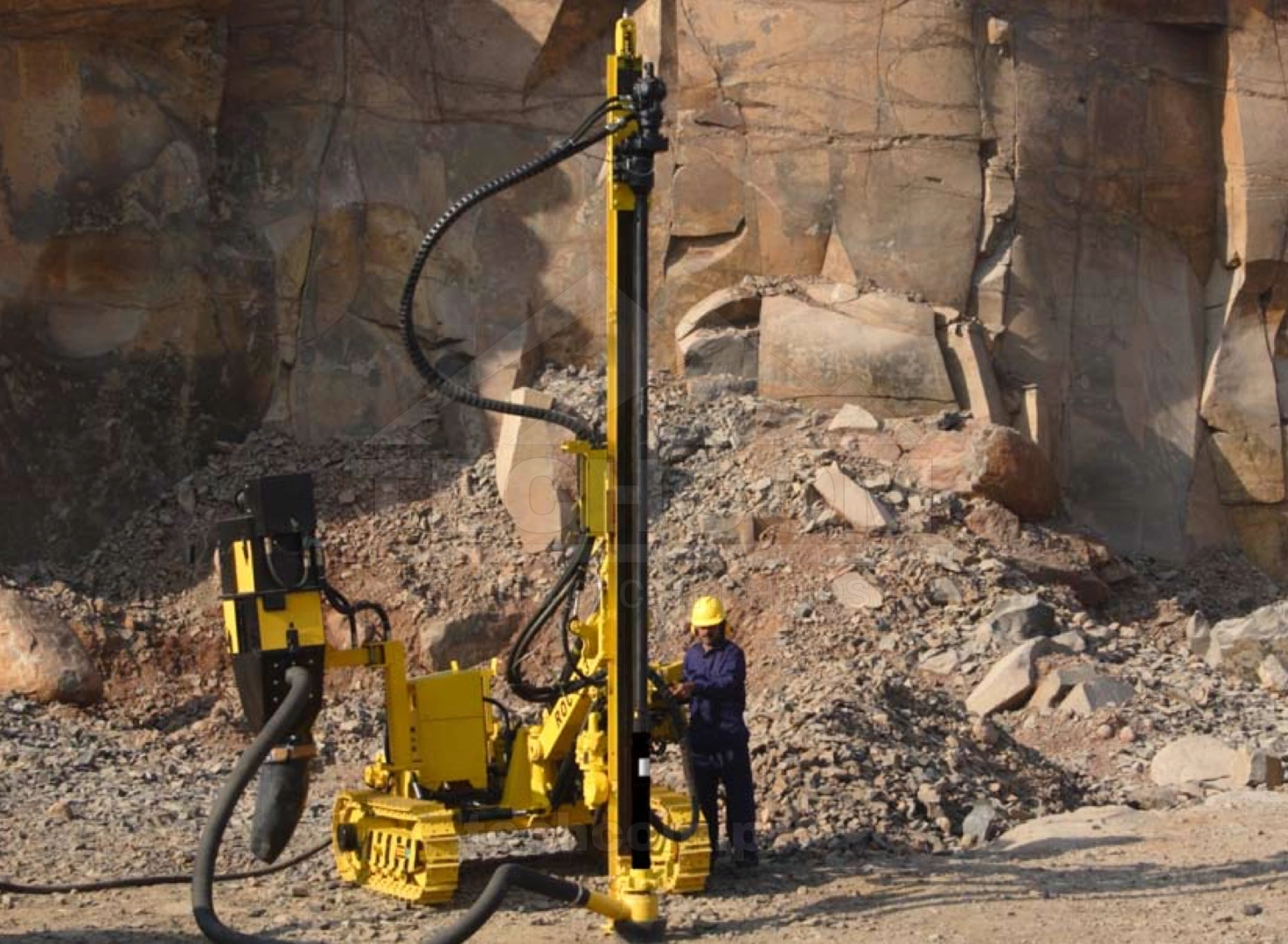

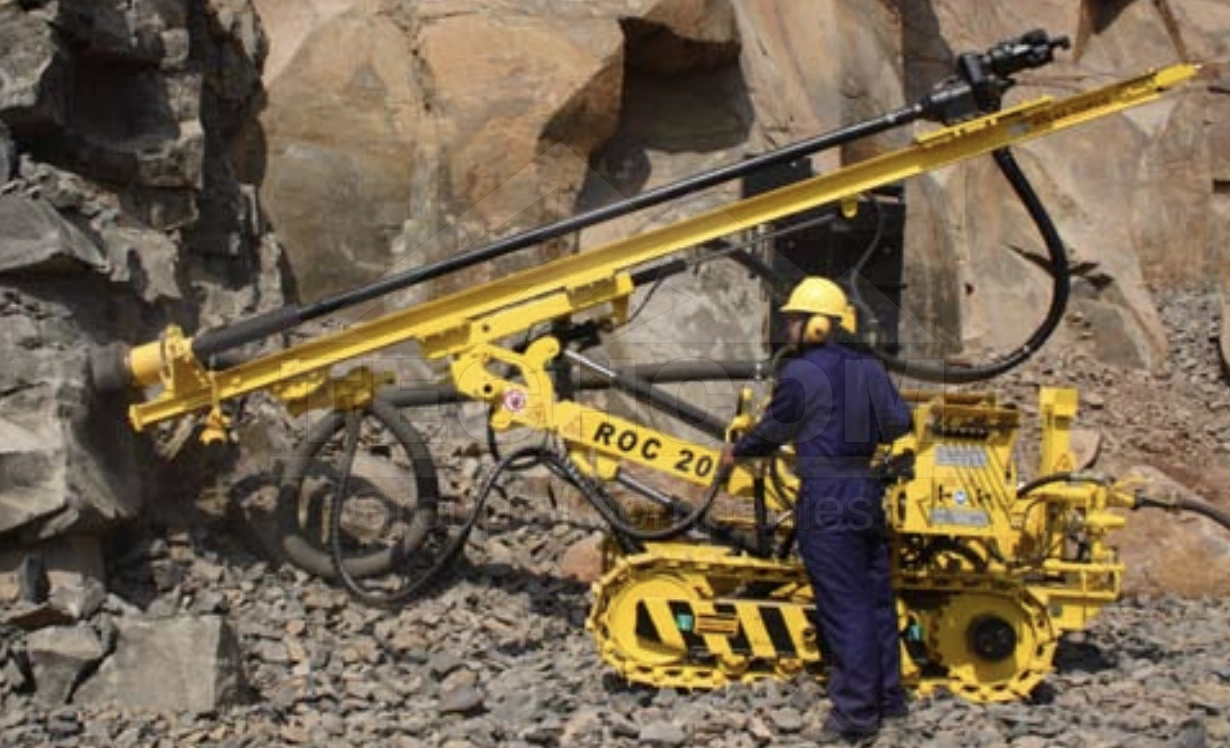

Pneumatic Drilling Rig Epiroc ROC 203PC-TH

The ROC 203PC-TH from Epiroc (Atlas Copco) is a compact, air-powered surface rig designed for blast hole production, trenching, and consolidation work. It supports hole diameters from 48 to 76 mm and is equipped with the high-performance pneumatic rock tool BBC 120F — the most powerful in the Epiroc top-hammer range.

This machine is an excellent choice for operations in confined spaces thanks to its compact size, maneuverable feed system, and low transport weight (2350 kg). The rig can be moved easily without requiring specialized transport. The swingable control panel ensures ergonomic operation, while wide access to all service points makes routine maintenance simple and efficient.

Key Benefits

• Designed for hole diameters between 48–76 mm (1 7/8"–3")

• Fitted with a high-performance BBC 120F pneumatic rock drill for efficient impact energy transfer

• Supports R32, R38, and T38 drill rods; available in 3.0 m and 3.6 m lengths

• Feed travel reaches 3740 mm; total feed length extends to 5430 mm

• Maximum feed force: 8 kN
• Traction force: 18.8 kN; max speed: 2.5 km/h
• ±12° track oscillation; 295 mm ground clearance
• Can be optionally configured with a DCT 60 dust collector

• Can be reconfigured for DTH drilling with hole diameters up to 130 mm

Versatility and Conversion

The ROC 203PC is available in both top-hammer and down-the-hole variants. Conversion kits are available to switch between modes, making this rig a truly flexible investment. Its boom offset and swing-arm mechanism support efficient drilling at sharp angles and in toe-hole applications.

Whether you're working in urban environments, narrow trench zones, or remote construction sites, the ROC 203PC-TH offers unmatched mobility, reliability, and ease of use. Epiroc genuine spare parts and consumables ensure long-term durability and quick servicing on site.

Need assistance choosing the right setup? Our team will help tailor a configuration and provide detailed pricing. Request a consultation.
