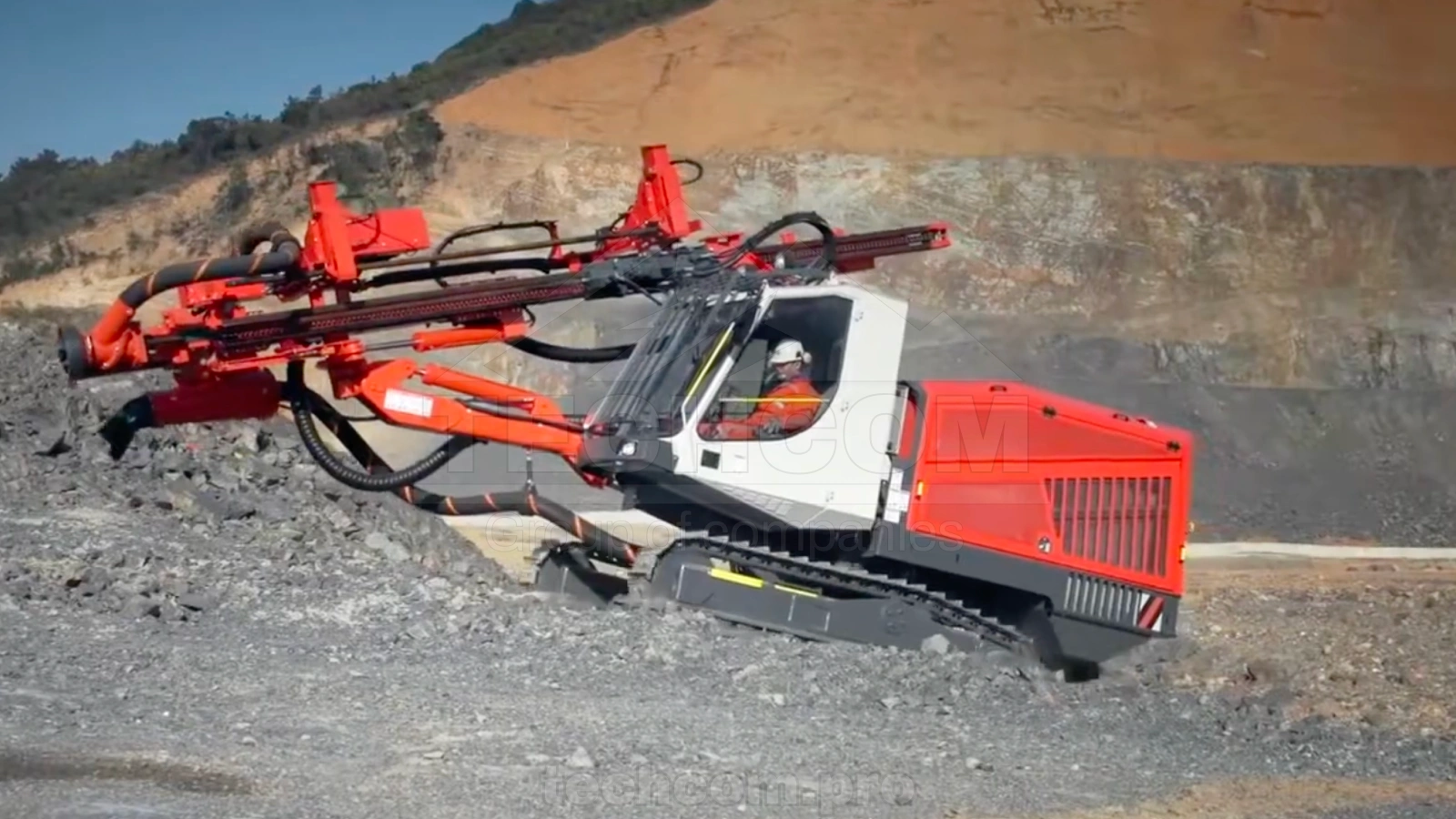

Sandvik Tiger DG700 Surface Top Hammer Drill
Sandvik Tiger DG700 is a self-contained crawler-mounted surface drilling rig engineered for quarrying, civil engineering and infrastructure drilling operations. The machine combines a hydraulic top hammer drilling system, onboard air compressor, protected operator cabin and automated rod handling equipment in a compact platform designed for demanding outdoor working environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Surface top hammer drill |
| Hole Diameter | 64 – 115 mm |
| Rock Tools | 38 / 45 / 51 mm rods |
| Hydraulic Rock Drill | HL710 |
| Rock Drill Power | 19.5 kW |
| Feed System | CF145H |
| Rod Handler | RH714 |
| Control System | THC700 |
| Carrier Type | Crawler mounted |
| Engine Output | 179 kW |
| Flushing Air Capacity | 8.1 m³/min up to 10 bar |
| Production Capacity | Approx. 1.0 Mt/year |
| Cabin Protection | FOPS / ROPS with air conditioning |
| Dust Collector | DC800H hydraulic dust collector |
| Working Lights | 8 pcs |
| Total Weight | 14 700 kg |
| Transport Width | 2.45 m |
| Transport Height | 3.95 m / 2.96 m |
| Transport Length | 8.40 m / 9.57 m |
Spare parts for Sandvik Tiger DG700 are available from stock, including components for the HL710 rock drill, CF145H feed system, RH714 rod handler, hydraulic systems, crawler undercarriage and drilling controls. If the required component is not listed in the catalog, contact our team for assistance in selecting original and OEM-compatible spare parts for your drilling equipment.
